Ferrari 575M Maranello - INSTRUMENTS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
211860 COMPLETE INSTRUMENT BOARD $6,052.53 To Order
211863 COMPLETE INSTRUMENT BOARD $6,569.21 To Order
211859 COMPLETE INSTRUMENT BOARD $4,893.43 To Order
...and 8 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
15687270 SCREW $0.37 To Order
Photo Part No Description Price (each) Stock
12638124 WASHER $0.05 IN STOCK
Photo Part No Description Price (each) Stock
67112700 FELT $0.16 To Order
Photo Part No Description Price (each) Stock
64692400 SUNLIGHT SENSOR $172.19 To Order
Photo Part No Description Price (each) Stock
184678 LOUD SPEAKER TWEETER $40.62 To Order
184679 LOUD SPEAKER TWEETER $74.35 To Order
Photo Part No Description Price (each) Stock
63994500 SENSOR GRILLE $8.66 IN STOCK
Photo Part No Description Price (each) Stock
63934200 PASSENGER COMPARTMENT INTERNAL TEMPERATURE SENSOR $108.32 To Order
Photo Part No Description Price (each) Stock
63994700 SENSOR SUPPORT WASHER $5.17 IN STOCK
Photo Part No Description Price (each) Stock
63994600 WASHER $4.73 To Order
Photo Part No Description Price (each) Stock
15915977 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
255515 BUSH $2.07 IN STOCK
Photo Part No Description Price (each) Stock
66280400 A.C. CONTROL DASHBOARD $1,981.60 To Order
66403300 A.C. CONTROL DASHBOARD $1,903.90 To Order
Photo Part No Description Price (each) Stock
182899 L.H. SWITCH FOR GLASS LIFT $101.46 To Order
Photo Part No Description Price (each) Stock
180732 ASR EXCLUSION CONTROL SWITCH $77.00 IN STOCK
Photo Part No Description Price (each) Stock
180735U SPORT SWITCH Enquire To Order
Photo Part No Description Price (each) Stock
180734 HEATED REAR SCREEN BUTTON $138.03 To Order
Photo Part No Description Price (each) Stock
180733 REAR FOG LIGHT CONTROL BUTTON $129.96 IN STOCK
69663900 FAKE TAP $12.50 IN STOCK
Photo Part No Description Price (each) Stock
182932 PARKING LIGHTS SWITCH $79.61 To Order
Photo Part No Description Price (each) Stock
182898 R.H. SWITCH FOR GLASS LIFT $99.47 To Order
Photo Part No Description Price (each) Stock
62771900 SCREW $0.28 IN STOCK
Photo Part No Description Price (each) Stock
12637824 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
155751 CLIP $4.39 To Order
Photo Part No Description Price (each) Stock
13046011 NUT $0.39 To Order
Photo Part No Description Price (each) Stock
12637824 WASHER $0.06 IN STOCK
View All

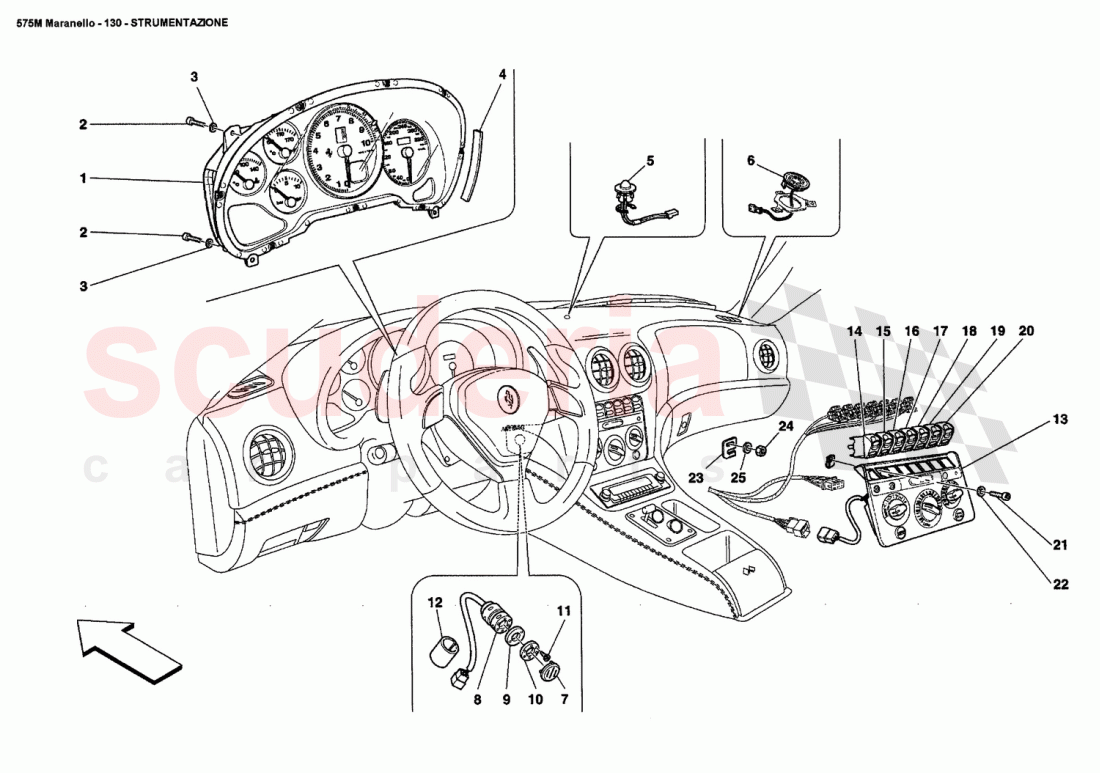

INSTRUMENTS of Ferrari Ferrari 575M Maranello Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 211860
COMPLETE INSTRUMENT BOARD 		$6,052.53 1
1 211863
COMPLETE INSTRUMENT BOARD 		$6,569.21 1
1 211859
COMPLETE INSTRUMENT BOARD 		$4,893.43 1
1 211862
COMPLETE INSTRUMENT BOARD
Carbon- -Optional 		$6,569.21 1
1 211862
COMPLETE INSTRUMENT BOARD 		$6,569.21 1
1 211860
COMPLETE INSTRUMENT BOARD
Valid for GB 		$6,052.53 1
1 211861
COMPLETE INSTRUMENT BOARD 		$6,067.86 1
1 211859
COMPLETE INSTRUMENT BOARD
Valid for USA / Not for cars with metrical system 		$4,893.43 1
1 211858
COMPLETE INSTRUMENT BOARD
BOARD / Valid for cars with metrical system / Valid till stock exhaustion 		$4,986.04 1
1 211858
COMPLETE INSTRUMENT BOARD 		$4,986.04 1
1 211861
COMPLETE INSTRUMENT BOARD
Carbon / Optional 		$6,067.86 1
2 15687270
SCREW 		$0.37 (26% off) 4
3 12638124
WASHER
IN STOCK 		$0.05 (92.9% off) 4
4 67112700
FELT 		$0.16 2
5 64692400
SUNLIGHT SENSOR 		$172.19 1
6 184678
LOUD SPEAKER TWEETER 		$40.62 2
6 184679
LOUD SPEAKER TWEETER
Valid for high power HI Fl 		$74.35 2
7 63994500
SENSOR GRILLE
IN STOCK 		$8.66 (29.8% off) 1
8 63934200
PASSENGER COMPARTMENT INTERNAL TEMPERATURE SENSOR
TEMPERATURE SENSOR 		$108.32 (5.9% off) 1
9 63994700
SENSOR SUPPORT WASHER
IN STOCK 		$5.17 1
10 63994600
WASHER 		$4.73 1
11 15915977
SCREW 		$0.31 (48.3% off) 2
12 255515
BUSH
IN STOCK 		$2.07 1
13 66280400
A.C. CONTROL DASHBOARD
Not for USA and CDN 		$1,981.60 1
13 66403300
A.C. CONTROL DASHBOARD
Valid for USA and CDN 		$1,903.90 (23.7% off) 1
14 182899
L.H. SWITCH FOR GLASS LIFT 		$101.46 (22.2% off) 1
15 180732
ASR EXCLUSION CONTROL SWITCH
IN STOCK 		$77.00 1
16 180735U
SPORT SWITCH 		- 1 Enquire
17 180734
HEATED REAR SCREEN BUTTON
DEFROSTER 		$138.03 1
18 180733
REAR FOG LIGHT CONTROL BUTTON
SWITCH
IN STOCK 		$129.96 1
18 69663900
FAKE TAP
IN STOCK 		$12.50 1
19 182932
PARKING LIGHTS SWITCH 		$79.61 1
20 182898
R.H. SWITCH FOR GLASS LIFT 		$99.47 (25.9% off) 1
21 62771900
SCREW
IN STOCK 		$0.28 2
22 12637824
WASHER
IN STOCK 		$0.06 (88% off) 2
23 155751
CLIP 		$4.39 (11.3% off) 1
24 13046011
NUT 		$0.39 1
25 12637824
WASHER
IN STOCK 		$0.06 (88% off) 1
