Name: INNER TRIMS
Rating: 4.1 (1 reviews)

INNER TRIMS of Ferrari Ferrari 575M Maranello

View All

Ferrari 575M Maranello - INNER TRIMS

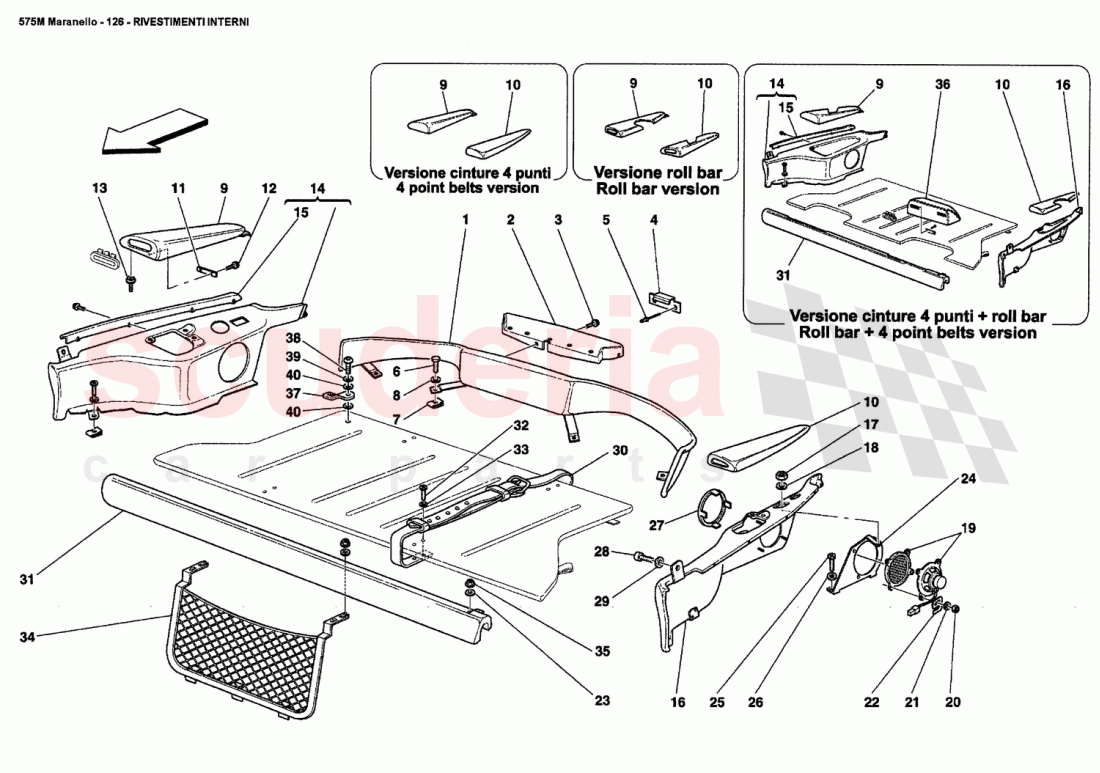

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	652756	UNDER REAR-WINDOW COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	651878	STOP LAMP SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15782601	SCREW	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	64946300	STOP LAMP TIGHTENING SUPPORT	$20.84	To Order

Photo	Part No	Description	Price (each)	Stock
	14643890	RIVET	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	15803007	SCREW	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	14371974	BRACKET	$2.06	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	$0.05	To Order

Photo	Part No	Description	Price (each)	Stock
	655781	R.H. BELT COVER	Enquire	To Order
	655697	R.H. BELT COVER	Enquire	To Order
	655746	R.H. BELT COVER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	655782	L.H. BELT COVER	Enquire	To Order
	645841	L.H. BELT COVER	Enquire	To Order
	655698	LH. BELT COVER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	64590900	PLATE	$3.52	To Order

Photo	Part No	Description	Price (each)	Stock
	15901375	SCREW	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	66092400	PLASTIC TRIM CLIP	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	664666	R.H. REAR COVER	Enquire	To Order
	661652	R.H. REAR COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	645898	R.H. LOWER MOULDING	Enquire	To Order
	645839	L.H. LOWER MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	661653	L.H. REAR COVER	Enquire	To Order
	664672	L.H. REAR COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13046011	NUT	$0.39	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	$0.05	To Order

Photo	Part No	Description	Price (each)	Stock
	10794014	NUT	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	175856	CONNECTOR FASTENER BRACKET	$2.43	To Order

Photo	Part No	Description	Price (each)	Stock
	860172	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66284900	LH LOUD SPEAKER SUPPORTING BRACKET	$144.40	To Order
	66284800	RH LOUD SPEAKER SUPPORTING BRACKET	$144.40	To Order

Photo	Part No	Description	Price (each)	Stock
	16084201	SCREW	$1.65	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	$0.05	To Order

Photo	Part No	Description	Price (each)	Stock
	66285000	RING NUT MOULDING	$51.69	To Order

Photo	Part No	Description	Price (each)	Stock
	16084201	SCREW	$1.65	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	$0.05	To Order

Photo	Part No	Description	Price (each)	Stock
	660816	COMPLETE BELT FOR SUIT CASE FASTENING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	651224	BAGS RETAINING MOULDING	Enquire	To Order
	655694	BAGS RETAINING MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13272077	SCREW	$1.70	To Order

Photo	Part No	Description	Price (each)	Stock
	12611307	WASHER	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	649231	SEAT BACK POCKET	Enquire	To Order
	658182	SEAT BACK POCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	656406	DASH BOARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66612100	BRACKET FOR BELT COUPLER	$123.54	To Order

Photo	Part No	Description	Price (each)	Stock
	66624800	SCREW	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	13550405	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	652756	UNDER REAR-WINDOW COVER	652756 UNDER REAR-WINDOW COVER	-	1	Enquire
2	651878	STOP LAMP SUPPORT	651878 STOP LAMP SUPPORT	-	1	Enquire
3	15782601	SCREW	15782601 SCREW	$0.16	3
4	64946300	STOP LAMP TIGHTENING SUPPORT	64946300 STOP LAMP TIGHTENING SUPPORT	$20.84	1
5	14643890	RIVET	14643890 RIVET	$0.28	2
6	15803007	SCREW	15803007 SCREW	$0.57	4
7	14371974	BRACKET	14371974 BRACKET	$2.06	4
8	12638124	WASHER	12638124 WASHER	$0.05 MSRP: ~~0.70~~ (92.9% off)	4
9	655781	R.H. BELT COVER	655781 R.H. BELT COVER Valid for 4 point belts version	-	1	Enquire
9	655697	R.H. BELT COVER	655697 R.H. BELT COVER Not for USA, CDN, AUS and J / Valid for 4 point belts + roll bar / version / Optional	-	1	Enquire
9	655746	R.H. BELT COVER	655746 R.H. BELT COVER Not for USA, CDN and AUS / Vale for roll bar version	-	1	Enquire
9	645955	R.H. BELT COVER	645955 R.H. BELT COVER Not for 4 point belts + roll bar / vers ion	-	1	Enquire
10	655782	L.H. BELT COVER	655782 L.H. BELT COVER	-	1	Enquire
10	645841	L.H. BELT COVER	645841 L.H. BELT COVER	-	1	Enquire
10	655698	LH. BELT COVER	655698 LH. BELT COVER vers ion	-	1	Enquire
10	655747	L.H. BELT COVER	655747 L.H. BELT COVER Valid for roll bar version	-	1	Enquire
11	64590900	PLATE	64590900 PLATE	$3.52	2
12	15901375	SCREW	15901375 SCREW	$0.28	4
13	66092400	PLASTIC TRIM CLIP	66092400 PLASTIC TRIM CLIP	$0.28 MSRP: ~~1.00~~ (72% off)	4
14	664666	R.H. REAR COVER	664666 R.H. REAR COVER	-	1	Enquire
14	661652	R.H. REAR COVER	661652 R.H. REAR COVER Not for roll bar version	-	1	Enquire
15	645898	R.H. LOWER MOULDING	645898 R.H. LOWER MOULDING	-	1	Enquire
15	645839	L.H. LOWER MOULDING	645839 L.H. LOWER MOULDING	-	1	Enquire
16	661653	L.H. REAR COVER	661653 L.H. REAR COVER	-	1	Enquire
16	664672	L.H. REAR COVER	664672 L.H. REAR COVER	-	1	Enquire
17	13046011	NUT	13046011 NUT	$0.39	2
18	12638124	WASHER	12638124 WASHER	$0.05 MSRP: ~~0.70~~ (92.9% off)	2
19	183365	LOUD SPEAKER WOOFER	183365 LOUD SPEAKER WOOFER	$121.88	2
19	184677	LOUD SPEAKER WOOFER	184677 LOUD SPEAKER WOOFER Valid for high power HI Fl	$132.08	2
20	10794014	NUT	10794014 NUT	$0.06	4
21	62769800	WASHER	62769800 WASHER	$0.23 MSRP: ~~0.30~~ (23.3% off)	4
22	175856	CONNECTOR FASTENER BRACKET	175856 CONNECTOR FASTENER BRACKET	$2.43	2
23	860172	WASHER	860172 WASHER	-	5	Enquire
24	66284900	LH LOUD SPEAKER SUPPORTING BRACKET	66284900 LH LOUD SPEAKER SUPPORTING BRACKET	$144.40	1
24	66284800	RH LOUD SPEAKER SUPPORTING BRACKET	66284800 RH LOUD SPEAKER SUPPORTING BRACKET BRACKET	$144.40	1
25	16084201	SCREW	16084201 SCREW	$1.65	4
26	12638124	WASHER	12638124 WASHER	$0.05 MSRP: ~~0.70~~ (92.9% off)	4
27	66285000	RING NUT MOULDING	66285000 RING NUT MOULDING	$51.69	2
28	16084201	SCREW	16084201 SCREW	$1.65	2
29	12638124	WASHER	12638124 WASHER	$0.05 MSRP: ~~0.70~~ (92.9% off)	2
30	660816	COMPLETE BELT FOR SUIT CASE FASTENING	660816 COMPLETE BELT FOR SUIT CASE FASTENING CASE FASTENING	-	2	Enquire
31	651224	BAGS RETAINING MOULDING	651224 BAGS RETAINING MOULDING Not for 4 point belts version	-	1	Enquire
31	655694	BAGS RETAINING MOULDING	655694 BAGS RETAINING MOULDING	-	1	Enquire
32	13272077	SCREW	13272077 SCREW	$1.70	8
33	12611307	WASHER	12611307 WASHER	$0.11	8
34	649231	SEAT BACK POCKET	649231 SEAT BACK POCKET	-	1	Enquire
34	658182	SEAT BACK POCKET	658182 SEAT BACK POCKET	-	1	Enquire
35	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	5
36	656406	DASH BOARD	656406 DASH BOARD	-	2	Enquire
37	66612100	BRACKET FOR BELT COUPLER	66612100 BRACKET FOR BELT COUPLER Valid for USA and CDN	$123.54	1
38	66624800	SCREW	66624800 SCREW	$1.54	1
39	13550405	WASHER	13550405 WASHER	$0.06 MSRP: ~~0.20~~ (70% off)	1
40	12601374	WASHER	12601374 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	2
