TUNNEL - FRAMEWORK AND ACCESSORIES of Ferrari Ferrari 575M Maranello

View All

Ferrari 575M Maranello - TUNNEL - FRAMEWORK AND ACCESSORIES

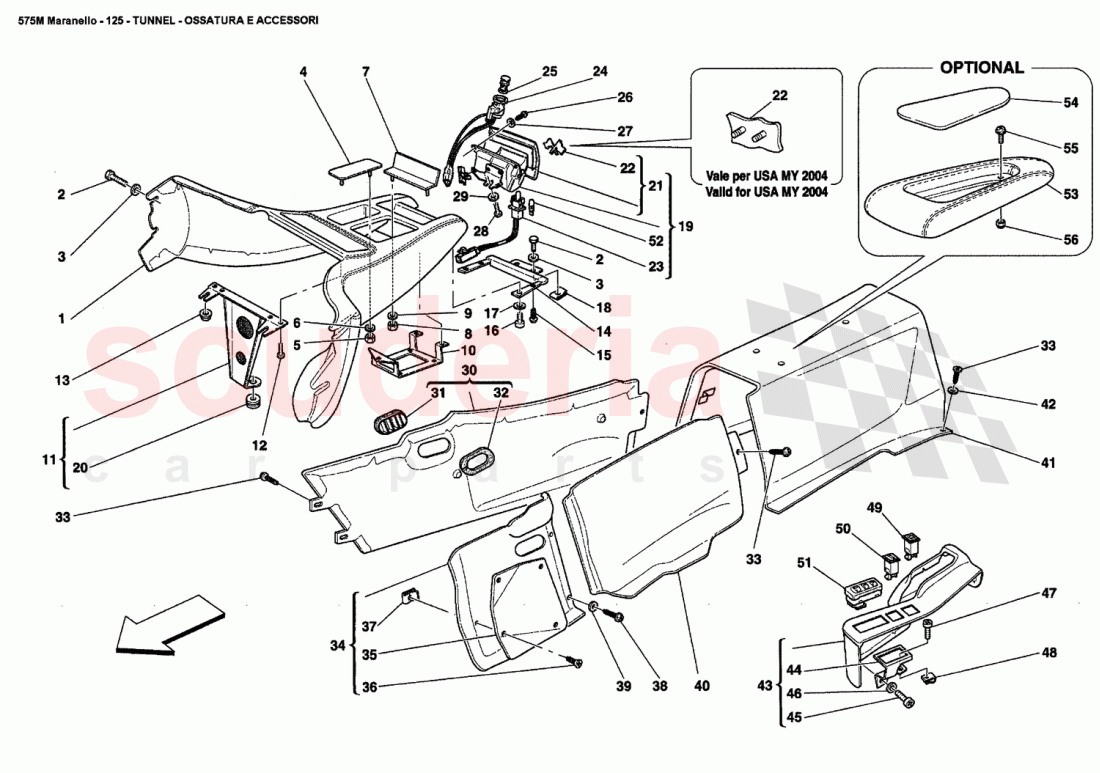

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	660850	TUNNEL CONSOLE	Enquire	To Order
	66787300	LINING	Enquire	To Order
	66835500	TUNNEL CONSOLE	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	16297024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	662271	FRONT COMPARTMENT CARPET SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13046011	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14446924	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	662274	REAR COMPARTMENT MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14499378	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65046200	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66400600	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15688875	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66228000	REAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15781977	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62766300	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66831200	COMPLETE ASH TRAY	Enquire	To Order
	66226400	COMPLETE ASH TRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10396380	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	662265	ASH TRAY DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64460400	FERRARI-PININFARINA FLAGS	Enquire	To Order
	68401600	50 YEARS USA FLAG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188731	YELLOW LIGHT LINK CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188730	CIGAR LIGHTER BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66704500	CIGARETTE LIGHTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15690678	SCREW mm. 13	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81360700	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	660878	R.H. LATERAL COVER	Enquire	To Order
	666578	R.H. LATERAL COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63783700	AIR OPENING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63783800	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62771900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	645852	COMPLETE LH FRONT LATERAL COVER	Enquire	To Order
	651109	COMPLETE LH FRONT LATERAL COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63784900	CARPET PROTECTION PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15909377	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61142100	SCREW BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15692577	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12611307	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	660877	L.H. CENTRAL LATERAL COVER	Enquire	To Order
	666574	LH. CENTRAL LATERAL COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	661674	TUNNEL REAR COVER	Enquire	To Order
	666581	TUNNEL REAR COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66837800	MOULDING FOR HAND-BRAKE LEVER	Enquire	To Order
	668327	MOULDING FOR HAND-BRAKE LEVER	Enquire	To Order
	668332	MOULDING FOR HAND-BRAKE LEVER	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	66176200	BRACKET	Enquire	To Order
	66764000	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638104	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15689601	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14371971	BRACKET FOR SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70001389	Boot/Fuel opening kit 599/612	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70001389	Boot/Fuel opening kit 599/612	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174766	SEAT MEMORIES CONTROL SWITCH PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	194307	BULB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	671283	REAR GLOVE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	671286	END PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14084111	NUT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	660850	TUNNEL CONSOLE	660850 TUNNEL CONSOLE	-	1	Enquire
1	66787300	LINING	66787300 LINING	-	1	Enquire
1	66835500	TUNNEL CONSOLE	66835500 TUNNEL CONSOLE Carbon / Optional	-	1	Enquire
1	66838300	TUNNEL CONSOLE	66838300 TUNNEL CONSOLE	-	1	Enquire
1	66838600	TUNNEL CONSOLE	66838600 TUNNEL CONSOLE	-	1	Enquire
1	660850	TUNNEL CONSOLE	660850 TUNNEL CONSOLE Not for GD	-	1	Enquire
1	66167700	LINING	66167700 LINING	-	1	Enquire
1	666395	TUNNEL CONSOLE	666395 TUNNEL CONSOLE Valid for GD / Not for F1	-	1	Enquire
1	66639800	LINING	66639800 LINING	-	1	Enquire
1	667872	TUNNEL CONSOLE	667872 TUNNEL CONSOLE Valid for F1	-	1	Enquire
2	16297024	SCREW	16297024 SCREW	-	6	Enquire
3	12643724	WASHER	12643724 WASHER	-	6	Enquire
4	662271	FRONT COMPARTMENT CARPET SHIELD	662271 FRONT COMPARTMENT CARPET SHIELD Not for GD not F1	-	1	Enquire
5	13046011	NUT	13046011 NUT	-	2	Enquire
6	14446924	WASHER	14446924 WASHER	-	2	Enquire
7	662274	REAR COMPARTMENT MOULDING	662274 REAR COMPARTMENT MOULDING	-	1	Enquire
8	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
9	14499378	WASHER	14499378 WASHER	-	2	Enquire
10	65046200	BRACKET	65046200 BRACKET	-	1	Enquire
11	66400600	BRACKET	66400600 BRACKET	-	1	Enquire
12	15688875	SCREW	15688875 SCREW	-	4	Enquire
13	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
14	66228000	REAR BRACKET	66228000 REAR BRACKET	-	1	Enquire
15	15781977	SCREW	15781977 SCREW	-	2	Enquire
16	10977624	SCREW	10977624 SCREW	-	2	Enquire
17	62769800	WASHER	62769800 WASHER	-	2	Enquire
18	62766300	CLIP	62766300 CLIP	-	2	Enquire
19	66831200	COMPLETE ASH TRAY	66831200 COMPLETE ASH TRAY	-	1	Enquire
19	66226400	COMPLETE ASH TRAY	66226400 COMPLETE ASH TRAY	-	1	Enquire
20	10396380	CABLE GROMMET	10396380 CABLE GROMMET	-	1	Enquire
21	662265	ASH TRAY DOOR	662265 ASH TRAY DOOR	-	1	Enquire
22	64460400	FERRARI-PININFARINA FLAGS	64460400 FERRARI-PININFARINA FLAGS	-	1	Enquire
22	68401600	50 YEARS USA FLAG	68401600 50 YEARS USA FLAG Valid for USA MY 2004	-	1	Enquire
23	188731	YELLOW LIGHT LINK CABLE	188731 YELLOW LIGHT LINK CABLE	-	1	Enquire
24	188730	CIGAR LIGHTER BODY	188730 CIGAR LIGHTER BODY	-	1	Enquire
25	66704500	CIGARETTE LIGHTER	66704500 CIGARETTE LIGHTER	-	1	Enquire
26	15690678	SCREW mm. 13	15690678 SCREW mm. 13	-	2	Enquire
27	81360700	WASHER	81360700 WASHER	-	2	Enquire
28	10977624	SCREW	10977624 SCREW	-	1	Enquire
29	62769800	WASHER	62769800 WASHER	-	1	Enquire
30	660878	R.H. LATERAL COVER	660878 R.H. LATERAL COVER	-	1	Enquire
30	666578	R.H. LATERAL COVER	666578 R.H. LATERAL COVER	-	1	Enquire
31	63783700	AIR OPENING	63783700 AIR OPENING	-	2	Enquire
32	63783800	GASKET	63783800 GASKET	-	2	Enquire
33	62771900	SCREW	62771900 SCREW	-	6	Enquire
34	645852	COMPLETE LH FRONT LATERAL COVER	645852 COMPLETE LH FRONT LATERAL COVER	-	1	Enquire
34	651109	COMPLETE LH FRONT LATERAL COVER	651109 COMPLETE LH FRONT LATERAL COVER	-	1	Enquire
35	63784900	CARPET PROTECTION PLATE	63784900 CARPET PROTECTION PLATE	-	1	Enquire
36	15909377	SCREW	15909377 SCREW	-	2	Enquire
37	61142100	SCREW BRACKET	61142100 SCREW BRACKET	-	2	Enquire
38	15692577	SCREW	15692577 SCREW	-	2	Enquire
39	12611307	WASHER	12611307 WASHER	-	2	Enquire
40	660877	L.H. CENTRAL LATERAL COVER	660877 L.H. CENTRAL LATERAL COVER	-	1	Enquire
40	666574	LH. CENTRAL LATERAL COVER	666574 LH. CENTRAL LATERAL COVER	-	1	Enquire
41	661674	TUNNEL REAR COVER	661674 TUNNEL REAR COVER	-	1	Enquire
41	666581	TUNNEL REAR COVER	666581 TUNNEL REAR COVER	-	1	Enquire
42	62769800	WASHER	62769800 WASHER	-	2	Enquire
43	66837800	MOULDING FOR HAND-BRAKE LEVER	66837800 MOULDING FOR HAND-BRAKE LEVER	-	1	Enquire
43	668327	MOULDING FOR HAND-BRAKE LEVER	668327 MOULDING FOR HAND-BRAKE LEVER Valid for sport seat /	-	1	Enquire
43	668332	MOULDING FOR HAND-BRAKE LEVER	668332 MOULDING FOR HAND-BRAKE LEVER Optionai	-	1	Enquire
43	66835700	MOULDING FOR HAND-BRAKE LEVER	66835700 MOULDING FOR HAND-BRAKE LEVER	-	1	Enquire
43	66837700	MOULDING FOR HAND-BRAKE LEVER	66837700 MOULDING FOR HAND-BRAKE LEVER	-	1	Enquire
43	660873	MOULDING FOR HAND-BRAKE LEVER	660873 MOULDING FOR HAND-BRAKE LEVER	-	1	Enquire
43	666339	MOULDING FOR HAND-BRAKE LEVER	666339 MOULDING FOR HAND-BRAKE LEVER	-	1	Enquire
43	66835800	MOULDING FOR HAND-BRAKE LEVER	66835800 MOULDING FOR HAND-BRAKE LEVER	-	1	Enquire
44	66176200	BRACKET	66176200 BRACKET Not for sport seat	-	1	Enquire
44	66764000	BRACKET	66764000 BRACKET	-	1	Enquire
45	10977624	SCREW	10977624 SCREW	-	2	Enquire
46	12638104	WASHER	12638104 WASHER	-	4	Enquire
47	15689601	SCREW	15689601 SCREW	-	1	Enquire
48	14371971	BRACKET FOR SCREW	14371971 BRACKET FOR SCREW	-	1	Enquire
49	70001389	Boot/Fuel opening kit 599/612	70001389 Boot/Fuel opening kit 599/612 PUSH-BUTTON	-	1	Enquire
50	70001389	Boot/Fuel opening kit 599/612	70001389 Boot/Fuel opening kit 599/612	-	1	Enquire
51	174766	SEAT MEMORIES CONTROL SWITCH PANEL	174766 SEAT MEMORIES CONTROL SWITCH PANEL SWITCH PANEL	-	1	Enquire
52	194307	BULB	194307 BULB	-	1	Enquire
53	671283	REAR GLOVE COMPARTMENT	671283 REAR GLOVE COMPARTMENT	-	1	Enquire
54	671286	END PLATE	671286 END PLATE	-	1	Enquire
55	81591700	SCREW	81591700 SCREW	-	3	Enquire
56	14084111	NUT	14084111 NUT	-	3	Enquire
