Electrical Seat - Safety Belts

Ferrari 575M Maranello

Find Your Part

Ferrari 575M Maranello - ELECTRICAL SEAT - SAFETY BELTS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
660813 LH SEAT COMPLETE WITH GUIDES Enquire To Order
672813 SEAT BACK TRIM Enquire To Order
666590 RH SEAT COMPLETE WITH GUIDES Enquire To Order
...and 15 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
672815 COMPLETE HEAD-REST Enquire To Order
672814 LINING Enquire To Order
Photo Part No Description Price (each) Stock
64025400 BUSHING $30.47 To Order
Photo Part No Description Price (each) Stock
64025500 WASHER $11.88 To Order
Photo Part No Description Price (each) Stock
672824 L.H. OUTER SIDE SHIELD Enquire To Order
672823 R.H. OUTER SIDE SHIELD Enquire To Order
672820 COMPLETE L.H. CUSHION Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
672829 CENTRAL CUSHION Enquire To Order
672830 CENTRAL CUSHION Enquire To Order
Photo Part No Description Price (each) Stock
67282500 CLIP $0.31 To Order
Photo Part No Description Price (each) Stock
67282600 WASHER $0.19 To Order
Photo Part No Description Price (each) Stock
66324000 CUSHION FASTENER CLIP $7.03 To Order
Photo Part No Description Price (each) Stock
67286400 CLIP $0.60 To Order
Photo Part No Description Price (each) Stock
67283300 CLIP $0.92 To Order
Photo Part No Description Price (each) Stock
672832 SEAT BACK CENTRAL Enquire To Order
672831 SEAT BACK CENTRAL Enquire To Order
Photo Part No Description Price (each) Stock
672836 CENTRAL MEMORY COVER Enquire To Order
Photo Part No Description Price (each) Stock
66325600 BOLSTER ADJUSTMENT KNOB $120.33 To Order
Photo Part No Description Price (each) Stock
672834 OUTER MOULDING R.H. SEAT Enquire To Order
67126700 OUTER CARBON MOULDING R.H. SEAT $978.79 To Order
672835 OUTER MOULDING L.H. SEAT Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
67283800 SCREW $1.28 To Order
Photo Part No Description Price (each) Stock
67283900 NUT $2.54 To Order
Photo Part No Description Price (each) Stock
67284000 SCREW $0.21 To Order
Photo Part No Description Price (each) Stock
67284200 PLATE $60.96 To Order
Photo Part No Description Price (each) Stock
67284300 WASHER $0.70 To Order
Photo Part No Description Price (each) Stock
64331600 COMPLETE BELT-SLIDING $8.96 To Order
Photo Part No Description Price (each) Stock
67281600 SCREW $0.57 To Order
Photo Part No Description Price (each) Stock
64341400 PLUG FOR SCREW $0.92 To Order
Photo Part No Description Price (each) Stock
66401400 L.H. BRACKET $141.09 To Order
66401300 R.H. BRACKET $141.09 To Order
Photo Part No Description Price (each) Stock
16043534 SCREW M8 X 22 $0.36 IN STOCK
Photo Part No Description Price (each) Stock
84653800 WASHER $5.53 IN STOCK
Photo Part No Description Price (each) Stock
84653800 WASHER $5.53 IN STOCK
Photo Part No Description Price (each) Stock
66480300 SAFETY BELTS ASSEMBLY $528.20 To Order
66408200 SAFETY BELTS ASSEMBLY $818.33 To Order
Photo Part No Description Price (each) Stock
65629000 DRIVER SIDE BUCKLE STALK $369.04 To Order
65629100 PASSENGER SIDE BUCKLE MOUNT $256.72 To Order
Photo Part No Description Price (each) Stock
68636200 SCREW $0.78 To Order
65911400 SCREW $4.68 To Order
Photo Part No Description Price (each) Stock
66155100 COVER $5.75 To Order
View All

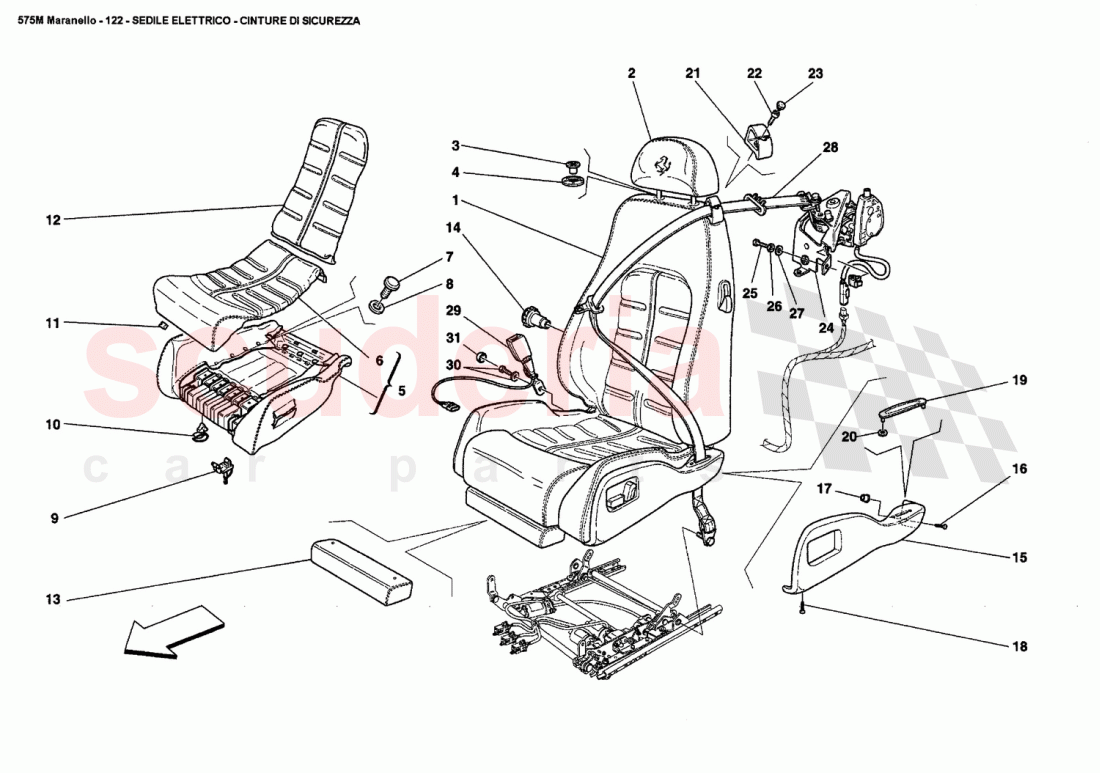

ELECTRICAL SEAT - SAFETY BELTS of Ferrari Ferrari 575M Maranello Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 660813
LH SEAT COMPLETE WITH GUIDES 		- 1 Enquire
1 672813
SEAT BACK TRIM 		- 2 Enquire
1 666590
RH SEAT COMPLETE WITH GUIDES 		- 1 Enquire
1 670825
RH SEAT COMPLETE WITH GUIDES 		- 1 Enquire
1 664685
RH SEAT COMPLETE WITH GUIDES 		- 1 Enquire
1 670819
RH SEAT COMPLETE WITH GUIDES 		- 1 Enquire
1 666592
RH SEAT COMPLETE WITH GUIDES 		- 1 Enquire
1 670827
RH SEAT COMPLETE WITH GUIDES 		- 1 Enquire
1 664694
LH SEAT COMPLETE WITH GUIDES
DAYTONA 		- 1 Enquire
1 670823
LH SEAT COMPLETE WITH GUIDES
GUIDES -DAYTONA 		- 1 Enquire
1 666704
LH SEAT COMPLETE WITH GUIDES 		- 1 Enquire
1 670831
LH SEAT COMPLETE WITH GUIDES 		- 1 Enquire
1 660812
RH SEAT COMPLETE WITH GUIDES 		- 1 Enquire
1 670817
RH SEAT COMPLETE WITH GUIDES 		- 1 Enquire
1 660813
LH SEAT COMPLETE WITH GUIDES
GUIDES / Not for GD 		- 1 Enquire
1 670821
LH SEAT COMPLETE WITH GUIDES
Carbon / Optional 		- 1 Enquire
1 666702
LH SEAT COMPLETE WITH GUIDES
Valid for GD 		- 1 Enquire
1 670829
LH SEAT COMPLETE WITH GUIDES 		- 1 Enquire
2 672815
COMPLETE HEAD-REST 		- 2 Enquire
2 672814
LINING 		- 2 Enquire
3 64025400
BUSHING 		$30.47 4
4 64025500
WASHER 		$11.88 4
5 672824
L.H. OUTER SIDE SHIELD 		- 1 Enquire
5 672823
R.H. OUTER SIDE SHIELD 		- 1 Enquire
5 672820
COMPLETE L.H. CUSHION 		- 1 Enquire
5 672817
COMPLETE R.H. CUSHION 		- 1 Enquire
5 672819
COMPLETE R.H. CUSHION 		- 1 Enquire
5 672822
L.H. INNER SIDE SHIELD 		- 1 Enquire
5 672821
R.H. INNER SIDE SHIELD 		- 1 Enquire
5 672818
COMPLETE L.H. CUSHION 		- 1 Enquire
6 672829
CENTRAL CUSHION 		- 2 Enquire
6 672830
CENTRAL CUSHION 		- 2 Enquire
7 67282500
CLIP 		$0.31 16
8 67282600
WASHER 		$0.19 16
9 66324000
CUSHION FASTENER CLIP 		$7.03 4
10 67286400
CLIP 		$0.60 4
11 67283300
CLIP 		$0.92 4
12 672832
SEAT BACK CENTRAL 		- 2 Enquire
12 672831
SEAT BACK CENTRAL 		- 2 Enquire
13 672836
CENTRAL MEMORY COVER
Driver side 		- 1 Enquire
14 66325600
BOLSTER ADJUSTMENT KNOB 		$120.33 2
15 672834
OUTER MOULDING R.H. SEAT 		- 1 Enquire
15 67126700
OUTER CARBON MOULDING R.H. SEAT 		$978.79 1
15 672835
OUTER MOULDING L.H. SEAT 		- 1 Enquire
15 67126800
OUTER CARBON MOULDING L.H. SEAT
Valid for carbon seat version / 		$978.79 1
16 67283800
SCREW 		$1.28 2
17 67283900
NUT 		$2.54 2
18 67284000
SCREW 		$0.21 2
19 67284200
PLATE 		$60.96 2
20 67284300
WASHER 		$0.70 4
21 64331600
COMPLETE BELT-SLIDING 		$8.96 2
22 67281600
SCREW 		$0.57 2
23 64341400
PLUG FOR SCREW 		$0.92 2
24 66401400
L.H. BRACKET 		$141.09 1
24 66401300
R.H. BRACKET 		$141.09 1
25 16043534
SCREW M8 X 22
IN STOCK 		$0.36 6
26 84653800
WASHER
IN STOCK 		$5.53 6
27 84653800
WASHER
IN STOCK 		$5.53 6
28 66480300
SAFETY BELTS ASSEMBLY
Not for USA and CDN 		$528.20 1
28 66408200
SAFETY BELTS ASSEMBLY
Valid for USA and CDN 		$818.33 (26.4% off) 1
29 65629000
DRIVER SIDE BUCKLE STALK 		$369.04 1
29 65629100
PASSENGER SIDE BUCKLE MOUNT 		$256.72 1
30 68636200
SCREW 		$0.78 2
30 65911400
SCREW
Not as spare part / Replaced by 68636200 		$4.68 2
31 66155100
COVER 		$5.75 (25.9% off) 2
