F1 Clutch Hydraulic Control -Valid For F1-

Ferrari 575M Maranello

Find Your Part

Ferrari 575M Maranello - F1 CLUTCH HYDRAULIC CONTROL -Valid for F1-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
247224 HYDRAULIC ACTUATOR KIT Enquire To Order
Photo Part No Description Price (each) Stock
184110 INFERIOR BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
184109 UPPER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
179300 PIN -Not as spare part- -Replaced by 230706- Enquire To Order
Photo Part No Description Price (each) Stock
169222 BALL JOINT Enquire To Order
Photo Part No Description Price (each) Stock
179679 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10730321 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 Enquire To Order
Photo Part No Description Price (each) Stock
231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 Enquire To Order
Photo Part No Description Price (each) Stock
10569374 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
194027 OIL RECYCLE TUBE Enquire To Order
Photo Part No Description Price (each) Stock
185087 PIPE (EV1) Enquire To Order
Photo Part No Description Price (each) Stock
185088 PIPE (EV2) Enquire To Order
Photo Part No Description Price (each) Stock
185089 PIPE (EV3) Enquire To Order
Photo Part No Description Price (each) Stock
185090 PIPE (EV4) Enquire To Order
Photo Part No Description Price (each) Stock
185091 PIPE (EV5) Enquire To Order
Photo Part No Description Price (each) Stock
171454 PIPE UNION Enquire To Order
204543 UNION -Fixing EV3, EV4 and EV5 to actuator- Enquire To Order
204545 UNION -Fixing EV3, EV4 and EV5 to power unit- Enquire To Order
Photo Part No Description Price (each) Stock
10261060 GASKET COPPER 12 - 16 X 1.5 Enquire To Order
Photo Part No Description Price (each) Stock
193714 PIPES SUPPORTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
12638524 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
61712500 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
185093 PIPE FROM VALVE SET TO BLOCK Enquire To Order
Photo Part No Description Price (each) Stock
175667 BLOCK Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
10519424 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
70001184 FEMALE COUPLING -Not as spare part- -Replaced by 210469- Enquire To Order
210468 QUICK MALE COUPLING Enquire To Order
Photo Part No Description Price (each) Stock
171755 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
171630 UNION-Valid for F1- Enquire To Order
Photo Part No Description Price (each) Stock
10261060 GASKET COPPER 12 - 16 X 1.5 Enquire To Order
Photo Part No Description Price (each) Stock
152954 BLEED NIPPLE SCREW Enquire To Order
Photo Part No Description Price (each) Stock
152955 PROTECTIVE CAP Enquire To Order
Photo Part No Description Price (each) Stock
184119 BELLOW Enquire To Order
Photo Part No Description Price (each) Stock
13127070 COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
183816 FRONT LOWER CROSS MEMBER Enquire To Order
Photo Part No Description Price (each) Stock
10441690 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
70001184 FEMALE COUPLING -Not as spare part- -Replaced by 210469- Enquire To Order
225148 FEMALE QUICK COUPLING Enquire To Order
Photo Part No Description Price (each) Stock
170767 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
147985 NUT Enquire To Order
Photo Part No Description Price (each) Stock
10903224 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
149707 SPACER Enquire To Order
Photo Part No Description Price (each) Stock
177576 CABLE GROMMET Enquire To Order
View All

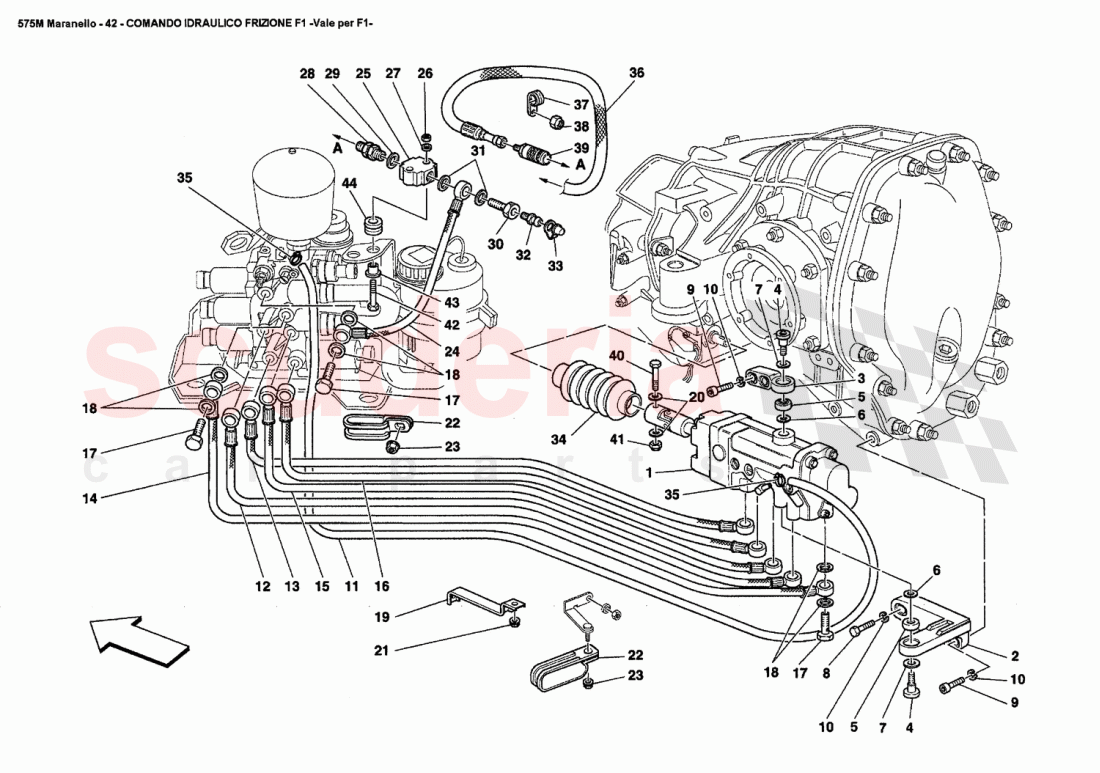

F1 CLUTCH HYDRAULIC CONTROL -Valid for F1- of Ferrari Ferrari 575M Maranello Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 185086
F1 CLUTCH HYDRAULIC CONT ROL 		- 1 Enquire
- 194327
F1 CLUTCH HYDRAULIC CONTROL
Valid from transmission Nr. 369 / Valid till gearbox Nr. 1890 		- 1 Enquire
- 212821
F1 CLUTCH HYDRAULIC CONTROL
Valid from transmission Nr. 1891 		- 1 Enquire
- 185086
F1 CLUTCH HYDRAULIC CONT ROL
Valid till transmission Nr. 368 / 		- 1 Enquire
1 247224
HYDRAULIC ACTUATOR KIT 		- 1 Enquire
2 184110
INFERIOR BRACKET
BRACKET 		- 1 Enquire
3 184109
UPPER BRACKET 		- 1 Enquire
4 179300
PIN -Not as spare part- -Replaced by 230706- 		- 2 Enquire
5 169222
BALL JOINT 		- 2 Enquire
6 179679
WASHER 		- 2 Enquire
7 10730321
WASHER 		- 2 Enquire
8 231629
SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 		- 1 Enquire
9 231629
SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 		- 3 Enquire
10 10569374
WASHER 		- 4 Enquire
11 194027
OIL RECYCLE TUBE 		- 1 Enquire
12 185087
PIPE (EV1) 		- 1 Enquire
13 185088
PIPE (EV2) 		- 1 Enquire
14 185089
PIPE (EV3) 		- 1 Enquire
15 185090
PIPE (EV4) 		- 1 Enquire
16 185091
PIPE (EV5) 		- 1 Enquire
17 171454
PIPE UNION 		- 5 Enquire
17 204543
UNION -Fixing EV3, EV4 and EV5 to actuator- 		- 6 Enquire
17 204545
UNION -Fixing EV3, EV4 and EV5 to power unit- 		- 3 Enquire
18 10261060
GASKET COPPER 12 - 16 X 1.5 		- 22 Enquire
19 193714
PIPES SUPPORTING BRACKET 		- 1 Enquire
20 12638524
WASHER 		- 2 Enquire
21 14059290
FLANGED NUT M6 		- 1 Enquire
22 61712500
BRACKET WITH SHEATH 		- 2 Enquire
23 14059290
FLANGED NUT M6 		- 2 Enquire
24 185093
PIPE FROM VALVE SET TO BLOCK 		- 1 Enquire
25 175667
BLOCK 		- 1 Enquire
26 14059290
FLANGED NUT M6 		- 2 Enquire
27 10519424
WASHER 		- 2 Enquire
28 70001184
FEMALE COUPLING -Not as spare part- -Replaced by 210469-
Not as spare part / Replaced by 210468 		- 1 Enquire
28 210468
QUICK MALE COUPLING 		- 1 Enquire
29 171755
WASHER 		- 1 Enquire
30 171630
UNION-Valid for F1- 		- 1 Enquire
31 10261060
GASKET COPPER 12 - 16 X 1.5 		- 2 Enquire
32 152954
BLEED NIPPLE SCREW 		- 1 Enquire
33 152955
PROTECTIVE CAP 		- 1 Enquire
34 184119
BELLOW 		- 1 Enquire
35 13127070
COLLAR 		- 2 Enquire
36 183816
FRONT LOWER CROSS MEMBER 		- 1 Enquire
37 10441690
BRACKET WITH SHEATH 		- 1 Enquire
38 14059290
FLANGED NUT M6 		- 1 Enquire
39 70001184
FEMALE COUPLING -Not as spare part- -Replaced by 210469-
Replaced by 210469 		- 1 Enquire
39 225148
FEMALE QUICK COUPLING 		- 1 Enquire
40 170767
SCREW 		- 1 Enquire
41 147985
NUT 		- 1 Enquire
42 10903224
SCREW 		- 2 Enquire
43 149707
SPACER 		- 2 Enquire
44 177576
CABLE GROMMET 		- 2 Enquire
