Ferrari 575M Maranello - CLUTCH AND CONTROLS -Not for F1-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
189548 RH CYLINDER BANK RPM SENSOR $103.93 To Order
189548 RH CYLINDER BANK RPM SENSOR $103.93 To Order
Photo Part No Description Price (each) Stock
189540 LH CYLINDER BANK RPM SENSOR $218.81 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
194775 Complete Clutch $3,167.69 To Order
Photo Part No Description Price (each) Stock
16296421 SCREW $25.92 To Order
Photo Part No Description Price (each) Stock
194776 CLUTCH PLATE $1,235.15 To Order
Photo Part No Description Price (each) Stock
14305974 SCREW $0.24 To Order
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 To Order
Photo Part No Description Price (each) Stock
168915 CLUTCH HOUSING Enquire To Order
151601 COMPLETE CLUTCH HOUSING $3,254.27 To Order
Photo Part No Description Price (each) Stock
13546334 STUD BOLT $1.02 To Order
Photo Part No Description Price (each) Stock
13543124 STUD BOLT $6.95 To Order
Photo Part No Description Price (each) Stock
152954 BLEED NIPPLE SCREW $6.37 To Order
Photo Part No Description Price (each) Stock
144441 CLUTCH HOUSING COVER $3.60 To Order
Photo Part No Description Price (each) Stock
144511 STOP RING $0.78 To Order
Photo Part No Description Price (each) Stock
165576 RING NUT $19.61 To Order
Photo Part No Description Price (each) Stock
165759 OIL DELIVERY TUBE $433.23 To Order
219212 OIL DELIVERY TUBE $77.00 To Order
Photo Part No Description Price (each) Stock
145805 BEARING $162.57 To Order
Photo Part No Description Price (each) Stock
165573 CLUTCH SHAFT $706.01 To Order
Photo Part No Description Price (each) Stock
165575 RING NUT $27.39 To Order
Photo Part No Description Price (each) Stock
219213 VENT PIPE $64.17 To Order
Photo Part No Description Price (each) Stock
169137 FLANGE WITH SLEEVE $797.73 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
133989 NUT $0.45 To Order
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
151693 PLATE $39.37 To Order
Photo Part No Description Price (each) Stock
10977524 SCREW $0.15 To Order
Photo Part No Description Price (each) Stock
127493 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
177202 Thrust bearing complete $794.34 To Order
Photo Part No Description Price (each) Stock
154505 SEAL RING 32MM $13.94 To Order
Photo Part No Description Price (each) Stock
154504 SEAL RING 32MM $7.42 To Order
Photo Part No Description Price (each) Stock
154550 SCRAPER RING $25.85 To Order
Photo Part No Description Price (each) Stock
154508 Sealing Ring 44mm $43.31 To Order
Photo Part No Description Price (each) Stock
154507 Ring $4.18 To Order
Photo Part No Description Price (each) Stock
154551 Scrapper Ring $28.87 To Order
Photo Part No Description Price (each) Stock
13904970 SPRING PIN $0.29 To Order
Photo Part No Description Price (each) Stock
155207 Pre-Tightening Springs $9.00 To Order
Photo Part No Description Price (each) Stock
170115 SHIELD FOR FASE SENSOR PROTECTION $465.32 To Order
Photo Part No Description Price (each) Stock
10977824 SCREW $1.94 To Order
Photo Part No Description Price (each) Stock
12604178 Washer Enquire To Order
Photo Part No Description Price (each) Stock
13540824 STUD BOLT $0.24 To Order
Photo Part No Description Price (each) Stock
155177 STUD BOLT $8.22 To Order
Photo Part No Description Price (each) Stock
155175 SPACER $1.78 To Order
Photo Part No Description Price (each) Stock
154464 SUPPORT $48.12 To Order
Photo Part No Description Price (each) Stock
12639724 WASHER $0.05 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
11199274 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
15896470 NUT $7.33 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.41 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
146654 MOUNTING $89.84 To Order
Photo Part No Description Price (each) Stock
155918 CABLE FOR ENGINE $23.39 To Order
Photo Part No Description Price (each) Stock
15896470 NUT $7.33 To Order
Photo Part No Description Price (each) Stock
11199274 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
240774 CONNECTOR $56.14 To Order
Photo Part No Description Price (each) Stock
231625 SCREW $0.65 To Order
Photo Part No Description Price (each) Stock
11181874 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
177201 Thrust Bearing $1,187.39 To Order
View All

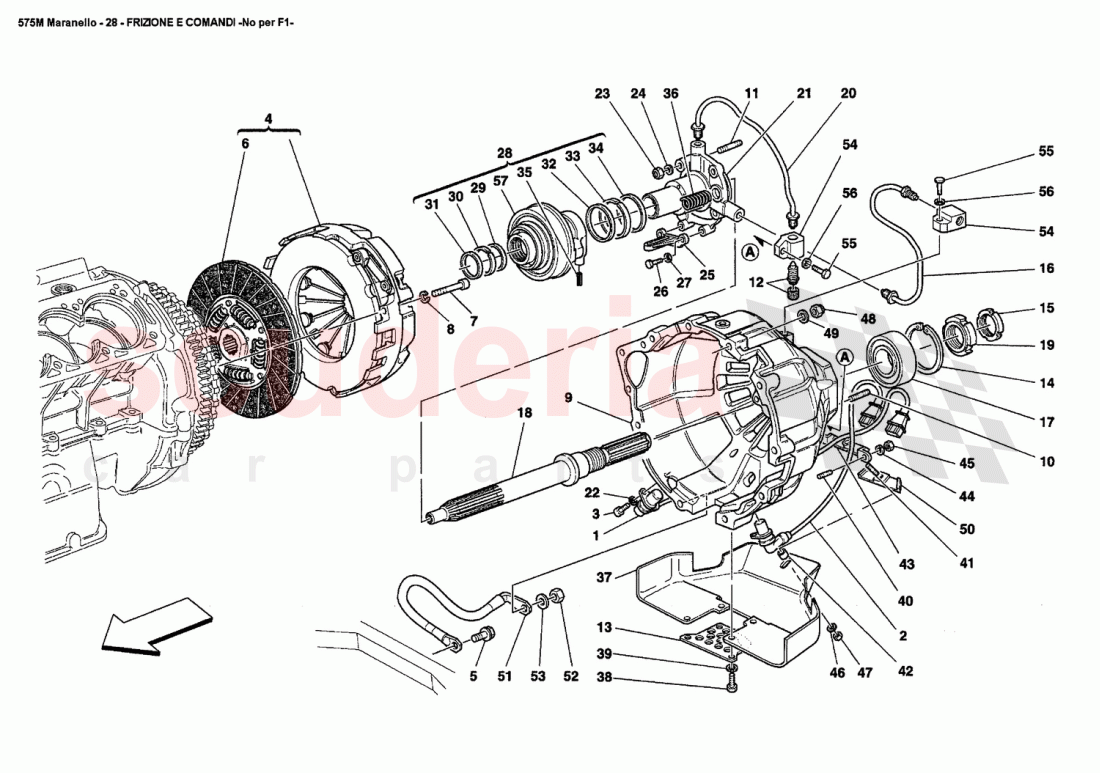

CLUTCH AND CONTROLS -Not for F1- of Ferrari Ferrari 575M Maranello Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 189548
RH CYLINDER BANK RPM SENSOR 		$103.93 1
1 189548
RH CYLINDER BANK RPM SENSOR
SENSOR 		$103.93 1
2 189540
LH CYLINDER BANK RPM SENSOR 		$218.81 1
3 248334
SCREW 		$0.68 2
4 194775
Complete Clutch 		$3,167.69 1
5 16296421
SCREW 		$25.92 1
6 194776
CLUTCH PLATE 		$1,235.15 (5.3% off) 1
7 14305974
SCREW 		$0.24 (59.3% off) 9
8 127494
WASHER 		$0.08 (88.2% off) 9
9 168915
CLUTCH HOUSING
With complete clutch housing 		- 1 Enquire
9 151601
COMPLETE CLUTCH HOUSING 		$3,254.27 1
10 13546334
STUD BOLT 		$1.02 8
11 13543124
STUD BOLT 		$6.95 4
12 152954
BLEED NIPPLE SCREW 		$6.37 1
13 144441
CLUTCH HOUSING COVER 		$3.60 (75.8% off) 1
14 144511
STOP RING 		$0.78 1
15 165576
RING NUT 		$19.61 (18.3% off) 1
16 165759
OIL DELIVERY TUBE
Replaced by 219212 		$433.23 1
16 219212
OIL DELIVERY TUBE 		$77.00 1
17 145805
BEARING 		$162.57 1
18 165573
CLUTCH SHAFT 		$706.01 1
19 165575
RING NUT 		$27.39 (25.7% off) 1
20 219213
VENT PIPE 		$64.17 1
21 169137
FLANGE WITH SLEEVE 		$797.73 1
22 11197774
WASHER 		$0.06 (80% off) 2
23 133989
NUT 		$0.45 (55% off) 4
24 127496
WASHER 		$0.06 (80% off) 4
25 151693
PLATE 		$39.37 (58.7% off) 1
26 10977524
SCREW 		$0.15 2
27 127493
WASHER 		$0.06 (80% off) 2
28 177202
Thrust bearing complete
Not as spare part now 		$794.34 1
29 154505
SEAL RING 32MM 		$13.94 (17.3% off) 1
30 154504
SEAL RING 32MM 		$7.42 1
31 154550
SCRAPER RING 		$25.85 1
32 154508
Sealing Ring 44mm 		$43.31 (20.1% off) 1
33 154507
Ring 		$4.18 (17.2% off) 1
34 154551
Scrapper Ring 		$28.87 (3.3% off) 1
35 13904970
SPRING PIN 		$0.29 (35.6% off) 1
36 155207
Pre-Tightening Springs 		$9.00 2
37 170115
SHIELD FOR FASE SENSOR PROTECTION
PROTECTION 		$465.32 1
38 10977824
SCREW 		$1.94 4
39 12604178
Washer 		- 4 Enquire
40 13540824
STUD BOLT 		$0.24 2
41 155177
STUD BOLT 		$8.22 (49.6% off) 1
42 155175
SPACER 		$1.78 (58.1% off) 1
43 154464
SUPPORT 		$48.12 1
44 12639724
WASHER 		$0.05 (90% off) 2
45 14059290
FLANGED NUT M6 		$1.51 2
46 11199274
WASHER 		$0.02 1
47 15896470
NUT 		$7.33 1
48 14040711
NUT 		$0.41 5
49 12601374
WASHER 		$0.02 (92% off) 5
50 146654
MOUNTING 		$89.84 1
51 155918
CABLE FOR ENGINE 		$23.39 1
52 15896470
NUT 		$7.33 1
53 11199274
WASHER 		$0.02 1
54 240774
CONNECTOR 		$56.14 2
55 231625
SCREW 		$0.65 2
56 11181874
WASHER 		$0.02 2
57 177201
Thrust Bearing 		$1,187.39 1
