Name: INSIDE GEARBOX CONTROLS -Not for F1-
Rating: 4.7 (1 reviews)

INSIDE GEARBOX CONTROLS -Not for F1- of Ferrari Ferrari 575M Maranello

View All

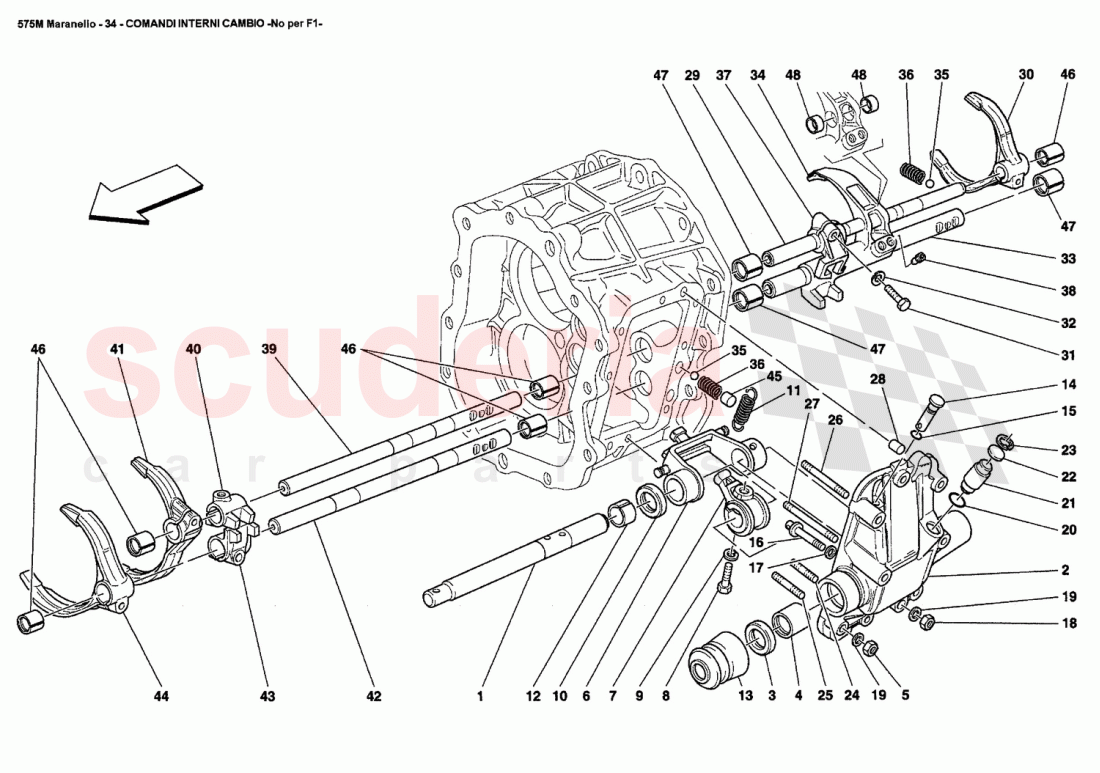

Ferrari 575M Maranello - INSIDE GEARBOX CONTROLS -Not for F1-

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	239582	GEARBOX CONTROL ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153697	INTERNAL GEARBOX CONTROL COVER	$246.09	To Order

Photo	Part No	Description	Price (each)	Stock
	146306	GEARBOX SHAFT GASKET	$2.71	To Order

Photo	Part No	Description	Price (each)	Stock
	149907	BUSHING	$35.25	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	193890	ROCKER	$233.69	To Order

Photo	Part No	Description	Price (each)	Stock
	193914	LEVER	$102.13	To Order

Photo	Part No	Description	Price (each)	Stock
	11306930	SCREW	$0.81	To Order

Photo	Part No	Description	Price (each)	Stock
	10571879	WASHER	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	147346	WASHER	$5.58	To Order

Photo	Part No	Description	Price (each)	Stock
	150737	SPRING	$34.73	To Order

Photo	Part No	Description	Price (each)	Stock
	103226	BUSHING	$10.79	To Order

Photo	Part No	Description	Price (each)	Stock
	147572	BELLOW	$141.90	To Order

Photo	Part No	Description	Price (each)	Stock
	154714	PIN	$81.45	To Order

Photo	Part No	Description	Price (each)	Stock
	132934	GASKET	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	193894	PIN	$31.27	To Order

Photo	Part No	Description	Price (each)	Stock
	10297760	GASKET	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	11194379	WASHER	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	14453381	O-RING	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	153719	ROD	$18.72	To Order

Photo	Part No	Description	Price (each)	Stock
	154698	PAD	$6.26	To Order

Photo	Part No	Description	Price (each)	Stock
	11057476	SEEGER RING	$0.08	To Order

Photo	Part No	Description	Price (each)	Stock
	13541224	STUD BOLT	$155.91	To Order

Photo	Part No	Description	Price (each)	Stock
	13541524	STUD BOLT	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	13541624	STUD BOLT	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	13542024	STUD BOLT	$26.44	To Order

Photo	Part No	Description	Price (each)	Stock
	125717	CENTRING DOWEL	$3.40	To Order

Photo	Part No	Description	Price (each)	Stock
	189527	REVERSE CONTROL ROD	$213.07	To Order

Photo	Part No	Description	Price (each)	Stock
	189528	REVERSE CONTROL FORK	$1,905.58	To Order

Photo	Part No	Description	Price (each)	Stock
	16043634	SCREW	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	$5.75	To Order

Photo	Part No	Description	Price (each)	Stock
	189531	1st AND 2nd GEAR CONTROL ROD	$107.44	To Order

Photo	Part No	Description	Price (each)	Stock
	189530	1st AND 2nd GEAR CONTROL FORK	$1,768.61	To Order

Photo	Part No	Description	Price (each)	Stock
	101612	BALL	$1.30	To Order

Photo	Part No	Description	Price (each)	Stock
	100750	SPRING	$1.96	To Order

Photo	Part No	Description	Price (each)	Stock
	193901	REVERSE CONTROL FORK	$213.07	To Order

Photo	Part No	Description	Price (each)	Stock
	142245	SCREW	$1.09	To Order

Photo	Part No	Description	Price (each)	Stock
	158051	3rd AND 4th GEAR CONTROL ROD	$213.07	To Order

Photo	Part No	Description	Price (each)	Stock
	171829	3rd AND 4th GEAR CONTROL ROD FORK	$90.99	To Order

Photo	Part No	Description	Price (each)	Stock
	261486	3rd AND 4th GEAR CONTROL FORK	$1,324.17	To Order

Photo	Part No	Description	Price (each)	Stock
	189533	5th AND 6th GEAR CONTROL ROD	$273.95	To Order

Photo	Part No	Description	Price (each)	Stock
	193902	5th AND 6th GEAR CONTROL ROD FORK	$124.79	To Order

Photo	Part No	Description	Price (each)	Stock
	189534	5th AND 6th GEAR CONTROL FORK	$1,805.12	To Order

Photo	Part No	Description	Price (each)	Stock
	150173	SHIM	$18.59	To Order

Photo	Part No	Description	Price (each)	Stock
	106500	BUSHING	$8.62	To Order

Photo	Part No	Description	Price (each)	Stock
	150093	BUSHING	$20.55	To Order

Photo	Part No	Description	Price (each)	Stock
	185566	SELF-LUBRICATING BUSHING	$7.73	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	239582	GEARBOX CONTROL ROD	239582 GEARBOX CONTROL ROD	-	1	Enquire
2	153697	INTERNAL GEARBOX CONTROL COVER	153697 INTERNAL GEARBOX CONTROL COVER COVER	$246.09	1
3	146306	GEARBOX SHAFT GASKET	146306 GEARBOX SHAFT GASKET	$2.71 MSRP: ~~4.90~~ (44.7% off)	1
4	149907	BUSHING	149907 BUSHING	$35.25	2
5	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	8
6	193890	ROCKER	193890 ROCKER	$233.69	1
7	193914	LEVER	193914 LEVER	$102.13	1
8	11306930	SCREW	11306930 SCREW	$0.81	1
9	10571879	WASHER	10571879 WASHER	$0.41	1
10	147346	WASHER	147346 WASHER	$5.58	2
11	150737	SPRING	150737 SPRING	$34.73	2
12	103226	BUSHING	103226 BUSHING	$10.79 MSRP: ~~10.95~~ (1.5% off)	2
13	147572	BELLOW	147572 BELLOW	$141.90 MSRP: ~~180.70~~ (21.5% off)	1
14	154714	PIN	154714 PIN	$81.45	1
15	132934	GASKET	132934 GASKET	$0.15	1
16	193894	PIN	193894 PIN	$31.27	1
17	10297760	GASKET	10297760 GASKET	$0.41 MSRP: ~~1.00~~ (59% off)	1
18	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
19	11194379	WASHER	11194379 WASHER	$0.32 MSRP: ~~1.05~~ (69.5% off)	9
20	14453381	O-RING	14453381 O-RING	$1.36 MSRP: ~~2.33~~ (41.6% off)	1
21	153719	ROD	153719 ROD	$18.72	1
22	154698	PAD	154698 PAD	$6.26	1
23	11057476	SEEGER RING	11057476 SEEGER RING	$0.08	1
24	13541224	STUD BOLT	13541224 STUD BOLT	$155.91	2
25	13541524	STUD BOLT	13541524 STUD BOLT	$0.65	2
26	13541624	STUD BOLT	13541624 STUD BOLT	$0.52 MSRP: ~~1.49~~ (65.1% off)	2
27	13542024	STUD BOLT	13542024 STUD BOLT	$26.44	2
28	125717	CENTRING DOWEL	125717 CENTRING DOWEL	$3.40	2
29	189527	REVERSE CONTROL ROD	189527 REVERSE CONTROL ROD	$213.07	1
30	189528	REVERSE CONTROL FORK	189528 REVERSE CONTROL FORK	$1,905.58	1
31	16043634	SCREW	16043634 SCREW	$0.23	6
32	84653800	WASHER	84653800 WASHER	$5.75	6
33	189531	1st AND 2nd GEAR CONTROL ROD	189531 1st AND 2nd GEAR CONTROL ROD	$107.44	1
34	189530	1st AND 2nd GEAR CONTROL FORK	189530 1st AND 2nd GEAR CONTROL FORK 2nd GEAR	$1,768.61	1
35	101612	BALL	101612 BALL	$1.30 MSRP: ~~1.65~~ (21.2% off)	3
36	100750	SPRING	100750 SPRING	$1.96	3
37	193901	REVERSE CONTROL FORK	193901 REVERSE CONTROL FORK	$213.07	1
38	142245	SCREW	142245 SCREW	$1.09	2
39	158051	3rd AND 4th GEAR CONTROL ROD	158051 3rd AND 4th GEAR CONTROL ROD	$213.07	1
40	171829	3rd AND 4th GEAR CONTROL ROD FORK	171829 3rd AND 4th GEAR CONTROL ROD FORK GEAR	$90.99	1
41	261486	3rd AND 4th GEAR CONTROL FORK	261486 3rd AND 4th GEAR CONTROL FORK 4th GEAR	$1,324.17	1
42	189533	5th AND 6th GEAR CONTROL ROD	189533 5th AND 6th GEAR CONTROL ROD	$273.95	1
43	193902	5th AND 6th GEAR CONTROL ROD FORK	193902 5th AND 6th GEAR CONTROL ROD FORK	$124.79	1
44	189534	5th AND 6th GEAR CONTROL FORK	189534 5th AND 6th GEAR CONTROL FORK 6th GEAR	$1,805.12	1
45	150173	SHIM	150173 SHIM	$18.59	1
46	106500	BUSHING	106500 BUSHING	$8.62	6
47	150093	BUSHING	150093 BUSHING	$20.55	2
48	185566	SELF-LUBRICATING BUSHING	185566 SELF-LUBRICATING BUSHING	$7.73	2
