CLUTCH AND CONTROLS -Valid for F1- of Ferrari Ferrari 575M Maranello

View All

Ferrari 575M Maranello - CLUTCH AND CONTROLS -Valid for F1-

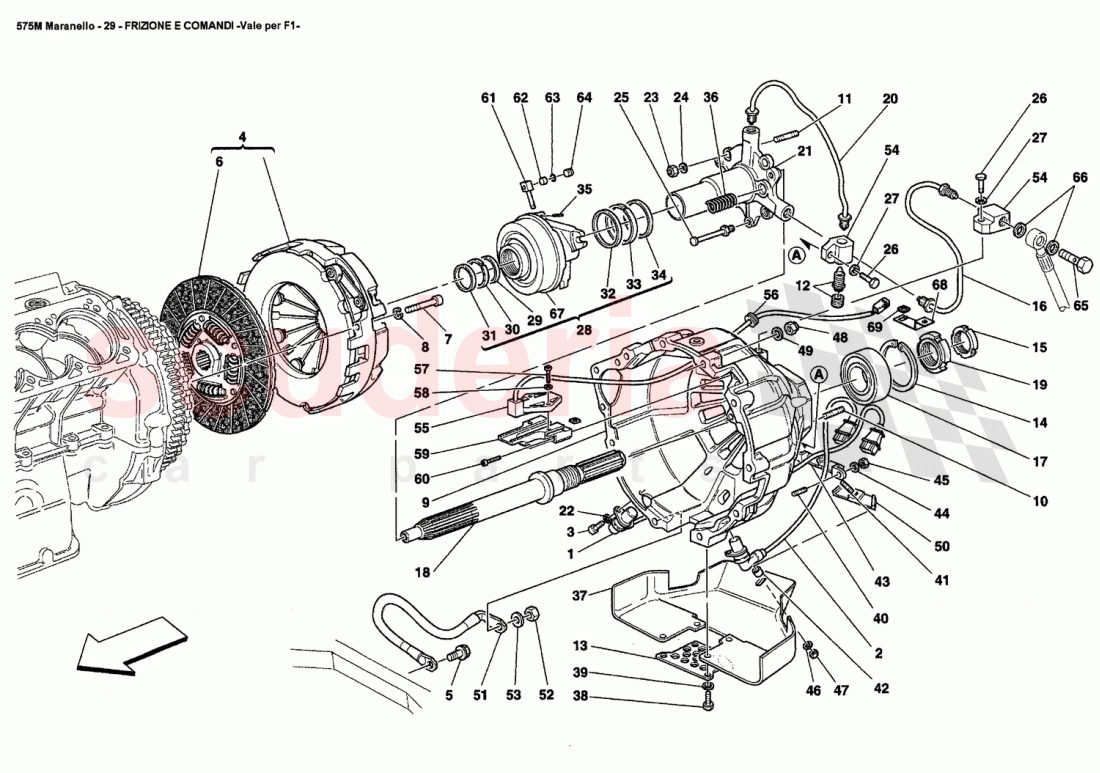

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	189548	RH CYLINDER BANK RPM SENSOR	Enquire	To Order
	189548	RH CYLINDER BANK RPM SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189540	LH CYLINDER BANK RPM SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	194775	Complete Clutch	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16296421	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	194776	CLUTCH PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305974	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151601	COMPLETE CLUTCH HOUSING	Enquire	To Order
	168915	CLUTCH HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13546334	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543124	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152954	BLEED NIPPLE SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144441	CLUTCH HOUSING COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144511	STOP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	165576	RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	165759	OIL DELIVERY TUBE	Enquire	To Order
	219212	OIL DELIVERY TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	145805	BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	165573	CLUTCH SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	165575	RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	219213	VENT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170411	FLANGE FOR HYDRAULIC CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133989	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166650	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181874	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	192260	COMPLETE THRUST BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181838	Seal Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170416	Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181837	Oil Seal Rings D.33	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181828	Sealing Ring D.44	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154507	Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181836	Oil Seal Rings D.44	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	14604170	SPRING PIN	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	155207	Pre-Tightening Springs	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170115	SHIELD FOR FASE SENSOR PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977824	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13540824	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155177	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155175	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154464	SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11199274	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	146654	MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155918	CABLE FOR ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11199274	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240774	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243784	Complete Sensor Kit	Enquire	To Order
	244801	CLUTCH SENSOR KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10398480	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14302921	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	235937	SENSOR MOUNT	Enquire	To Order
	235937	SENSOR MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166676	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	165658	O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	167802	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171454	PIPE UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10261060	GASKET COPPER 12 - 16 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177205	Thrust Bearing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	214436	CONNECTOR FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187161	FASTENER CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	189548	RH CYLINDER BANK RPM SENSOR	189548 RH CYLINDER BANK RPM SENSOR	-	1	Enquire
1	189548	RH CYLINDER BANK RPM SENSOR	189548 RH CYLINDER BANK RPM SENSOR SENSOR	-	1	Enquire
2	189540	LH CYLINDER BANK RPM SENSOR	189540 LH CYLINDER BANK RPM SENSOR	-	1	Enquire
3	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	2	Enquire
4	194775	Complete Clutch	194775 Complete Clutch	-	1	Enquire
5	16296421	SCREW	16296421 SCREW	-	1	Enquire
6	194776	CLUTCH PLATE	194776 CLUTCH PLATE	-	1	Enquire
7	14305974	SCREW	14305974 SCREW	-	9	Enquire
8	127494	WASHER	127494 WASHER	-	9	Enquire
9	151601	COMPLETE CLUTCH HOUSING	151601 COMPLETE CLUTCH HOUSING	-	1	Enquire
9	168915	CLUTCH HOUSING	168915 CLUTCH HOUSING With complete clutch housing	-	1	Enquire
10	13546334	STUD BOLT	13546334 STUD BOLT	-	8	Enquire
11	13543124	STUD BOLT	13543124 STUD BOLT	-	4	Enquire
12	152954	BLEED NIPPLE SCREW	152954 BLEED NIPPLE SCREW	-	1	Enquire
13	144441	CLUTCH HOUSING COVER	144441 CLUTCH HOUSING COVER	-	1	Enquire
14	144511	STOP RING	144511 STOP RING	-	1	Enquire
15	165576	RING NUT	165576 RING NUT	-	1	Enquire
16	165759	OIL DELIVERY TUBE	165759 OIL DELIVERY TUBE Replaced by 219212	-	1	Enquire
16	219212	OIL DELIVERY TUBE	219212 OIL DELIVERY TUBE	-	1	Enquire
17	145805	BEARING	145805 BEARING	-	1	Enquire
18	165573	CLUTCH SHAFT	165573 CLUTCH SHAFT	-	1	Enquire
19	165575	RING NUT	165575 RING NUT	-	1	Enquire
20	219213	VENT PIPE	219213 VENT PIPE	-	1	Enquire
21	170411	FLANGE FOR HYDRAULIC CONTROL	170411 FLANGE FOR HYDRAULIC CONTROL	-	1	Enquire
22	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
23	133989	NUT	133989 NUT	-	4	Enquire
24	127496	WASHER	127496 WASHER	-	4	Enquire
25	166650	STUD BOLT	166650 STUD BOLT	-	3	Enquire
26	231625	SCREW	231625 SCREW	-	2	Enquire
27	11181874	WASHER	11181874 WASHER	-	2	Enquire
28	192260	COMPLETE THRUST BEARING	192260 COMPLETE THRUST BEARING Not as spare part now	-	1	Enquire
29	181838	Seal Ring	181838 Seal Ring	-	1	Enquire
30	170416	Ring	170416 Ring	-	1	Enquire
31	181837	Oil Seal Rings D.33	181837 Oil Seal Rings D.33	-	1	Enquire
32	181828	Sealing Ring D.44	181828 Sealing Ring D.44	-	1	Enquire
33	154507	Ring	154507 Ring	-	1	Enquire
34	181836	Oil Seal Rings D.44 ARRIVING SOON	181836 Oil Seal Rings D.44 ARRIVING SOON	-	1	Enquire
35	14604170	SPRING PIN ARRIVING SOON	14604170 SPRING PIN ARRIVING SOON	-	1	Enquire
36	155207	Pre-Tightening Springs	155207 Pre-Tightening Springs	-	2	Enquire
37	170115	SHIELD FOR FASE SENSOR PROTECTION	170115 SHIELD FOR FASE SENSOR PROTECTION PROTECTION	-	1	Enquire
38	10977824	SCREW	10977824 SCREW	-	4	Enquire
39	12604178	Washer	12604178 Washer	-	4	Enquire
40	13540824	STUD BOLT	13540824 STUD BOLT	-	2	Enquire
41	155177	STUD BOLT	155177 STUD BOLT	-	1	Enquire
42	155175	SPACER	155175 SPACER	-	1	Enquire
43	154464	SUPPORT	154464 SUPPORT	-	1	Enquire
44	12639724	WASHER	12639724 WASHER	-	2	Enquire
45	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
46	11199274	WASHER	11199274 WASHER	-	1	Enquire
47	15896470	NUT	15896470 NUT	-	1	Enquire
48	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	5	Enquire
49	12601374	WASHER	12601374 WASHER	-	5	Enquire
50	146654	MOUNTING	146654 MOUNTING	-	1	Enquire
51	155918	CABLE FOR ENGINE	155918 CABLE FOR ENGINE	-	1	Enquire
52	15896470	NUT	15896470 NUT	-	1	Enquire
53	11199274	WASHER	11199274 WASHER	-	1	Enquire
54	240774	CONNECTOR	240774 CONNECTOR	-	2	Enquire
55	243784	Complete Sensor Kit	243784 Complete Sensor Kit Includes clutch + magnet / Valid from engine Nr. 90577	-	1	Enquire
55	244801	CLUTCH SENSOR KIT	244801 CLUTCH SENSOR KIT Includes sensor + cable grommet / ref.56 and magnet ref.62 / Valid till engine Nr. 90576	-	1	Enquire
56	10398480	CABLE GROMMET	10398480 CABLE GROMMET Not supplied / Included in 182311	-	1	Enquire
57	14302921	SCREW	14302921 SCREW	-	2	Enquire
58	10519224	WASHER	10519224 WASHER	-	2	Enquire
59	235937	SENSOR MOUNT	235937 SENSOR MOUNT Valid till engine Nr. 78960 / Valid till stock exhaustion	-	1	Enquire
59	235937	SENSOR MOUNT	235937 SENSOR MOUNT Valid from engine Nr. 78961	-	1	Enquire
60	14304424	SCREW	14304424 SCREW	-	2	Enquire
61	166676	PIN	166676 PIN	-	1	Enquire
63	165658	O-Ring	165658 O-Ring	-	1	Enquire
64	167802	CAP	167802 CAP	-	1	Enquire
65	171454	PIPE UNION	171454 PIPE UNION	-	1	Enquire
66	10261060	GASKET COPPER 12 - 16 X 1.5	10261060 GASKET COPPER 12 - 16 X 1.5	-	2	Enquire
67	177205	Thrust Bearing	177205 Thrust Bearing	-	1	Enquire
68	214436	CONNECTOR FASTENER BRACKET	214436 CONNECTOR FASTENER BRACKET	-	1	Enquire
69	187161	FASTENER CLIP	187161 FASTENER CLIP	-	1	Enquire
