ELECTRICAL SYSTEM of Ferrari Ferrari 550 Maranello (2011-2012)

View All

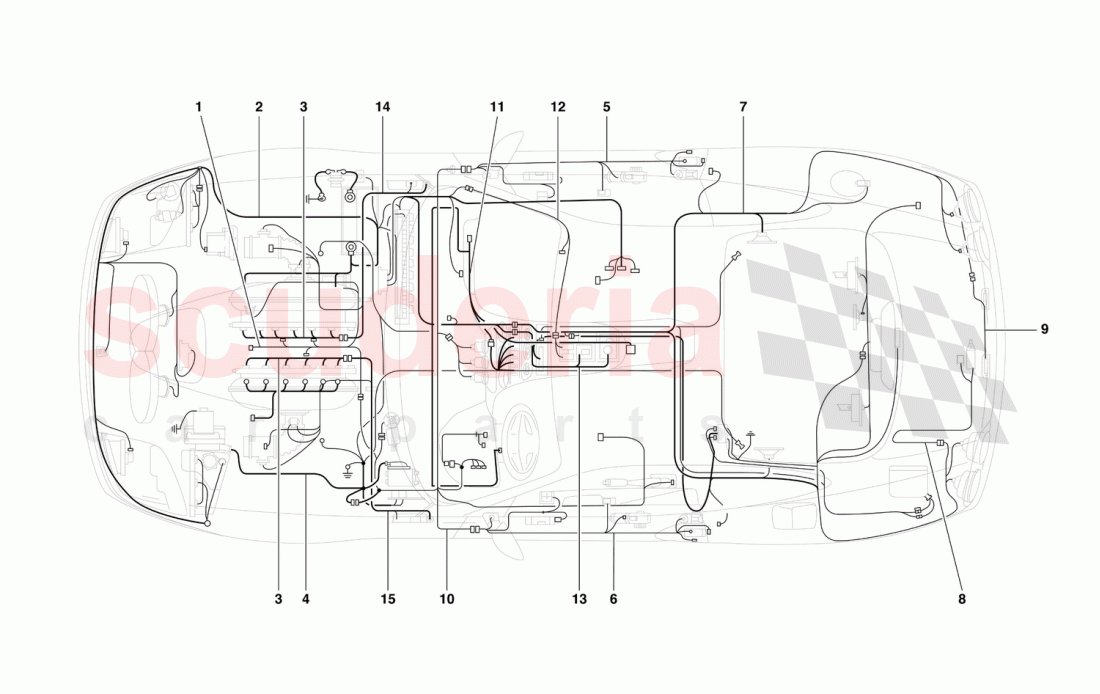

Ferrari 550 Maranello (2011-2012) - ELECTRICAL SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	153112	CABLES FOR MOTOR DEVICES CONNECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164662	FRONT CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168529	INJECTORS CONNECTION CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164672	ABS/ASR INSTALLATION CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164668	PASSENGER SIDE DOOR CONNECTION CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164667	DRIVER SIDE DOOR CONNECTION CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164664	REAR CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	167174	TRUNK HOOD BONNET CONNECTION CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164670	CABLES FOR NUMBER PLATE LIGHTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	167925	DASHBOARD CONNECTION CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164665	CABLES FOR AIR-BAG CONNECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164669	ROOF LIGHT AND CONTROLS CONNECTING CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166853	CABLES FOR TUNNEL CONNECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164004	RH SIDE ENGINE CONNECTING CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	172473	LH SIDE ENGINE CONNECTING CABLES	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	173630	CABLES FOR TUNNEL CONNECTION	173630 CABLES FOR TUNNEL CONNECTION Valid for AUS	-	1	Enquire
-	171387	CABLES FOR AIR-BAG CONNECTION	171387 CABLES FOR AIR-BAG CONNECTION Valid for GD	-	1	Enquire
-	171386	DASHBOARD CONNECTION CABLES	171386 DASHBOARD CONNECTION CABLES CABLES / Valid for GD / Valid for cars with car stereo SONY / Valid till car Ass. Nr. 32104	-	1	Enquire
-	179277	DASHBOARD CONNECTION CABLES	179277 DASHBOARD CONNECTION CABLES CABLES / Valid for GD / Valid for cars with car stereo SONY / Valid from car Ass. Nr. 32105	-	1	Enquire
-	181085	DASHBOARD CONNECTION CABLES	181085 DASHBOARD CONNECTION CABLES CABLES / Valid for GD / Valid for cars with car stereo BECKER	-	1	Enquire
-	179276	DASHBOARD CONNECTION CABLES	179276 DASHBOARD CONNECTION CABLES CABLES -Valid for USA and CDN / Valid for cars with car stereo SONY / Valid from car Ass. Nr. 32102 and / from car Ass. Nr. 32057 M.Y. 99	-	1	Enquire
-	181084	DASHBOARD CONNECTION CABLES	181084 DASHBOARD CONNECTION CABLES CABLES / Valid for USA and CDN / Valid for cars with car stereo BECKER	-	1	Enquire
-	181083	DASHBOARD CONNECTION CABLES	181083 DASHBOARD CONNECTION CABLES CABLES / Not for USA, CDN and GD / Valid for cars with car stereo BECKER	-	1	Enquire
-	171377	DASHBOARD CONNECTION CABLES	171377 DASHBOARD CONNECTION CABLES CABLES -Valid for USA and CDN / Valid for cars with car stereo SONY / Valid till car Ass. Nr. 32101 and / till car Ass. Nr. 32056 M.Y. 99	-	1	Enquire
-	179275	DASHBOARD CONNECTION CABLES	179275 DASHBOARD CONNECTION CABLES CABLES -Not for USA, CDN and GD / Valid for cars with car stereo SONY / Valid from car Ass. Nr. 32102 and / from car Ass. Nr. 32057 M.Y. 99	-	1	Enquire
-	173978	TRUNK HOOD BONNET CONNECTION CABLES	173978 TRUNK HOOD BONNET CONNECTION CABLES CABLES	-	1	Enquire
-	171379	CABLES FOR NUMBER PLATE LIGHTS	171379 CABLES FOR NUMBER PLATE LIGHTS LIGHTS / Valid for USA and CDN	-	1	Enquire
-	179210	REAR CABLES	179210 REAR CABLES Valid for USA M.Y. 99 and CDN M.Y. 99	-	1	Enquire
-	181972	REAR CABLES	181972 REAR CABLES Valid for USA M.Y. 2000 and CDN M.Y. 2000	-	1	Enquire
-	173922	REAR CABLES	173922 REAR CABLES Valid for GD	-	1	Enquire
-	171378	REAR CABLES	171378 REAR CABLES Valid for USA and CDN / Not for USA M.Y. 99 and CDN M.Y. 99 / Not for USA M.Y. 2000 and CDN M.Y. 2000	-	1	Enquire
-	171388	ABS/ASR INSTALLATION CABLES	171388 ABS/ASR INSTALLATION CABLES Valid for GD	-	1	Enquire
-	179064	ABS/ASR INSTALLATION CABLES	179064 ABS/ASR INSTALLATION CABLES Valid for USA M.Y. 99, CDN M.Y. 99, / USA M.Y. 2000, CDN M.Y. 2000, / USA M.Y. 2001 and CDN M.Y. 2001	-	1	Enquire
-	179092	FRONT CABLES	179092 FRONT CABLES Valid for GD / Valid from car Ass. Nr. 33515	-	1	Enquire
-	179091	FRONT CABLES	179091 FRONT CABLES Valid for USA and CDN / Valid from car Ass. Nr. 32957 / Valid from car Ass. Nr. 33073 USA M.Y. 99	-	1	Enquire
-	171385	FRONT CABLES	171385 FRONT CABLES Valid for GD / Valid till car Ass. Nr. 27497	-	1	Enquire
-	175432	FRONT CABLES	175432 FRONT CABLES Valid for GD / Valid from car Ass. Nr. 27498 / and valid till car Ass. Nr. 33514	-	1	Enquire
-	171376	FRONT CABLES	171376 FRONT CABLES Valid for USA and CDN / Valid till car Ass. Nr. 27497	-	1	Enquire
-	175433	FRONT CABLES	175433 FRONT CABLES Valid for USA and CDN / Valid from car Ass. Nr. 27498 / and valid till car Ass. Nr. 32956 / Valid till car Ass. Nr. 33072 USA M.Y. 99	-	1	Enquire
-	175431	FRONT CABLES	175431 FRONT CABLES Not for USA, CDN and GD / Valid from car Ass. Nr. 27498 / and valid till car Ass. Nr. 32956	-	1	Enquire
-	179090	FRONT CABLES	179090 FRONT CABLES Not for USA, CDN and GD / Valid from car Ass. Nr. 32957	-	1	Enquire
-	179241	CABLES FOR MOTOR DEVICES CONNECTION	179241 CABLES FOR MOTOR DEVICES CONNECTION MOTOR DEVICES / Not for GD / Valid from car Ass. Nr. 32102 GS / and from car Ass. Nr. 32057 M.Y. 99	-	1	Enquire
-	179273	CABLES FOR MOTOR DEVICES CONNECTION	179273 CABLES FOR MOTOR DEVICES CONNECTION MOTOR DEVICES / Valid for GD / Valid from car Ass. Nr. 32105	-	1	Enquire
1	153112	CABLES FOR MOTOR DEVICES CONNECTION	153112 CABLES FOR MOTOR DEVICES CONNECTION MOTOR DEVICES / Valid till car Ass. Nr. 32101 GS, / till car Ass. Nr. 32104 GD and / till car Ass. Nr. 32056 M.Y. 99	-	1	Enquire
2	164662	FRONT CABLES	164662 FRONT CABLES Not for USA, CDN and GD / Valid till car Ass. Nr. 27497	-	1	Enquire
3	168529	INJECTORS CONNECTION CABLES	168529 INJECTORS CONNECTION CABLES	-	2	Enquire
4	164672	ABS/ASR INSTALLATION CABLES	164672 ABS/ASR INSTALLATION CABLES Not for GD / Not for USA M.Y. 99, CDN M.Y. 99, / USA M.Y. 2000, CDN M.Y. 2000, / USA M.Y. 2001 and CDN M.Y. 2001	-	1	Enquire
5	164668	PASSENGER SIDE DOOR CONNECTION CABLES	164668 PASSENGER SIDE DOOR CONNECTION CABLES CONNECTION CABLES	-	1	Enquire
6	164667	DRIVER SIDE DOOR CONNECTION CABLES	164667 DRIVER SIDE DOOR CONNECTION CABLES CONNECTION CABLES	-	1	Enquire
7	164664	REAR CABLES	164664 REAR CABLES Not for USA, CDN and GD	-	1	Enquire
8	167174	TRUNK HOOD BONNET CONNECTION CABLES	167174 TRUNK HOOD BONNET CONNECTION CABLES CABLES / Not as spare part now / Replaced by 173978	-	1	Enquire
9	164670	CABLES FOR NUMBER PLATE LIGHTS	164670 CABLES FOR NUMBER PLATE LIGHTS LIGHTS / Not for USA and CDN	-	1	Enquire
10	167925	DASHBOARD CONNECTION CABLES	167925 DASHBOARD CONNECTION CABLES CABLES -Not for USA, CDN and GD / Valid for cars with car stereo SONY / Valid till car Ass. Nr. 32101 and / till car Ass. Nr. 32056 M.Y. 99	-	1	Enquire
11	164665	CABLES FOR AIR-BAG CONNECTION	164665 CABLES FOR AIR-BAG CONNECTION Not for GD	-	1	Enquire
12	164669	ROOF LIGHT AND CONTROLS CONNECTING CABLES	164669 ROOF LIGHT AND CONTROLS CONNECTING CABLES CONNECTING CABLES	-	1	Enquire
13	166853	CABLES FOR TUNNEL CONNECTION	166853 CABLES FOR TUNNEL CONNECTION Not for AUS	-	1	Enquire
14	164004	RH SIDE ENGINE CONNECTING CABLES	164004 RH SIDE ENGINE CONNECTING CABLES CABLES	-	1	Enquire
15	172473	LH SIDE ENGINE CONNECTING CABLES	172473 LH SIDE ENGINE CONNECTING CABLES CABLES	-	1	Enquire
