DOORS - POWER WINDOW AND REARVIEW MIRROR of Ferrari Ferrari 550 Maranello (2011-2012)

View All

Ferrari 550 Maranello (2011-2012) - DOORS - POWER WINDOW AND REARVIEW MIRROR

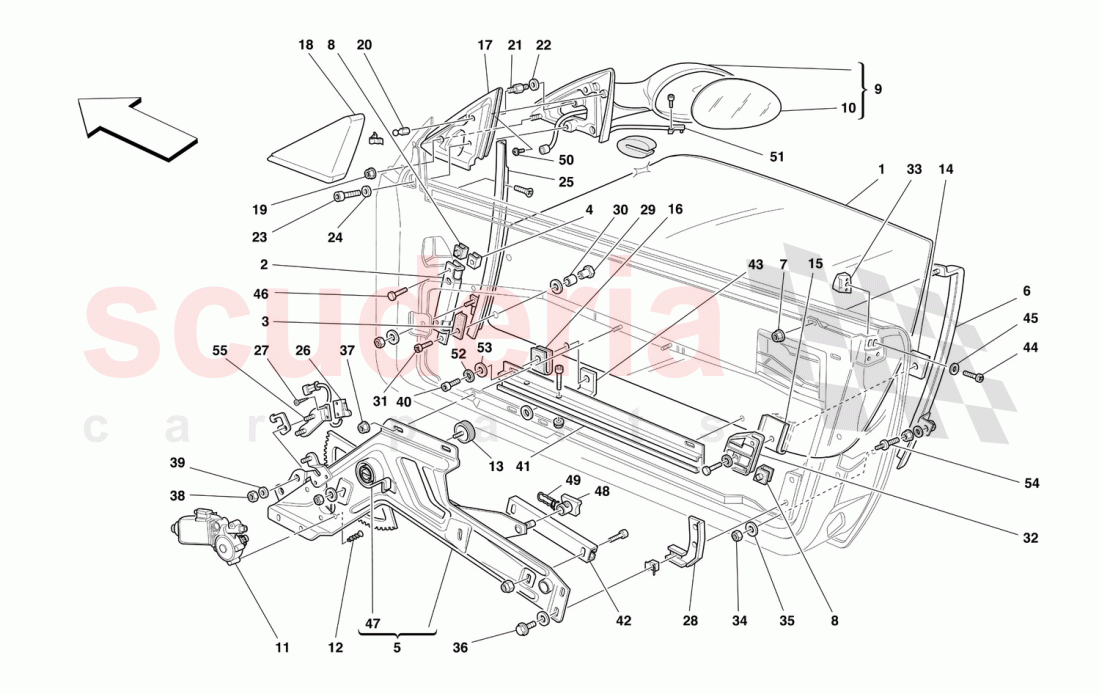

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	64573500	R.H. SIDE GLASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63768100	RH SLIPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63486900	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63767900	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64742800	COMPLETE RH DEVICE FOR GLASS LIFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64579700	R.H. REAR GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63890100	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64715210	RH OUTER REAR VIEW MIRROR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66213200	RH OUTER REAR VIEW MIRROR GLASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63211800	R.H. GLASS LIFTING MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15917904	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65100400	STOP BUFFER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63768000	FIXING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63168800	PRE-LOAD REGULATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

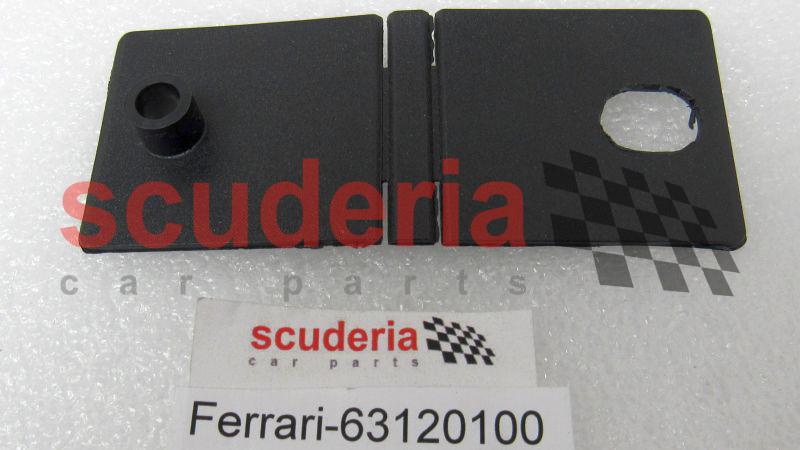

	63120100	PLATE GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64740600	R.H. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

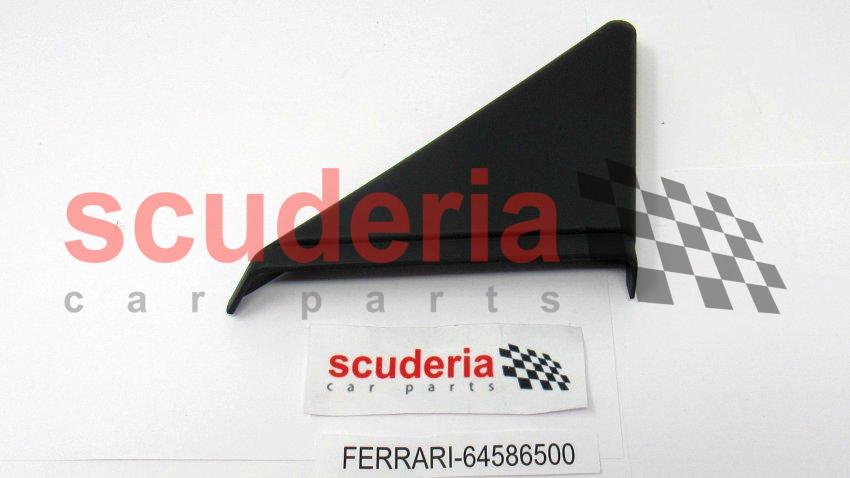

	64586500	RH Inner Moulding Triangle	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13046011	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65048400	SPHERIC HEAD NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64586300	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496101	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11566227	SCREW	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	10519304	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63579500	R.H. FRONT GLASS GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168617	MICROSWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13270811	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65291400	R.H. BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62932900	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62932800	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13271814	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63853600	RH MOVING GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65174300	R.H. SMALL BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11612424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16101714	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496101	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65036200	R.H. SLIDING GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65046600	SLIDING GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65044000	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15687870	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519278	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10903224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63206000	HELICOIDAL SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64081100	SMALL BLOCK FOR GLASS GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64081100	SMALL BLOCK FOR GLASS GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65889400	EXTERNAL TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62771300	Column	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64749300	R.H. MICROSWITCH BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	64749400	L.H. MICROSWITCH BRACKET	64749400 L.H. MICROSWITCH BRACKET	-	1	Enquire
-	65036100	L.H. SLIDING GUIDE	65036100 L.H. SLIDING GUIDE	-	1	Enquire
-	231620	SCREW	231620 SCREW Valid from car Ass. Nr. 33499	-	2	Enquire
-	63853700	LH MOBILE GUIDE	63853700 LH MOBILE GUIDE	-	1	Enquire
-	65174400	L.H. SMALL BLOCK	65174400 L.H. SMALL BLOCK	-	1	Enquire
-	65292000	L.H. BRACKET	65292000 L.H. BRACKET	-	1	Enquire
-	63579600	L.H. FRONT GLASS GUIDE	63579600 L.H. FRONT GLASS GUIDE	-	1	Enquire
-	64586400	LH INNER MOULDING TRIANGLE	64586400 LH INNER MOULDING TRIANGLE	-	1	Enquire
-	65807300	COLUMN GASKET	65807300 COLUMN GASKET Valid from car Ass. Nr. 33499	-	4	Enquire
-	64740700	LH MIRROR GASKET	64740700 LH MIRROR GASKET	-	1	Enquire
-	66213500	LH OUTER REAR VIEW MIRROR GLASS	66213500 LH OUTER REAR VIEW MIRROR GLASS MIRROR GLASS / Valid for GB	-	1	Enquire
-	63211900	L.H. GLASS LIFTING MOTOR	63211900 L.H. GLASS LIFTING MOTOR	-	1	Enquire
-	66213300	LH OUTER REAR VIEW MIRROR GLASS	66213300 LH OUTER REAR VIEW MIRROR GLASS MIRROR GLASS / Not for USA, CDN, AUS and GB	-	1	Enquire
-	66213300	LH OUTER REAR VIEW MIRROR GLASS	66213300 LH OUTER REAR VIEW MIRROR GLASS MIRROR GLASS / Valid for USA, CDN and AUS	-	1	Enquire
-	66213600	RH OUTER REAR VIEW MIRROR GLASS	66213600 RH OUTER REAR VIEW MIRROR GLASS MIRROR GLASS / Valid for USA and CDN	-	1	Enquire
-	66213400	RH OUTER REAR VIEW MIRROR GLASS	66213400 RH OUTER REAR VIEW MIRROR GLASS MIRROR GLASS / Valid for AUS	-	1	Enquire
-	66213400	RH OUTER REAR VIEW MIRROR GLASS	66213400 RH OUTER REAR VIEW MIRROR GLASS MIRROR GLASS / Valid for GB	-	1	Enquire
-	65320310	LH OUTER REAR VIEW MIRROR	65320310 LH OUTER REAR VIEW MIRROR MIRROR / Valid for AUS	-	1	Enquire
-	65242410	LH OUTER REAR VIEW MIRROR	65242410 LH OUTER REAR VIEW MIRROR MIRROR / Valid for GB	-	1	Enquire
-	65320210	RH OUTER REAR VIEW MIRROR	65320210 RH OUTER REAR VIEW MIRROR MIRROR / Valid for AUS	-	1	Enquire
-	65242310	RH OUTER REAR VIEW MIRROR	65242310 RH OUTER REAR VIEW MIRROR MIRROR / Valid for GB	-	1	Enquire
-	64715310	LH OUTER REAR VIEW MIRROR	64715310 LH OUTER REAR VIEW MIRROR MIRROR / Not for USA, CDN, AUS and GB	-	1	Enquire
-	65248810	LH OUTER REAR VIEW MIRROR	65248810 LH OUTER REAR VIEW MIRROR MIRROR / Valid for USA and CDN	-	1	Enquire
-	64579800	L.H. REAR GUIDE	64579800 L.H. REAR GUIDE	-	1	Enquire
-	65248710	RH OUTER REAR VIEW MIRROR	65248710 RH OUTER REAR VIEW MIRROR MIRROR / Valid for USA and CDN	-	1	Enquire
-	63768200	LH SLIPPER	63768200 LH SLIPPER	-	1	Enquire
-	64742900	COMPLETE LH DEVICE FOR GLASS LIFT	64742900 COMPLETE LH DEVICE FOR GLASS LIFT GLASS LIFT	-	1	Enquire
-	64573600	L.H. SIDE GLASS	64573600 L.H. SIDE GLASS	-	1	Enquire
1	64573500	R.H. SIDE GLASS	64573500 R.H. SIDE GLASS	-	1	Enquire
2	63768100	RH SLIPPER	63768100 RH SLIPPER	-	1	Enquire
3	63486900	GASKET	63486900 GASKET	-	2	Enquire
4	63767900	CLIP	63767900 CLIP	-	8	Enquire
5	64742800	COMPLETE RH DEVICE FOR GLASS LIFT	64742800 COMPLETE RH DEVICE FOR GLASS LIFT GLASS LIFT	-	1	Enquire
6	64579700	R.H. REAR GUIDE	64579700 R.H. REAR GUIDE	-	1	Enquire
7	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
8	63890100	GASKET	63890100 GASKET	-	8	Enquire
9	64715210	RH OUTER REAR VIEW MIRROR	64715210 RH OUTER REAR VIEW MIRROR MIRROR / Not for USA, CDN, AUS and GB	-	1	Enquire
10	66213200	RH OUTER REAR VIEW MIRROR GLASS	66213200 RH OUTER REAR VIEW MIRROR GLASS MIRROR GLASS / Not for USA, CDN, AUS and GB	-	1	Enquire
11	63211800	R.H. GLASS LIFTING MOTOR	63211800 R.H. GLASS LIFTING MOTOR	-	1	Enquire
12	15917904	SCREW	15917904 SCREW	-	8	Enquire
13	65100400	STOP BUFFER	65100400 STOP BUFFER	-	2	Enquire
14	63768000	FIXING PLATE	63768000 FIXING PLATE	-	2	Enquire
15	63168800	PRE-LOAD REGULATOR	63168800 PRE-LOAD REGULATOR	-	2	Enquire
16	63120100	PLATE GASKET	63120100 PLATE GASKET Valid till car Ass. Nr. 33498	-	4	Enquire
17	64740600	R.H. GASKET	64740600 R.H. GASKET	-	1	Enquire
18	64586500	RH Inner Moulding Triangle	64586500 RH Inner Moulding Triangle	-	1	Enquire
19	13046011	NUT	13046011 NUT	-	2	Enquire
20	65048400	SPHERIC HEAD NUT	65048400 SPHERIC HEAD NUT	-	2	Enquire
21	64586300	SCREW	64586300 SCREW	-	2	Enquire
22	14496101	WASHER	14496101 WASHER	-	2	Enquire
23	11566227	SCREW ARRIVING SOON	11566227 SCREW ARRIVING SOON	-	2	Enquire
24	10519304	WASHER	10519304 WASHER	-	2	Enquire
25	63579500	R.H. FRONT GLASS GUIDE	63579500 R.H. FRONT GLASS GUIDE	-	1	Enquire
26	168617	MICROSWITCH	168617 MICROSWITCH	-	2	Enquire
27	13270811	SCREW	13270811 SCREW	-	4	Enquire
28	65291400	R.H. BRACKET	65291400 R.H. BRACKET	-	1	Enquire
29	62932900	BUSHING	62932900 BUSHING	-	4	Enquire
30	62932800	SHIM	62932800 SHIM	-	4	Enquire
31	13271814	SCREW	13271814 SCREW	-	4	Enquire
32	63853600	RH MOVING GUIDE	63853600 RH MOVING GUIDE	-	1	Enquire
33	65174300	R.H. SMALL BLOCK	65174300 R.H. SMALL BLOCK	-	1	Enquire
34	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
35	12643724	WASHER	12643724 WASHER	-	2	Enquire
36	11612424	SCREW	11612424 SCREW	-	8	Enquire
37	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	12	Enquire
38	16101714	NUT	16101714 NUT	-	4	Enquire
39	14496101	WASHER	14496101 WASHER	-	4	Enquire
40	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Valid till car Ass. Nr. 33498	-	2	Enquire
41	65036200	R.H. SLIDING GUIDE	65036200 R.H. SLIDING GUIDE	-	1	Enquire
42	65046600	SLIDING GUIDE	65046600 SLIDING GUIDE	-	2	Enquire
43	65044000	PLATE	65044000 PLATE	-	4	Enquire
44	15687870	SCREW	15687870 SCREW	-	2	Enquire
45	10519278	WASHER	10519278 WASHER	-	2	Enquire
46	10903224	SCREW	10903224 SCREW	-	2	Enquire
47	63206000	HELICOIDAL SPRING	63206000 HELICOIDAL SPRING	-	2	Enquire
48	64081100	SMALL BLOCK FOR GLASS GUIDE	64081100 SMALL BLOCK FOR GLASS GUIDE	-	6	Enquire
49	64081100	SMALL BLOCK FOR GLASS GUIDE	64081100 SMALL BLOCK FOR GLASS GUIDE	-	6	Enquire
50	85833700	SCREW	85833700 SCREW	-	2	Enquire
51	65889400	EXTERNAL TEMPERATURE SENSOR	65889400 EXTERNAL TEMPERATURE SENSOR L.H. Side	-	1	Enquire
52	127494	WASHER	127494 WASHER Valid from car Ass. Nr. 33499	-	2	Enquire
53	12643724	WASHER	12643724 WASHER Valid from car Ass. Nr. 33499	-	4	Enquire
54	62771300	Column	62771300 Column	-	2	Enquire
55	64749300	R.H. MICROSWITCH BRACKET	64749300 R.H. MICROSWITCH BRACKET	-	1	Enquire
