FRONT AND REAR LIGHTS of Ferrari Ferrari 550 Maranello (2011-2012)

View All

Ferrari 550 Maranello (2011-2012) - FRONT AND REAR LIGHTS

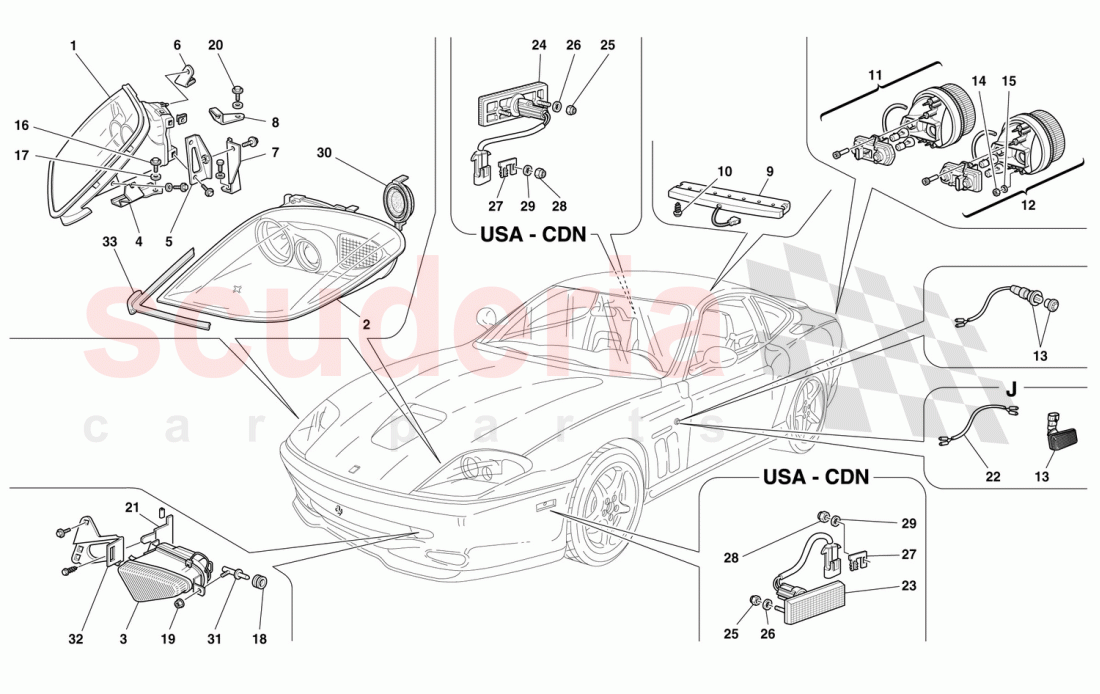

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	653382	RH HEADLIGHT LOW/HIGH BEAM/POSITION/DIRECTION LIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	653383	LH HEADLIGHT LOW/HIGH BEAM/POSITION/DIRECTION LIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168229	R.H. FOG LIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64559700	R.H. FRONT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64559100	R.H. BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64786700	R.H. OUTER REAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64786600	R.H. INNER REAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64765600	CENTRAL REAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	167958	ADDITIONAL STOP LIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15782601	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157513	R.H. rear internal light	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157515	R.H. rear external light	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	165558	SIDE TURN INDICATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11612524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648978	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10399580	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11612424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65183600	R.H. RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174580	CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147563	FRONT SIDE MARKER LAMP	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	140594	REAR SIDE-MARKER LIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14084111	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155751	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65898400	PLUG FOR LIGHTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65023200	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65189500	R.H. BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65515300	LH Headlight Gasket	Enquire	To Order
	65515200	RH Headlight Gasket	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	65189600	L.H. BRACKET	65189600 L.H. BRACKET	-	1	Enquire
-	65183700	L.H. RETAINER	65183700 L.H. RETAINER	-	1	Enquire
-	173616	R.H. FRONT SIDE DIRECTION LIGHT	173616 R.H. FRONT SIDE DIRECTION LIGHT LIGHT / Valid for J	-	1	Enquire
-	175506	L.H. FRONT SIDE DIRECTION LIGHT	175506 L.H. FRONT SIDE DIRECTION LIGHT LIGHT / Valid for J	-	1	Enquire
-	157522	R.H. rear external light	157522 R.H. rear external light Valid for USA and CDN	-	1	Enquire
-	157516	L.H. rear external light	157516 L.H. rear external light Not for USA and CDN	-	1	Enquire
-	157523	L.H. rear external light	157523 L.H. rear external light Valid for USA and CDN	-	1	Enquire
-	157524	RH Rear Inner Light	157524 RH Rear Inner Light Valid for USA and CDN	-	1	Enquire
-	157514	L.H. rear internal light	157514 L.H. rear internal light Not for USA and CDN	-	1	Enquire
-	157525	LH Inner Rear Light ARRIVING SOON	157525 LH Inner Rear Light Valid for USA and CDN ARRIVING SOON	-	1	Enquire
-	64559000	L.H. BRACKET	64559000 L.H. BRACKET	-	1	Enquire
-	64560600	L.H. OUTER REAR BRACKET	64560600 L.H. OUTER REAR BRACKET	-	1	Enquire
-	64786500	L.H. INNER REAR BRACKET	64786500 L.H. INNER REAR BRACKET	-	1	Enquire
-	168230	L.H. FOG LIGHT	168230 L.H. FOG LIGHT	-	1	Enquire
-	64559600	L.H. FRONT BRACKET	64559600 L.H. FRONT BRACKET	-	1	Enquire
-	654823	LH HEADLIGHT LOW/HIGH BEAM/POSITION/DIRECTION LIGHT	654823 LH HEADLIGHT LOW/HIGH BEAM/POSITION/DIRECTION LIGHT BEAM/POSITION/DIRECTION LIGHT / See relevant table for paint colour / Valid for GD /	-	1	Enquire
-	654825	LH HEADLIGHT LOW/HIGH BEAM/POSITION/DIRECTION LIGHT	654825 LH HEADLIGHT LOW/HIGH BEAM/POSITION/DIRECTION LIGHT BEAM/POSITION/DIRECTION LIGHT / See relevant table for paint colour / Valid for J /	-	1	Enquire
-	654619	LH HEADLIGHT LOW/HIGH BEAM/POSITION/DIRECTION LIGHT	654619 LH HEADLIGHT LOW/HIGH BEAM/POSITION/DIRECTION LIGHT BEAM/POSITION/DIRECTION LIGHT / See relevant table for paint colour / Valid for USA and CDN /	-	1	Enquire
-	654822	RH HEADLIGHT LOW/HIGH BEAM/POSITION/DIRECTION LIGHT	654822 RH HEADLIGHT LOW/HIGH BEAM/POSITION/DIRECTION LIGHT BEAM/POSITION/DIRECTION LIGHT / See relevant table for paint colour / Valid for GD /	-	1	Enquire
-	654824	RH HEADLIGHT LOW/HIGH BEAM/POSITION/DIRECTION LIGHT	654824 RH HEADLIGHT LOW/HIGH BEAM/POSITION/DIRECTION LIGHT BEAM/POSITION/DIRECTION LIGHT / See relevant table for paint colour / Valid for J /	-	1	Enquire
-	654618	RH HEADLIGHT LOW/HIGH BEAM/POSITION/DIRECTION LIGHT	654618 RH HEADLIGHT LOW/HIGH BEAM/POSITION/DIRECTION LIGHT BEAM/POSITION/DIRECTION LIGHT / See relevant table for paint colour / Valid for USA and CDN /	-	1	Enquire
1	653382	RH HEADLIGHT LOW/HIGH BEAM/POSITION/DIRECTION LIGHT	653382 RH HEADLIGHT LOW/HIGH BEAM/POSITION/DIRECTION LIGHT BEAM/POSITION/DIRECTION LIGHT / See relevant table for paint colour / Not for USA, CDN, GD and J /	-	1	Enquire
2	653383	LH HEADLIGHT LOW/HIGH BEAM/POSITION/DIRECTION LIGHT	653383 LH HEADLIGHT LOW/HIGH BEAM/POSITION/DIRECTION LIGHT BEAM/POSITION/DIRECTION LIGHT / See relevant table for paint colour / Not for USA, CDN, GD and J /	-	1	Enquire
3	168229	R.H. FOG LIGHT	168229 R.H. FOG LIGHT	-	1	Enquire
4	64559700	R.H. FRONT BRACKET	64559700 R.H. FRONT BRACKET	-	1	Enquire
5	64559100	R.H. BRACKET	64559100 R.H. BRACKET	-	1	Enquire
6	64786700	R.H. OUTER REAR BRACKET	64786700 R.H. OUTER REAR BRACKET	-	1	Enquire
7	64786600	R.H. INNER REAR BRACKET	64786600 R.H. INNER REAR BRACKET	-	1	Enquire
8	64765600	CENTRAL REAR BRACKET	64765600 CENTRAL REAR BRACKET	-	2	Enquire
9	167958	ADDITIONAL STOP LIGHT	167958 ADDITIONAL STOP LIGHT	-	1	Enquire
10	15782601	SCREW	15782601 SCREW	-	3	Enquire
11	157513	R.H. rear internal light	157513 R.H. rear internal light Not for USA and CDN	-	1	Enquire
12	157515	R.H. rear external light	157515 R.H. rear external light Not for USA and CDN	-	1	Enquire
13	165558	SIDE TURN INDICATOR	165558 SIDE TURN INDICATOR Not for USA, CDN and J /	-	2	Enquire
14	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	8	Enquire
15	10519424	WASHER	10519424 WASHER	-	8	Enquire
16	11612524	SCREW	11612524 SCREW	-	2	Enquire
17	12648978	WASHER	12648978 WASHER	-	2	Enquire
18	10399580	CABLE GROMMET	10399580 CABLE GROMMET	-	2	Enquire
19	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
20	11612424	SCREW	11612424 SCREW	-	4	Enquire
21	65183600	R.H. RETAINER	65183600 R.H. RETAINER	-	1	Enquire
22	174580	CABLE	174580 CABLE Valid for J	-	2	Enquire
23	147563	FRONT SIDE MARKER LAMP ARRIVING SOON	147563 FRONT SIDE MARKER LAMP Valid for USA and CDN ARRIVING SOON	-	2	Enquire
24	140594	REAR SIDE-MARKER LIGHT	140594 REAR SIDE-MARKER LIGHT Valid for USA and CDN	-	2	Enquire
25	14084111	NUT	14084111 NUT Valid for USA and CDN	-	8	Enquire
26	12638124	WASHER	12638124 WASHER Valid for USA and CDN	-	8	Enquire
27	155751	CLIP	155751 CLIP Valid for USA and CDN	-	2	Enquire
28	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY Valid for USA and CDN	-	2	Enquire
29	12637824	WASHER	12637824 WASHER Valid for USA and CDN	-	2	Enquire
30	65898400	PLUG FOR LIGHTS	65898400 PLUG FOR LIGHTS	-	2	Enquire
31	65023200	PIN	65023200 PIN	-	2	Enquire
32	65189500	R.H. BRACKET	65189500 R.H. BRACKET	-	1	Enquire
33	65515300	LH Headlight Gasket	65515300 LH Headlight Gasket	-	1	Enquire
33	65515200	RH Headlight Gasket	65515200 RH Headlight Gasket	-	1	Enquire
