Differential and axle shafts of Ferrari Ferrari 512 TR

View All

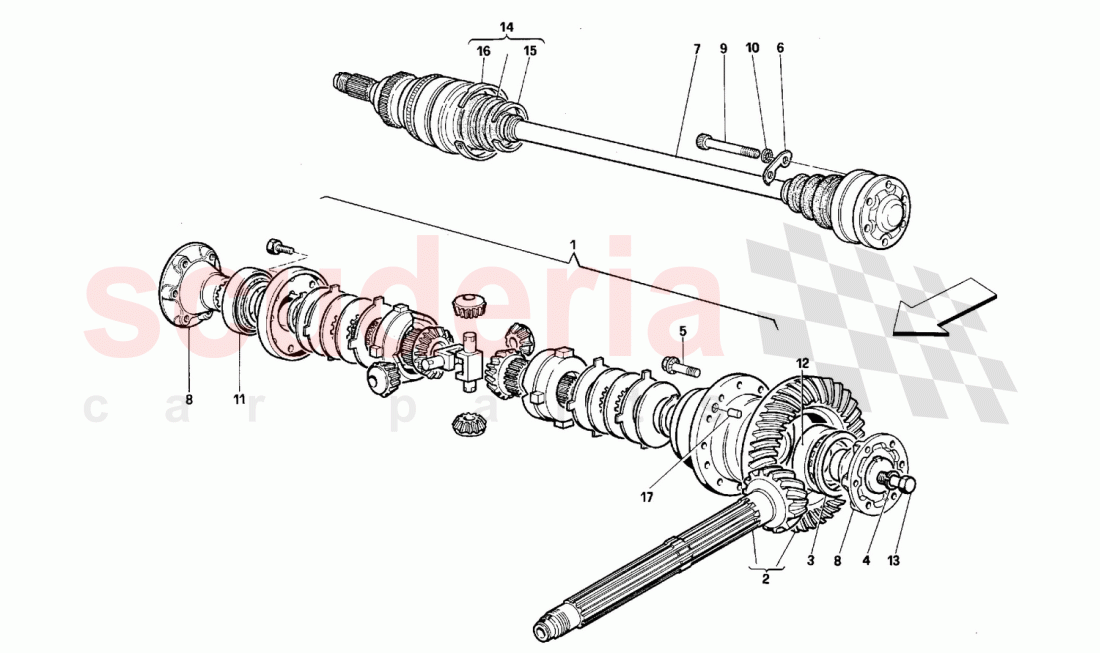

Ferrari 512 TR - Differential and axle shafts

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	155099	Differential, complete	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168969	R.14/45 crown pignon ratio	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103424	Spacer for L.H.differential support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153594	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155750	Screw: (mm 1,25 thread) -For	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	222679	SHIM PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	165070	Axle shaft assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139898	Axle shaft securing flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	223916	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	160092	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125390	Bearing for differential support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101634	Bearing for differential support for LH cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153593	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70006022	GAITER REPLACEMENT KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154213	SMALL CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	172347	BIG CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13916370	Parallell pin: valid for crown	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	70006021	Gaiter Replacement Kit	70006021 Gaiter Replacement Kit Wheel side	-	2	Enquire
-	132929	Ditto thickness mm. 2,85	132929 Ditto thickness mm. 2,85	-	1	Enquire
-	132930	Ditto thickness mm. 2,90	132930 Ditto thickness mm. 2,90	-	1	Enquire
-	132931	Ditto thickness mm. 2,95	132931 Ditto thickness mm. 2,95	-	1	Enquire
-	103425	Ditto thickness mm. 3,00	103425 Ditto thickness mm. 3,00	-	1	Enquire
-	103426	Ditto thickness mm. 3,20	103426 Ditto thickness mm. 3,20	-	1	Enquire
-	171275	Screw: (mm 1 thread) -For	171275 Screw: (mm 1 thread) -For crown pignon ratio Nr. 159069	-	12	Enquire
-	103422	Ditto thickness mm. 2,40	103422 Ditto thickness mm. 2,40	-	1	Enquire
-	132923	Ditto thickness mm. 2,45	132923 Ditto thickness mm. 2,45	-	1	Enquire
-	132924	Ditto thickness mm. 2,50	132924 Ditto thickness mm. 2,50	-	1	Enquire
-	132925	Ditto thickness mm. 2,55	132925 Ditto thickness mm. 2,55	-	1	Enquire
-	103423	Ditto thickness mm. 2,60	103423 Ditto thickness mm. 2,60	-	1	Enquire
-	132926	Ditto thickness mm. 2,65	132926 Ditto thickness mm. 2,65	-	1	Enquire
-	132927	Ditto thickness mm. 2,70	132927 Ditto thickness mm. 2,70	-	1	Enquire
-	132928	Ditto thickness mm. 2,75	132928 Ditto thickness mm. 2,75	-	1	Enquire
-	103424	Spacer for L.H.differential support	103424 Spacer for L.H.differential support	-	1	Enquire
-	168969	R.14/45 crown pignon ratio	168969 R.14/45 crown pignon ratio Fitted from gear box / Nr. 1513 / Required screw with / mm 1 thread (Nr. 153710)	-	1	Enquire
-	155099	Differential, complete	155099 Differential, complete	-	1	Enquire
1	155099	Differential, complete	155099 Differential, complete Not available / Replaced with Nr. 155099	-	1	Enquire
2	168969	R.14/45 crown pignon ratio	168969 R.14/45 crown pignon ratio Fitted untill gear box / Nr. 1512 - Not available / Replaced with Nr. 159069 / Required screw with / mm 1,25 thread (Nr. 155750)	-	1	Enquire
3	103424	Spacer for L.H.differential support	103424 Spacer for L.H.differential support bearing, 2,862 mm. thickness /	-	1	Enquire
4	153594	Washer	153594 Washer	-	2	Enquire
5	155750	Screw: (mm 1,25 thread) -For	155750 Screw: (mm 1,25 thread) -For crown pignon ratio Nr. 110016 / Replaced screw Nr. 103875	-	12	Enquire
6	222679	SHIM PLATE	222679 SHIM PLATE	-	6	Enquire
7	165070	Axle shaft assy	165070 Axle shaft assy	-	2	Enquire
8	139898	Axle shaft securing flange	139898 Axle shaft securing flange	-	2	Enquire
9	223916	Screw	223916 Screw	-	12	Enquire
10	160092	WASHER	160092 WASHER	-	12	Enquire
11	125390	Bearing for differential support	125390 Bearing for differential support for R.H. cover	-	1	Enquire
12	101634	Bearing for differential support for LH cover	101634 Bearing for differential support for LH cover for L.H. cover	-	1	Enquire
13	153593	SCREW	153593 SCREW	-	2	Enquire
14	70006022	GAITER REPLACEMENT KIT	70006022 GAITER REPLACEMENT KIT Gearbox side	-	2	Enquire
15	154213	SMALL CLAMP	154213 SMALL CLAMP	-	4	Enquire
16	172347	BIG CLAMP	172347 BIG CLAMP	-	4	Enquire
17	13916370	Parallell pin: valid for crown	13916370 Parallell pin: valid for crown pignon ratio Nr. 159069 and / differential Nr. 155099	-	2	Enquire
