Lay shaft gears of Ferrari Ferrari 512 TR

View All

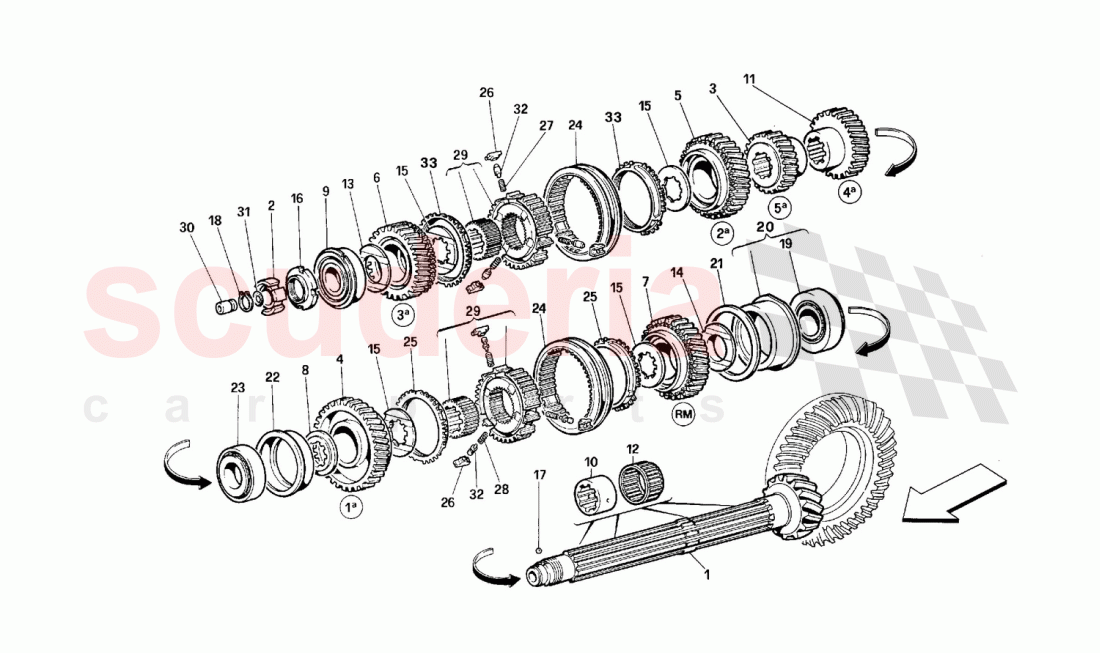

Ferrari 512 TR - Lay shaft gears

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	110013	Driven shaft	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116352	Transmitting disc for	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140198	5th speed gear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140207	1st speed gear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140208	2nd speed gear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	136343	3rd speed gear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	136346	Reverse gear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	110177	Spacer between 1st speed and bearing, 6,00 mm. thickness	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228054	ROLLER BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104704	Roller race for 1st, 2nd, 3rd, speed and reverse gears	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	136337	4th speed gear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101604	Roller cage for 1st 2nd 3rd speeds and reverse gears	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	110176	Spacer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	110174	Spacer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	110175	Spacer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153068	GEARBOX LOCK NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101611	BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11067376	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101636	Bearing, axle side	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148669	Complete bushing for bearing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104725	Crown gear and pinion adjusting shim 2,00 mm. thickness	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148670	Complete bearing case	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103031	Center bearing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	131804	SLEEVE FOR SYNCHRONIZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156842	FLOATING RING FOR SYNCHRO.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	106042	Insert for synchronizer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154424	Spring for pins	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144670	Spring for pins	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	146230	Synchronizer with bushing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104745	Bushing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	105329	Seal ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144669	Pin for insert	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	106040	FLOATING RING FOR SYNCHRO.	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	104728	Ditto, thickness 2,30 mm.	104728 Ditto, thickness 2,30 mm.	-	-	Enquire
-	104729	Ditto, thickness 2,40 mm.	104729 Ditto, thickness 2,40 mm.	-	-	Enquire
-	130979	Ditto, thickness 2,50 mm.	130979 Ditto, thickness 2,50 mm.	-	-	Enquire
-	130980	Ditto, thickness 2,60 mm.	130980 Ditto, thickness 2,60 mm.	-	-	Enquire
-	130981	Ditto, thickness 2,70 mm.	130981 Ditto, thickness 2,70 mm.	-	-	Enquire
-	130982	Ditto, thickness 2,80 mm.	130982 Ditto, thickness 2,80 mm.	-	-	Enquire
-	130983	Ditto, thickness 2,90 mm.	130983 Ditto, thickness 2,90 mm.	-	-	Enquire
-	130984	Ditto, thickness 3,00 mm.	130984 Ditto, thickness 3,00 mm.	-	-	Enquire
-	104726	Ditto, thickness 2,10 mm.	104726 Ditto, thickness 2,10 mm.	-	-	Enquire
-	104727	Ditto, thickness 2,20 mm.	104727 Ditto, thickness 2,20 mm.	-	-	Enquire
-	110181	Ditto, thickness 6,40 mm.	110181 Ditto, thickness 6,40 mm.	-	-	Enquire
-	130985	Ditto, thickness 6,50 mm.	130985 Ditto, thickness 6,50 mm.	-	-	Enquire
-	130986	Ditto, thickness 6,60 mm.	130986 Ditto, thickness 6,60 mm.	-	-	Enquire
-	130987	Ditto, thickness 6,70 mm.	130987 Ditto, thickness 6,70 mm.	-	-	Enquire
-	110178	Ditto, thickness 6,10 mm.	110178 Ditto, thickness 6,10 mm.	-	-	Enquire
-	110179	Ditto, thickness 6,20 mm.	110179 Ditto, thickness 6,20 mm.	-	-	Enquire
-	110180	Ditto, thickness 6,30 mm.	110180 Ditto, thickness 6,30 mm.	-	-	Enquire
1	110013	Driven shaft	110013 Driven shaft Not as spare parts - With crown / gear and pinion 159069	-	1	Enquire
2	116352	Transmitting disc for	116352 Transmitting disc for pulse generator	-	1	Enquire
3	140198	5th speed gear	140198 5th speed gear	-	1	Enquire
4	140207	1st speed gear	140207 1st speed gear	-	1	Enquire
5	140208	2nd speed gear	140208 2nd speed gear	-	1	Enquire
6	136343	3rd speed gear	136343 3rd speed gear	-	1	Enquire
7	136346	Reverse gear	136346 Reverse gear	-	1	Enquire
8	110177	Spacer between 1st speed and bearing, 6,00 mm. thickness	110177 Spacer between 1st speed and bearing, 6,00 mm. thickness bearing, 6,00 mm. thickness	-	1	Enquire
9	228054	ROLLER BEARING	228054 ROLLER BEARING	-	1	Enquire
10	104704	Roller race for 1st, 2nd, 3rd, speed and reverse gears	104704 Roller race for 1st, 2nd, 3rd, speed and reverse gears speed and reverse gears	-	4	Enquire
11	136337	4th speed gear	136337 4th speed gear	-	1	Enquire
12	101604	Roller cage for 1st 2nd 3rd speeds and reverse gears	101604 Roller cage for 1st 2nd 3rd speeds and reverse gears and reverse gears	-	4	Enquire
13	110176	Spacer	110176 Spacer	-	1	Enquire
14	110174	Spacer	110174 Spacer	-	1	Enquire
15	110175	Spacer	110175 Spacer	-	4	Enquire
16	153068	GEARBOX LOCK NUT	153068 GEARBOX LOCK NUT	-	1	Enquire
17	101611	BALL	101611 BALL	-	1	Enquire
18	11067376	SEEGER RING	11067376 SEEGER RING	-	1	Enquire
19	101636	Bearing, axle side	101636 Bearing, axle side	-	1	Enquire
20	148669	Complete bushing for bearing	148669 Complete bushing for bearing	-	1	Enquire
21	104725	Crown gear and pinion adjusting shim 2,00 mm. thickness	104725 Crown gear and pinion adjusting shim 2,00 mm. thickness shim 2,00 mm. thickness	-	1	Enquire
22	148670	Complete bearing case	148670 Complete bearing case	-	1	Enquire
23	103031	Center bearing	103031 Center bearing	-	1	Enquire
24	131804	SLEEVE FOR SYNCHRONIZER	131804 SLEEVE FOR SYNCHRONIZER	-	2	Enquire
25	156842	FLOATING RING FOR SYNCHRO.	156842 FLOATING RING FOR SYNCHRO. For 1st and RM	-	2	Enquire
26	106042	Insert for synchronizer	106042 Insert for synchronizer	-	6	Enquire
27	154424	Spring for pins	154424 Spring for pins	-	3	Enquire
28	144670	Spring for pins	144670 Spring for pins	-	3	Enquire
29	146230	Synchronizer with bushing	146230 Synchronizer with bushing	-	1	Enquire
30	104745	Bushing	104745 Bushing	-	1	Enquire
31	105329	Seal ring	105329 Seal ring	-	1	Enquire
32	144669	Pin for insert	144669 Pin for insert	-	6	Enquire
33	106040	FLOATING RING FOR SYNCHRO.	106040 FLOATING RING FOR SYNCHRO. For 2nd and 3rd speed gears	-	2	Enquire
