Clutch release control -Valid for GD- of Ferrari Ferrari 512 TR

View All

Ferrari 512 TR - Clutch release control -Valid for GD-

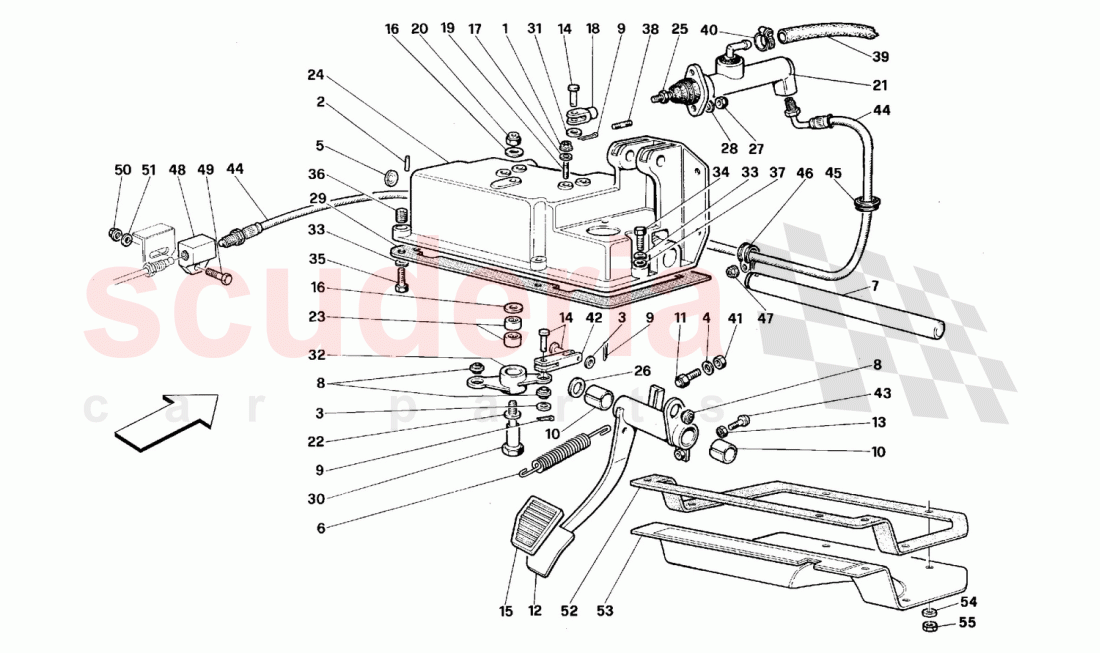

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13942870	Pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9162535	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104895	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	113831	Pin on the pedal support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	109407	BALL-JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10734208	SPLIT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103163	SELF-LUBRICATING BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	114825	Stop push rod	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151321	Clutch pedal	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10050814	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	132818	Pedal protection	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	113500	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10007871	FORK FOR BRAKE LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11500124	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148020	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

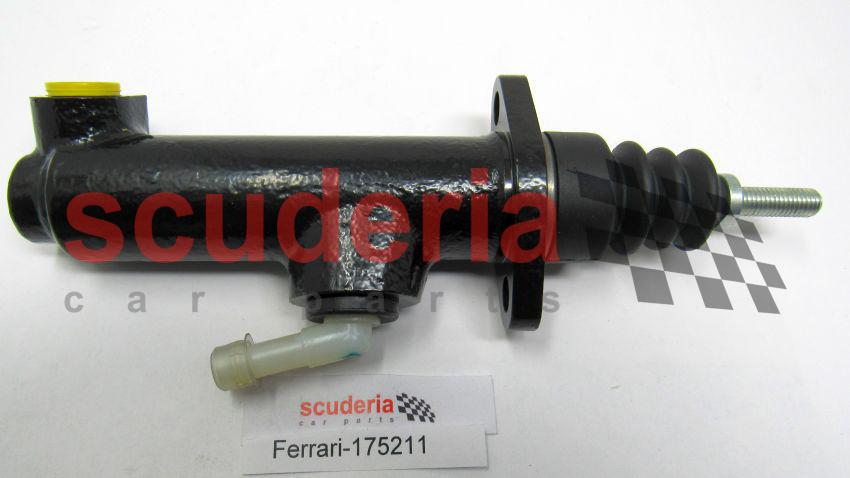

	175211	Clutch master cylinder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	112126	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	115430	Roller bearing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155181	Pedal suport	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	106083	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156663	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	114830	Pin for relay lever	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12642701	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148821	Relay lever	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13525870	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543524	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151845	PIPE FROM CLUTCH PUMP TO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157934	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133989	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	112172	Double fixing fork	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187014	PEDAL ADJUSTER SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149628	Clutch control tube	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	105369	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148869	Union	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646604	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	118422	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123228	Cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	113834	WASHER	113834 WASHER	-	1	Enquire
-	113835	WASHER	113835 WASHER	-	1	Enquire
-	113836	WASHER	113836 WASHER	-	1	Enquire
-	155181	Pedal suport	155181 Pedal suport Valid after stock exhaustion / of 123472	-	1	Enquire
-	113833	WASHER	113833 WASHER	-	1	Enquire
1	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
2	13942870	Pin	13942870 Pin	-	1	Enquire
3	84653800	WASHER	84653800 WASHER	-	2	Enquire
4	12601374	WASHER	12601374 WASHER	-	1	Enquire
5	9162535	THREADED PLUG	9162535 THREADED PLUG	-	1	Enquire
6	104895	SPRING	104895 SPRING	-	1	Enquire
7	113831	Pin on the pedal support	113831 Pin on the pedal support	-	1	Enquire
8	109407	BALL-JOINT	109407 BALL-JOINT	-	3	Enquire
9	10734208	SPLIT PIN	10734208 SPLIT PIN	-	3	Enquire
10	103163	SELF-LUBRICATING BUSHING	103163 SELF-LUBRICATING BUSHING	-	2	Enquire
11	114825	Stop push rod	114825 Stop push rod	-	1	Enquire
12	151321	Clutch pedal	151321 Clutch pedal	-	1	Enquire
13	16102314	NUT	16102314 NUT	-	1	Enquire
14	10050814	PIN	10050814 PIN	-	3	Enquire
15	132818	Pedal protection	132818 Pedal protection	-	1	Enquire
16	113500	Washer	113500 Washer	-	2	Enquire
17	12643724	WASHER	12643724 WASHER	-	4	Enquire
18	10007871	FORK FOR BRAKE LEVER	10007871 FORK FOR BRAKE LEVER	-	1	Enquire
19	11500124	STUD BOLT	11500124 STUD BOLT	-	4	Enquire
20	148020	NUT	148020 NUT	-	1	Enquire
21	175211	Clutch master cylinder	175211 Clutch master cylinder	-	1	Enquire
22	112126	Washer	112126 Washer	-	1	Enquire
23	115430	Roller bearing	115430 Roller bearing	-	2	Enquire
24	155181	Pedal suport	155181 Pedal suport	-	1	Enquire
25	16102314	NUT	16102314 NUT	-	1	Enquire
26	106083	WASHER	106083 WASHER	-	1	Enquire
27	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	2	Enquire
28	12601374	WASHER	12601374 WASHER	-	2	Enquire
29	156663	Gasket	156663 Gasket	-	1	Enquire
30	114830	Pin for relay lever	114830 Pin for relay lever	-	1	Enquire
31	12642701	Washer	12642701 Washer	-	1	Enquire
32	148821	Relay lever	148821 Relay lever	-	1	Enquire
33	127496	WASHER	127496 WASHER	-	5	Enquire
34	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	-	3	Enquire
35	14306924	SCREW	14306924 SCREW	-	2	Enquire
36	13525870	THREADED INSERT	13525870 THREADED INSERT	-	2	Enquire
37	84653800	WASHER	84653800 WASHER	-	3	Enquire
38	13543524	STUD BOLT	13543524 STUD BOLT	-	2	Enquire
39	151845	PIPE FROM CLUTCH PUMP TO	151845 PIPE FROM CLUTCH PUMP TO master cylinder	-	1	Enquire
40	157934	SCREW COLLAR	157934 SCREW COLLAR	-	2	Enquire
41	133989	NUT	133989 NUT	-	1	Enquire
42	112172	Double fixing fork	112172 Double fixing fork	-	1	Enquire
43	187014	PEDAL ADJUSTER SCREW	187014 PEDAL ADJUSTER SCREW	-	1	Enquire
44	149628	Clutch control tube	149628 Clutch control tube	-	1	Enquire
45	105369	CABLE GROMMET	105369 CABLE GROMMET	-	1	Enquire
46	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	-	1	Enquire
47	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
48	148869	Union	148869 Union	-	1	Enquire
49	231620	SCREW	231620 SCREW	-	1	Enquire
50	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
51	12646604	WASHER	12646604 WASHER	-	1	Enquire
52	118422	Gasket	118422 Gasket	-	1	Enquire
53	123228	Cover	123228 Cover	-	1	Enquire
54	12643724	WASHER	12643724 WASHER	-	5	Enquire
55	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	5	Enquire
