Gearbox transmission of Ferrari Ferrari 512 TR

View All

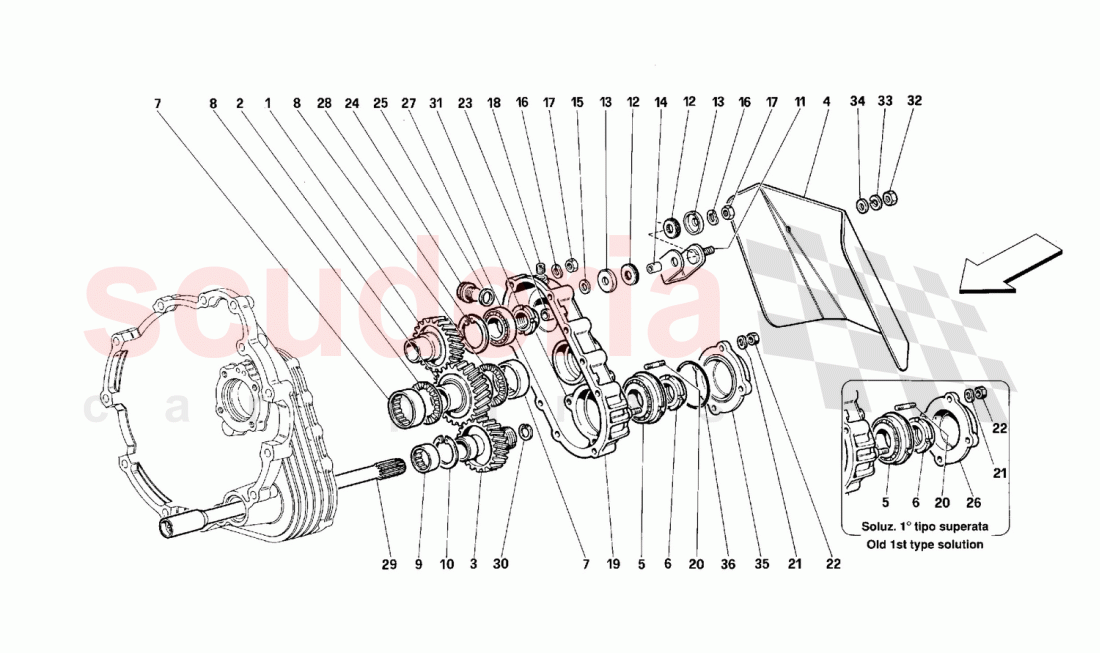

Ferrari 512 TR - Gearbox transmission

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	149588	Drive gear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149589	Intermediate gear -Not for	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149590	Driven gear -Not for	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148189	Protection plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126223	Bearing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153068	GEARBOX LOCK NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104840	Roller bearing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104841	Axial bearing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103095	Roller bearing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103096	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	128500	Bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	107978	VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	107979	STOP CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	107980	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124801	Spacer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133989	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10269450	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	146621	Clutch housing cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543324	Stud -Valid for gearbox	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133989	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	109336	Oil recovery pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307477	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10263460	COPPER GASKET D.28-22.3 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163736	Small cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	112981	Bearing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11061076	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151651	Propeller shaft	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11058276	Lock ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153066	Ring nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163736	Small cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152541	OR gasket	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	146581	Intermediate gear	146581 Intermediate gear Valid for CH	-	1	Enquire
-	146555	Driven gear -Not for	146555 Driven gear -Not for Valid for USA, CDN, AUS, J	-	1	Enquire
-	146575	Driven gear	146575 Driven gear Valid for CH	-	1	Enquire
-	151940	Drive gear -Valid	151940 Drive gear -Valid for USA, CDN, AUS, J, / from engine Nr. 32476 / Not for CH	-	1	Enquire
-	152695	Drive gear	152695 Drive gear Valid for CH	-	1	Enquire
-	146556	Intermediate gear -Not for	146556 Intermediate gear -Not for Valid for USA, CDN, AUS, J	-	1	Enquire
-	151939	Drive gear	151939 Drive gear Valid from engine / Nr. 31805 and for engines / Nr. 30580, 30581, 30582, / 30583 and 30694 - Not for / USA, CDN, AUS, J, CH	-	1	Enquire
-	146569	Drive gear -Valid	146569 Drive gear -Valid for USA, CDN, AUS, J, / till engine Nr. 32475 / Not for CH	-	1	Enquire
1	149588	Drive gear	149588 Drive gear Valid till engine / Nr. 31804 - Not for USA, / CDN, AUS, J, CH and not / for engines Nr. 30580, / 30581, 30582, 30583 and / 30694	-	1	Enquire
2	149589	Intermediate gear -Not for	149589 Intermediate gear -Not for USA, CDN, AUS, J, CH	-	1	Enquire
3	149590	Driven gear -Not for	149590 Driven gear -Not for USA, CDN, AUS, J, CH	-	1	Enquire
4	148189	Protection plate	148189 Protection plate	-	1	Enquire
5	126223	Bearing	126223 Bearing	-	1	Enquire
6	153068	GEARBOX LOCK NUT	153068 GEARBOX LOCK NUT	-	1	Enquire
7	104840	Roller bearing	104840 Roller bearing	-	2	Enquire
8	104841	Axial bearing	104841 Axial bearing	-	2	Enquire
9	103095	Roller bearing	103095 Roller bearing	-	1	Enquire
10	103096	SEAL RING	103096 SEAL RING	-	1	Enquire
11	128500	Bracket	128500 Bracket	-	3	Enquire
12	107978	VIBRATION DAMPER	107978 VIBRATION DAMPER	-	6	Enquire
13	107979	STOP CAP	107979 STOP CAP	-	6	Enquire
14	107980	SHIM	107980 SHIM	-	3	Enquire
15	124801	Spacer	124801 Spacer	-	3	Enquire
16	12601374	WASHER	12601374 WASHER	-	10	Enquire
17	133989	NUT	133989 NUT	-	10	Enquire
18	10269450	THREADED PLUG	10269450 THREADED PLUG	-	1	Enquire
19	146621	Clutch housing cover	146621 Clutch housing cover	-	1	Enquire
20	13543324	Stud -Valid for gearbox	13543324 Stud -Valid for gearbox	-	4	Enquire
21	12601374	WASHER	12601374 WASHER	-	4	Enquire
22	133989	NUT	133989 NUT	-	4	Enquire
23	109336	Oil recovery pipe	109336 Oil recovery pipe	-	1	Enquire
24	307477	THREADED PLUG	307477 THREADED PLUG	-	1	Enquire
25	10263460	COPPER GASKET D.28-22.3 X 1.5	10263460 COPPER GASKET D.28-22.3 X 1.5	-	1	Enquire
26	163736	Small cover	163736 Small cover Old 1st type solution / Replace with 163736+ / 152541	-	1	Enquire
27	112981	Bearing	112981 Bearing	-	1	Enquire
28	11061076	SEEGER RING	11061076 SEEGER RING	-	1	Enquire
29	151651	Propeller shaft	151651 Propeller shaft	-	1	Enquire
30	11058276	Lock ring	11058276 Lock ring	-	1	Enquire
31	153066	Ring nut	153066 Ring nut	-	1	Enquire
32	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	3	Enquire
33	127494	WASHER	127494 WASHER	-	3	Enquire
34	12643724	WASHER	12643724 WASHER	-	3	Enquire
35	163736	Small cover	163736 Small cover	-	1	Enquire
36	152541	OR gasket	152541 OR gasket	-	1	Enquire
