Front brakes calipers of Ferrari Ferrari 512 M

View All

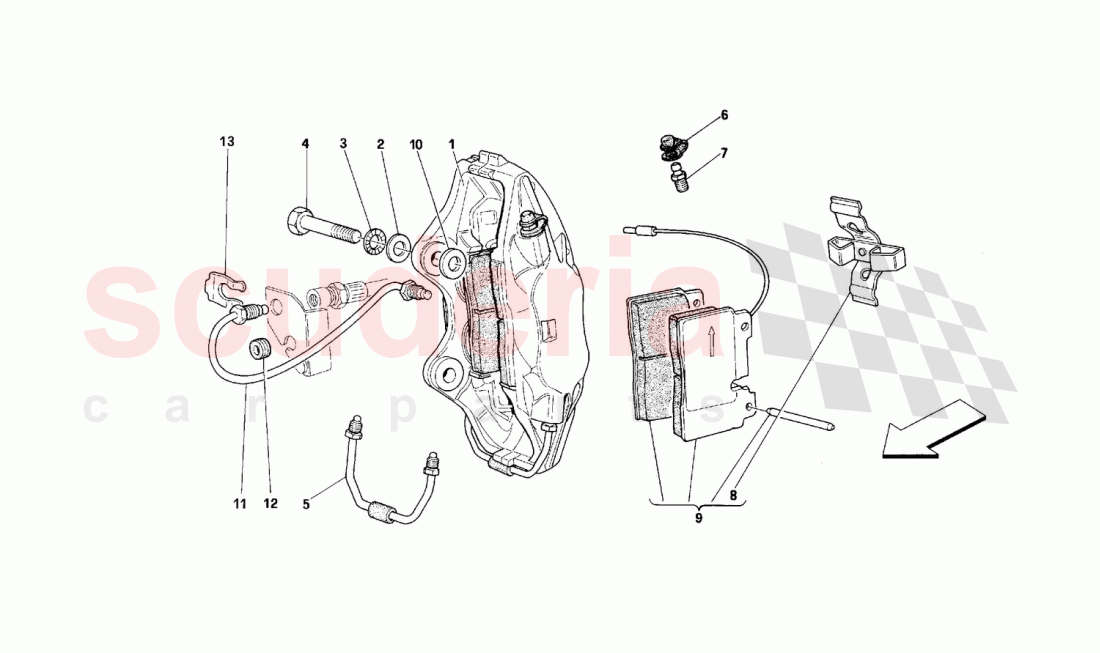

Ferrari 512 M - Front brakes calipers

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	142479	RH front caliper with pads (TEVES)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10615874	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174214	BOLT M12 X 1.25 X 40	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151962	CONNECTION PIPE (TEVES)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147136	BOOT (CALIPERS TEVES)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147135	UNIONWITH EXHAUST VALVE (CALIPERS TEVES)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151963	SPRING (TEVES)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70000766	Set of front pads with spring and pin (TEVES)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156260	Washer thickness mm. 0,2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6147974	Pipe from hose to	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10396380	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116374	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	152049	Pipe from hose to RH front caliper (BREMBO)	152049 Pipe from hose to RH front caliper (BREMBO) R.H. front caliper (BREMBO)	-	1	Enquire
-	147975	Pipe from hose to LH front caliper (ATE)	147975 Pipe from hose to LH front caliper (ATE) L.H. front caliper (ATE)	-	1	Enquire
-	152050	Pipe from hose to LH front caliper (BREMBO)	152050 Pipe from hose to LH front caliper (BREMBO) L.H. front caliper (BREMBO)	-	1	Enquire
-	156265	WASHER Th. mm. 0,8 -As an alternative-	156265 WASHER Th. mm. 0,8 -As an alternative- Possible mounting	-	-	Enquire
-	156266	WASHER Th. mm. 1,0 -As an alternative-	156266 WASHER Th. mm. 1,0 -As an alternative- Possible mounting	-	-	Enquire
-	156261	WASHER Th. mm. 0,3 -As an alternative-	156261 WASHER Th. mm. 0,3 -As an alternative- Possible mounting	-	-	Enquire
-	156262	WASHER Th. mm. 0,5 -As an alternative-	156262 WASHER Th. mm. 0,5 -As an alternative- Possible mounting	-	-	Enquire
-	156263	WASHER Th. mm. 0,6 -As an alternative-	156263 WASHER Th. mm. 0,6 -As an alternative- Possible mounting	-	-	Enquire
-	156264	WASHER Th. mm. 0,7 -As an alternative-	156264 WASHER Th. mm. 0,7 -As an alternative- Possible mounting	-	-	Enquire
-	172348	SPRING (BREMBO)	172348 SPRING (BREMBO) (Caliper BREMBO)	-	2	Enquire
-	70000823	Set of front pads with spring and pin (BREMBO)	70000823 Set of front pads with spring and pin (BREMBO) spring and pin (BREMBO)	-	1	Enquire
-	152955	PROTECTIVE CAP	152955 PROTECTIVE CAP	-	2	Enquire
-	152954	BLEED NIPPLE SCREW	152954 BLEED NIPPLE SCREW	-	2	Enquire
-	172868	CONNECTION PIPE (BREMBO)	172868 CONNECTION PIPE (BREMBO) (Caliper BREMBO)	-	2	Enquire
-	142478	LH front caliper with pads (TEVES)	142478 LH front caliper with pads (TEVES) pads (TEVES)	-	1	Enquire
-	151902	LH front caliper with pads (BREMBO)	151902 LH front caliper with pads (BREMBO) pads (BREMBO)	-	1	Enquire
-	151901	RH front caliper with pads (BREMBO)	151901 RH front caliper with pads (BREMBO) pads (BREMBO)	-	1	Enquire
1	142479	RH front caliper with pads (TEVES)	142479 RH front caliper with pads (TEVES) pads (TEVES)	-	1	Enquire
2	84653800	WASHER	84653800 WASHER	-	4	Enquire
3	10615874	WASHER	10615874 WASHER	-	4	Enquire
4	174214	BOLT M12 X 1.25 X 40	174214 BOLT M12 X 1.25 X 40	-	4	Enquire
5	151962	CONNECTION PIPE (TEVES)	151962 CONNECTION PIPE (TEVES) (Caliper TEVES)	-	2	Enquire
6	147136	BOOT (CALIPERS TEVES)	147136 BOOT (CALIPERS TEVES)	-	2	Enquire
7	147135	UNIONWITH EXHAUST VALVE (CALIPERS TEVES)	147135 UNIONWITH EXHAUST VALVE (CALIPERS TEVES)	-	2	Enquire
8	151963	SPRING (TEVES)	151963 SPRING (TEVES) (Caliper TEVES)	-	2	Enquire
9	70000766	Set of front pads with spring and pin (TEVES)	70000766 Set of front pads with spring and pin (TEVES) spring and pin (TEVES)	-	1	Enquire
10	156260	Washer thickness mm. 0,2	156260 Washer thickness mm. 0,2 Possible mounting	-	-	Enquire
11	6147974	Pipe from hose to	6147974 Pipe from hose to R.H. front caliper (ATE)	-	1	Enquire
12	10396380	CABLE GROMMET	10396380 CABLE GROMMET	-	2	Enquire
13	116374	CLIP	116374 CLIP	-	4	Enquire
