Ferrari 512 M - Brake hydraulic system -Not for GD-

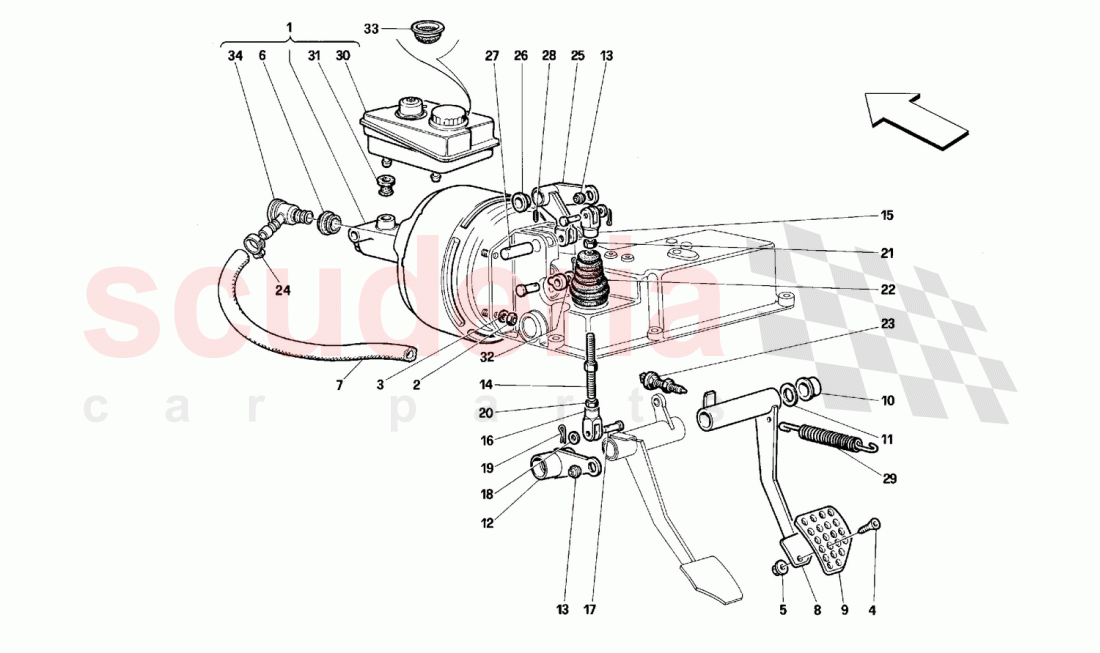

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	151471	Brake booster compl.	$1,750.91	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	151475	CABLE GROMMET	$10.52	To Order

Photo	Part No	Description	Price (each)	Stock
	151477	Rubber hose	$178.87	To Order

Photo	Part No	Description	Price (each)	Stock
	163882	Brake pedal	$166.46	To Order

Photo	Part No	Description	Price (each)	Stock
	163865	BRAKE PEDAL DRILLED PLATE	$92.94	To Order

Photo	Part No	Description	Price (each)	Stock
	124686	Bush	$4.44	To Order

Photo	Part No	Description	Price (each)	Stock
	112128	DITTO THICKNESS mm. 1.0	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	121217	Brake relay lever	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	100424	BALL JOINT	$38.38	To Order

Photo	Part No	Description	Price (each)	Stock
	148822	Tie rod	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104910	Fork, R.H. thread	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104911	Fork, L.H. thread	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10033414	Pin	$7.47	To Order

Photo	Part No	Description	Price (each)	Stock
	103167	WASHER	$3.40	To Order

Photo	Part No	Description	Price (each)	Stock
	264555	SPLIT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11690911	L.H. THREADED NUT	$3.68	To Order

Photo	Part No	Description	Price (each)	Stock
	10788711	Nut, R.H. thread	$0.05	To Order

Photo	Part No	Description	Price (each)	Stock
	112157	Bellows	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133555	PUSHBUTTON SWITCH	$38.69	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.60	To Order

Photo	Part No	Description	Price (each)	Stock
	148788	Brake booster control lever	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124586	Bush	$3.68	To Order

Photo	Part No	Description	Price (each)	Stock
	124714	Relay lever supporting pin	$3.21	To Order

Photo	Part No	Description	Price (each)	Stock
	13736911	Screw	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	104895	SPRING	$33.68	To Order

Photo	Part No	Description	Price (each)	Stock
	133579	Oil reservoir	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WASHER	$0.03	To Order

Photo	Part No	Description	Price (each)	Stock
	120735	Filter	$0.62	To Order

Photo	Part No	Description	Price (each)	Stock
	144552	UNION	$15.48	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	112127	DITTO THICKNESS mm. 0.9	112127 DITTO THICKNESS mm. 0.9	$0.29	-
-	112129	DITTO THICKNESS mm. 1.1	112129 DITTO THICKNESS mm. 1.1	$0.29	-
-	112130	DITTO THICKNESS mm. 1.2	112130 DITTO THICKNESS mm. 1.2	$0.79	-
-	112131	DITTO THICKNESS mm. 1.3	112131 DITTO THICKNESS mm. 1.3	$0.29	-
1	151471	Brake booster compl.	151471 Brake booster compl.	$1,750.91 MSRP: ~~5,252.61~~ (66.7% off)	1
2	147985	NUT	147985 NUT	$0.16 MSRP: ~~0.50~~ (68% off)	4
3	12601374	WASHER	12601374 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	4
4	62797600	Allen Bolt Countersunk M6 x 20	62797600 Allen Bolt Countersunk M6 x 20	$1.10 MSRP: ~~1.45~~ (24.1% off)	2
5	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
6	151475	CABLE GROMMET	151475 CABLE GROMMET	$10.52	1
7	151477	Rubber hose	151477 Rubber hose	$178.87	1
8	163882	Brake pedal	163882 Brake pedal	$166.46	1
9	163865	BRAKE PEDAL DRILLED PLATE	163865 BRAKE PEDAL DRILLED PLATE	$92.94	1
10	124686	Bush	124686 Bush	$4.44	1
11	112128	DITTO THICKNESS mm. 1.0	112128 DITTO THICKNESS mm. 1.0	$0.11	1
12	121217	Brake relay lever	121217 Brake relay lever	-	1	Enquire
13	100424	BALL JOINT	100424 BALL JOINT	$38.38	2
14	148822	Tie rod	148822 Tie rod	-	1	Enquire
15	104910	Fork, R.H. thread	104910 Fork, R.H. thread	-	1	Enquire
16	104911	Fork, L.H. thread	104911 Fork, L.H. thread	-	1	Enquire
17	10033414	Pin	10033414 Pin	$7.47 MSRP: ~~21.40~~ (65.1% off)	3
18	103167	WASHER	103167 WASHER	$3.40	2
19	264555	SPLIT PIN	264555 SPLIT PIN	-	3	Enquire
20	11690911	L.H. THREADED NUT	11690911 L.H. THREADED NUT	$3.68	1
21	10788711	Nut, R.H. thread	10788711 Nut, R.H. thread	$0.05	1
22	112157	Bellows	112157 Bellows	-	1	Enquire
23	133555	PUSHBUTTON SWITCH	133555 PUSHBUTTON SWITCH	$38.69 MSRP: ~~43.35~~ (10.7% off)	1
24	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	$1.60	1
25	148788	Brake booster control lever	148788 Brake booster control lever	-	1	Enquire
26	124586	Bush	124586 Bush	$3.68	2
27	124714	Relay lever supporting pin	124714 Relay lever supporting pin	$3.21	1
28	13736911	Screw	13736911 Screw	$0.16	1
29	104895	SPRING	104895 SPRING	$33.68	1
30	133579	Oil reservoir	133579 Oil reservoir	-	1	Enquire
31	175189	SEAT RING	175189 SEAT RING	$25.66 MSRP: ~~29.23~~ (12.2% off)	2
32	12601474	WASHER	12601474 WASHER	$0.03	1
33	120735	Filter	120735 Filter	$0.62	1
34	144552	UNION	144552 UNION	$15.48	1
