Name: REAR ACTIVE AERO
Rating: 4.6 (1 reviews)

REAR ACTIVE AERO of Ferrari Ferrari 488 Pista Spider USA

View All

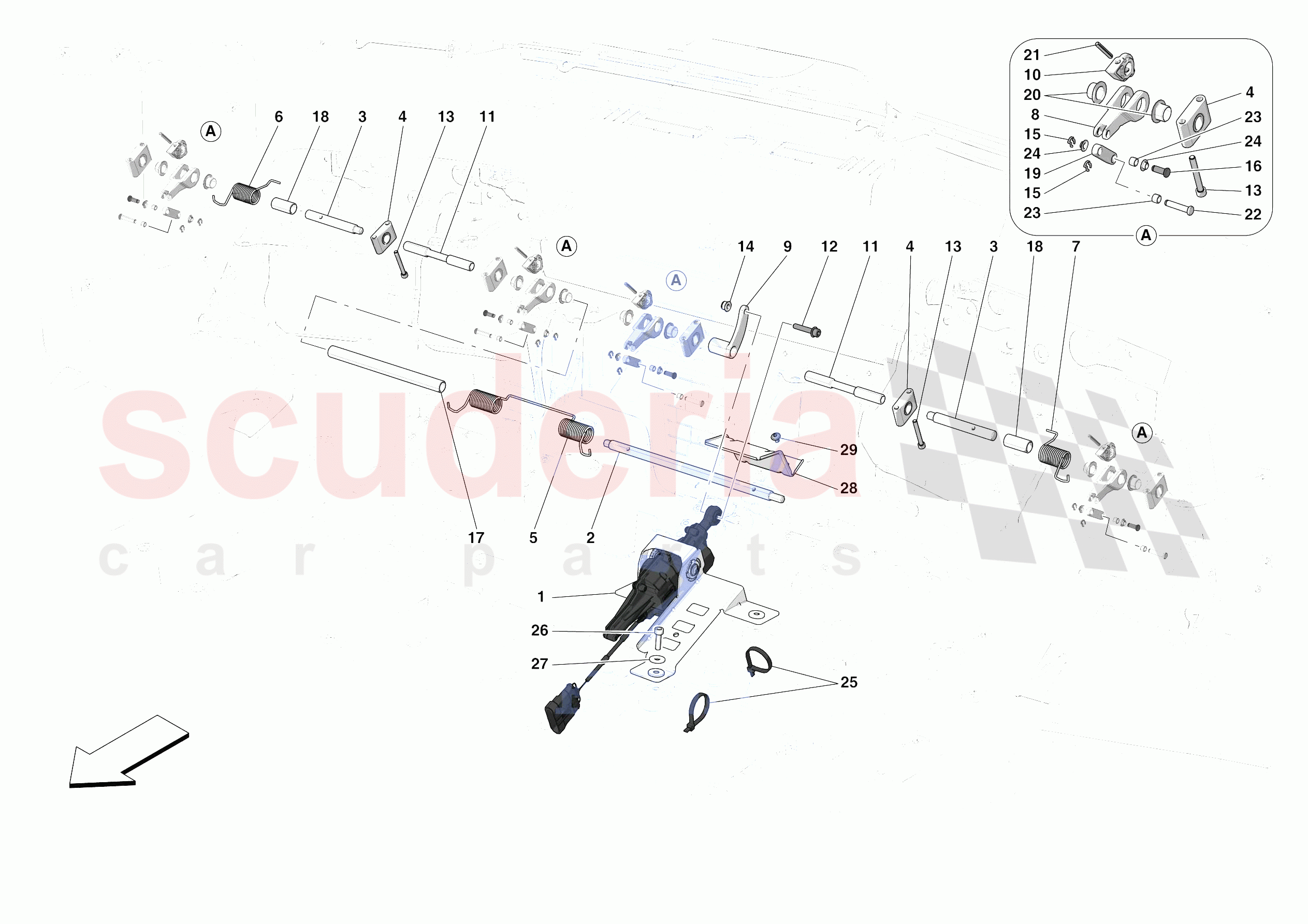

Ferrari 488 Pista Spider USA - REAR ACTIVE AERO

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	748053	ACTUATOR COMPL. WITH BRACKET	$754.81	To Order

Photo	Part No	Description	Price (each)	Stock
	85708700	CENTRE SHAFT SECTION	$125.14	To Order

Photo	Part No	Description	Price (each)	Stock
	85708800	LATERAL SHAFT SECTION	$62.56	To Order

Photo	Part No	Description	Price (each)	Stock
	85708900	SHAFT MOUNT	$22.45	To Order

Photo	Part No	Description	Price (each)	Stock
	85709000	CENTRE RETURN SPRING	$32.08	To Order

Photo	Part No	Description	Price (each)	Stock
	310109	RH RETURN SPRING	$17.63	To Order

Photo	Part No	Description	Price (each)	Stock
	310110	LH RETURN SPRING	$17.63	To Order

Photo	Part No	Description	Price (each)	Stock
	318981	HATCH ACTUATOR LINK	$85.03	To Order

Photo	Part No	Description	Price (each)	Stock
	318983	SHAFT DRIVE LEVER	$75.40	To Order

Photo	Part No	Description	Price (each)	Stock
	328330	CONTROL CAM	$4.80	To Order

Photo	Part No	Description	Price (each)	Stock
	329318	FLEXIBLE SHAFT	$157.23	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	301785	SCREW	$0.71	To Order

Photo	Part No	Description	Price (each)	Stock
	301909	SELF-LOCKING NUT	$1.65	To Order

Photo	Part No	Description	Price (each)	Stock
	306350	SAFETY CLIP	$1.46	To Order

Photo	Part No	Description	Price (each)	Stock
	306757	UPPER LINK PIN	$12.98	To Order

Photo	Part No	Description	Price (each)	Stock
	85709300	CENTRAL SPACER	$17.62	To Order

Photo	Part No	Description	Price (each)	Stock
	85709400	LATERAL SPACER	$8.22	To Order

Photo	Part No	Description	Price (each)	Stock
	85709700	LATERAL LINK	$43.31	To Order

Photo	Part No	Description	Price (each)	Stock
	85711700	BUSH	$3.23	To Order

Photo	Part No	Description	Price (each)	Stock
	85711800	DRIVE PIN	$1.46	To Order

Photo	Part No	Description	Price (each)	Stock
	85712100	LOWER LINK PINS	$17.18	To Order

Photo	Part No	Description	Price (each)	Stock
	85712200	BUSH FOR LINK PIN	$1.77	To Order

Photo	Part No	Description	Price (each)	Stock
	87804600	BUSH	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	10815787	CLAMP	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	14305324	SCREW	$0.08	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	309215	HEAT SHIELD	$11.70	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	ARRIVING SOON
	85833900	SCREW	$0.36	ARRIVING SOON
	85833900	SCREW	$0.36	ARRIVING SOON

...and 2 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	748053	ACTUATOR COMPL. WITH BRACKET	748053 ACTUATOR COMPL. WITH BRACKET	$754.81	1
0002	85708700	CENTRE SHAFT SECTION	85708700 CENTRE SHAFT SECTION	$125.14	1
0003	85708800	LATERAL SHAFT SECTION	85708800 LATERAL SHAFT SECTION	$62.56	2
0004	85708900	SHAFT MOUNT	85708900 SHAFT MOUNT	$22.45	6
0005	85709000	CENTRE RETURN SPRING	85709000 CENTRE RETURN SPRING	$32.08	1
0006	310109	RH RETURN SPRING	310109 RH RETURN SPRING	$17.63	1
0007	310110	LH RETURN SPRING	310110 LH RETURN SPRING	$17.63	1
0008	318981	HATCH ACTUATOR LINK	318981 HATCH ACTUATOR LINK	$85.03	4
0009	318983	SHAFT DRIVE LEVER	318983 SHAFT DRIVE LEVER	$75.40	1
0010	328330	CONTROL CAM	328330 CONTROL CAM	$4.80	4
0011	329318	FLEXIBLE SHAFT	329318 FLEXIBLE SHAFT	$157.23	2
0012	231620	SCREW	231620 SCREW M6 X 30	$0.32 MSRP: ~~0.35~~ (8.6% off)	1
0013	301785	SCREW	301785 SCREW M5 X 40	$0.71	12
0014	301909	SELF-LOCKING NUT	301909 SELF-LOCKING NUT	$1.65	1
0015	306350	SAFETY CLIP	306350 SAFETY CLIP	$1.46	8
0016	306757	UPPER LINK PIN	306757 UPPER LINK PIN	$12.98	4
0017	85709300	CENTRAL SPACER	85709300 CENTRAL SPACER	$17.62	1
0018	85709400	LATERAL SPACER	85709400 LATERAL SPACER	$8.22	2
0019	85709700	LATERAL LINK	85709700 LATERAL LINK	$43.31	4
0020	85711700	BUSH	85711700 BUSH	$3.23	8
0021	85711800	DRIVE PIN	85711800 DRIVE PIN	$1.46	4
0022	85712100	LOWER LINK PINS	85712100 LOWER LINK PINS	$17.18	4
0023	85712200	BUSH FOR LINK PIN	85712200 BUSH FOR LINK PIN	$1.77	8
0024	87804600	BUSH	87804600 BUSH	$1.36	8
0025	10815787	CLAMP	10815787 CLAMP	$0.15	2
0026	14305324	SCREW	14305324 SCREW M6 X 20	$0.08	3
0027	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	3
0028	309215	HEAT SHIELD	309215 HEAT SHIELD	$11.70	1
0029	85833900	SCREW ARRIVING SOON	85833900 SCREW Version for rear diffuser in naked weave carbon; M5 X 14 ARRIVING SOON	$0.36	2
0029	85833900	SCREW ARRIVING SOON	85833900 SCREW M5 X 10 ARRIVING SOON	$0.36	2
0029	85833900	SCREW ARRIVING SOON	85833900 SCREW M5 X 8 ARRIVING SOON	$0.36	2
0029	85833900	SCREW ARRIVING SOON	85833900 SCREW M5 X 14 ARRIVING SOON	$0.36	2
0029	85833900	SCREW ARRIVING SOON	85833900 SCREW M5 X 8 ARRIVING SOON	$0.36	2
