Name: ROOF PANEL
Rating: 5.0 (1 reviews)

View All

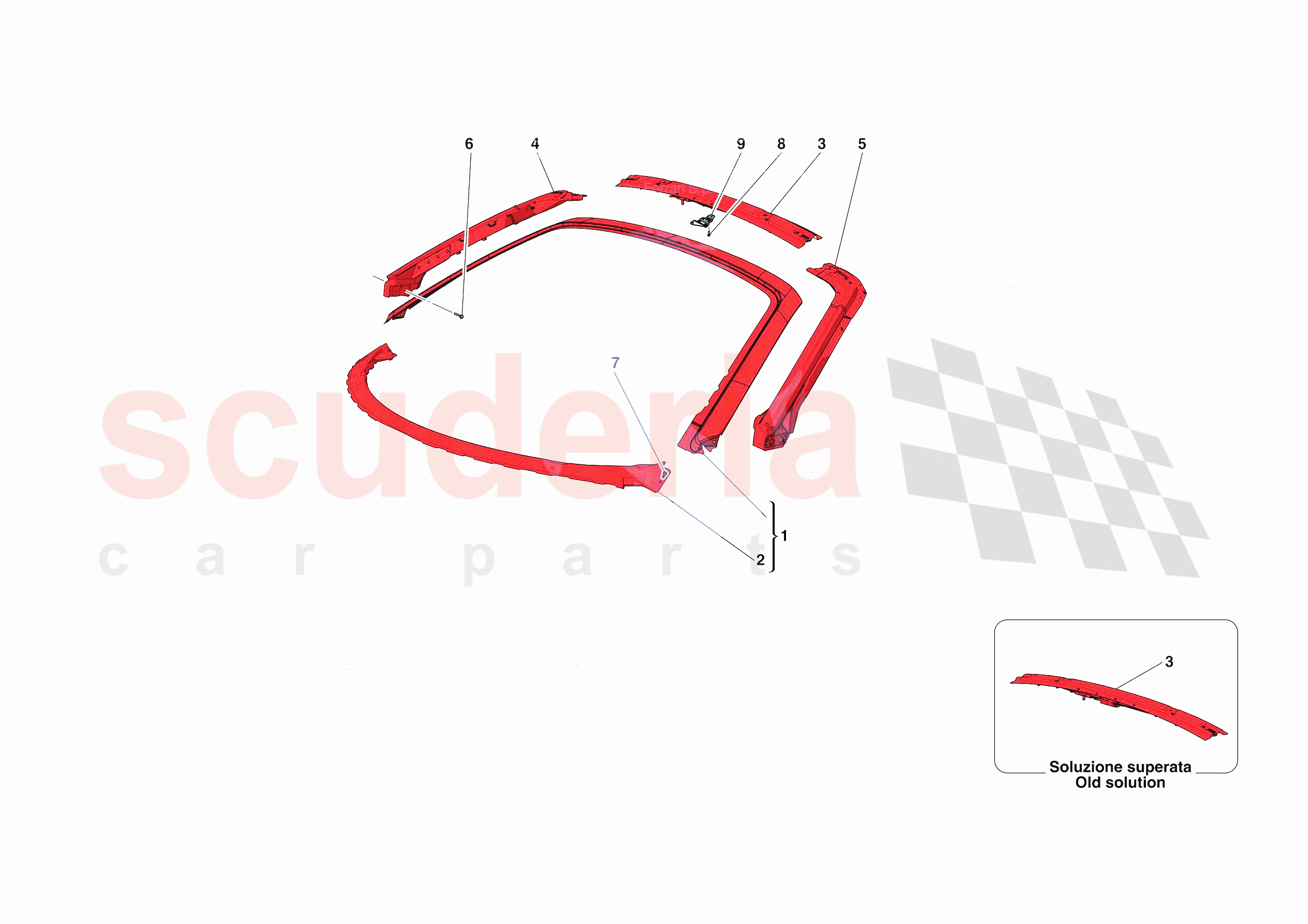

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	87640911	WINDSCREEN SURROUND	$3,246.09	To Order

Photo	Part No	Description	Price (each)	Stock
	87286711	WINDSCREEN CROSS-MEMBER UPPER COVER	$2,827.29	To Order

Photo	Part No	Description	Price (each)	Stock
	82164800	UPPER WINDSCREEN CROSS MEMBER	$339.74	To Order
	82164811	UPPER WINDSCREEN CROSS MEMBER	$722.05	To Order
	985907236	COMPL. UPPER WINDSCREEN CROSS MEMBER	$616.38	To Order

Photo	Part No	Description	Price (each)	Stock
	18753234	SCREW	$1.94	To Order

Photo	Part No	Description	Price (each)	Stock
	14639791	RIVET	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	16281827	SCREW	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	911951	COMPL. LIGHT MOUNTING BRACKET	$50.15	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	87640911	WINDSCREEN SURROUND	87640911 WINDSCREEN SURROUND	$3,246.09	1
0002	87286711	WINDSCREEN CROSS-MEMBER UPPER COVER	87286711 WINDSCREEN CROSS-MEMBER UPPER COVER	$2,827.29	1
0003	82164800	UPPER WINDSCREEN CROSS MEMBER	82164800 UPPER WINDSCREEN CROSS MEMBER Applies until depletion	$339.74	1
0003	82164811	UPPER WINDSCREEN CROSS MEMBER	82164811 UPPER WINDSCREEN CROSS MEMBER Applicable after depletion of 82164800	$722.05	1
0003	985907236	COMPL. UPPER WINDSCREEN CROSS MEMBER	985907236 COMPL. UPPER WINDSCREEN CROSS MEMBER	$616.38	1
0004	264618	RH UPPER PILLAR	264618 RH UPPER PILLAR Applies until depletion	$885.28	1
0004	985264618	RH UPPER PILLAR	985264618 RH UPPER PILLAR Applicable after depletion of 264618	$1,850.09	1
0005	264617	LH UPPER PILLAR	264617 LH UPPER PILLAR Applies until depletion	$885.28	1
0005	985264617	LH UPPER PILLAR	985264617 LH UPPER PILLAR Applicable after depletion of 264617	$1,850.09	1
0006	18753234	SCREW	18753234 SCREW M8 X 55	$1.94	4
0007	14639791	RIVET	14639791 RIVET	$1.36	2
0008	16281827	SCREW	16281827 SCREW M5 X 14	$0.23	2
0009	911951	COMPL. LIGHT MOUNTING BRACKET	911951 COMPL. LIGHT MOUNTING BRACKET	$50.15	1
