STRUCTURES AND ELEMENTS, FRONT OF VEHICLE of Ferrari Ferrari 488 Pista Spider USA

View All

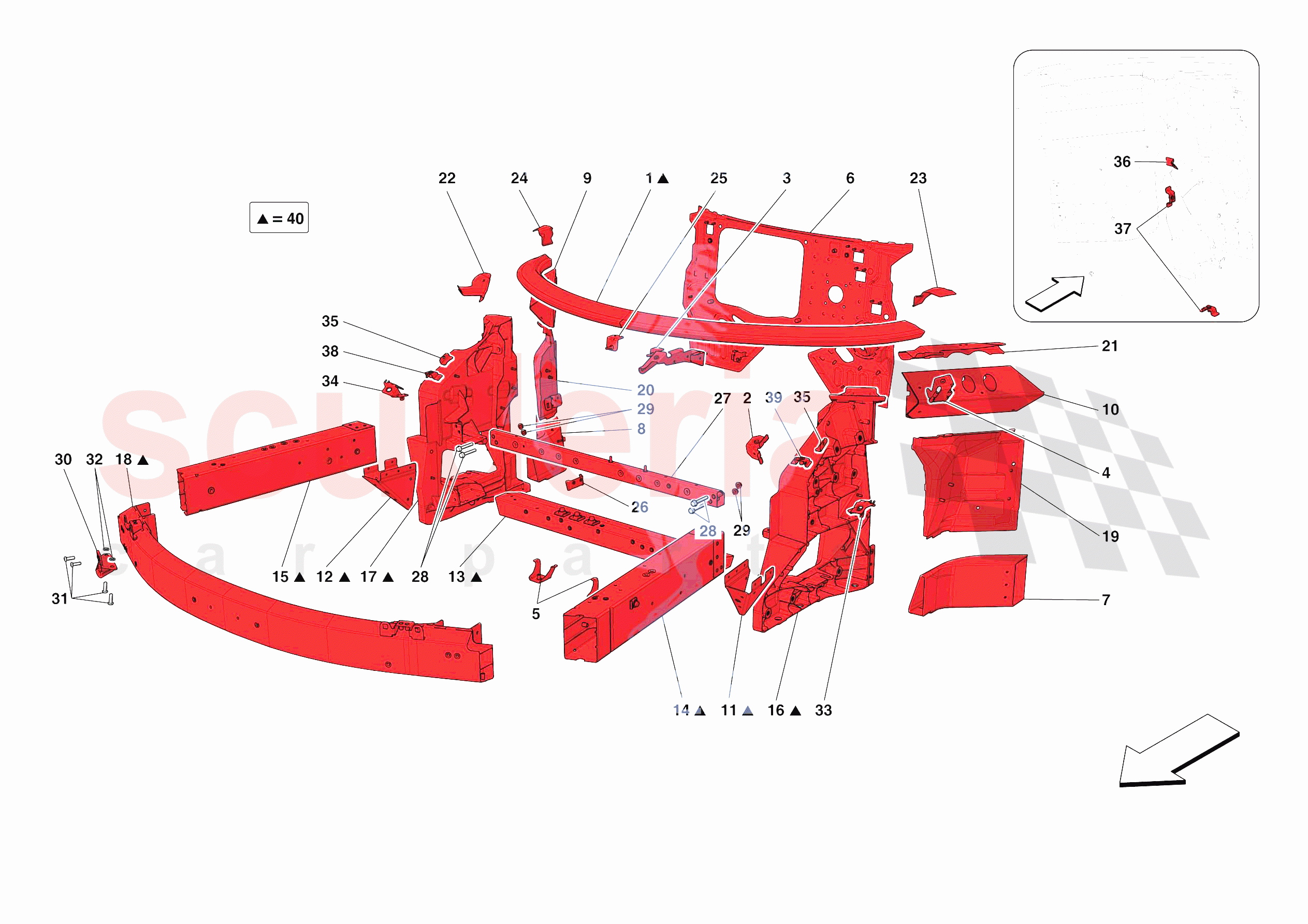

Ferrari 488 Pista Spider USA - STRUCTURES AND ELEMENTS, FRONT OF VEHICLE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	985275628	WINDSCREEN VALENCE PANEL CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985256207	BRACKET	Enquire	To Order
	985263064	WINDSCREEN WIPER MOTOR MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985272196	COMPL. BRACKET	Enquire	To Order
	274092	WINDSCREEN WIPER SPINDLE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	272197	WINDSCREEN WIPER BRACKET	Enquire	To Order
	274091	WINDSCREEN WIPER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985265090	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985306748	FRONT FIREWALL PANEL	Enquire	To Order
	985301348	FRONT FIREWALL PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985309473	FRONT LH TORQUE BOX	Enquire	To Order
	985318350	FRONT LH TORQUE BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985311881	FRONT RH TORQUE BOX	Enquire	To Order
	985323840	FRONT RH TORQUE BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985270833	COMPL. RH UPPER FRONT DIAGONAL BRACE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985270834	COMPL. LH UPPER FRONT DIAGONAL BRACE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985244141	ANGULAR BRACE FOR LH STRUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985244142	ANGULAR BRACE FOR RH STRUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985321077	COMPL. LOWER FRONT SUSPENSION CROSS MEMBER	Enquire	To Order
	985321077	COMPL. LOWER FRONT SUSPENSION CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985312857	LH FRONT SPAR	Enquire	To Order
	985904561	LH FRONT SPAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985312858	RH FRONT SPAR	Enquire	To Order
	985904565	RH FRONT SPAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985301010	FRONT LH SHOCK TOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985301013	FRONT RH SHOCK TOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985761415	COMPL. FRONT BUMPER MOUNTING CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985922531	COMPL. LH FRONT WHEEL BAY COVER PANEL	Enquire	To Order
	985922531	COMPL. LH FRONT WHEEL BAY COVER PANEL	Enquire	To Order
	985323852	COMPL. LH FRONT WHEEL BAY COVER PANEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	985313290	COMPL. RH FRONT WHEEL BAY COVER PANEL	Enquire	To Order
	985323870	COMPL. RH FRONT WHEEL BAY COVER PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985320816	LH DIAGONAL WINDSCREEN VALENCE PANEL ENDPIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985320817	RH DIAGONAL WINDSCREEN VALENCE PANEL ENDPIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	270831	LH WINDSCREEN VALENCE PANEL FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985270832	RH WINDSCREEN VALENCE PANEL FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	272192	BRAKE FLUID RESERVOIR BRACKET	Enquire	To Order
	322094	COMPL. BRAKE FLUID RESERVOIR MOUNTING BRACKET	Enquire	To Order
	985322094	COMPL. BRAKE FLUID RESERVOIR MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985261895	COMPL. INERTIA SWITCH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985307558	CASTING CONNECTOR CROSS-PIECE	Enquire	To Order
	985318904	CASTING CONNECTOR CROSS-PIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16044434	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059311	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985290233	COMPL. TOW HOOK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85633900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	290236	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985257195	LH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985257198	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985260289	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263271	BOWDEN CABLE FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985262293	COMPL. LOWER ACCELERATION PLATE FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985279453	RH FRONT ACCELEROMETER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985279381	LH FRONT ACCELEROMETER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985761390	FRONT SUBFRAME	Enquire	To Order
	985801740	FRONT SUBFRAME	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	985275628	WINDSCREEN VALENCE PANEL CROSS MEMBER	985275628 WINDSCREEN VALENCE PANEL CROSS MEMBER Request ASM authorisation	-	1	Enquire
0002	985256207	BRACKET	985256207 BRACKET	-	1	Enquire
0002	985263064	WINDSCREEN WIPER MOTOR MOUNTING BRACKET	985263064 WINDSCREEN WIPER MOTOR MOUNTING BRACKET	-	1	Enquire
0003	985272196	COMPL. BRACKET	985272196 COMPL. BRACKET	-	1	Enquire
0003	274092	WINDSCREEN WIPER SPINDLE BRACKET	274092 WINDSCREEN WIPER SPINDLE BRACKET	-	1	Enquire
0004	272197	WINDSCREEN WIPER BRACKET	272197 WINDSCREEN WIPER BRACKET	-	1	Enquire
0004	274091	WINDSCREEN WIPER BRACKET	274091 WINDSCREEN WIPER BRACKET	-	1	Enquire
0005	985265090	BRACKET	985265090 BRACKET	-	2	Enquire
0006	985306748	FRONT FIREWALL PANEL	985306748 FRONT FIREWALL PANEL Request ASM authorisation	-	1	Enquire
0006	985301348	FRONT FIREWALL PANEL	985301348 FRONT FIREWALL PANEL Request ASM authorisation	-	1	Enquire
0007	985309473	FRONT LH TORQUE BOX	985309473 FRONT LH TORQUE BOX Request ASM authorisation	-	1	Enquire
0007	985318350	FRONT LH TORQUE BOX	985318350 FRONT LH TORQUE BOX Request ASM authorisation	-	1	Enquire
0008	985311881	FRONT RH TORQUE BOX	985311881 FRONT RH TORQUE BOX Request ASM authorisation	-	1	Enquire
0008	985323840	FRONT RH TORQUE BOX	985323840 FRONT RH TORQUE BOX Request ASM authorisation	-	1	Enquire
0009	985270833	COMPL. RH UPPER FRONT DIAGONAL BRACE	985270833 COMPL. RH UPPER FRONT DIAGONAL BRACE Request ASM authorisation	-	1	Enquire
0010	985270834	COMPL. LH UPPER FRONT DIAGONAL BRACE	985270834 COMPL. LH UPPER FRONT DIAGONAL BRACE Request ASM authorisation	-	1	Enquire
0011	985244141	ANGULAR BRACE FOR LH STRUT	985244141 ANGULAR BRACE FOR LH STRUT	-	1	Enquire
0012	985244142	ANGULAR BRACE FOR RH STRUT	985244142 ANGULAR BRACE FOR RH STRUT	-	1	Enquire
0013	985321077	COMPL. LOWER FRONT SUSPENSION CROSS MEMBER	985321077 COMPL. LOWER FRONT SUSPENSION CROSS MEMBER Request ASM authorisation	-	1	Enquire
0013	985321077	COMPL. LOWER FRONT SUSPENSION CROSS MEMBER	985321077 COMPL. LOWER FRONT SUSPENSION CROSS MEMBER	-	1	Enquire
0014	985312857	LH FRONT SPAR	985312857 LH FRONT SPAR Request ASM authorisation; Applies until depletion	-	1	Enquire
0014	985904561	LH FRONT SPAR	985904561 LH FRONT SPAR Request ASM authorisation; Applicable after depletion of 985312857	-	1	Enquire
0015	985312858	RH FRONT SPAR	985312858 RH FRONT SPAR Request ASM authorisation; Applies until depletion	-	1	Enquire
0015	985904565	RH FRONT SPAR	985904565 RH FRONT SPAR Request ASM authorisation; Applicable after depletion of 985312858	-	1	Enquire
0016	985301010	FRONT LH SHOCK TOWER	985301010 FRONT LH SHOCK TOWER Request ASM authorisation	-	1	Enquire
0017	985301013	FRONT RH SHOCK TOWER	985301013 FRONT RH SHOCK TOWER Request ASM authorisation	-	1	Enquire
0018	985761415	COMPL. FRONT BUMPER MOUNTING CROSS MEMBER	985761415 COMPL. FRONT BUMPER MOUNTING CROSS MEMBER Request ASM authorisation	-	1	Enquire
0019	985922531	COMPL. LH FRONT WHEEL BAY COVER PANEL	985922531 COMPL. LH FRONT WHEEL BAY COVER PANEL	-	1	Enquire
0019	985922531	COMPL. LH FRONT WHEEL BAY COVER PANEL	985922531 COMPL. LH FRONT WHEEL BAY COVER PANEL	-	1	Enquire
0019	985323852	COMPL. LH FRONT WHEEL BAY COVER PANEL	985323852 COMPL. LH FRONT WHEEL BAY COVER PANEL Applies until depletion	-	1	Enquire
0019	985922529	COMPL. LH FRONT WHEEL BAY COVER PANEL	985922529 COMPL. LH FRONT WHEEL BAY COVER PANEL Applicable after depletion of 985323852	-	1	Enquire
0020	985313290	COMPL. RH FRONT WHEEL BAY COVER PANEL	985313290 COMPL. RH FRONT WHEEL BAY COVER PANEL	-	1	Enquire
0020	985323870	COMPL. RH FRONT WHEEL BAY COVER PANEL	985323870 COMPL. RH FRONT WHEEL BAY COVER PANEL	-	1	Enquire
0021	985320816	LH DIAGONAL WINDSCREEN VALENCE PANEL ENDPIECE	985320816 LH DIAGONAL WINDSCREEN VALENCE PANEL ENDPIECE	-	1	Enquire
0022	985320817	RH DIAGONAL WINDSCREEN VALENCE PANEL ENDPIECE	985320817 RH DIAGONAL WINDSCREEN VALENCE PANEL ENDPIECE	-	1	Enquire
0023	270831	LH WINDSCREEN VALENCE PANEL FASTENER BRACKET	270831 LH WINDSCREEN VALENCE PANEL FASTENER BRACKET	-	1	Enquire
0024	985270832	RH WINDSCREEN VALENCE PANEL FASTENER BRACKET	985270832 RH WINDSCREEN VALENCE PANEL FASTENER BRACKET	-	1	Enquire
0025	272192	BRAKE FLUID RESERVOIR BRACKET	272192 BRAKE FLUID RESERVOIR BRACKET	-	1	Enquire
0025	322094	COMPL. BRAKE FLUID RESERVOIR MOUNTING BRACKET	322094 COMPL. BRAKE FLUID RESERVOIR MOUNTING BRACKET Applies until depletion	-	1	Enquire
0025	985322094	COMPL. BRAKE FLUID RESERVOIR MOUNTING BRACKET	985322094 COMPL. BRAKE FLUID RESERVOIR MOUNTING BRACKET Applicable after depletion of 322094	-	1	Enquire
0026	985261895	COMPL. INERTIA SWITCH BRACKET	985261895 COMPL. INERTIA SWITCH BRACKET	-	1	Enquire
0027	985307558	CASTING CONNECTOR CROSS-PIECE	985307558 CASTING CONNECTOR CROSS-PIECE Request ASM authorisation	-	1	Enquire
0027	985318904	CASTING CONNECTOR CROSS-PIECE	985318904 CASTING CONNECTOR CROSS-PIECE Request ASM authorisation	-	1	Enquire
0028	16044434	SCREW	16044434 SCREW M8 X 55	-	4	Enquire
0029	14059311	NUT	14059311 NUT	-	4	Enquire
0030	985290233	COMPL. TOW HOOK	985290233 COMPL. TOW HOOK	-	1	Enquire
0031	85633900	SCREW	85633900 SCREW M8 X 25	-	4	Enquire
0032	290236	SPACER	290236 SPACER	-	2	Enquire
0033	985257195	LH BRACKET	985257195 LH BRACKET	-	1	Enquire
0034	985257198	RH BRACKET	985257198 RH BRACKET	-	1	Enquire
0035	985260289	BRACKET	985260289 BRACKET	-	2	Enquire
0036	263271	BOWDEN CABLE FASTENER BRACKET	263271 BOWDEN CABLE FASTENER BRACKET	-	1	Enquire
0037	985262293	COMPL. LOWER ACCELERATION PLATE FASTENER BRACKET	985262293 COMPL. LOWER ACCELERATION PLATE FASTENER BRACKET	-	2	Enquire
0038	985279453	RH FRONT ACCELEROMETER BRACKET	985279453 RH FRONT ACCELEROMETER BRACKET	-	1	Enquire
0039	985279381	LH FRONT ACCELEROMETER BRACKET	985279381 LH FRONT ACCELEROMETER BRACKET	-	1	Enquire
0040	985761390	FRONT SUBFRAME	985761390 FRONT SUBFRAME Request ASM authorisation	-	1	Enquire
0040	985801740	FRONT SUBFRAME	985801740 FRONT SUBFRAME Request ASM authorisation	-	1	Enquire
