POWER STEERING PUMP AND RESERVOIR of Ferrari Ferrari 488 Spider

View All

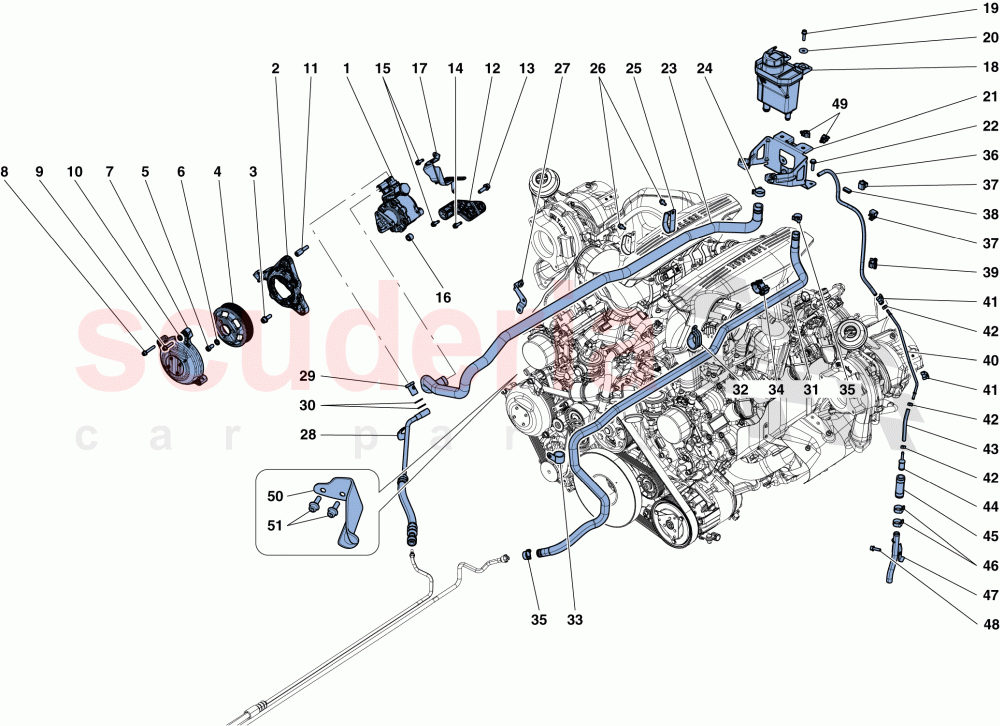

Ferrari 488 Spider - POWER STEERING PUMP AND RESERVOIR

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	277566	POWER STEERING PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304121	FRONT MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84317700	SCREW 8 X 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	313375	PULLEY FOR POWER STEERING PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13028324	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	324595	SOUNDPROOFING COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	986899	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294005	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	312300	REAR MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	260393	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	321103	POWER STEERING PUMP SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315560	COMPL. POWER STEERING FLUID RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12647704	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	325786	COMPL. POWER STEERING FLUID RESERVOIR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11612826	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315062	PIPE FROM TANK TO PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13126370	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	312281	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315405	COMPL. POWER STEERING PIPE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	323703	PIPE FROM PUMP TO DISCONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	245041	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10261460	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315061	PIPE FROM UNDERBODY TO RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315226	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441790	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292123	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13127070	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	118901	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	204774	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255515	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250318	SNAP CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	314695	POWER STEERING FLUID BREATHER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10440890	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	241986	COLLAR FOR HOSE UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	314698	OIL BREATHER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	222606	BREATHER PIPE UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	314636	OIL BREATHER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13126170	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	313811	RIGID DRAIN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303339	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	322525	POWER STEERING PUMP SHIELD BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231627	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	277566	POWER STEERING PUMP	277566 POWER STEERING PUMP	-	1	Enquire
2	304121	FRONT MOUNT	304121 FRONT MOUNT	-	1	Enquire
3	84317700	SCREW 8 X 30	84317700 SCREW 8 X 30 M8 X 25	-	3	Enquire
4	313375	PULLEY FOR POWER STEERING PUMP	313375 PULLEY FOR POWER STEERING PUMP	-	1	Enquire
5	13028324	SCREW	13028324 SCREW M8 X 16	-	3	Enquire
6	11193874	WASHER	11193874 WASHER	-	3	Enquire
7	324595	SOUNDPROOFING COVER	324595 SOUNDPROOFING COVER	-	1	Enquire
8	231625	SCREW	231625 SCREW M6 X 40	-	2	Enquire
9	231620	SCREW	231620 SCREW M6 X 30	-	1	Enquire
10	986899	WASHER	986899 WASHER	-	2	Enquire
11	294005	STUD BOLT	294005 STUD BOLT	-	2	Enquire
12	312300	REAR MOUNT	312300 REAR MOUNT	-	1	Enquire
13	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 M8 X 30	-	1	Enquire
14	231620	SCREW	231620 SCREW M6 X 25	-	2	Enquire
15	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 12	-	3	Enquire
16	260393	BUSH	260393 BUSH	-	1	Enquire
17	321103	POWER STEERING PUMP SHIELD	321103 POWER STEERING PUMP SHIELD	-	1	Enquire
18	315560	COMPL. POWER STEERING FLUID RESERVOIR	315560 COMPL. POWER STEERING FLUID RESERVOIR	-	1	Enquire
19	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 22	-	2	Enquire
20	12647704	WASHER	12647704 WASHER	-	2	Enquire
21	325786	COMPL. POWER STEERING FLUID RESERVOIR BRACKET	325786 COMPL. POWER STEERING FLUID RESERVOIR BRACKET	-	1	Enquire
22	11612826	SCREW	11612826 SCREW M6 X 25	-	2	Enquire
23	315062	PIPE FROM TANK TO PUMP	315062 PIPE FROM TANK TO PUMP	-	1	Enquire
24	13126370	COLLAR	13126370 COLLAR	-	2	Enquire
25	312281	BRACKET	312281 BRACKET	-	2	Enquire
26	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	5	Enquire
27	315405	COMPL. POWER STEERING PIPE MOUNTING BRACKET	315405 COMPL. POWER STEERING PIPE MOUNTING BRACKET	-	1	Enquire
28	323703	PIPE FROM PUMP TO DISCONNECTOR	323703 PIPE FROM PUMP TO DISCONNECTOR	-	1	Enquire
29	245041	HOSE	245041 HOSE	-	1	Enquire
30	10261460	GASKET	10261460 GASKET Also comes with engine gasket set	-	2	Enquire
31	315061	PIPE FROM UNDERBODY TO RESERVOIR	315061 PIPE FROM UNDERBODY TO RESERVOIR	-	1	Enquire
32	315226	BRACKET WITH SHEATH	315226 BRACKET WITH SHEATH	-	2	Enquire
33	10441790	BRACKET WITH SHEATH	10441790 BRACKET WITH SHEATH	-	1	Enquire
34	292123	CLIP	292123 CLIP	-	1	Enquire
35	13127070	COLLAR	13127070 COLLAR	-	2	Enquire
36	118901	RUBBER PIPE	118901 RUBBER PIPE	-	1	Enquire
37	204774	CLIP	204774 CLIP No longer supplied	-	2	Enquire
38	255515	BUSH	255515 BUSH	-	1	Enquire
39	250318	SNAP CLIP	250318 SNAP CLIP	-	1	Enquire
40	314695	POWER STEERING FLUID BREATHER PIPE	314695 POWER STEERING FLUID BREATHER PIPE	-	1	Enquire
41	10440890	BRACKET WITH SHEATH	10440890 BRACKET WITH SHEATH	-	2	Enquire
42	241986	COLLAR FOR HOSE UNION	241986 COLLAR FOR HOSE UNION	-	3	Enquire
43	314698	OIL BREATHER PIPE	314698 OIL BREATHER PIPE	-	1	Enquire
44	222606	BREATHER PIPE UNION	222606 BREATHER PIPE UNION	-	1	Enquire
45	314636	OIL BREATHER PIPE	314636 OIL BREATHER PIPE	-	1	Enquire
46	13126170	CLAMP	13126170 CLAMP	-	1	Enquire
47	313811	RIGID DRAIN PIPE	313811 RIGID DRAIN PIPE	-	1	Enquire
48	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	1	Enquire
48	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 20; No longer supplied; Replaced by 231617	-	1	Enquire
49	303339	CLIP	303339 CLIP	-	2	Enquire
50	322525	POWER STEERING PUMP SHIELD BRACKET	322525 POWER STEERING PUMP SHIELD BRACKET	-	1	Enquire
51	231627	SCREW	231627 SCREW M8 X 16	-	2	Enquire
