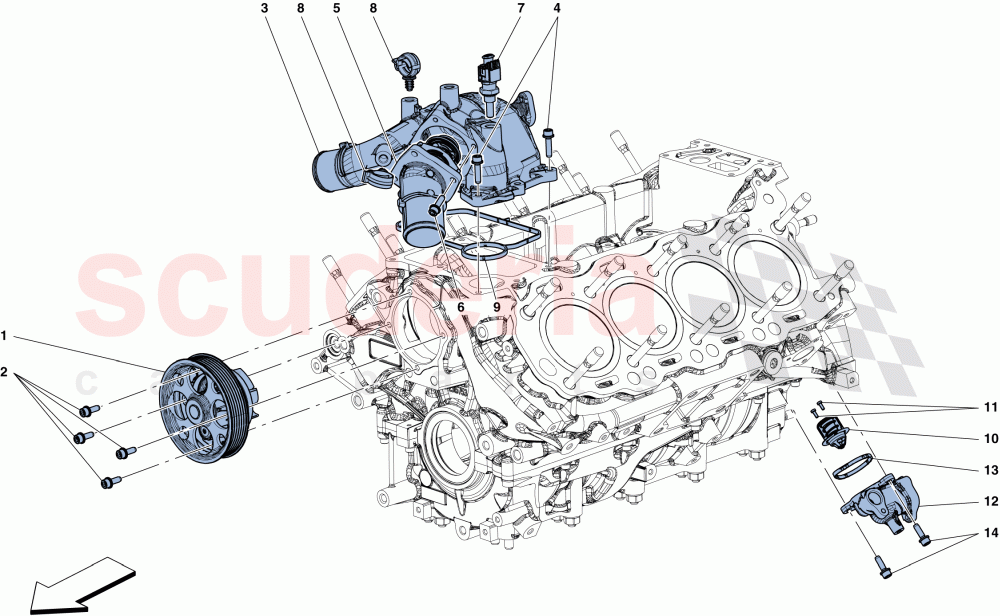

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	918319	WATER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	316907	WATER THERMOSTAT HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262913	THERMOSTAT/PRESSURE SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315674	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295159	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	312150	SINGLE OIL HEAT EXCHANGER H2O THERMOSTAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	321127	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	314095	SINGLE OIL HEAT EXCHANGER THERMOSTAT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	309131	SINGLE OIL HEAT EXCHANGER THERMOSTAT GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	918319	WATER PUMP	918319 WATER PUMP	-	1	Enquire
2	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	4	Enquire
3	316907	WATER THERMOSTAT HOUSING	316907 WATER THERMOSTAT HOUSING	-	1	Enquire
4	231620	SCREW	231620 SCREW M6 X 25	-	5	Enquire
5	262913	THERMOSTAT/PRESSURE SWITCH	262913 THERMOSTAT/PRESSURE SWITCH	-	1	Enquire
6	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 22	-	4	Enquire
7	180137	TEMPERATURE SENSOR	180137 TEMPERATURE SENSOR	-	1	Enquire
8	315674	CLIP	315674 CLIP	-	2	Enquire
9	295159	GASKET	295159 GASKET Also comes with engine gasket set	-	1	Enquire
10	312150	SINGLE OIL HEAT EXCHANGER H2O THERMOSTAT	312150 SINGLE OIL HEAT EXCHANGER H2O THERMOSTAT	-	1	Enquire
11	321127	SCREW	321127 SCREW M3 X 8	-	2	Enquire
12	314095	SINGLE OIL HEAT EXCHANGER THERMOSTAT COVER	314095 SINGLE OIL HEAT EXCHANGER THERMOSTAT COVER	-	1	Enquire
13	309131	SINGLE OIL HEAT EXCHANGER THERMOSTAT GASKET	309131 SINGLE OIL HEAT EXCHANGER THERMOSTAT GASKET Also comes with engine gasket set	-	1	Enquire
14	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 20	-	3	Enquire
