Ferrari 488 Spider - CRANKCASE

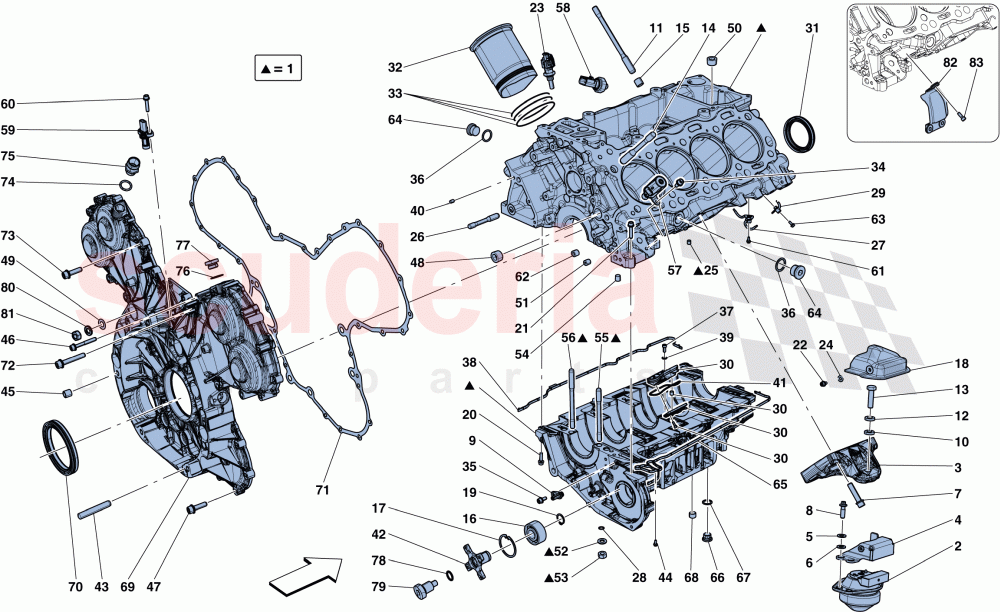

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	339292	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	Enquire	To Order
	339292	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	312805	LH ENGINE MOUNTING	Enquire	To Order
	312806	LH ENGINE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	324057	ENGINE STRUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	278028	STAFFA LIMITATRICE ESCURSIONE TAMPONE SX.	Enquire	To Order
	278027	STAFFA LIMITATRICE ESCURSIONE TAMPONE DX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	290127	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243841	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317217	CHAIN COOLING NOZZLE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10738021	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	270464	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127498	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11599534	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271564	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185360	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247049	BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11060276	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304792	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11066876	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14498801	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	312059	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	278120	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	298858	PISTON COOLING NOZZLE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134705	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	298859	PISTON COOLING NOZZLE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	312836	COMPL. VALVE HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271598	GASKET	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	271810	CYLINDER SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294153	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282393	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10263460	COPPER GASKET D.28-22.3 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13026924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	339289	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	311001	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103994	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304697	DRIVE JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13546834	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	100052	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order
	231624	SCREW	Enquire	To Order
	231625	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282753	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	323886	WASHER WITH RUBBER LINING	Enquire	To Order
	281725	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282753	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282755	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178348	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282755	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	270465	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	270466	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	743032	OIL PRESSURE SOLENOID VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	922805	ANGULAR SPEED SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315493	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291078	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315493	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307477	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	339287	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	306145	Thread Cap M18 x 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10259960	Copper Washer 18 - 24 x 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164400	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	316665	REAR TIMING COVER	Enquire	To Order
	330563	REAR TIMING COVER	Enquire	To Order
	330563	REAR TIMING COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240214	GASKET	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	313188	CRANKCASE GASKET	Enquire	To Order
	323467	CRANKCASE GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285494	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10263160	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	309101	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10263160	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	280597	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302618	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307936	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178348	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	314461	SOLENOID VALVE HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	339292	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	339292 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY Applicable from engine No. 338905	-	1	Enquire
1	339292	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	339292 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY Applicable up to engine No. 338904	-	1	Enquire
2	312805	LH ENGINE MOUNTING	312805 LH ENGINE MOUNTING	-	1	Enquire
2	312806	LH ENGINE MOUNTING	312806 LH ENGINE MOUNTING	-	1	Enquire
3	324057	ENGINE STRUT	324057 ENGINE STRUT	-	2	Enquire
4	278028	STAFFA LIMITATRICE ESCURSIONE TAMPONE SX.	278028 STAFFA LIMITATRICE ESCURSIONE TAMPONE SX.	-	1	Enquire
4	278027	STAFFA LIMITATRICE ESCURSIONE TAMPONE DX.	278027 STAFFA LIMITATRICE ESCURSIONE TAMPONE DX.	-	1	Enquire
5	127497	WASHER	127497 WASHER	-	6	Enquire
6	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2	-	6	Enquire
7	290127	SCREW	290127 SCREW	-	8	Enquire
8	243841	SCREW	243841 SCREW	-	6	Enquire
9	317217	CHAIN COOLING NOZZLE ASSEMBLY	317217 CHAIN COOLING NOZZLE ASSEMBLY	-	1	Enquire
10	10738021	WASHER	10738021 WASHER	-	2	Enquire
11	270464	STUD BOLT	270464 STUD BOLT	-	18	Enquire
12	127498	WASHER	127498 WASHER	-	2	Enquire
13	11599534	SCREW	11599534 SCREW	-	2	Enquire
14	271564	STUD BOLT	271564 STUD BOLT	-	2	Enquire
15	185360	CENTERING DOWEL	185360 CENTERING DOWEL	-	4	Enquire
16	247049	BEARING	247049 BEARING	-	1	Enquire
17	11060276	SEEGER RING	11060276 SEEGER RING	-	1	Enquire
18	304792	SHIELD	304792 SHIELD	-	2	Enquire
19	11066876	SEEGER RING	11066876 SEEGER RING	-	1	Enquire
20	231620	SCREW	231620 SCREW M6 X 25	-	12	Enquire
21	231620	SCREW	231620 SCREW M6 X 30	-	1	Enquire
22	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 12	-	4	Enquire
23	180137	TEMPERATURE SENSOR	180137 TEMPERATURE SENSOR	-	1	Enquire
24	14498801	WASHER	14498801 WASHER	-	4	Enquire
25	312059	CENTERING DOWEL	312059 CENTERING DOWEL	-	10	Enquire
26	278120	STUD BOLT	278120 STUD BOLT	-	8	Enquire
27	298858	PISTON COOLING NOZZLE ASSEMBLY	298858 PISTON COOLING NOZZLE ASSEMBLY	-	4	Enquire
28	134705	GASKET	134705 GASKET	-	20	Enquire
29	298859	PISTON COOLING NOZZLE ASSEMBLY	298859 PISTON COOLING NOZZLE ASSEMBLY	-	8	Enquire
30	312836	COMPL. VALVE HOLDER	312836 COMPL. VALVE HOLDER	-	-	Enquire
31	271598	GASKET ARRIVING SOON	271598 GASKET ARRIVING SOON	-	1	Enquire
32	271810	CYLINDER SLEEVE	271810 CYLINDER SLEEVE	-	8	Enquire
33	294153	GASKET	294153 GASKET Also comes with engine gasket set	-	24	Enquire
34	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 12	-	1	Enquire
35	282393	SCREW	282393 SCREW M6 X 14	-	1	Enquire
36	10263460	COPPER GASKET D.28-22.3 X 1.5	10263460 COPPER GASKET D.28-22.3 X 1.5 Also comes with engine gasket set	-	2	Enquire
37	13026924	SCREW	13026924 SCREW	-	8	Enquire
38	339289	GASKET	339289 GASKET Also comes with engine gasket set; Contact [email protected] for relative installation instructions	-	1	Enquire
39	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	8	Enquire
40	311001	CENTERING DOWEL	311001 CENTERING DOWEL	-	2	Enquire
41	103994	GASKET	103994 GASKET	-	4	Enquire
42	304697	DRIVE JOINT	304697 DRIVE JOINT	-	1	Enquire
43	13546834	STUD BOLT	13546834 STUD BOLT	-	10	Enquire
44	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 20	-	1	Enquire
45	100052	CENTERING DOWEL	100052 CENTERING DOWEL	-	2	Enquire
46	231620	SCREW	231620 SCREW M6 X 30	-	2	Enquire
46	231624	SCREW	231624 SCREW M6 X 45	-	6	Enquire
46	231625	SCREW	231625 SCREW M6 X 40	-	1	Enquire
47	231620	SCREW	231620 SCREW M6 X 30	-	15	Enquire
48	282753	THREADED PLUG	282753 THREADED PLUG	-	1	Enquire
49	323886	WASHER WITH RUBBER LINING	323886 WASHER WITH RUBBER LINING Also comes with engine gasket set; Applicable from engine No. 297221	-	2	Enquire
49	281725	GASKET	281725 GASKET Also comes with engine gasket set; Applicable up to engine No. 297220	-	2	Enquire
50	282753	THREADED PLUG	282753 THREADED PLUG	-	1	Enquire
51	282755	THREADED PLUG	282755 THREADED PLUG	-	2	Enquire
52	178348	WASHER	178348 WASHER	-	20	Enquire
53	133988	HEX NUT M10 X 1.25 X 8	133988 HEX NUT M10 X 1.25 X 8	-	20	Enquire
54	282755	THREADED PLUG	282755 THREADED PLUG	-	2	Enquire
55	270465	STUD BOLT	270465 STUD BOLT	-	10	Enquire
56	270466	STUD BOLT	270466 STUD BOLT	-	10	Enquire
57	743032	OIL PRESSURE SOLENOID VALVE	743032 OIL PRESSURE SOLENOID VALVE	-	1	Enquire
59	922805	ANGULAR SPEED SENSOR	922805 ANGULAR SPEED SENSOR	-	1	Enquire
60	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 20	-	1	Enquire
61	315493	SCREW	315493 SCREW	-	4	Enquire
62	291078	THREADED PLUG	291078 THREADED PLUG	-	2	Enquire
63	315493	SCREW	315493 SCREW	-	8	Enquire
64	307477	THREADED PLUG	307477 THREADED PLUG	-	2	Enquire
65	339287	GASKET	339287 GASKET Also comes with engine gasket set; Contact [email protected] for relative installation instructions	-	1	Enquire
66	306145	Thread Cap M18 x 1.5	306145 Thread Cap M18 x 1.5	-	3	Enquire
67	10259960	Copper Washer 18 - 24 x 1.5	10259960 Copper Washer 18 - 24 x 1.5 Also comes with engine gasket set	-	3	Enquire
68	164400	THREADED PLUG	164400 THREADED PLUG	-	1	Enquire
69	316665	REAR TIMING COVER	316665 REAR TIMING COVER Applicable up to engine No. 297220	-	1	Enquire
69	330563	REAR TIMING COVER	330563 REAR TIMING COVER Applicable from engine No. 297221 up to engine No. 322608	-	1	Enquire
69	330563	REAR TIMING COVER	330563 REAR TIMING COVER Applicable from engine No. 322609	-	1	Enquire
70	240214	GASKET ARRIVING SOON	240214 GASKET ARRIVING SOON	-	1	Enquire
71	313188	CRANKCASE GASKET	313188 CRANKCASE GASKET Also comes with engine gasket set; Applicable up to engine No. 297220	-	1	Enquire
71	323467	CRANKCASE GASKET	323467 CRANKCASE GASKET Also comes with engine gasket set; Applicable from engine No. 297221	-	1	Enquire
72	285494	SCREW	285494 SCREW M8 X 50	-	5	Enquire
73	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 M8 X 30	-	5	Enquire
74	10263160	GASKET	10263160 GASKET	-	1	Enquire
75	309101	CONNECTOR	309101 CONNECTOR	-	1	Enquire
76	10263160	GASKET	10263160 GASKET Applicable up to engine No. 322608	-	1	Enquire
77	280597	THREADED PLUG	280597 THREADED PLUG Applicable up to engine No. 322608	-	1	Enquire
78	302618	GASKET	302618 GASKET Also comes with engine gasket set	-	1	Enquire
79	307936	PLUG	307936 PLUG	-	1	Enquire
80	178348	WASHER	178348 WASHER	-	8	Enquire
81	133988	HEX NUT M10 X 1.25 X 8	133988 HEX NUT M10 X 1.25 X 8	-	8	Enquire
82	314461	SOLENOID VALVE HEAT SHIELD	314461 SOLENOID VALVE HEAT SHIELD	-	1	Enquire
83	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 16	-	3	Enquire
