Ferrari 488 Spider - VENTS

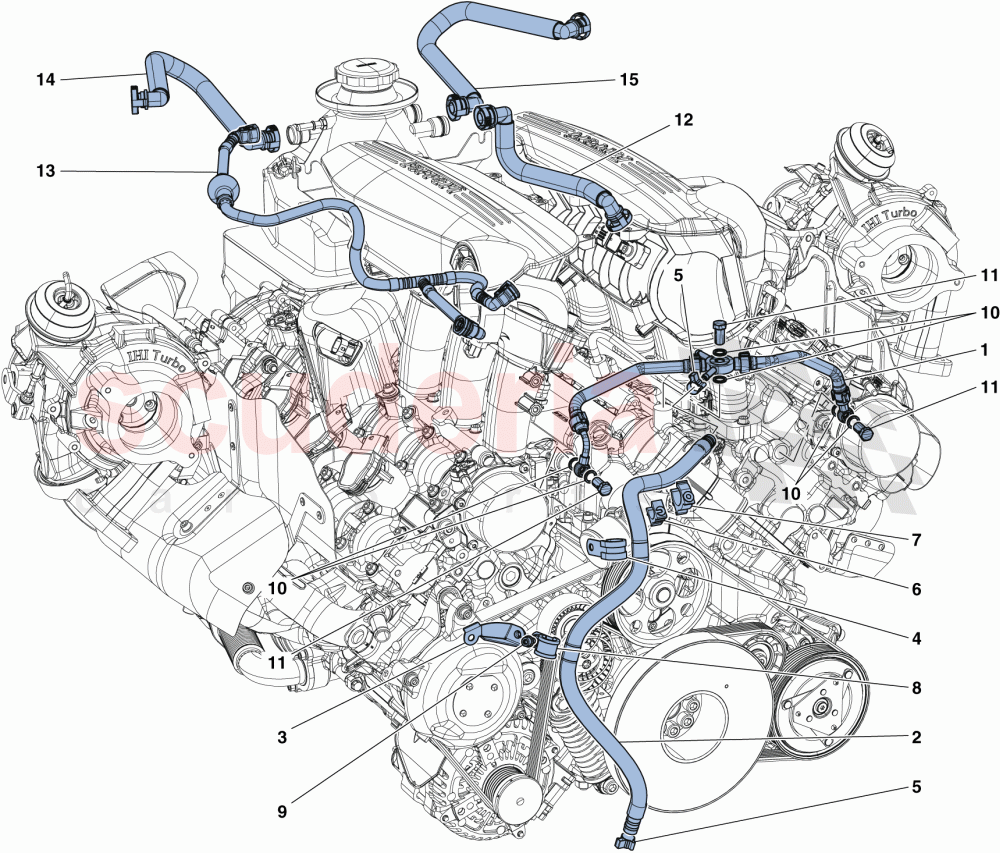

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	315504	COMPL. HEAD WATER BREATHER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	323682	RUBBER PIPE COMPL. WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	324497	SELF-BLEEDING PIPE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	318122	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13126970	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140727	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	213069	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441590	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10260960	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11903811	HOSE CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	311359	PIPE FROM TANK TO REAR COVER	Enquire	To Order
	311745	PIPE FROM TANK TO REAR COVER	Enquire	To Order
	311745	PIPE FROM TANK TO REAR COVER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	320566	PIPE FROM TANK TO MANIFOLD PLENUM	Enquire	To Order
	320566	PIPE FROM TANK TO MANIFOLD PLENUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	322006	RH VAPOUR INLET PIPE	Enquire	To Order
	322002	RH VAPOUR INLET PIPE	Enquire	To Order
	322002	RH VAPOUR INLET PIPE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	322008	LH VAPOUR INLET PIPE	Enquire	To Order
	322008	LH VAPOUR INLET PIPE	Enquire	To Order
	322004	LH VAPOUR INLET PIPE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	315504	COMPL. HEAD WATER BREATHER PIPE	315504 COMPL. HEAD WATER BREATHER PIPE	-	1	Enquire
2	323682	RUBBER PIPE COMPL. WITH SHEATH	323682 RUBBER PIPE COMPL. WITH SHEATH	-	1	Enquire
3	324497	SELF-BLEEDING PIPE MOUNTING BRACKET	324497 SELF-BLEEDING PIPE MOUNTING BRACKET	-	1	Enquire
4	318122	BRACKET WITH SHEATH	318122 BRACKET WITH SHEATH	-	1	Enquire
5	13126970	COLLAR	13126970 COLLAR	-	2	Enquire
6	140727	CLIP	140727 CLIP	-	1	Enquire
7	213069	CLIP	213069 CLIP	-	1	Enquire
8	10441590	BRACKET WITH SHEATH	10441590 BRACKET WITH SHEATH	-	1	Enquire
9	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 12	-	1	Enquire
10	10260960	GASKET	10260960 GASKET Also comes with engine gasket set	-	6	Enquire
11	11903811	HOSE CONNECTOR	11903811 HOSE CONNECTOR	-	3	Enquire
12	311359	PIPE FROM TANK TO REAR COVER	311359 PIPE FROM TANK TO REAR COVER Applicable for EU GS, AUS, UK; Applicable up to engine No. 384015	-	1	Enquire
12	311745	PIPE FROM TANK TO REAR COVER	311745 PIPE FROM TANK TO REAR COVER Applicable for EU GS, AUS, UK; Applicable from engine No. 384016	-	1	Enquire
12	311745	PIPE FROM TANK TO REAR COVER	311745 PIPE FROM TANK TO REAR COVER Applicable for USA, CDN, USA LIGHT	-	1	Enquire
12	311359	PIPE FROM TANK TO REAR COVER	311359 PIPE FROM TANK TO REAR COVER Not for EU GS, AUS, USA, CDN, UK, USA LIGHT	-	1	Enquire
13	320566	PIPE FROM TANK TO MANIFOLD PLENUM	320566 PIPE FROM TANK TO MANIFOLD PLENUM Not for EU GS, AUS, USA, CDN, UK, USA LIGHT	-	1	Enquire
13	320566	PIPE FROM TANK TO MANIFOLD PLENUM	320566 PIPE FROM TANK TO MANIFOLD PLENUM Applicable for EU GS, AUS, UK; Applicable up to engine No. 384015	-	1	Enquire
14	322006	RH VAPOUR INLET PIPE	322006 RH VAPOUR INLET PIPE Applicable for USA, CDN, USA LIGHT	-	1	Enquire
14	322002	RH VAPOUR INLET PIPE	322002 RH VAPOUR INLET PIPE Not for EU GS, AUS, USA, CDN, UK, USA LIGHT	-	1	Enquire
14	322002	RH VAPOUR INLET PIPE	322002 RH VAPOUR INLET PIPE Applicable for EU GS, AUS, UK; Applicable up to engine No. 384015	-	1	Enquire
14	322006	RH VAPOUR INLET PIPE	322006 RH VAPOUR INLET PIPE Applicable for EU GS, AUS, UK; Applicable from engine No. 384016	-	1	Enquire
15	322008	LH VAPOUR INLET PIPE	322008 LH VAPOUR INLET PIPE Applicable for EU GS, AUS, UK; Applicable from engine No. 384016	-	1	Enquire
15	322008	LH VAPOUR INLET PIPE	322008 LH VAPOUR INLET PIPE Applicable for USA, CDN, USA LIGHT	-	1	Enquire
15	322004	LH VAPOUR INLET PIPE	322004 LH VAPOUR INLET PIPE Not for EU GS, AUS, USA, CDN, UK, USA LIGHT	-	1	Enquire
15	322004	LH VAPOUR INLET PIPE	322004 LH VAPOUR INLET PIPE Applicable for EU GS, AUS, UK; Applicable up to engine No. 384015	-	1	Enquire
