INTAKE MANIFOLD COVER of Ferrari Ferrari 458 Italia

View All

Ferrari 458 Italia - INTAKE MANIFOLD COVER

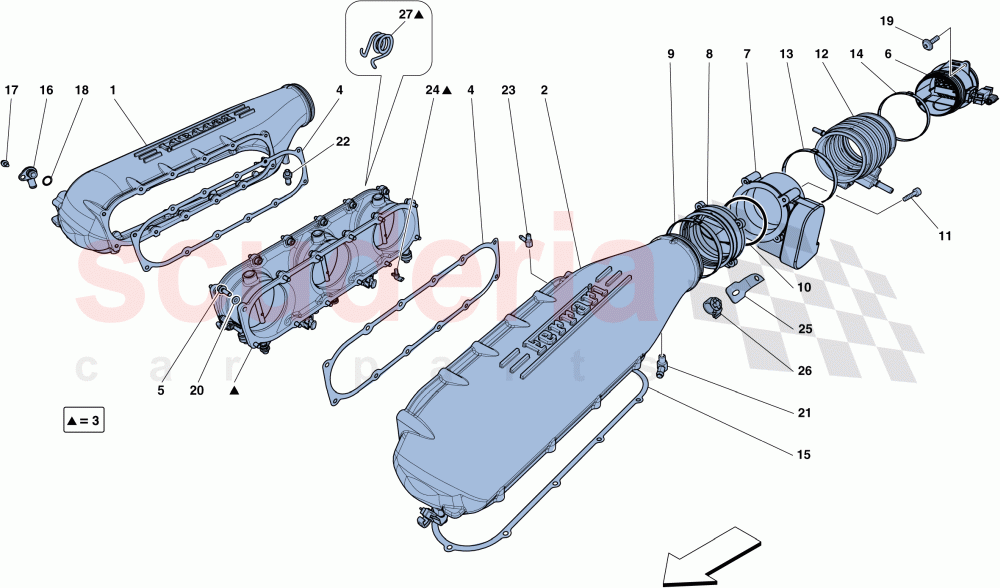

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	254511	RH INTAKE PLENUM	Enquire	To Order
	272597	RH INTAKE PLENUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	272598	LH INTAKE PLENUM	Enquire	To Order
	254512	LH INTAKE PLENUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	222998	SCREW	Enquire	To Order
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	245028	AIR FLOW METER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	331005	THROTTLE BODY	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	240262	SPACER FOR THROTTLE BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190151	Clamp	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	150302	Oil Pump O-Ring	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231624	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	282230	RH CONNECTOR PIPE	Enquire	IN STOCK
	282231	LH CONNECTOR PIPE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	900284	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190151	Clamp	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	243207	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123475	GASKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	262934	SCREW	Enquire	IN STOCK
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	268877	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268878	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268875	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	253484	SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	249878	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178430	FASTENER CLIP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	235784	SPRING FOR SPINDLE	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	254511	RH INTAKE PLENUM	254511 RH INTAKE PLENUM	-	1	Enquire
1	272597	RH INTAKE PLENUM	272597 RH INTAKE PLENUM Carbon	-	1	Enquire
2	272598	LH INTAKE PLENUM	272598 LH INTAKE PLENUM Carbon	-	1	Enquire
2	254512	LH INTAKE PLENUM	254512 LH INTAKE PLENUM	-	1	Enquire
5	222998	SCREW	222998 SCREW M6 X 25; Applicable for version in carbon fibre	-	24	Enquire
5	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER IN STOCK	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 20; Not for version in carbon fibre IN STOCK	-	24	Enquire
6	245028	AIR FLOW METER IN STOCK	245028 AIR FLOW METER IN STOCK	-	2	Enquire
7	331005	THROTTLE BODY IN STOCK	331005 THROTTLE BODY IN STOCK	-	2	Enquire
8	240262	SPACER FOR THROTTLE BODY	240262 SPACER FOR THROTTLE BODY	-	2	Enquire
9	190151	Clamp IN STOCK	190151 Clamp IN STOCK	-	2	Enquire
10	150302	Oil Pump O-Ring IN STOCK	150302 Oil Pump O-Ring IN STOCK	-	2	Enquire
11	231624	SCREW IN STOCK	231624 SCREW M6 X 45 IN STOCK	-	8	Enquire
12	282230	RH CONNECTOR PIPE IN STOCK	282230 RH CONNECTOR PIPE Applicable for USA, CDN; Applicable from Ass. No. 118578 IN STOCK	-	1	Enquire
12	282231	LH CONNECTOR PIPE IN STOCK	282231 LH CONNECTOR PIPE Applicable for USA, CDN; Applicable from Ass. No. 118578 IN STOCK	-	1	Enquire
13	900284	SCREW COLLAR	900284 SCREW COLLAR	-	2	Enquire
14	190151	Clamp IN STOCK	190151 Clamp IN STOCK	-	2	Enquire
16	243207	CONNECTOR	243207 CONNECTOR	-	1	Enquire
17	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	1	Enquire
18	123475	GASKET IN STOCK	123475 GASKET IN STOCK	-	1	Enquire
19	262934	SCREW IN STOCK	262934 SCREW Applicable for standard filter box IN STOCK	-	4	Enquire
19	85833700	SCREW	85833700 SCREW Applicable for carbon filter box	-	4	Enquire
20	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 Applicable for version in carbon fibre IN STOCK	-	24	Enquire
21	268877	CONNECTOR	268877 CONNECTOR	-	2	Enquire
22	268878	CONNECTOR	268878 CONNECTOR	-	2	Enquire
23	268875	CONNECTOR	268875 CONNECTOR	-	2	Enquire
24	253484	SENSOR	253484 SENSOR	-	2	Enquire
25	249878	BRACKET	249878 BRACKET	-	2	Enquire
26	178430	FASTENER CLIP IN STOCK	178430 FASTENER CLIP IN STOCK	-	2	Enquire
27	235784	SPRING FOR SPINDLE IN STOCK	235784 SPRING FOR SPINDLE IN STOCK	-	2	Enquire
