COOLING - WATER PUMP of Ferrari Ferrari 458 Italia

View All

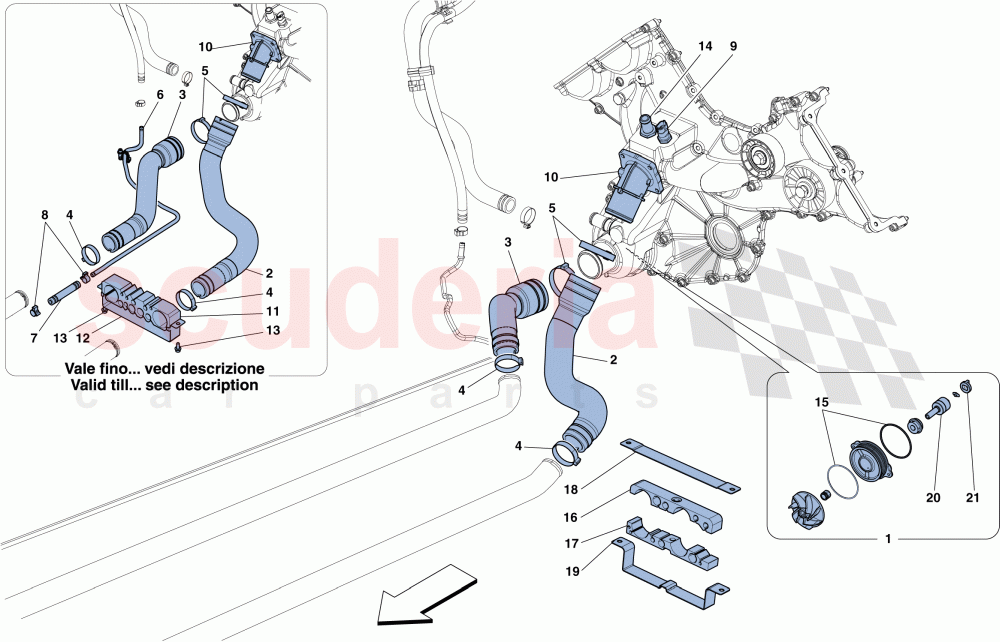

Ferrari 458 Italia - COOLING - WATER PUMP

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	260972	RUBBER PIPE	Enquire	To Order
	260972	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262476	RUBBER PIPE	Enquire	To Order
	262476	RUBBER PIPE	Enquire	To Order
	262476	RUBBER PIPE	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	296781	COLLAR 30-45MM	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	296783	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	251327	PIPE	Enquire	To Order
	251327	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	249020	RUBBER PIPE	Enquire	To Order
	249020	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13126970	COLLAR	Enquire	To Order
	13126970	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262913	THERMOSTAT/PRESSURE SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	251503	REAR PILLORY BLOCK	Enquire	To Order
	251503	REAR PILLORY BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259991	BRACKET	Enquire	To Order
	259991	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	253823	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	253797	GASKET D.79X2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263071	UPPER PILLORY BLOCK	Enquire	To Order
	263071	UPPER PILLORY BLOCK	Enquire	To Order
	263071	UPPER PILLORY BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263072	LOWER PILLORY BLOCK	Enquire	To Order
	263072	LOWER PILLORY BLOCK	Enquire	To Order
	263072	LOWER PILLORY BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263136	UPPER BRACKET FOR RETAINER BLOCK	Enquire	To Order
	263136	UPPER BRACKET FOR RETAINER BLOCK	Enquire	To Order
	263136	UPPER BRACKET FOR RETAINER BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263137	LOWER BRACKET FOR RETAINER BLOCK	Enquire	To Order
	263137	LOWER BRACKET FOR RETAINER BLOCK	Enquire	To Order
	263137	LOWER BRACKET FOR RETAINER BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295219	WATER PUMP BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295218	JOINT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	260972	RUBBER PIPE	260972 RUBBER PIPE Applicable for GOLFO; Applicable up to Ass. No. 91118	-	1	Enquire
2	260972	RUBBER PIPE	260972 RUBBER PIPE Applicable for EU GS; Applicable up to Ass. No. 90801	-	1	Enquire
3	262476	RUBBER PIPE	262476 RUBBER PIPE From start of production; Not for EU GS, GOLFO	-	1	Enquire
3	262476	RUBBER PIPE	262476 RUBBER PIPE Applicable for EU GS; Applicable from Ass. No. 90802	-	1	Enquire
3	262476	RUBBER PIPE	262476 RUBBER PIPE Applicable for GOLFO; Applicable from Ass. No. 91119	-	1	Enquire
3	249010	RUBBER PIPE	249010 RUBBER PIPE Applicable for GOLFO; Applicable up to Ass. No. 91118	-	1	Enquire
3	249010	RUBBER PIPE	249010 RUBBER PIPE Applicable for EU GS; Applicable up to Ass. No. 90801	-	1	Enquire
4	296781	COLLAR 30-45MM ARRIVING SOON	296781 COLLAR 30-45MM ARRIVING SOON	-	2	Enquire
5	296783	SCREW COLLAR	296783 SCREW COLLAR	-	2	Enquire
6	251327	PIPE	251327 PIPE Applicable for GOLFO; Applicable up to Ass. No. 91118	-	1	Enquire
6	251327	PIPE	251327 PIPE Applicable for EU GS; Applicable up to Ass. No. 90801	-	1	Enquire
7	249020	RUBBER PIPE	249020 RUBBER PIPE Applicable for EU GS; Applicable up to Ass. No. 90801	-	1	Enquire
7	249020	RUBBER PIPE	249020 RUBBER PIPE Applicable for GOLFO; Applicable up to Ass. No. 91118	-	1	Enquire
8	13126970	COLLAR	13126970 COLLAR Applicable for EU GS; Applicable up to Ass. No. 90801	-	2	Enquire
8	13126970	COLLAR	13126970 COLLAR Applicable for GOLFO; Applicable up to Ass. No. 91118	-	2	Enquire
9	180137	TEMPERATURE SENSOR	180137 TEMPERATURE SENSOR	-	1	Enquire
10	262913	THERMOSTAT/PRESSURE SWITCH	262913 THERMOSTAT/PRESSURE SWITCH	-	1	Enquire
11	251503	REAR PILLORY BLOCK	251503 REAR PILLORY BLOCK Applicable for EU GS; Applicable up to Ass. No. 90801	-	1	Enquire
11	251503	REAR PILLORY BLOCK	251503 REAR PILLORY BLOCK Applicable for GOLFO; Applicable up to Ass. No. 91118	-	1	Enquire
12	259991	BRACKET	259991 BRACKET Applicable for EU GS; Applicable up to Ass. No. 90801	-	1	Enquire
12	259991	BRACKET	259991 BRACKET Applicable for GOLFO; Applicable up to Ass. No. 91118	-	1	Enquire
13	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14; Applicable for EU GS; Applicable up to Ass. No. 90801	-	2	Enquire
13	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14; Applicable for GOLFO; Applicable up to Ass. No. 91118	-	2	Enquire
14	253823	CONNECTOR	253823 CONNECTOR	-	1	Enquire
15	253797	GASKET D.79X2	253797 GASKET D.79X2	-	2	Enquire
16	263071	UPPER PILLORY BLOCK	263071 UPPER PILLORY BLOCK From start of production; Not for EU GS, GOLFO	-	1	Enquire
16	263071	UPPER PILLORY BLOCK	263071 UPPER PILLORY BLOCK Applicable for EU GS; Applicable from Ass. No. 90802	-	1	Enquire
16	263071	UPPER PILLORY BLOCK	263071 UPPER PILLORY BLOCK Applicable for GOLFO; Applicable from Ass. No. 91119	-	1	Enquire
17	263072	LOWER PILLORY BLOCK	263072 LOWER PILLORY BLOCK Applicable for GOLFO; Applicable from Ass. No. 91119	-	1	Enquire
17	263072	LOWER PILLORY BLOCK	263072 LOWER PILLORY BLOCK From start of production; Not for EU GS, GOLFO	-	1	Enquire
17	263072	LOWER PILLORY BLOCK	263072 LOWER PILLORY BLOCK Applicable for EU GS; Applicable from Ass. No. 90802	-	1	Enquire
18	263136	UPPER BRACKET FOR RETAINER BLOCK	263136 UPPER BRACKET FOR RETAINER BLOCK Applicable for EU GS; Applicable from Ass. No. 90802	-	1	Enquire
18	263136	UPPER BRACKET FOR RETAINER BLOCK	263136 UPPER BRACKET FOR RETAINER BLOCK Applicable for GOLFO; Applicable from Ass. No. 91119	-	1	Enquire
18	263136	UPPER BRACKET FOR RETAINER BLOCK	263136 UPPER BRACKET FOR RETAINER BLOCK From start of production; Not for EU GS, GOLFO	-	1	Enquire
19	263137	LOWER BRACKET FOR RETAINER BLOCK	263137 LOWER BRACKET FOR RETAINER BLOCK From start of production; Not for EU GS, GOLFO	-	1	Enquire
19	263137	LOWER BRACKET FOR RETAINER BLOCK	263137 LOWER BRACKET FOR RETAINER BLOCK Applicable for EU GS; Applicable from Ass. No. 90802	-	1	Enquire
19	263137	LOWER BRACKET FOR RETAINER BLOCK	263137 LOWER BRACKET FOR RETAINER BLOCK Applicable for GOLFO; Applicable from Ass. No. 91119	-	1	Enquire
20	295219	WATER PUMP BEARING	295219 WATER PUMP BEARING	-	1	Enquire
21	295218	JOINT	295218 JOINT After depletion order compl. pos. 1; Applicable until depletion	-	1	Enquire
