Ferrari 458 Italia - ALTERNATOR - STARTER MOTOR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
253092 ALTERNATOR BRACE BRACKET $13.63 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.32 IN STOCK
Photo Part No Description Price (each) Stock
257220 THREADED BUSHING $22.45 To Order
257217 THREADED BUSHING $36.89 To Order
Photo Part No Description Price (each) Stock
247088 THREADED BUSHING $6.05 To Order
Photo Part No Description Price (each) Stock
66649300 SCREW $2.97 To Order
14308724 SCREW $3.68 To Order
Photo Part No Description Price (each) Stock
10569474 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
251220 6 Ribs Control Belt $67.98 IN STOCK
Photo Part No Description Price (each) Stock
8332052 BELT TENSIONER $240.67 IN STOCK
Photo Part No Description Price (each) Stock
268567 SCREW $5.35 IN STOCK
Photo Part No Description Price (each) Stock
11193874 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
962187 STARTER MOTOR $775.36 IN STOCK
Photo Part No Description Price (each) Stock
277661 REAR STARTER MOTOR MOUNTING BRACKET $70.59 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
248471 SCREW $1.09 To Order
Photo Part No Description Price (each) Stock
260062 SHIELD FASTENER BRACKET $17.63 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
259433 HEAT SHIELD $272.77 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.32 IN STOCK
231620 SCREW $0.32 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
227894 BELT TIGHTENING PULLEY $77.00 IN STOCK
Photo Part No Description Price (each) Stock
11343821 SCREW $1.09 IN STOCK
Photo Part No Description Price (each) Stock
10569474 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
238590 IDLER PULLEY $41.70 IN STOCK
Photo Part No Description Price (each) Stock
260886 Screw $3.76 To Order
Photo Part No Description Price (each) Stock
13550224 WASHER $1.30 To Order
View All

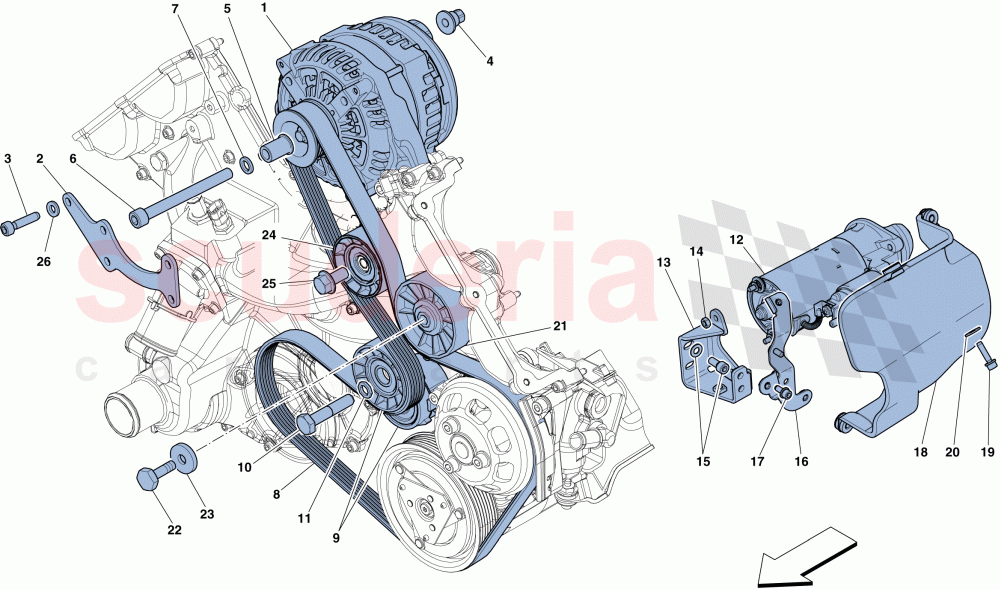

ALTERNATOR - STARTER MOTOR of Ferrari Ferrari 458 Italia Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
2 253092
ALTERNATOR BRACE BRACKET 		$13.63 1
3 231620
SCREW
M6 X 25
IN STOCK 		$0.32 (8.6% off) 3
4 257220
THREADED BUSHING
On LH head. 		$22.45 1
4 257217
THREADED BUSHING
On RH head. 		$36.89 1
5 247088
THREADED BUSHING 		$6.05 2
6 66649300
SCREW
M10 X 1.25 X 70 		$2.97 1
6 14308724
SCREW
M10 X 1.25 X 100 		$3.68 1
7 10569474
WASHER
IN STOCK 		$0.06 2
8 251220
6 Ribs Control Belt
IN STOCK 		$67.98 1
9 8332052
BELT TENSIONER
IN STOCK 		$240.67 1
10 268567
SCREW
M8 X 60
IN STOCK 		$5.35 1
11 11193874
WASHER
IN STOCK 		$0.06 1
12 962187
STARTER MOTOR
IN STOCK 		$775.36 1
13 277661
REAR STARTER MOTOR MOUNTING BRACKET 		$70.59 1
14 14059290
FLANGED NUT M6
IN STOCK 		$1.43 2
15 248471
SCREW 		$1.09 2
16 260062
SHIELD FASTENER BRACKET 		$17.63 1
17 248334
SCREW
M6 X 14 		$0.68 2
18 259433
HEAT SHIELD 		$272.77 1
19 231620
SCREW
M6 X 25
IN STOCK 		$0.32 (8.6% off) 2
19 231620
SCREW
M6 X 30
IN STOCK 		$0.32 (8.6% off) 1
20 12643724
WASHER
IN STOCK 		$0.06 (88% off) 3
21 227894
BELT TIGHTENING PULLEY
IN STOCK 		$77.00 (27.6% off) 1
22 11343821
SCREW
IN STOCK 		$1.09 1
23 10569474
WASHER
IN STOCK 		$0.06 1
24 238590
IDLER PULLEY
IN STOCK 		$41.70 (26.7% off) 1
25 260886
Screw 		$3.76 1
26 13550224
WASHER 		$1.30 5
