Crankshaft - Connecting Rods And Pistons

Ferrari 458 Italia

Find Your Part

Ferrari 458 Italia - CRANKSHAFT - CONNECTING RODS AND PISTONS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
275436 CRANKSHAFT $2,488.73 To Order
Photo Part No Description Price (each) Stock
103877 BEARING $30.39 IN STOCK
Photo Part No Description Price (each) Stock
186201 TAB $0.96 To Order
Photo Part No Description Price (each) Stock
286834 UPPER HALF-BEARING $24.05 IN STOCK
268866 UPPER HALF-BEARING $24.05 IN STOCK
286834 UPPER HALF-BEARING $24.05 IN STOCK
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
268871 LOWER HALF-BEARING $24.05 To Order
286838 LOWER HALF-BEARING $22.45 To Order
286838 LOWER HALF-BEARING $22.45 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
222874 SHIM RING $31.90 To Order
261727 SHIM RING $10.26 To Order
222874 SHIM RING $31.90 To Order
Photo Part No Description Price (each) Stock
256341 ENGINE DAMPER FLYWHEEL $3,177.09 To Order
Photo Part No Description Price (each) Stock
229907 SCREW $8.82 To Order
Photo Part No Description Price (each) Stock
196216 SCREW $72.73 IN STOCK
Photo Part No Description Price (each) Stock
263683 WASHER $50.54 To Order
Photo Part No Description Price (each) Stock
254806 CONNECTING ROD FASTENER SCREW $31.70 To Order
270248 SCREW $23.78 To Order
Photo Part No Description Price (each) Stock
224608 ALIGNMENT PIN $3.52 To Order
Photo Part No Description Price (each) Stock
234871 BUSHING $17.63 To Order
Photo Part No Description Price (each) Stock
260683 PISTON COMPL. WITH RINGS, RH CYLINDER BANK $1,315.75 To Order
260684 PISTON COMPL. WITH RINGS, LH CYLINDER BANK $1,315.75 To Order
Photo Part No Description Price (each) Stock
263328 PISTON RING SET $224.63 IN STOCK
Photo Part No Description Price (each) Stock
198260 GUDGEON PIN $66.26 To Order
Photo Part No Description Price (each) Stock
257919 STOP RING $6.13 To Order
Photo Part No Description Price (each) Stock
262987 CONNECTING ROD HALF-BEARING $17.63 To Order
244418 CONNECTING ROD HALF-BEARING $25.66 To Order
244418 CONNECTING ROD HALF-BEARING $25.66 To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
176396 THREADED PLUG $5.35 To Order
View All

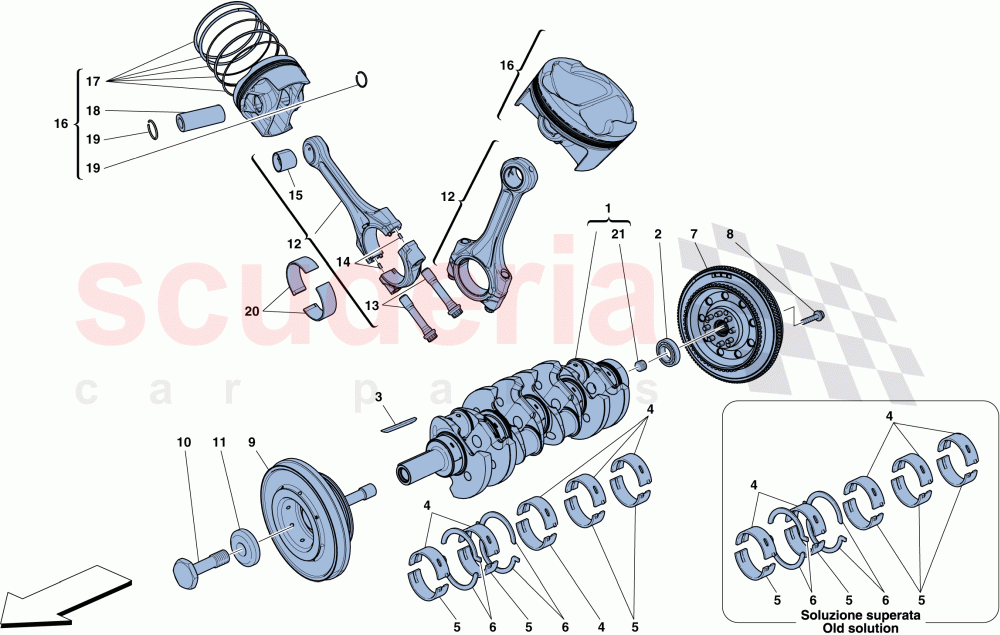

CRANKSHAFT - CONNECTING RODS AND PISTONS of Ferrari Ferrari 458 Italia Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 275436
CRANKSHAFT 		$2,488.73 1
2 103877
BEARING
IN STOCK 		$30.39 1
3 186201
TAB 		$0.96 1
4 286834
UPPER HALF-BEARING
Green; Applicable for EU GS, UK; Applicable up to engine No. 175548
IN STOCK 		$24.05 5
4 268866
UPPER HALF-BEARING
Green; Lead free; Applicable for EU GS, UK; Applicable from engine No. 175549
IN STOCK 		$24.05 6
4 286834
UPPER HALF-BEARING
Green; Not for EU GS, UK
IN STOCK 		$24.05 6
4 268865
UPPER HALF-BEARING
Yellow; Lead free; Applicable for EU GS, UK; Applicable from engine No. 175549 		$22.45 6
4 286833
UPPER HALF-BEARING
Yellow; Not for EU GS, UK
IN STOCK 		$24.05 6
4 286833
UPPER HALF-BEARING
Yellow; Applicable for EU GS, UK; Applicable up to engine No. 175548
IN STOCK 		$24.05 5
4 286832
UPPER MAIN HALF BEARING BLUE
Blue; Applicable for EU GS, UK; Applicable up to engine No. 175548
IN STOCK 		$24.05 5
4 268864
UPPER HALF-BEARING
Blue; Lead free; Applicable for EU GS, UK; Applicable from engine No. 175549 		$25.66 6
4 286832
UPPER MAIN HALF BEARING BLUE
Blue; Not for EU GS, UK
IN STOCK 		$24.05 6
5 268871
LOWER HALF-BEARING
Green; Lead free; Applicable for EU GS, UK; Applicable from engine No. 175549 		$24.05 4
5 286838
LOWER HALF-BEARING
Green; Not for EU GS, UK 		$22.45 4
5 286838
LOWER HALF-BEARING
Green; Applicable for EU GS, UK; Applicable up to engine No. 175548 		$22.45 5
5 286837
LOWER HALF-BEARING
Yellow; Applicable for EU GS, UK; Applicable up to engine No. 175548
IN STOCK 		$22.45 5
5 268870
LOWER HALF-BEARING
Yellow; Lead free; Applicable for EU GS, UK; Applicable from engine No. 175549 		$22.45 4
5 286837
LOWER HALF-BEARING
Yellow; Not for EU GS, UK
IN STOCK 		$22.45 4
5 200194
Lower Main Half Bearing Blue
Blue; Applicable for EU GS, UK; Applicable up to engine No. 175548
IN STOCK 		$30.47 5
5 268869
LOWER HALF-BEARING
Blue; Lead free; Applicable for EU GS, UK; Applicable from engine No. 175549 		$25.66 4
5 200194
Lower Main Half Bearing Blue
Blue; Not for EU GS, UK
IN STOCK 		$30.47 4
6 222874
SHIM RING
Applicable for EU GS, UK; Applicable up to engine No. 175548 		$31.90 4
6 261727
SHIM RING
Lead free; Applicable for EU GS, UK; Applicable from Ass. No. 175549 		$10.26 4
6 222874
SHIM RING
Not for EU GS, UK 		$31.90 4
7 256341
ENGINE DAMPER FLYWHEEL 		$3,177.09 1
8 229907
SCREW 		$8.82 8
10 196216
SCREW
IN STOCK 		$72.73 1
11 263683
WASHER 		$50.54 1
13 254806
CONNECTING ROD FASTENER SCREW
Applicable up to engine No. 188435; Applicable until depletion 		$31.70 16
13 270248
SCREW
Lead free; Applicable from engine No. 188436; Applicable after depletion of 254806 		$23.78 16
14 224608
ALIGNMENT PIN 		$3.52 16
15 234871
BUSHING 		$17.63 8
16 260683
PISTON COMPL. WITH RINGS, RH CYLINDER BANK 		$1,315.75 4
16 260684
PISTON COMPL. WITH RINGS, LH CYLINDER BANK 		$1,315.75 4
17 263328
PISTON RING SET
IN STOCK 		$224.63 8
18 198260
GUDGEON PIN
Applicable until depletion 		$66.26 8
19 257919
STOP RING
Applicable until depletion 		$6.13 16
20 262987
CONNECTING ROD HALF-BEARING
Pink; Lead free; Applicable from engine No. 175549 		$17.63 16
20 244418
CONNECTING ROD HALF-BEARING
Black; Not for EU GS, UK 		$25.66 16
20 244418
CONNECTING ROD HALF-BEARING
Black; Applicable for EU GS, UK; Applicable up to engine No. 175548 		$25.66 16
20 261720
CONNECTING ROD HALF-BEARING
Black; Lead free; Applicable for EU GS, UK; Applicable from engine No. 175549; No longer supplied 		$18.83 16
20 244417
CONNECTING ROD HALF-BEARING
Blue; Not for EU GS, UK 		$25.66 16
20 244417
CONNECTING ROD HALF-BEARING
Blue; Applicable for EU GS, UK; Applicable up to engine No. 175548 		$25.66 16
20 261719
CONNECTING ROD HALF-BEARING
Blue; Lead free; Applicable for EU GS, UK; Applicable from engine No. 175549 		$18.83 16
20 244416
CONNECTING ROD HALF-BEARING
Red; Applicable for EU GS, UK; Applicable up to engine No. 175548 		$25.66 16
20 261718
CONNECTING ROD HALF-BEARING
Red; Lead free; Applicable for EU GS, UK; Applicable from engine No. 175549 		$18.83 16
20 244416
CONNECTING ROD HALF-BEARING
Red; Not for EU GS, UK 		$25.66 16
21 176396
THREADED PLUG 		$5.35 1
