FLAT UNDERTRAY AND WHEELHOUSES of Ferrari Ferrari 458 Italia

View All

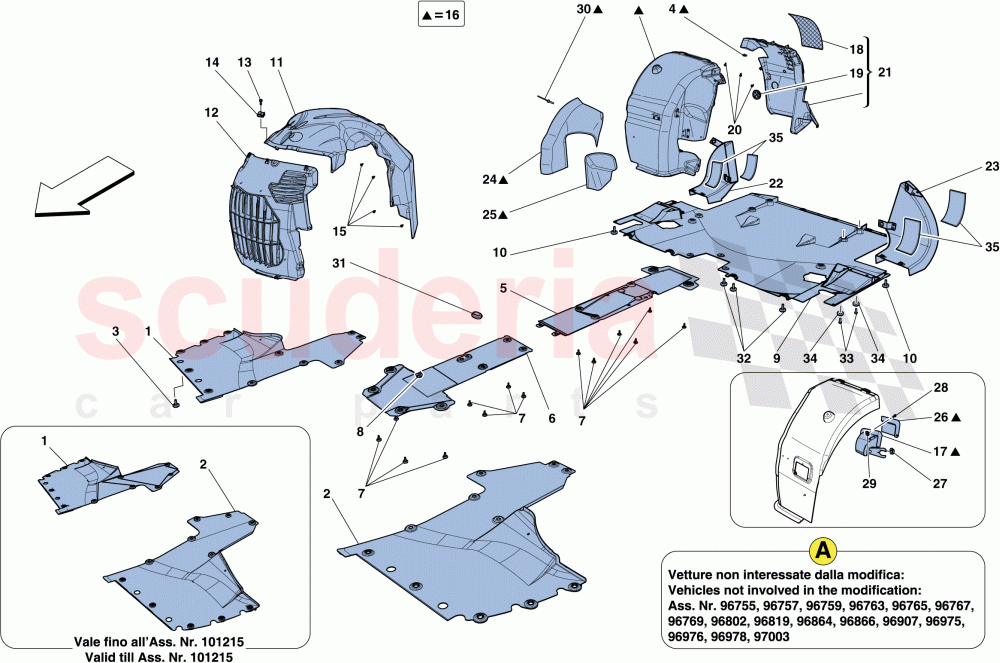

Ferrari 458 Italia - FLAT UNDERTRAY AND WHEELHOUSES

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	84407500	FRONT RH UNDERBODY SHIELD	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	84407600	FRONT LH UNDERBODY SHIELD	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	IN STOCK
	880041	Allen Head Bolt M6 X 26	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	62766300	CLIP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	81507500	CENTRAL UNDERBODY SHIELD	Enquire	To Order
	81507500	CENTRAL UNDERBODY SHIELD	Enquire	To Order
	82884900	CENTRAL UNDERBODY SHIELD	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	82351600	CENTRAL UNDERBODY SHIELD, FRONT SECTION	Enquire	To Order
	82351600	CENTRAL UNDERBODY SHIELD, FRONT SECTION	Enquire	To Order
	82955800	CENTRAL UNDERBODY SHIELD, FRONT SECTION	Enquire	IN STOCK

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	IN STOCK
	880041	Allen Head Bolt M6 X 26	Enquire	IN STOCK
	880041	Allen Head Bolt M6 X 26	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14189071	BRACKET FOR SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	82885200	REAR UNDERBODY SHIELD	Enquire	To Order
	82885200	REAR UNDERBODY SHIELD	Enquire	To Order
	82885200	REAR UNDERBODY SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	85199200	FIXING BUTTON	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14189071	BRACKET FOR SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	85199200	FIXING BUTTON	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	83561600	REAR GRAVEL GUARD GRILLE	Enquire	To Order
	82441500	RH REAR GRAVEL GUARD GRILLE	Enquire	To Order
	82441600	LH REAR GRAVEL GUARD GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81535200	GROMMET WITH MEMBRANE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16285224	SCREW	Enquire	IN STOCK
	85199200	FIXING BUTTON	Enquire	IN STOCK
	13287724	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	82471700	LH REAR WHEELHOUSE REAR GRAVEL GUARD	Enquire	IN STOCK
	82471600	RH REAR WHEELHOUSE REAR GRAVEL GUARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81763000	RH DUCT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	81763100	LH DUCT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	84026400	LOWER LH HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83003800	FLOOR HATCH COVER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14370874	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14296196	RIVET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	82159500	CAP FOR SLOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	142798	RUBBER SHIM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	84407500	FRONT RH UNDERBODY SHIELD IN STOCK	84407500 FRONT RH UNDERBODY SHIELD Applicable from Ass. No. 101216 IN STOCK	-	1	Enquire
2	84407600	FRONT LH UNDERBODY SHIELD IN STOCK	84407600 FRONT LH UNDERBODY SHIELD Applicable from Ass. No. 101216 IN STOCK	-	1	Enquire
3	880041	Allen Head Bolt M6 X 26 IN STOCK	880041 Allen Head Bolt M6 X 26 M6 X 22; No longer supplied; Replaced by 81290900 IN STOCK	-	8	Enquire
3	880041	Allen Head Bolt M6 X 26 IN STOCK	880041 Allen Head Bolt M6 X 26 M6 X 20 IN STOCK	-	22	Enquire
4	62766300	CLIP IN STOCK	62766300 CLIP IN STOCK	-	8	Enquire
5	81507500	CENTRAL UNDERBODY SHIELD	81507500 CENTRAL UNDERBODY SHIELD Applicable for EU GS; Applicable up to Ass. No. 90801	-	1	Enquire
5	81507500	CENTRAL UNDERBODY SHIELD	81507500 CENTRAL UNDERBODY SHIELD Applicable for GOLFO; Applicable up to Ass. No. 91118	-	1	Enquire
5	82884900	CENTRAL UNDERBODY SHIELD	82884900 CENTRAL UNDERBODY SHIELD Applicable for EU GS; Applicable from Ass. No. 90802	-	1	Enquire
5	82884900	CENTRAL UNDERBODY SHIELD	82884900 CENTRAL UNDERBODY SHIELD Applicable for GOLFO; Applicable from Ass. No. 91119	-	1	Enquire
5	82884900	CENTRAL UNDERBODY SHIELD	82884900 CENTRAL UNDERBODY SHIELD From start of production; Not for EU GS, GOLFO	-	1	Enquire
6	82351600	CENTRAL UNDERBODY SHIELD, FRONT SECTION	82351600 CENTRAL UNDERBODY SHIELD, FRONT SECTION Applicable for EU GS; Applicable up to Ass. No. 90801	-	1	Enquire
6	82351600	CENTRAL UNDERBODY SHIELD, FRONT SECTION	82351600 CENTRAL UNDERBODY SHIELD, FRONT SECTION Applicable for GOLFO; Applicable up to Ass. No. 91118	-	1	Enquire
6	82955800	CENTRAL UNDERBODY SHIELD, FRONT SECTION IN STOCK	82955800 CENTRAL UNDERBODY SHIELD, FRONT SECTION Applicable for EU GS; Applicable from Ass. No. 90802 IN STOCK	-	1	Enquire
6	82955800	CENTRAL UNDERBODY SHIELD, FRONT SECTION IN STOCK	82955800 CENTRAL UNDERBODY SHIELD, FRONT SECTION Applicable for GOLFO; Applicable from Ass. No. 91119 IN STOCK	-	1	Enquire
6	82955800	CENTRAL UNDERBODY SHIELD, FRONT SECTION IN STOCK	82955800 CENTRAL UNDERBODY SHIELD, FRONT SECTION From start of production; Not for EU GS, GOLFO IN STOCK	-	1	Enquire
7	880041	Allen Head Bolt M6 X 26 IN STOCK	880041 Allen Head Bolt M6 X 26 M6 X 20 IN STOCK	-	14	Enquire
7	880041	Allen Head Bolt M6 X 26 IN STOCK	880041 Allen Head Bolt M6 X 26 M6 X 22; Applicable for GOLFO; Applicable up to Ass. No. 91118 IN STOCK	-	14	Enquire
7	880041	Allen Head Bolt M6 X 26 IN STOCK	880041 Allen Head Bolt M6 X 26 M6 X 22; Applicable for EU GS; Applicable up to Ass. No. 90801 IN STOCK	-	14	Enquire
8	14189071	BRACKET FOR SCREW IN STOCK	14189071 BRACKET FOR SCREW IN STOCK	-	2	Enquire
9	82885200	REAR UNDERBODY SHIELD	82885200 REAR UNDERBODY SHIELD Applicable for GOLFO; Applicable from Ass. No. 91119 up to Ass. No. 96749	-	1	Enquire
9	82885200	REAR UNDERBODY SHIELD	82885200 REAR UNDERBODY SHIELD From start of production; Not for EU GS, GOLFO; Applicable up to Ass. No. 96749	-	1	Enquire
9	82885200	REAR UNDERBODY SHIELD	82885200 REAR UNDERBODY SHIELD Applicable for EU GS; Applicable from Ass. No. 90802 up to Ass. No. 96749	-	1	Enquire
10	880041	Allen Head Bolt M6 X 26 IN STOCK	880041 Allen Head Bolt M6 X 26 M6 X 22 IN STOCK	-	4	Enquire
13	85199200	FIXING BUTTON IN STOCK	85199200 FIXING BUTTON M6 X 15 IN STOCK	-	6	Enquire
14	14189071	BRACKET FOR SCREW IN STOCK	14189071 BRACKET FOR SCREW IN STOCK	-	6	Enquire
15	85199200	FIXING BUTTON IN STOCK	85199200 FIXING BUTTON M6 X 15 IN STOCK	-	18	Enquire
18	83561600	REAR GRAVEL GUARD GRILLE	83561600 REAR GRAVEL GUARD GRILLE Applicable after depletion of 82441500 and 82441600	-	2	Enquire
18	82441500	RH REAR GRAVEL GUARD GRILLE	82441500 RH REAR GRAVEL GUARD GRILLE Applicable until depletion	-	1	Enquire
18	82441600	LH REAR GRAVEL GUARD GRILLE	82441600 LH REAR GRAVEL GUARD GRILLE Applicable until depletion	-	1	Enquire
19	81535200	GROMMET WITH MEMBRANE	81535200 GROMMET WITH MEMBRANE	-	1	Enquire
20	16285224	SCREW IN STOCK	16285224 SCREW M6 X 14 IN STOCK	-	30	Enquire
20	85199200	FIXING BUTTON IN STOCK	85199200 FIXING BUTTON M6 X 15 IN STOCK	-	18	Enquire
20	13287724	SCREW IN STOCK	13287724 SCREW M5 X 10 IN STOCK	-	12	Enquire
21	82471700	LH REAR WHEELHOUSE REAR GRAVEL GUARD IN STOCK	82471700 LH REAR WHEELHOUSE REAR GRAVEL GUARD Also order 82471600 IN STOCK	-	1	Enquire
21	82471600	RH REAR WHEELHOUSE REAR GRAVEL GUARD	82471600 RH REAR WHEELHOUSE REAR GRAVEL GUARD Also order 82471700	-	1	Enquire
22	81763000	RH DUCT IN STOCK	81763000 RH DUCT IN STOCK	-	1	Enquire
23	81763100	LH DUCT IN STOCK	81763100 LH DUCT IN STOCK	-	1	Enquire
25	84026400	LOWER LH HEAT SHIELD	84026400 LOWER LH HEAT SHIELD Applicable from Ass. No. 100759; Applicable after depletion of 83779300	-	1	Enquire
26	83003800	FLOOR HATCH COVER IN STOCK	83003800 FLOOR HATCH COVER IN STOCK	-	1	Enquire
28	85833700	SCREW	85833700 SCREW	-	3	Enquire
29	14370874	BRACKET	14370874 BRACKET No longer supplied	-	3	Enquire
30	14296196	RIVET IN STOCK	14296196 RIVET IN STOCK	-	40	Enquire
31	82159500	CAP FOR SLOT	82159500 CAP FOR SLOT	-	2	Enquire
32	880041	Allen Head Bolt M6 X 26 IN STOCK	880041 Allen Head Bolt M6 X 26 M6 X 20 IN STOCK	-	15	Enquire
33	231620	SCREW IN STOCK	231620 SCREW IN STOCK	-	4	Enquire
34	12648925	WASHER IN STOCK	12648925 WASHER IN STOCK	-	4	Enquire
35	142798	RUBBER SHIM	142798 RUBBER SHIM	-	4	Enquire
