DOORS - POWER WINDOWS AND REAR-VIEW MIRROR of Ferrari Ferrari 458 Italia

View All

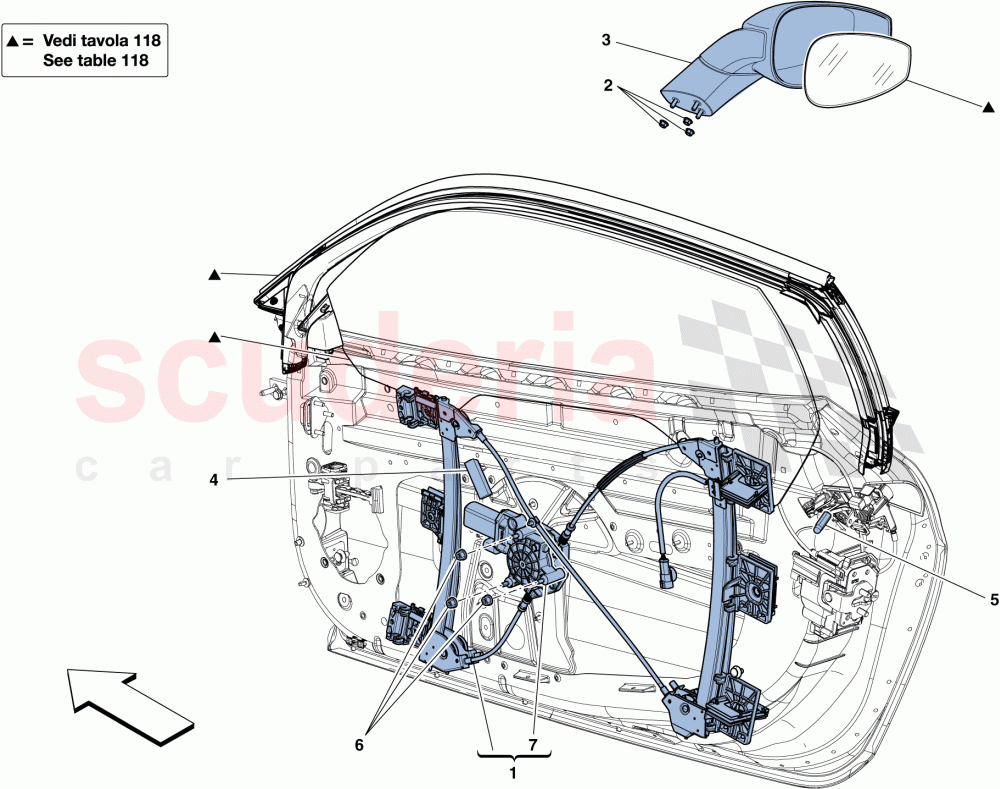

Ferrari 458 Italia - DOORS - POWER WINDOWS AND REAR-VIEW MIRROR

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	81487200	Front LH Window Lift Mechanism	Enquire	To Order
	81487400	Front RH Window Lift Mechanism	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83092810	LH EXTERNAL REAR VIEW MIRROR	Enquire	To Order
	81364310	LH EXTERNAL REAR VIEW MIRROR	Enquire	To Order
	82910010	LH EXTERNAL REAR VIEW MIRROR	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	68304200	FOAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83983100	EXTERNAL DOOR WINDOW RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86775600	RH WINDOW LIFTER MOTOR	Enquire	To Order
	86775500	LH WINDOW LIFT MOTOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	81487200	Front LH Window Lift Mechanism	81487200 Front LH Window Lift Mechanism	-	1	Enquire
1	81487400	Front RH Window Lift Mechanism	81487400 Front RH Window Lift Mechanism	-	1	Enquire
2	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 No longer supplied; Replaced by 13832101	-	6	Enquire
2	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	6	Enquire
3	83092810	LH EXTERNAL REAR VIEW MIRROR	83092810 LH EXTERNAL REAR VIEW MIRROR With electric tipping system and position memory; Electrochromic mirror	-	1	Enquire
3	81364310	LH EXTERNAL REAR VIEW MIRROR	81364310 LH EXTERNAL REAR VIEW MIRROR With mechanical tipping system	-	1	Enquire
3	82910010	LH EXTERNAL REAR VIEW MIRROR	82910010 LH EXTERNAL REAR VIEW MIRROR With electric tipping system, with no position memory; Electrochromic mirror	-	1	Enquire
3	82909910	RH External Rear View Mirror	82909910 RH External Rear View Mirror With electric tipping system, with no position memory; Electrochromic mirror	-	1	Enquire
3	83092710	RH EXTERNAL REAR VIEW MIRROR	83092710 RH EXTERNAL REAR VIEW MIRROR With electric tipping system and position memory; Electrochromic mirror	-	1	Enquire
3	81364010	RH EXTERNAL REAR VIEW MIRROR	81364010 RH EXTERNAL REAR VIEW MIRROR With mechanical tipping system	-	1	Enquire
4	68304200	FOAM	68304200 FOAM	-	2	Enquire
5	83983100	EXTERNAL DOOR WINDOW RETAINER	83983100 EXTERNAL DOOR WINDOW RETAINER	-	2	Enquire
6	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	6	Enquire
7	86775600	RH WINDOW LIFTER MOTOR	86775600 RH WINDOW LIFTER MOTOR	-	1	Enquire
7	86775500	LH WINDOW LIFT MOTOR	86775500 LH WINDOW LIFT MOTOR	-	1	Enquire
