Name: ENGINE COMPARTMENT LID AND FUEL FILLER FLAP OPENING MECHANISMS
Rating: 5.0 (1 reviews)

ENGINE COMPARTMENT LID AND FUEL FILLER FLAP OPENING MECHANISMS of Ferrari Ferrari 458 Italia

View All

Ferrari 458 Italia - ENGINE COMPARTMENT LID AND FUEL FILLER FLAP OPENING MECHANISMS

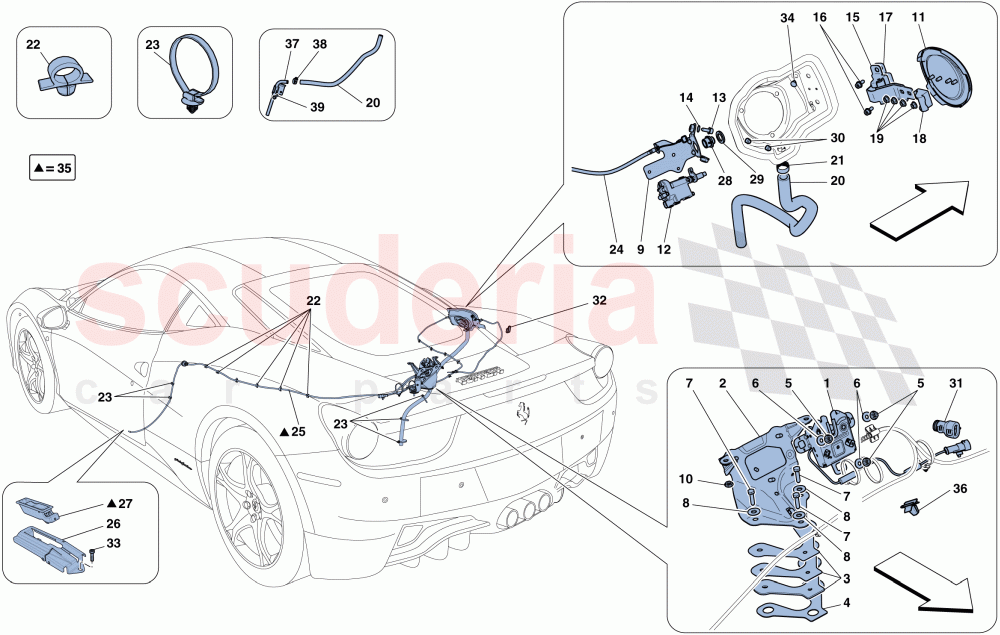

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	81296300	ENGINE COMPARTMENT LID LOCK	$115.51	To Order
	84076100	ENGINE COMPARTMENT LID LOCK	$141.90	To Order

Photo	Part No	Description	Price (each)	Stock
	82112100	SHIM KIT	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	81657600	SHIM	$5.30	To Order

Photo	Part No	Description	Price (each)	Stock
	14059211	NUT	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	1264660112647624	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	12647724	WASHER	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	82898400	ACTUATOR FASTENER BRACKET	$129.96	To Order

Photo	Part No	Description	Price (each)	Stock
	14098010	NUT	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	81618411	FUEL FILLER FLAP	$430.02	To Order

Photo	Part No	Description	Price (each)	Stock
	69918500	Actuator	$232.25	To Order

Photo	Part No	Description	Price (each)	Stock
	11566227	SCREW	$1.31	To Order
	15689601	SCREW	$0.24	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82249000	FUEL FILLER FLAP HINGE	$545.55	To Order

Photo	Part No	Description	Price (each)	Stock
	11566227	SCREW	$1.31	To Order

Photo	Part No	Description	Price (each)	Stock
	81619400	SPACER	$5.58	To Order

Photo	Part No	Description	Price (each)	Stock
	82249400	STRIKER	$8.49	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	85430400	RUBBER PIPE	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.60	To Order

Photo	Part No	Description	Price (each)	Stock
	248061	CLIP	$2.22	To Order
	140727	CLIP	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	82575800	CABLE	$72.19	To Order

Photo	Part No	Description	Price (each)	Stock
	82953100	ENGINE COMPARTMENT LID RELEASE BOWDEN CABLE	$272.34	To Order
	83132700	ENGINE COMPARTMENT LID RELEASE BOWDEN CABLE	$256.72	To Order

Photo	Part No	Description	Price (each)	Stock
	82926600	BRACKET FOR ENGINE COMPARTMENT LID HANDLE	$240.67	To Order
	83028900	BRACKET FOR ENGINE COMPARTMENT LID HANDLE	$53.02	To Order

Photo	Part No	Description	Price (each)	Stock
	80176200	ENGINE COMPARTMENT LID HANDLE	$105.89	To Order
	80176200	ENGINE COMPARTMENT LID HANDLE	$105.89	To Order

Photo	Part No	Description	Price (each)	Stock
	67485800	BUSH	$8.44	To Order

Photo	Part No	Description	Price (each)	Stock
	67067600	GASKET	$3.95	To Order

Photo	Part No	Description	Price (each)	Stock
	81802300	RUBBER PAD	$1.15	To Order

Photo	Part No	Description	Price (each)	Stock
	83896200	2-WAY CONNECTOR COVER	$0.71	To Order
	84076200	3-WAY CONNECTOR COVER	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	10815787	CLAMP	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	84077300	PLUG	$10.10	To Order

Photo	Part No	Description	Price (each)	Stock
	83401000	HANDLE COMPLETE WITH CABLE	$176.49	To Order
	83777200	REAR LID HANDLE, COMPL. WITH CABLE	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	84201900	COMPL. RIGID FUEL DRAIN PIPE	$71.92	To Order

Photo	Part No	Description	Price (each)	Stock
	13433570	HOSE COLLAR	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	11625824	SCREW	$0.39	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	81296300	ENGINE COMPARTMENT LID LOCK	81296300 ENGINE COMPARTMENT LID LOCK Applicable up to Ass. No. 98332	$115.51	1
1	84076100	ENGINE COMPARTMENT LID LOCK	84076100 ENGINE COMPARTMENT LID LOCK Applicable from Ass. No. 98333	$141.90	1
3	82112100	SHIM KIT	82112100 SHIM KIT	$24.05	1
4	81657600	SHIM	81657600 SHIM	$5.30	1
5	14059211	NUT	14059211 NUT	$0.06	3
6	1264660112647624	WASHER	1264660112647624 WASHER	-	3	Enquire
7	231625	SCREW	231625 SCREW	$0.65	3
8	12647724	WASHER	12647724 WASHER No longer supplied	$0.15	3
9	82898400	ACTUATOR FASTENER BRACKET	82898400 ACTUATOR FASTENER BRACKET	$129.96	1
10	14098010	NUT	14098010 NUT	$0.16	2
11	81618411	FUEL FILLER FLAP	81618411 FUEL FILLER FLAP	$430.02	1
12	69918500	Actuator	69918500 Actuator	$232.25	1
13	11566227	SCREW	11566227 SCREW No longer supplied; Replaced by 15689601	$1.31	2
13	15689601	SCREW	15689601 SCREW	$0.24	2
14	12604178	Washer	12604178 Washer No longer supplied	-	2	Enquire
15	82249000	FUEL FILLER FLAP HINGE	82249000 FUEL FILLER FLAP HINGE	$545.55	1
16	11566227	SCREW	11566227 SCREW	$1.31	2
17	81619400	SPACER	81619400 SPACER Installed if necessary	$5.58	1
18	82249400	STRIKER	82249400 STRIKER	$8.49	1
19	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	4
20	85430400	RUBBER PIPE	85430400 RUBBER PIPE	$240.67	1
21	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	$1.60	1
22	248061	CLIP	248061 CLIP No longer supplied	$2.22	14
22	140727	CLIP	140727 CLIP	$0.28 MSRP: ~~0.75~~ (62.7% off)	5
23	303385	CLIP	303385 CLIP	$0.31	5
24	82575800	CABLE	82575800 CABLE	$72.19	1
25	82953100	ENGINE COMPARTMENT LID RELEASE BOWDEN CABLE	82953100 ENGINE COMPARTMENT LID RELEASE BOWDEN CABLE Not for GD; Applicable up to Ass. No. 92450	$272.34	1
25	83132700	ENGINE COMPARTMENT LID RELEASE BOWDEN CABLE	83132700 ENGINE COMPARTMENT LID RELEASE BOWDEN CABLE Applicable for GD; Applicable up to Ass. No. 95135	$256.72	1
26	82926600	BRACKET FOR ENGINE COMPARTMENT LID HANDLE	82926600 BRACKET FOR ENGINE COMPARTMENT LID HANDLE Not for GD	$240.67	1
26	83028900	BRACKET FOR ENGINE COMPARTMENT LID HANDLE	83028900 BRACKET FOR ENGINE COMPARTMENT LID HANDLE Applicable for GD	$53.02	1
27	80176200	ENGINE COMPARTMENT LID HANDLE	80176200 ENGINE COMPARTMENT LID HANDLE Supplied with compl. handle 83401000 from Ass.ly No. 92451; Not for GD; Applicable up to Ass. No. 92450	$105.89	1
27	80176200	ENGINE COMPARTMENT LID HANDLE	80176200 ENGINE COMPARTMENT LID HANDLE Supplied with compl. handle 83777200 from Ass.ly No. 95136; Applicable for GD; Applicable up to Ass. No. 95135	$105.89	1
28	67485800	BUSH	67485800 BUSH	$8.44	1
29	67067600	GASKET	67067600 GASKET	$3.95	1
30	81802300	RUBBER PAD	81802300 RUBBER PAD	$1.15	2
31	83896200	2-WAY CONNECTOR COVER	83896200 2-WAY CONNECTOR COVER Applicable up to Ass. No. 98332	$0.71	1
31	84076200	3-WAY CONNECTOR COVER	84076200 3-WAY CONNECTOR COVER Applicable from Ass. No. 98333	$0.75	1
32	10815787	CLAMP	10815787 CLAMP	$0.15	1
33	231619	SCREW	231619 SCREW M6 X 20	$0.31	3
34	84077300	PLUG	84077300 PLUG	$10.10	1
35	83401000	HANDLE COMPLETE WITH CABLE	83401000 HANDLE COMPLETE WITH CABLE Not for GD; Applicable from Ass. No. 92451	$176.49	1
35	83777200	REAR LID HANDLE, COMPL. WITH CABLE	83777200 REAR LID HANDLE, COMPL. WITH CABLE Applicable for GD; Applicable from Ass. No. 95136	$224.63	1
36	303385	CLIP	303385 CLIP	$0.31	1
37	84201900	COMPL. RIGID FUEL DRAIN PIPE	84201900 COMPL. RIGID FUEL DRAIN PIPE	$71.92	1
38	13433570	HOSE COLLAR	13433570 HOSE COLLAR	$0.75	1
39	11625824	SCREW	11625824 SCREW M6 X 18	$0.39 MSRP: ~~1.00~~ (61% off)	1
