BODYSHELL - EXTERNAL TRIM of Ferrari Ferrari 458 Italia

View All

Ferrari 458 Italia - BODYSHELL - EXTERNAL TRIM

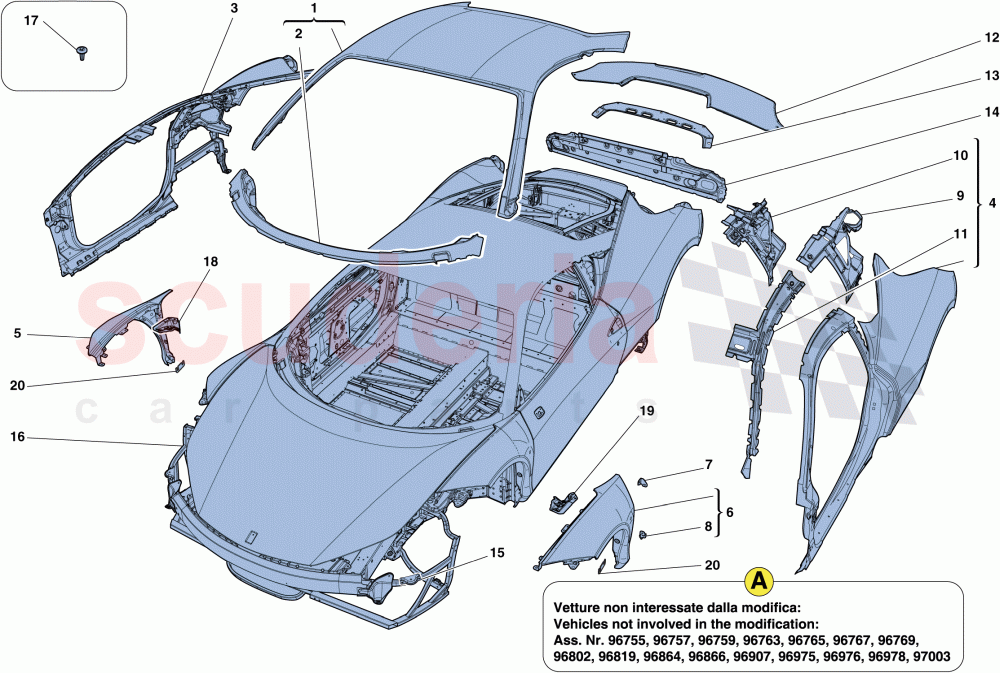

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	83740411	WINDSCREEN CROSS-MEMBER UPPER COVER	Enquire	To Order
	81408111	LOWER ROOF CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85617311	FRONT RH FENDER	Enquire	To Order
	85617111	FRONT RH FENDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85617711	FRONT LH FENDER	Enquire	To Order
	85617511	FRONT LH FENDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81543000	UPPER LH BRACKET	Enquire	To Order
	81542900	UPPER RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82661400	LOWER RH BRACKET	Enquire	To Order
	82661500	LOWER LH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81300200	LH PILLAR SUBFRAME	Enquire	To Order
	81300000	RH PILLAR SUBFRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83077011	REAR SCREEN BULKHEAD SUBFRAME	Enquire	To Order
	83060411	REAR SCREEN BULKHEAD SUBFRAME	Enquire	To Order
	81295711	REAR SCREEN BULKHEAD SUBFRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82534000	RH HEADLIGHT FASTENER BRACKET	Enquire	To Order
	82534100	LH HEADLIGHT FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81126800	RIVET	Enquire	To Order
	81126900	RIVET	Enquire	To Order
	82398700	RIVET	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	82675400	FRONT FENDER SPACER KIT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	83740411	WINDSCREEN CROSS-MEMBER UPPER COVER	83740411 WINDSCREEN CROSS-MEMBER UPPER COVER not affected by modification; Applicable from Ass. No. 96750	-	1	Enquire
2	81408111	LOWER ROOF CROSS MEMBER	81408111 LOWER ROOF CROSS MEMBER Applicable up to Ass. No. 96749	-	1	Enquire
5	85617311	FRONT RH FENDER	85617311 FRONT RH FENDER Shield badge; not affected by modification; Applicable from Ass. No. 120375	-	1	Enquire
5	85617111	FRONT RH FENDER	85617111 FRONT RH FENDER not affected by modification; Applicable from Ass. No. 120375	-	1	Enquire
6	85617711	FRONT LH FENDER	85617711 FRONT LH FENDER Shield badge; not affected by modification; Applicable from Ass. No. 120375	-	1	Enquire
6	85617511	FRONT LH FENDER	85617511 FRONT LH FENDER not affected by modification; Applicable from Ass. No. 120375	-	1	Enquire
7	81543000	UPPER LH BRACKET	81543000 UPPER LH BRACKET	-	1	Enquire
7	81542900	UPPER RH BRACKET	81542900 UPPER RH BRACKET	-	1	Enquire
8	82661400	LOWER RH BRACKET	82661400 LOWER RH BRACKET	-	1	Enquire
8	82661500	LOWER LH BRACKET	82661500 LOWER LH BRACKET	-	1	Enquire
11	81300200	LH PILLAR SUBFRAME	81300200 LH PILLAR SUBFRAME	-	1	Enquire
11	81300000	RH PILLAR SUBFRAME	81300000 RH PILLAR SUBFRAME	-	1	Enquire
14	83077011	REAR SCREEN BULKHEAD SUBFRAME	83077011 REAR SCREEN BULKHEAD SUBFRAME Hi-Fi	-	1	Enquire
14	83060411	REAR SCREEN BULKHEAD SUBFRAME	83060411 REAR SCREEN BULKHEAD SUBFRAME 4-point seat harness	-	1	Enquire
14	81295711	REAR SCREEN BULKHEAD SUBFRAME	81295711 REAR SCREEN BULKHEAD SUBFRAME Standard	-	1	Enquire
15	82534000	RH HEADLIGHT FASTENER BRACKET	82534000 RH HEADLIGHT FASTENER BRACKET	-	1	Enquire
15	82534100	LH HEADLIGHT FASTENER BRACKET	82534100 LH HEADLIGHT FASTENER BRACKET	-	1	Enquire
17	81126800	RIVET	81126800 RIVET 3.9 x 8	-	-	Enquire
17	81126900	RIVET	81126900 RIVET 4.8 x 7.5	-	-	Enquire
17	82398700	RIVET	82398700 RIVET 4.8 x 9	-	-	Enquire
17	81126500	RIVET	81126500 RIVET 3.9 x 5.5	-	-	Enquire
17	81126600	RIVET	81126600 RIVET 3.9 x 7	-	-	Enquire
17	81126700	RIVET	81126700 RIVET 3.9 x 7	-	-	Enquire
20	82675400	FRONT FENDER SPACER KIT	82675400 FRONT FENDER SPACER KIT Consists of 3 shims measuring 1 mm thick	-	-	Enquire
