Name: CRANKCASE
Rating: 4.6 (1 reviews)

CRANKCASE of Ferrari Ferrari 458 Speciale Aperta

View All

Ferrari 458 Speciale Aperta - CRANKCASE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	278162	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	$6,715.23	To Order

Photo	Part No	Description	Price (each)	Stock
	236261	STUD BOLT	$8.14	To Order
	236262	STUD BOLT	$38.20	To Order

Photo	Part No	Description	Price (each)	Stock
	178348	WASHER D.10.2-20 X 2	$0.78	To Order

Photo	Part No	Description	Price (each)	Stock
	134704	O-RING	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	176421	CENTERING DOWEL	$4.30	To Order

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	802590	STUD BOLT CRANKCASE	$15.17	To Order

Photo	Part No	Description	Price (each)	Stock
	185360	CENTERING DOWEL	$2.97	To Order

Photo	Part No	Description	Price (each)	Stock
	13546934	STUD BOLT	$1.78	To Order
	254979	STUD BOLT	$2.54	To Order

Photo	Part No	Description	Price (each)	Stock
	306484	CYLINDER SLEEVE	$395.72	To Order

Photo	Part No	Description	Price (each)	Stock
	186251	O-RING	$2.58	To Order

Photo	Part No	Description	Price (each)	Stock
	262417	COMPL. PISTON COOLING NOZZLE	$51.59	To Order

Photo	Part No	Description	Price (each)	Stock
	262413	SCREW	$0.91	To Order

Photo	Part No	Description	Price (each)	Stock

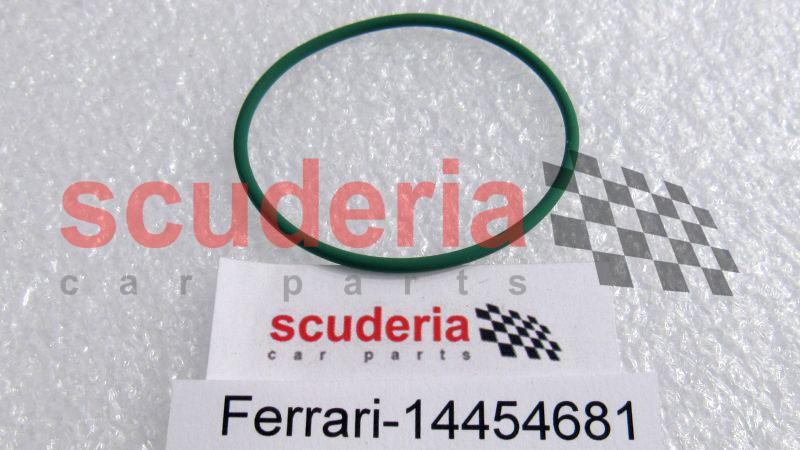

	14454681	O-RING	$0.71	To Order

Photo	Part No	Description	Price (each)	Stock
	240214	GASKET	$62.56	To Order

Photo	Part No	Description	Price (each)	Stock
	175611	CENTERING DOWEL	$1.78	To Order

Photo	Part No	Description	Price (each)	Stock
	307477	THREADED PLUG	$3.84	To Order

Photo	Part No	Description	Price (each)	Stock
	10263460	COPPER GASKET D.28-22.3 X 1.5	$0.37	To Order

Photo	Part No	Description	Price (each)	Stock
	282753	THREADED PLUG	$6.66	To Order

Photo	Part No	Description	Price (each)	Stock
	104280	MAGNETIC THREADED PLUG M22 X 1.5	$6.26	To Order

Photo	Part No	Description	Price (each)	Stock
	10261860	GASKET	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	255568	RH ENGINE STRUT	$224.63	To Order
	255569	LH ENGINE STRUT	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	11307034	SCREW	$0.81	To Order

Photo	Part No	Description	Price (each)	Stock
	11190574	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	296231	LH FLEXIBLE ENGINE MOUNTING BUSH	$465.32	To Order
	296230	RH FLEXIBLE ENGINE MOUNTING BUSH	$465.32	To Order

Photo	Part No	Description	Price (each)	Stock
	278028	STAFFA LIMITATRICE ESCURSIONE TAMPONE SX.	$186.33	To Order
	278027	STAFFA LIMITATRICE ESCURSIONE TAMPONE DX.	$186.33	To Order

Photo	Part No	Description	Price (each)	Stock
	243841	SCREW	$1.65	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	$1.91	To Order

Photo	Part No	Description	Price (each)	Stock
	260084	ENGINE MOUNTING BUSH HEAT SHIELD	$65.77	To Order

Photo	Part No	Description	Price (each)	Stock
	11599534	SCREW	$1.94	To Order

Photo	Part No	Description	Price (each)	Stock
	127498	WASHER	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	10738021	WASHER	$1.26	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	261440	FRONT COMPL. CRANKCASE COVER	$3,322.62	To Order

Photo	Part No	Description	Price (each)	Stock
	247049	BEARING	$53.41	To Order

Photo	Part No	Description	Price (each)	Stock
	11060276	SEEGER RING	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	187718	BLEED PLUG	$6.56	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	231622	SCREW	$0.36	To Order
	231624	SCREW	$0.44	To Order
	231625	SCREW	$0.65	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	236143	GASKET	$7.84	To Order

Photo	Part No	Description	Price (each)	Stock
	249747	RPM SENSOR	$194.50	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	245884	Crank-Shaft Seal	$41.70	To Order

Photo	Part No	Description	Price (each)	Stock
	253787	CONNECTOR	$258.00	To Order

Photo	Part No	Description	Price (each)	Stock
	183010	O-RING	$1.70	To Order

Photo	Part No	Description	Price (each)	Stock
	223405	CAP	$6.73	To Order

Photo	Part No	Description	Price (each)	Stock
	193885	THREADED PLUG	$3.29	To Order

Photo	Part No	Description	Price (each)	Stock
	10263460	COPPER GASKET D.28-22.3 X 1.5	$0.37	To Order

Photo	Part No	Description	Price (each)	Stock
	239437	WATER INLET BUSH	$15.24	To Order

Photo	Part No	Description	Price (each)	Stock
	255866	PUMP DRIVE JOINT	$1,091.11	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	278162	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	278162 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY Lead free	$6,715.23	1
2	236261	STUD BOLT	236261 STUD BOLT M12 X 1.75; Shank M10 X 1.25	$8.14	10
2	236262	STUD BOLT	236262 STUD BOLT M12 X 1.75; Shank M10 X 1.25	$38.20	10
3	178348	WASHER D.10.2-20 X 2	178348 WASHER D.10.2-20 X 2	$0.78	20
4	134704	O-RING	134704 O-RING	$0.15 MSRP: ~~1.00~~ (85% off)	20
5	176421	CENTERING DOWEL	176421 CENTERING DOWEL	$4.30	2
6	133988	HEX NUT M10 X 1.25 X 8	133988 HEX NUT M10 X 1.25 X 8	$0.21 MSRP: ~~0.35~~ (40% off)	20
7	802590	STUD BOLT CRANKCASE	802590 STUD BOLT CRANKCASE	$15.17	20
8	185360	CENTERING DOWEL	185360 CENTERING DOWEL	$2.97	4
9	13546934	STUD BOLT	13546934 STUD BOLT Shaft length 50 mm	$1.78	4
9	254979	STUD BOLT	254979 STUD BOLT Shaft length 55 mm	$2.54	3
10	306484	CYLINDER SLEEVE	306484 CYLINDER SLEEVE	$395.72	8
11	186251	O-RING	186251 O-RING	$2.58 MSRP: ~~3.20~~ (19.4% off)	24
12	262417	COMPL. PISTON COOLING NOZZLE	262417 COMPL. PISTON COOLING NOZZLE	$51.59	8
13	262413	SCREW	262413 SCREW	$0.91	8
14	14454681	O-RING	14454681 O-RING	$0.71 MSRP: ~~1.98~~ (64.1% off)	2
15	240214	GASKET	240214 GASKET	$62.56 MSRP: ~~77.65~~ (19.4% off)	1
16	175611	CENTERING DOWEL	175611 CENTERING DOWEL	$1.78	2
17	307477	THREADED PLUG	307477 THREADED PLUG	$3.84	1
18	10263460	COPPER GASKET D.28-22.3 X 1.5	10263460 COPPER GASKET D.28-22.3 X 1.5	$0.37 MSRP: ~~1.00~~ (63% off)	1
19	282753	THREADED PLUG	282753 THREADED PLUG	$6.66	2
20	104280	MAGNETIC THREADED PLUG M22 X 1.5	104280 MAGNETIC THREADED PLUG M22 X 1.5	$6.26 MSRP: ~~6.90~~ (9.3% off)	2
21	10261860	GASKET	10261860 GASKET	$0.45 MSRP: ~~1.00~~ (55% off)	2
22	231620	SCREW	231620 SCREW M6 X 25	$0.32 MSRP: ~~0.35~~ (8.6% off)	11
23	231625	SCREW	231625 SCREW	$0.65	2
24	255568	RH ENGINE STRUT	255568 RH ENGINE STRUT	$224.63	1
24	255569	LH ENGINE STRUT	255569 LH ENGINE STRUT	$224.63	1
25	11307034	SCREW	11307034 SCREW	$0.81	8
26	11190574	WASHER	11190574 WASHER	$0.06	8
27	296231	LH FLEXIBLE ENGINE MOUNTING BUSH	296231 LH FLEXIBLE ENGINE MOUNTING BUSH	$465.32	1
27	296230	RH FLEXIBLE ENGINE MOUNTING BUSH	296230 RH FLEXIBLE ENGINE MOUNTING BUSH	$465.32	1
28	278028	STAFFA LIMITATRICE ESCURSIONE TAMPONE SX.	278028 STAFFA LIMITATRICE ESCURSIONE TAMPONE SX.	$186.33	1
28	278027	STAFFA LIMITATRICE ESCURSIONE TAMPONE DX.	278027 STAFFA LIMITATRICE ESCURSIONE TAMPONE DX.	$186.33	1
29	243841	SCREW	243841 SCREW	$1.65	6
30	127497	WASHER	127497 WASHER	$0.06 MSRP: ~~0.75~~ (92% off)	6
31	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2	$1.91	6
32	260084	ENGINE MOUNTING BUSH HEAT SHIELD	260084 ENGINE MOUNTING BUSH HEAT SHIELD	$65.77	2
33	11599534	SCREW	11599534 SCREW	$1.94	2
34	127498	WASHER	127498 WASHER	$0.15 MSRP: ~~0.60~~ (75% off)	2
35	10738021	WASHER	10738021 WASHER	$1.26	2
36	248334	SCREW	248334 SCREW M6 X 14	$0.68	4
37	261440	FRONT COMPL. CRANKCASE COVER	261440 FRONT COMPL. CRANKCASE COVER	$3,322.62	1
38	247049	BEARING	247049 BEARING	$53.41	1
39	11060276	SEEGER RING	11060276 SEEGER RING	$0.45 MSRP: ~~1.75~~ (74.3% off)	1
40	187718	BLEED PLUG	187718 BLEED PLUG	$6.56	2
41	127497	WASHER	127497 WASHER	$0.06 MSRP: ~~0.75~~ (92% off)	2
43	231622	SCREW	231622 SCREW M6 X 35	$0.36 MSRP: ~~0.50~~ (28% off)	8
43	231624	SCREW	231624 SCREW M6 X 45	$0.44	1
43	231625	SCREW	231625 SCREW M6 X 50	$0.65	3
43	231626	SCREW	231626 SCREW M6 X 70	$0.81	1
43	231619	SCREW	231619 SCREW M6 X 18	$0.31	11
43	231619	SCREW	231619 SCREW M6 X 22	$0.31	4
43	231620	SCREW	231620 SCREW M6 X 25	$0.32 MSRP: ~~0.35~~ (8.6% off)	3
43	231620	SCREW	231620 SCREW M6 X 30	$0.32 MSRP: ~~0.35~~ (8.6% off)	1
44	236143	GASKET	236143 GASKET	$7.84 MSRP: ~~10.50~~ (25.3% off)	2
45	249747	RPM SENSOR	249747 RPM SENSOR	$194.50	1
46	231619	SCREW	231619 SCREW M6 X 20	$0.31	1
47	245884	Crank-Shaft Seal	245884 Crank-Shaft Seal	$41.70 MSRP: ~~53.74~~ (22.4% off)	1
48	253787	CONNECTOR	253787 CONNECTOR	$258.00	1
49	183010	O-RING	183010 O-RING	$1.70 MSRP: ~~2.89~~ (41.2% off)	2
50	223405	CAP	223405 CAP	$6.73	1
51	193885	THREADED PLUG	193885 THREADED PLUG	$3.29	1
52	10263460	COPPER GASKET D.28-22.3 X 1.5	10263460 COPPER GASKET D.28-22.3 X 1.5	$0.37 MSRP: ~~1.00~~ (63% off)	2
53	239437	WATER INLET BUSH	239437 WATER INLET BUSH	$15.24	1
54	255866	PUMP DRIVE JOINT	255866 PUMP DRIVE JOINT	$1,091.11	1
