INTAKE MANIFOLD COVER of Ferrari Ferrari 458 Speciale Aperta

View All

Ferrari 458 Speciale Aperta - INTAKE MANIFOLD COVER

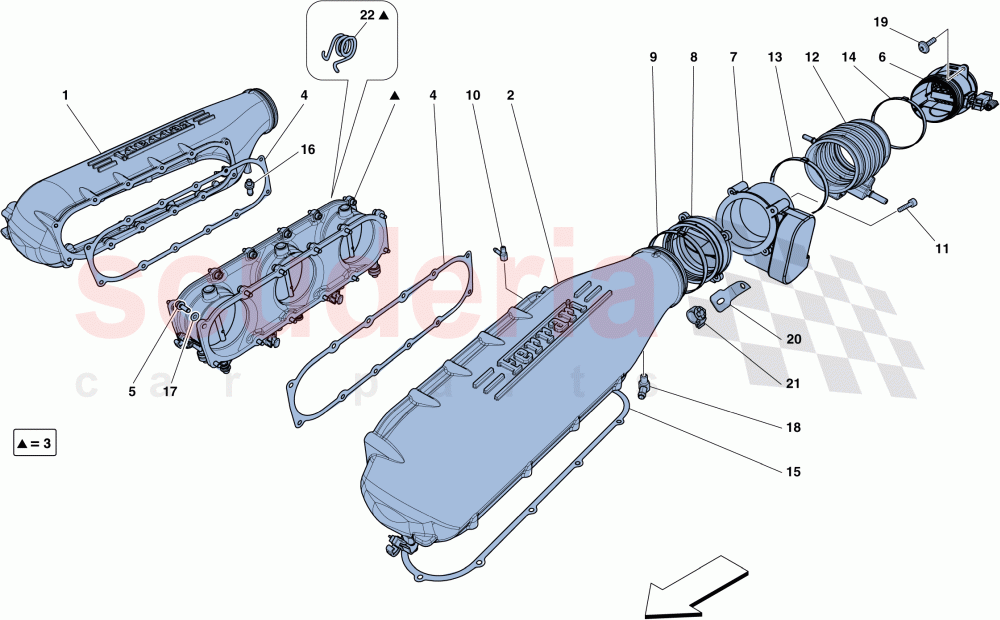

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	305955	RH INTAKE PLENUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	305958	LH INTAKE PLENUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	305960	COMPL. CENTRAL COMPENSATOR BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	222998	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	245028	AIR FLOW METER	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	331005	THROTTLE BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240262	SPACER FOR THROTTLE BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190151	Clamp	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	268875	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282230	RH CONNECTOR PIPE	Enquire	To Order
	282231	LH CONNECTOR PIPE	Enquire	To Order
	272872	RH CONNECTOR PIPE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	900284	SCREW COLLAR	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	190151	Clamp	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	268878	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268877	CONNECTOR	Enquire	To Order
	219786	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	249878	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178430	FASTENER CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	235784	SPRING FOR SPINDLE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	305955	RH INTAKE PLENUM	305955 RH INTAKE PLENUM	-	1	Enquire
2	305958	LH INTAKE PLENUM	305958 LH INTAKE PLENUM	-	1	Enquire
3	305960	COMPL. CENTRAL COMPENSATOR BODY	305960 COMPL. CENTRAL COMPENSATOR BODY	-	1	Enquire
5	222998	SCREW	222998 SCREW M6 X 25	-	24	Enquire
6	245028	AIR FLOW METER ARRIVING SOON	245028 AIR FLOW METER ARRIVING SOON	-	2	Enquire
7	331005	THROTTLE BODY	331005 THROTTLE BODY	-	2	Enquire
8	240262	SPACER FOR THROTTLE BODY	240262 SPACER FOR THROTTLE BODY	-	2	Enquire
9	190151	Clamp ARRIVING SOON	190151 Clamp ARRIVING SOON	-	2	Enquire
10	268875	CONNECTOR	268875 CONNECTOR	-	2	Enquire
11	231624	SCREW	231624 SCREW M6 X 45	-	8	Enquire
12	282230	RH CONNECTOR PIPE	282230 RH CONNECTOR PIPE Applicable for USA, CDN, USA LIGHT	-	1	Enquire
12	282231	LH CONNECTOR PIPE	282231 LH CONNECTOR PIPE Applicable for USA, CDN, USA LIGHT	-	1	Enquire
12	272872	RH CONNECTOR PIPE	272872 RH CONNECTOR PIPE Not for USA, CDN, USA LIGHT	-	1	Enquire
12	272873	LH CONNECTOR PIPE	272873 LH CONNECTOR PIPE Not for USA, CDN, USA LIGHT	-	1	Enquire
13	900284	SCREW COLLAR ARRIVING SOON	900284 SCREW COLLAR ARRIVING SOON	-	2	Enquire
14	190151	Clamp ARRIVING SOON	190151 Clamp ARRIVING SOON	-	2	Enquire
16	268878	CONNECTOR	268878 CONNECTOR	-	2	Enquire
17	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	24	Enquire
18	268877	CONNECTOR	268877 CONNECTOR Not for USA, CDN, USA LIGHT	-	2	Enquire
18	219786	THREADED PLUG	219786 THREADED PLUG Applicable for USA, CDN, USA LIGHT	-	2	Enquire
19	85833700	SCREW	85833700 SCREW	-	4	Enquire
20	249878	BRACKET	249878 BRACKET	-	2	Enquire
21	178430	FASTENER CLIP	178430 FASTENER CLIP	-	2	Enquire
22	235784	SPRING FOR SPINDLE	235784 SPRING FOR SPINDLE	-	2	Enquire
