INJECTION - IGNITION SYSTEM of Ferrari Ferrari 458 Speciale Aperta

View All

Ferrari 458 Speciale Aperta - INJECTION - IGNITION SYSTEM

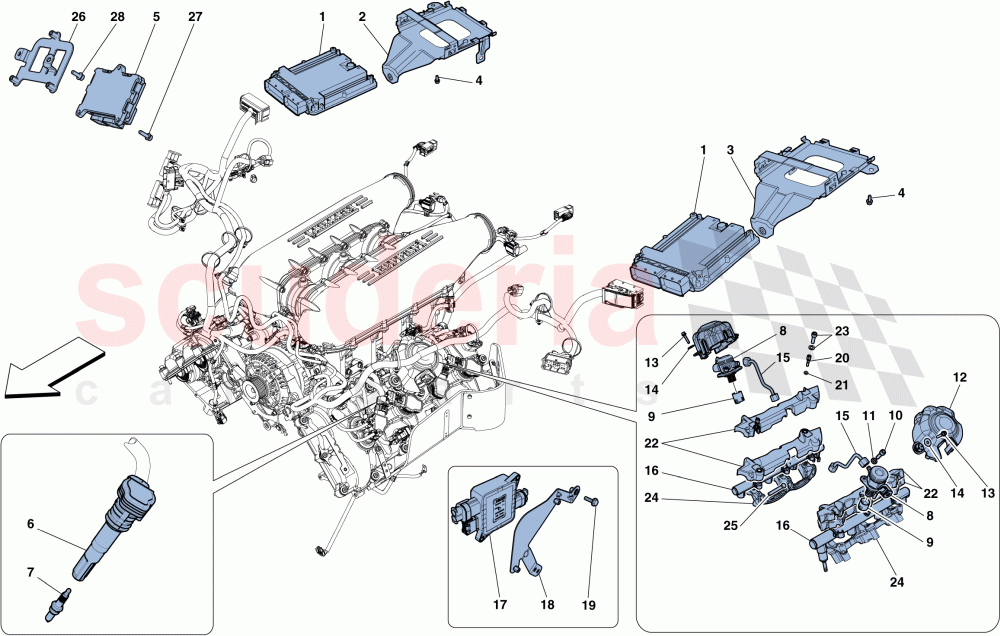

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	238263	IGNITION ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	261838	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	261839	LH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	289064	IONISING KNOCK SENSOR CONTROL UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	297423	SPARK PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	290030	FUEL PUMP	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	270601	HIG PRESSURE PUMP BUCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305334	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247537	SOUNDPROOFING COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68040000	WASHER 6 X 20 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247674	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250777	COMPL. INJECTOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264935	PWM COMMAND SIGNAL FOR FUEL PUMPS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	278268	ECU MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11625824	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	339948	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11194374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	256322	INJECTOR COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	239946	FUEL RAIL MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	293226	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	238263	IGNITION ECU	238263 IGNITION ECU Unprogrammed	-	2	Enquire
2	261838	RH BRACKET	261838 RH BRACKET	-	1	Enquire
3	261839	LH BRACKET	261839 LH BRACKET	-	1	Enquire
4	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	6	Enquire
5	289064	IONISING KNOCK SENSOR CONTROL UNIT	289064 IONISING KNOCK SENSOR CONTROL UNIT Unprogrammed	-	1	Enquire
7	297423	SPARK PLUG	297423 SPARK PLUG	-	8	Enquire
8	290030	FUEL PUMP ARRIVING SOON	290030 FUEL PUMP ARRIVING SOON	-	2	Enquire
9	270601	HIG PRESSURE PUMP BUCKET	270601 HIG PRESSURE PUMP BUCKET	-	2	Enquire
10	14305334	SCREW	14305334 SCREW M6 X 20	-	4	Enquire
11	12639724	WASHER	12639724 WASHER	-	4	Enquire
12	247537	SOUNDPROOFING COVER	247537 SOUNDPROOFING COVER	-	2	Enquire
13	231620	SCREW	231620 SCREW M6 X 30	-	4	Enquire
14	68040000	WASHER 6 X 20 X 2	68040000 WASHER 6 X 20 X 2	-	4	Enquire
15	247674	PIPE	247674 PIPE	-	2	Enquire
16	250777	COMPL. INJECTOR PIPE	250777 COMPL. INJECTOR PIPE	-	2	Enquire
17	264935	PWM COMMAND SIGNAL FOR FUEL PUMPS	264935 PWM COMMAND SIGNAL FOR FUEL PUMPS	-	1	Enquire
18	278268	ECU MOUNTING BRACKET	278268 ECU MOUNTING BRACKET	-	1	Enquire
19	11625824	SCREW	11625824 SCREW M6 X 16	-	3	Enquire
20	339948	STUD BOLT	339948 STUD BOLT	-	4	Enquire
21	11194374	WASHER	11194374 WASHER	-	4	Enquire
22	256322	INJECTOR COVER	256322 INJECTOR COVER	-	2	Enquire
23	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 20	-	4	Enquire
24	239946	FUEL RAIL MOUNTING	239946 FUEL RAIL MOUNTING	-	2	Enquire
25	231624	SCREW	231624 SCREW M6 X 45	-	12	Enquire
26	293226	BRACKET	293226 BRACKET	-	1	Enquire
27	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 22	-	3	Enquire
28	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	2	Enquire
