ENGINE CONNECTION TUBE - GEARBOX AND INSULATION of Ferrari Ferrari 456 M GT/GTA

View All

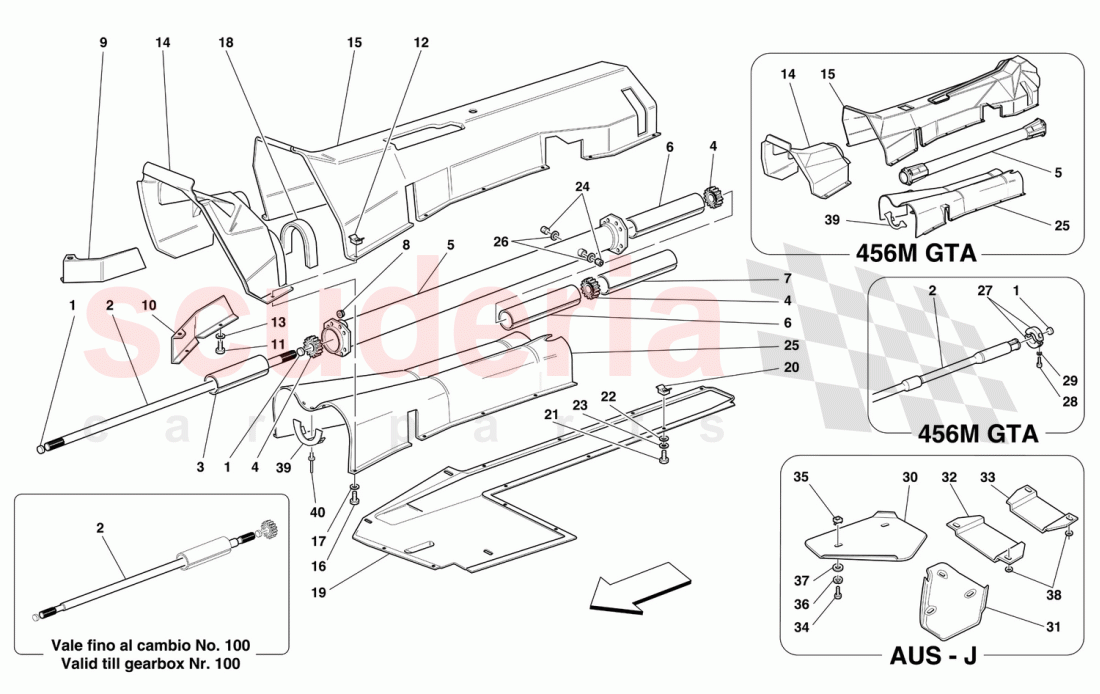

Ferrari 456 M GT/GTA - ENGINE CONNECTION TUBE - GEARBOX AND INSULATION

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	144443	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154501	PROPELLER SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157055	ENGINE SIDE SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155564	BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175106	ENGINE-GEARBOX CONNECTING PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157057	INTERMEDIATE SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157056	GEARBOX SIDE SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059421	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65505900	R.H. HEAT PROTECTION SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65506100	L.H. HEAT PROTECTION SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65774200	NUT WITH CAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648978	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64234200	HEAT PROTECTION SHIELD FOR CLUTCH HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63964100	TUNNEL ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902380	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648978	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63940000	RUBBER BOOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63939700	L.H. UNDERFLOOR SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65774200	NUT WITH CAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902180	SCREW -Valid for J-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648978	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162393	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155474	TUNNEL SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10520224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	172558	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255527	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	158292	R.H. FRONT PANEL -Valid for J-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	158293	L.H. FRONT PANEL -Valid for J-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178561	CENTRAL SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178562	REAR SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902180	SCREW -Valid for J-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60659100	Caged Captive Nut 6mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648978	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12625224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65915000	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61741600	Rivet l. 3,2 x l. 11.5	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	65914900	PLATE	65914900 PLATE Valid for 456M GTA	-	1	Enquire
-	12648978	WASHER	12648978 WASHER Front part	-	14	Enquire
-	65649300	TUNNEL SHIELD	65649300 TUNNEL SHIELD Valid for 456M GTA	-	1	Enquire
-	65648900	HEAT PROTECTION SHIELD FOR CLUTCH HOUSING	65648900 HEAT PROTECTION SHIELD FOR CLUTCH HOUSING FOR CLUTCH HOUSING / Valid for 456M GTA	-	1	Enquire
-	65649100	TUNNEL ASSEMBLY	65649100 TUNNEL ASSEMBLY Valid for 456M GTA	-	1	Enquire
-	64888600	RUBBER BOOT	64888600 RUBBER BOOT Valid for 456M GTA	-	1	Enquire
-	63939600	R.H. UNDERFLOOR SHIELD	63939600 R.H. UNDERFLOOR SHIELD	-	1	Enquire
-	162447	Intermediate Spacer	162447 Intermediate Spacer Valid for 456M GTA	-	2	Enquire
-	169800	GEARBOX SIDE SPACER	169800 GEARBOX SIDE SPACER Valid for 456M GTA	-	1	Enquire
-	162448	ENGINE SIDE SPACER	162448 ENGINE SIDE SPACER Valid for 456M GTA	-	1	Enquire
-	168319	BEARING	168319 BEARING Valid for 456M GTA	-	3	Enquire
-	176907	ENGINE-GEARBOX CONNECTING PIPE	176907 ENGINE-GEARBOX CONNECTING PIPE CONNECTING PIPE / Valid for 456M GTA	-	1	Enquire
-	178297	PROPELLER SHAFT	178297 PROPELLER SHAFT Not for 456M GTA / Valid from gearbox Nr. 101	-	1	Enquire
-	172986	PROPELLER SHAFT	172986 PROPELLER SHAFT Valid for 456M GTA / Valid till stock exhaustion	-	1	Enquire
1	144443	SHIM	144443 SHIM	-	2	Enquire
2	154501	PROPELLER SHAFT	154501 PROPELLER SHAFT Not for 456M GTA / Valid till gearbox Nr. 100	-	1	Enquire
3	157055	ENGINE SIDE SPACER	157055 ENGINE SIDE SPACER Not for 456M GTA	-	1	Enquire
4	155564	BEARING	155564 BEARING Not for 456M GTA	-	3	Enquire
5	175106	ENGINE-GEARBOX CONNECTING PIPE	175106 ENGINE-GEARBOX CONNECTING PIPE CONNECTING PIPE / Not for 456M GTA	-	1	Enquire
6	157057	INTERMEDIATE SPACER	157057 INTERMEDIATE SPACER Not for 456M GTA	-	2	Enquire
7	157056	GEARBOX SIDE SPACER	157056 GEARBOX SIDE SPACER Not for 456M GTA	-	1	Enquire
8	14059421	NUT	14059421 NUT	-	16	Enquire
9	65505900	R.H. HEAT PROTECTION SHIELD	65505900 R.H. HEAT PROTECTION SHIELD	-	1	Enquire
10	65506100	L.H. HEAT PROTECTION SHIELD	65506100 L.H. HEAT PROTECTION SHIELD	-	1	Enquire
11	81591700	SCREW	81591700 SCREW	-	6	Enquire
12	65774200	NUT WITH CAGE	65774200 NUT WITH CAGE	-	20	Enquire
13	12648978	WASHER	12648978 WASHER	-	6	Enquire
14	64234200	HEAT PROTECTION SHIELD FOR CLUTCH HOUSING	64234200 HEAT PROTECTION SHIELD FOR CLUTCH HOUSING FOR CLUTCH HOUSING / Not for 456M GTA	-	1	Enquire
15	63964100	TUNNEL ASSEMBLY	63964100 TUNNEL ASSEMBLY Not for 456M GTA	-	1	Enquire
16	10902380	SCREW	10902380 SCREW	-	20	Enquire
17	12648978	WASHER	12648978 WASHER	-	20	Enquire
18	63940000	RUBBER BOOT	63940000 RUBBER BOOT Not for 456M GTA	-	1	Enquire
19	63939700	L.H. UNDERFLOOR SHIELD	63939700 L.H. UNDERFLOOR SHIELD	-	1	Enquire
20	65774200	NUT WITH CAGE	65774200 NUT WITH CAGE	-	30	Enquire
21	10902180	SCREW -Valid for J-	10902180 SCREW -Valid for J-	-	30	Enquire
22	127494	WASHER	127494 WASHER	-	30	Enquire
23	12648978	WASHER	12648978 WASHER	-	16	Enquire
24	162393	THREADED PLUG	162393 THREADED PLUG Not for 456M GTA	-	2	Enquire
25	155474	TUNNEL SHIELD	155474 TUNNEL SHIELD Not for 456M GTA	-	1	Enquire
26	10520224	WASHER	10520224 WASHER Not for 456M GTA	-	2	Enquire
27	172558	SLEEVE	172558 SLEEVE Valid for 456M GTA	-	2	Enquire
28	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 Valid for 456M GTA	-	2	Enquire
29	255527	WASHER	255527 WASHER Valid for 456M GTA	-	2	Enquire
30	158292	R.H. FRONT PANEL -Valid for J-	158292 R.H. FRONT PANEL -Valid for J- Valid for AUS and J	-	1	Enquire
31	158293	L.H. FRONT PANEL -Valid for J-	158293 L.H. FRONT PANEL -Valid for J- Valid for AUS and J	-	1	Enquire
32	178561	CENTRAL SHIELD	178561 CENTRAL SHIELD Valid for AUS and J	-	1	Enquire
33	178562	REAR SHIELD	178562 REAR SHIELD Valid for AUS and J	-	1	Enquire
34	10902180	SCREW -Valid for J-	10902180 SCREW -Valid for J- Valid for AUS and J	-	6	Enquire
35	60659100	Caged Captive Nut 6mm	60659100 Caged Captive Nut 6mm Valid for AUS and J	-	6	Enquire
36	127494	WASHER	127494 WASHER Valid for AUS and J	-	6	Enquire
37	12648978	WASHER	12648978 WASHER Valid for AUS and J	-	6	Enquire
38	12625224	WASHER	12625224 WASHER Valid for AUS and J	-	4	Enquire
39	65915000	PLATE	65915000 PLATE Not for 456M GTA	-	1	Enquire
40	61741600	Rivet l. 3,2 x l. 11.5	61741600 Rivet l. 3,2 x l. 11.5	-	3	Enquire
