WATER PUMP of Ferrari Ferrari 456 M GT/GTA

View All

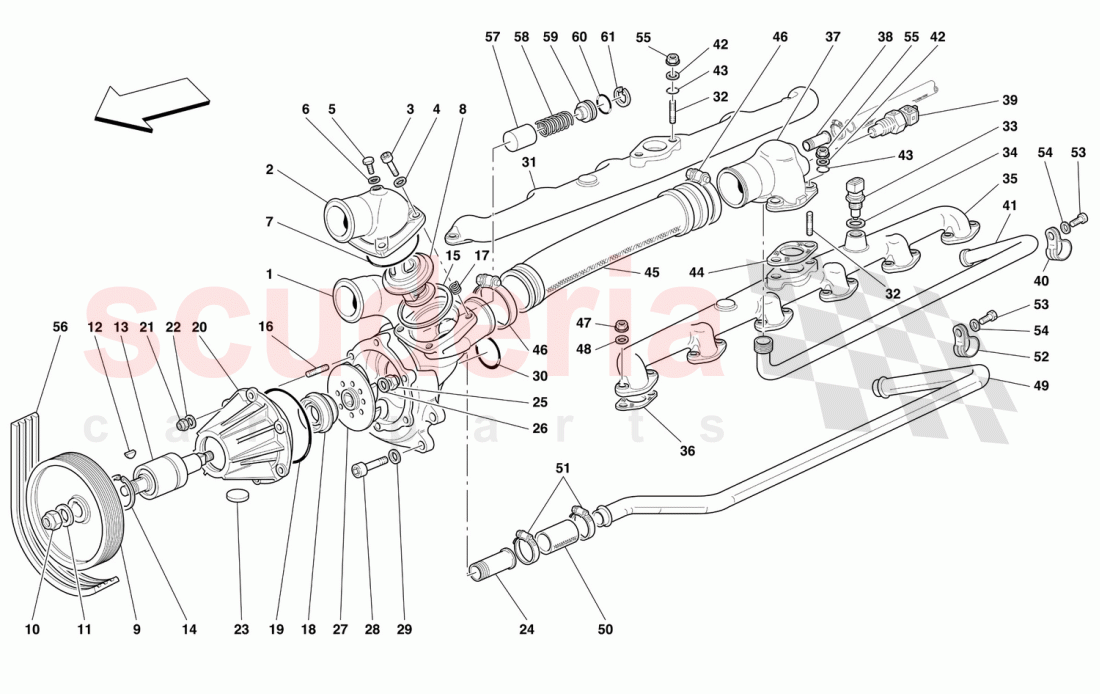

Ferrari 456 M GT/GTA - WATER PUMP

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	153199	WATER PUMP BODY COMPLETED WITH STUDS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163952	THERMOSTAT VALVE COVER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	130282	Connection for drain	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10297760	GASKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	149279	O-Ring	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	950840	WATER THERMOSTAT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	166454	PULLEY (Ã˜ 102)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102742	Nyloc Nut M10 x 1.25 x 10mm	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12647021	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10202320	Woodruff Key	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	143742	BEARING WITH SHAFT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11059976	SEEGER RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	137873	O-Ring	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13540924	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13525470	THREADED INSERT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	183759	Water Pump Seal	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	137868	O-Ring	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	176173	WATER PUMP COVER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	9162535	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141068	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	100436	BLIND NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	154542	Water Pump Impeller	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	141250	O-Ring	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	162609	R.H. HEAD WATER MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13516724	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125769	Water Temperature Transmitter	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10298460	GASKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	143323	L.H. HEAD WATER MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141332	GASKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	154198	WATER OUTLET MANIFOLD CONNECTION DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155093	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148677	Water Temperature Transmitter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	145661	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	160554	UNION -Valid till engine Nr. 36344-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	103039	Sealing ring	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	142103	GASKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	181599	WATER HOSE BETWEEN MANIFOLD AND WATER PUMP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13000790	SCREW COLLAR	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	154716	PIPE CONNECTING WATER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175223	RUBBER HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13000490	Screw Collar	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10450490	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	199834	Water & Power Steering Belt	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	176046	BUSHING FOR BYPASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176047	SPRING FOR BYPASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176048	CAP FOR BYPASS SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147278	O-Ring	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11058376	SEEGER RING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	199836	Water & Power Steering Belt	199836 Water & Power Steering Belt PUMP BELT / Valid for 456M GTA / Valid from car Ass. Nr. 31524 / and valid till car Ass. Nr. 38760	-	1	Enquire
-	201456	WATER PUMP BELT	201456 WATER PUMP BELT PUMP BELT / Valid for 456M GTA / Valid from car Ass. Nr. 38761	-	1	Enquire
-	175223	RUBBER HOSE	175223 RUBBER HOSE	-	1	Enquire
-	10450690	BRACKET WITH SHEATH	10450690 BRACKET WITH SHEATH D. 20	-	1	Enquire
-	199834	Water & Power Steering Belt IN STOCK	199834 Water & Power Steering Belt PUMP BELT / Not for 456M GTA / Valid from car Ass. Nr. 31663 / and valid till car Ass. Nr. 38712 IN STOCK	-	1	Enquire
-	201455	WATER AND HYDR. STEERING	201455 WATER AND HYDR. STEERING PUMP BELT / Not for 456M GTA / Valid from car Ass. Nr. 38713	-	1	Enquire
-	199836	Water & Power Steering Belt	199836 Water & Power Steering Belt PUMP BELT / Valid for 456M GTA / Valid till car Ass. Nr. 31523	-	1	Enquire
-	13000790	SCREW COLLAR IN STOCK	13000790 SCREW COLLAR IN STOCK	-	2	Enquire
-	160833	PIPE CONNECTING WATER PUMP	160833 PIPE CONNECTING WATER PUMP AND NUORICE / Valid for GD	-	1	Enquire
-	142088	R.H. HEAD WATER MANIFOLD	142088 R.H. HEAD WATER MANIFOLD	-	1	Enquire
-	160831	PIPE FROM DUCT	160831 PIPE FROM DUCT Valid for GD	-	1	Enquire
-	181599	WATER HOSE BETWEEN MANIFOLD AND WATER PUMP IN STOCK	181599 WATER HOSE BETWEEN MANIFOLD AND WATER PUMP MANIFOLD AND WATER PUMP / Valid after stock exhaustion of 154480 IN STOCK	-	1	Enquire
-	176045	WATER PUMP ROTOR IN STOCK	176045 WATER PUMP ROTOR Valid from engine Nr. 53763 for GT / and from engine Nr. 54332 for GTA IN STOCK	-	1	Enquire
-	950840	WATER THERMOSTAT IN STOCK	950840 WATER THERMOSTAT IN STOCK	-	1	Enquire
-	169924	PULLEY	169924 PULLEY Valid for 456M GTA	-	1	Enquire
-	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER IN STOCK	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Not for 456M GTA / Valid from engine Nr. 53763 IN STOCK	-	4	Enquire
-	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER IN STOCK	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Valid for 456M GTA IN STOCK	-	4	Enquire
-	184038	COMPLETE WATER PUMP	184038 COMPLETE WATER PUMP Valid for 456M GTA	-	1	Enquire
-	153199	WATER PUMP BODY COMPLETED WITH STUDS	153199 WATER PUMP BODY COMPLETED WITH STUDS COMPLETED WITH STUDS / Valid till engine Nr. 53762 for GT / and till engine Nr. 54331 for GTA	-	1	Enquire
-	182693	WATER PUMP BODY COMPLETED WITH STUDS	182693 WATER PUMP BODY COMPLETED WITH STUDS COMPLETED WITH STUDS / Valid from engine Nr. 53763 for GT / and from engine Nr. 54332 for GTA	-	1	Enquire
-	183760	COMPLETE WATER PUMP	183760 COMPLETE WATER PUMP Not for 456M GTA / Valid till engine Nr. 53762	-	1	Enquire
-	183760	COMPLETE WATER PUMP	183760 COMPLETE WATER PUMP Not for 456M GTA	-	1	Enquire
-	184038	COMPLETE WATER PUMP	184038 COMPLETE WATER PUMP Valid for 456M GTA / Valid till engine Nr. 54331	-	1	Enquire
1	153199	WATER PUMP BODY COMPLETED WITH STUDS	153199 WATER PUMP BODY COMPLETED WITH STUDS Not as spare part / With complete pump body / Valid till engine Nr. 53762 for GT / and till engine Nr. 54331 for GTA	-	1	Enquire
2	163952	THERMOSTAT VALVE COVER IN STOCK	163952 THERMOSTAT VALVE COVER IN STOCK	-	1	Enquire
3	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER IN STOCK	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Not for 456M GTA / Valid till engine Nr. 53762 IN STOCK	-	4	Enquire
4	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	-	4	Enquire
5	130282	Connection for drain IN STOCK	130282 Connection for drain IN STOCK	-	1	Enquire
6	10297760	GASKET IN STOCK	10297760 GASKET IN STOCK	-	1	Enquire
7	149279	O-Ring IN STOCK	149279 O-Ring IN STOCK	-	1	Enquire
8	950840	WATER THERMOSTAT IN STOCK	950840 WATER THERMOSTAT Not as spare part now / Replaced by 183758 IN STOCK	-	1	Enquire
9	166454	PULLEY (Ã˜ 102)	166454 PULLEY (Ã˜ 102) Not for 456M GTA	-	1	Enquire
10	102742	Nyloc Nut M10 x 1.25 x 10mm IN STOCK	102742 Nyloc Nut M10 x 1.25 x 10mm IN STOCK	-	1	Enquire
11	12647021	WASHER IN STOCK	12647021 WASHER IN STOCK	-	1	Enquire
12	10202320	Woodruff Key IN STOCK	10202320 Woodruff Key IN STOCK	-	1	Enquire
13	143742	BEARING WITH SHAFT IN STOCK	143742 BEARING WITH SHAFT IN STOCK	-	1	Enquire
14	11059976	SEEGER RING IN STOCK	11059976 SEEGER RING IN STOCK	-	1	Enquire
15	137873	O-Ring IN STOCK	137873 O-Ring IN STOCK	-	1	Enquire
16	13540924	STUD BOLT	13540924 STUD BOLT	-	6	Enquire
17	13525470	THREADED INSERT IN STOCK	13525470 THREADED INSERT IN STOCK	-	4	Enquire
18	183759	Water Pump Seal IN STOCK	183759 Water Pump Seal IN STOCK	-	1	Enquire
19	137868	O-Ring IN STOCK	137868 O-Ring IN STOCK	-	1	Enquire
20	176173	WATER PUMP COVER IN STOCK	176173 WATER PUMP COVER IN STOCK	-	1	Enquire
21	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	-	6	Enquire
22	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	-	6	Enquire
23	9162535	THREADED PLUG	9162535 THREADED PLUG	-	1	Enquire
24	141068	UNION	141068 UNION	-	1	Enquire
25	100436	BLIND NUT IN STOCK	100436 BLIND NUT IN STOCK	-	1	Enquire
26	84653800	WASHER IN STOCK	84653800 WASHER IN STOCK	-	1	Enquire
27	154542	Water Pump Impeller	154542 Water Pump Impeller Valid till engine Nr. 53762 for GT / and till engine Nr. 54331 for GTA	-	1	Enquire
28	14306424	SCREW IN STOCK	14306424 SCREW IN STOCK	-	4	Enquire
29	11193874	WASHER IN STOCK	11193874 WASHER IN STOCK	-	4	Enquire
30	141250	O-Ring IN STOCK	141250 O-Ring IN STOCK	-	1	Enquire
31	162609	R.H. HEAD WATER MANIFOLD	162609 R.H. HEAD WATER MANIFOLD	-	1	Enquire
32	13516724	STUD	13516724 STUD	-	4	Enquire
33	125769	Water Temperature Transmitter IN STOCK	125769 Water Temperature Transmitter IN STOCK	-	1	Enquire
34	10298460	GASKET IN STOCK	10298460 GASKET IN STOCK	-	1	Enquire
35	143323	L.H. HEAD WATER MANIFOLD	143323 L.H. HEAD WATER MANIFOLD Not as spare part now / Replaced by 142088 /	-	1	Enquire
36	141332	GASKET IN STOCK	141332 GASKET IN STOCK	-	12	Enquire
37	154198	WATER OUTLET MANIFOLD CONNECTION DUCT	154198 WATER OUTLET MANIFOLD CONNECTION DUCT CONNECTION DUCT	-	1	Enquire
38	155093	CONNECTOR	155093 CONNECTOR	-	1	Enquire
39	148677	Water Temperature Transmitter	148677 Water Temperature Transmitter TRASMITTER	-	1	Enquire
40	145661	BRACKET WITH SHEATH	145661 BRACKET WITH SHEATH	-	2	Enquire
41	160554	UNION -Valid till engine Nr. 36344-	160554 UNION -Valid till engine Nr. 36344- Not for GD	-	1	Enquire
42	12601374	WASHER IN STOCK	12601374 WASHER IN STOCK	-	4	Enquire
43	103039	Sealing ring IN STOCK	103039 Sealing ring IN STOCK	-	4	Enquire
44	142103	GASKET IN STOCK	142103 GASKET IN STOCK	-	2	Enquire
45	181599	WATER HOSE BETWEEN MANIFOLD AND WATER PUMP IN STOCK	181599 WATER HOSE BETWEEN MANIFOLD AND WATER PUMP MANIFOLD AND WATER PUMP / Valid till stock exhaustion IN STOCK	-	1	Enquire
46	13000790	SCREW COLLAR IN STOCK	13000790 SCREW COLLAR Not as spare part now / Replaced by 134109 IN STOCK	-	2	Enquire
47	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	-	24	Enquire
48	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	-	24	Enquire
49	154716	PIPE CONNECTING WATER PUMP	154716 PIPE CONNECTING WATER PUMP AND NUORICE / Not for GD	-	1	Enquire
50	175223	RUBBER HOSE	175223 RUBBER HOSE Not as spare part now / Replaced by 175223	-	1	Enquire
51	13000490	Screw Collar IN STOCK	13000490 Screw Collar IN STOCK	-	2	Enquire
52	10450490	BRACKET WITH SHEATH	10450490 BRACKET WITH SHEATH D. 16	-	1	Enquire
53	16043224	SCREW	16043224 SCREW	-	2	Enquire
54	127496	WASHER	127496 WASHER	-	2	Enquire
55	147985	NUT IN STOCK	147985 NUT IN STOCK	-	4	Enquire
56	199834	Water & Power Steering Belt IN STOCK	199834 Water & Power Steering Belt PUMP BELT / Not for 456M GTA / Valid till car Ass. Nr. 31662 IN STOCK	-	1	Enquire
57	176046	BUSHING FOR BYPASS	176046 BUSHING FOR BYPASS Valid from engine Nr. 53763 for GT / and from engine Nr. 54332 for GTA	-	1	Enquire
58	176047	SPRING FOR BYPASS	176047 SPRING FOR BYPASS Valid from engine Nr. 53763 for GT / and from engine Nr. 54332 for GTA	-	1	Enquire
59	176048	CAP FOR BYPASS SPRING	176048 CAP FOR BYPASS SPRING Valid from engine Nr. 53763 for GT / and from engine Nr. 54332 for GTA	-	1	Enquire
60	147278	O-Ring IN STOCK	147278 O-Ring Valid from engine Nr. 53763 for GT / and from engine Nr. 54332 for GTA IN STOCK	-	1	Enquire
61	11058376	SEEGER RING	11058376 SEEGER RING Valid from engine Nr. 53763 for GT / and from engine Nr. 54332 for GTA	-	1	Enquire
