Ferrari 456 M GT/GTA - INJECTION DEVICE

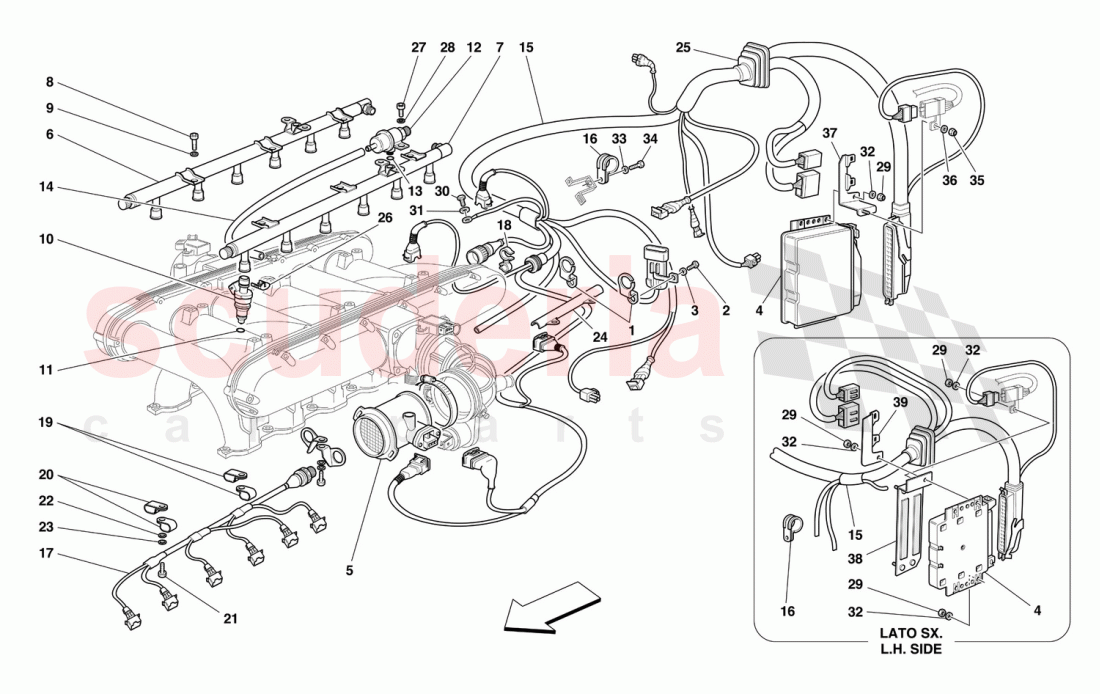

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	155327	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043124	SCREW M8 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175788	PROGRAMMED ELECTRONIC CONTROL STATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162530	AIR FLOW METER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	173751	R.H. INJECTORS COMPLETE TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	173745	L.H. INJECTORS COMPLETE TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162613	ELECTRO-INJECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133902	O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	167321	PRESSURE REGULATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152211	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	118901	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174496	CABLES FOR LH MAIN BEARINGS CONNECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291225	P clip Bracket With Sheath	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168529	INJECTORS CONNECTION CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	145545	SPRINGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10418601	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10418601	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154772	BRACKET FOR CABLES FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139465	BELLOWS FOR CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144763	INJECTOR RETAINING SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	172763	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178750	R.H. BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175683	ABS CONTROL UNIT FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175675	L.H. BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	178751	R.H. BRACKET	178751 R.H. BRACKET Valid for GD	-	1	Enquire
-	175674	L.H. BRACKET	175674 L.H. BRACKET Valid for GD	-	1	Enquire
-	179857	CABLES FOR RH MAIN BEARINGS CONNECTION	179857 CABLES FOR RH MAIN BEARINGS CONNECTION BEARINGS CONNECTION / Not for GD- -Not for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 / Valid from car Ass. Nr. 32533	-	1	Enquire
-	177183	CABLES FOR RH MAIN BEARINGS CONNECTION	177183 CABLES FOR RH MAIN BEARINGS CONNECTION BEARINGS CONNECTION / Valid for GD / Valid till car Ass. Nr. 32851	-	1	Enquire
-	179862	CABLES FOR RH MAIN BEARINGS CONNECTION	179862 CABLES FOR RH MAIN BEARINGS CONNECTION BEARINGS CONNECTION / Valid for GD / Valid from car Ass. Nr. 32852	-	1	Enquire
-	180506	CABLES FOR RH MAIN BEARINGS CONNECTION	180506 CABLES FOR RH MAIN BEARINGS CONNECTION BEARINGS CONNECTION / Valid for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001	-	1	Enquire
-	179858	CABLES FOR LH MAIN BEARINGS CONNECTION	179858 CABLES FOR LH MAIN BEARINGS CONNECTION BEARINGS CONNECTION / Not for GD- -Not for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 / Valid from car Ass. Nr. 32533	-	1	Enquire
-	177184	CABLES FOR LH MAIN BEARINGS CONNECTION	177184 CABLES FOR LH MAIN BEARINGS CONNECTION BEARINGS CONNECTION / Valid for GD / Valid till car Ass. Nr. 32851	-	1	Enquire
-	179863	CABLES FOR LH MAIN BEARINGS CONNECTION	179863 CABLES FOR LH MAIN BEARINGS CONNECTION BEARINGS CONNECTION / Valid for GD / Valid from car Ass. Nr. 32852	-	1	Enquire
-	180507	CABLES FOR LH MAIN BEARINGS CONNECTION	180507 CABLES FOR LH MAIN BEARINGS CONNECTION BEARINGS CONNECTION / Valid for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001	-	1	Enquire
-	174495	CABLES FOR RH MAIN BEARINGS CONNECTION	174495 CABLES FOR RH MAIN BEARINGS CONNECTION BEARINGS CONNECTION / Not for GD- -Not for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 / Valid till car Ass. Nr. 32532	-	1	Enquire
-	122126	RUBBER PIPE	122126 RUBBER PIPE Valid for USA, CDN and AUS - Not for USA M.Y. 2000, / USA M.Y. 2001, CDN M.Y. 2000 and CDN M.Y. 2001	-	2	Enquire
-	175792	PROGRAMMED ELECTRONIC CONTROL STATION	175792 PROGRAMMED ELECTRONIC CONTROL STATION CONTROL STATION -Valid for 456M GTA / Not for USA, CDN, AUS, BRUNEI / and not for non-catalyzed cars / Valid for EU, GB and J till car Ass. Nr. 38610	-	2	Enquire
-	175797	PROGRAMMED ELECTRONIC CONTROL STATION	175797 PROGRAMMED ELECTRONIC CONTROL STATION CONTROL STATION -Valid for 456M GTA / Valid for USA, CDN and AUS - Not for USA M.Y. 2000, / USA M.Y. 2001, CDN M.Y. 2000 and CDN M.Y. 2001 / Valid for EU, GB and J from car Ass. Nr. 38611	-	2	Enquire
-	181680	PROGRAMMED ELECTRONIC CONTROL STATION	181680 PROGRAMMED ELECTRONIC CONTROL STATION CONTROL STATION / Valid for 456M GTA / Valid for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001	-	2	Enquire
-	175807	PROGRAMMED ELECTRONIC CONTROL STATION	175807 PROGRAMMED ELECTRONIC CONTROL STATION CONTROL STATION / Valid for 456M GTA / Valid for BRUNEI	-	2	Enquire
-	175793	PROGRAMMED ELECTRONIC CONTROL STATION	175793 PROGRAMMED ELECTRONIC CONTROL STATION CONTROL STATION / Valid for 456M GTA / Valid for not catalyzed cars	-	2	Enquire
-	175795	PROGRAMMED ELECTRONIC CONTROL STATION	175795 PROGRAMMED ELECTRONIC CONTROL STATION CONTROL STATION -Not for 456M GTA / Valid for USA, CDN and AUS - Not for USA M.Y. 2000, / USA M.Y. 2001, CDN M.Y. 2000 and CDN M.Y. 2001 / Valid for EU, GB and J from car Ass. Nr. 38611	-	2	Enquire
-	181679	PROGRAMMED ELECTRONIC CONTROL STATION	181679 PROGRAMMED ELECTRONIC CONTROL STATION CONTROL STATION / Not for 456M GTA / Valid for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001	-	2	Enquire
-	175805	PROGRAMMED ELECTRONIC CONTROL STATION	175805 PROGRAMMED ELECTRONIC CONTROL STATION CONTROL STATION / Not for 456M GTA / Valid for BRUNEI	-	2	Enquire
-	175789	PROGRAMMED ELECTRONIC CONTROL STATION	175789 PROGRAMMED ELECTRONIC CONTROL STATION CONTROL STATION / Not for 456M GTA / Valid for not catalyzed cars	-	2	Enquire
1	155327	BRACKET	155327 BRACKET	-	2	Enquire
2	16043124	SCREW M8 X 14	16043124 SCREW M8 X 14	-	2	Enquire
3	127496	WASHER	127496 WASHER	-	2	Enquire
4	175788	PROGRAMMED ELECTRONIC CONTROL STATION	175788 PROGRAMMED ELECTRONIC CONTROL STATION CONTROL STATION -Not for 456M GTA / Not for USA, CDN, AUS, BRUNEI / and not for non-catalyzed cars / Valid for EU, GB and J till car Ass. Nr. 38610	-	2	Enquire
5	162530	AIR FLOW METER	162530 AIR FLOW METER	-	2	Enquire
6	173751	R.H. INJECTORS COMPLETE TUBE	173751 R.H. INJECTORS COMPLETE TUBE	-	1	Enquire
7	173745	L.H. INJECTORS COMPLETE TUBE	173745 L.H. INJECTORS COMPLETE TUBE	-	1	Enquire
8	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	6	Enquire
9	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	6	Enquire
10	162613	ELECTRO-INJECTOR	162613 ELECTRO-INJECTOR	-	12	Enquire
11	133902	O-Ring	133902 O-Ring	-	12	Enquire
12	167321	PRESSURE REGULATOR	167321 PRESSURE REGULATOR	-	2	Enquire
13	152211	SEAL RING	152211 SEAL RING	-	2	Enquire
14	118901	RUBBER PIPE	118901 RUBBER PIPE Not for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001	-	2	Enquire
15	174496	CABLES FOR LH MAIN BEARINGS CONNECTION	174496 CABLES FOR LH MAIN BEARINGS CONNECTION BEARINGS CONNECTION / Not for GD- -Not for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 / Valid till car Ass. Nr. 32532	-	1	Enquire
16	291225	P clip Bracket With Sheath	291225 P clip Bracket With Sheath	-	2	Enquire
17	168529	INJECTORS CONNECTION CABLES	168529 INJECTORS CONNECTION CABLES	-	2	Enquire
18	145545	SPRINGS	145545 SPRINGS	-	2	Enquire
19	10418601	BRACKET WITH SHEATH	10418601 BRACKET WITH SHEATH	-	2	Enquire
20	10418601	BRACKET WITH SHEATH	10418601 BRACKET WITH SHEATH	-	2	Enquire
21	10977524	SCREW	10977524 SCREW	-	2	Enquire
22	12639724	WASHER	12639724 WASHER	-	2	Enquire
23	127494	WASHER	127494 WASHER	-	2	Enquire
24	154772	BRACKET FOR CABLES FIXING	154772 BRACKET FOR CABLES FIXING	-	2	Enquire
25	139465	BELLOWS FOR CABLE	139465 BELLOWS FOR CABLE	-	2	Enquire
26	144763	INJECTOR RETAINING SPRING	144763 INJECTOR RETAINING SPRING	-	12	Enquire
27	172763	SCREW	172763 SCREW	-	4	Enquire
28	127494	WASHER	127494 WASHER	-	4	Enquire
29	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
30	10977524	SCREW	10977524 SCREW	-	2	Enquire
31	127494	WASHER	127494 WASHER	-	2	Enquire
32	10519424	WASHER	10519424 WASHER	-	4	Enquire
33	127494	WASHER	127494 WASHER	-	1	Enquire
34	10977524	SCREW	10977524 SCREW	-	1	Enquire
35	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY	-	2	Enquire
36	12637824	WASHER	12637824 WASHER	-	2	Enquire
37	178750	R.H. BRACKET	178750 R.H. BRACKET Not for GD	-	1	Enquire
38	175683	ABS CONTROL UNIT FIXING BRACKET	175683 ABS CONTROL UNIT FIXING BRACKET FIXING BRACKET	-	1	Enquire
39	175675	L.H. BRACKET	175675 L.H. BRACKET Not for GD	-	1	Enquire
