CRANKCASE - COVERS of Ferrari Ferrari 456 M GT/GTA

View All

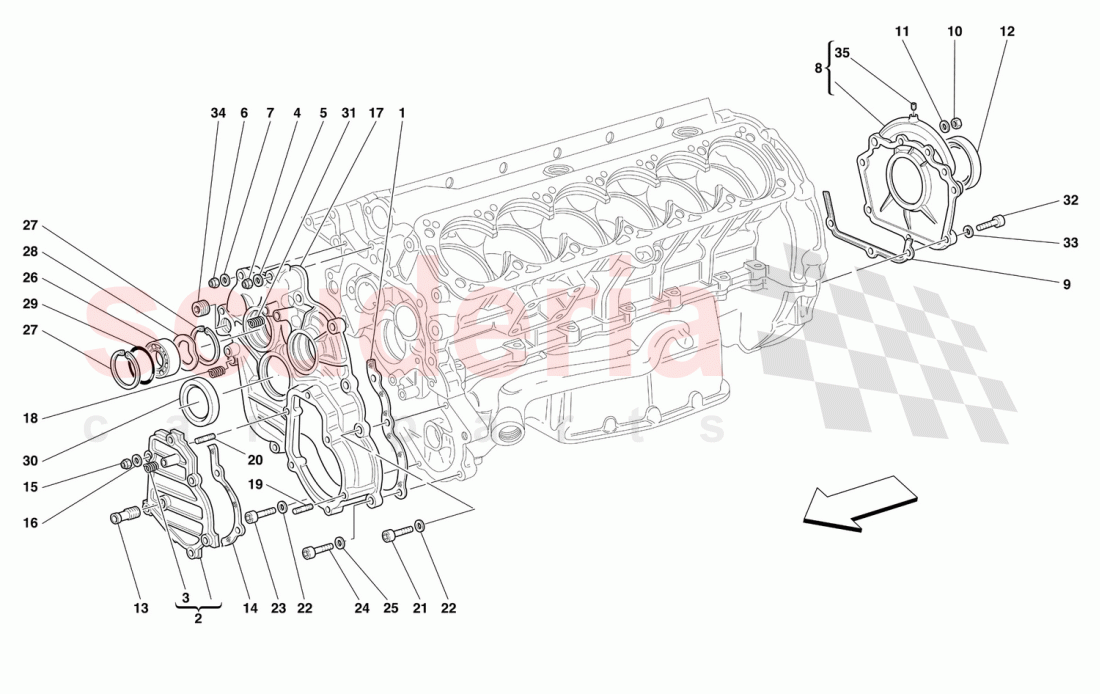

Ferrari 456 M GT/GTA - CRANKCASE - COVERS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	154527	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157120	FRONT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13525570	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	141343	REAR COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141291	GASKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	200323	REAR MAIN OIL SEALING RING D.80-100X10	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	154525	THREADED UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157121	GASKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	178601	COMPLETE FRONT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13525470	THREADED INSERT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13541024	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13540824	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	156828	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	170787	ROLER BEARING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11060576	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133377	Conic Washer 45-51.5 x 0.35	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	136140	O-RING D.50.52 X 1	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	134714	Copper Gasket	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13525570	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	163528	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10275550	THREADED PLUG	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	178601	COMPLETE FRONT COVER	178601 COMPLETE FRONT COVER Not as spare part / With the complete cover 178601	-	1	Enquire
1	154527	GASKET	154527 GASKET	-	1	Enquire
2	157120	FRONT COVER	157120 FRONT COVER	-	1	Enquire
3	13525570	THREADED INSERT	13525570 THREADED INSERT	-	1	Enquire
4	147985	NUT IN STOCK	147985 NUT IN STOCK	-	4	Enquire
5	12601374	WASHER IN STOCK	12601374 WASHER IN STOCK	-	4	Enquire
6	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	-	3	Enquire
7	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	-	3	Enquire
8	141343	REAR COVER	141343 REAR COVER	-	1	Enquire
9	141291	GASKET IN STOCK	141291 GASKET IN STOCK	-	1	Enquire
10	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	-	4	Enquire
11	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	-	4	Enquire
12	200323	REAR MAIN OIL SEALING RING D.80-100X10 IN STOCK	200323 REAR MAIN OIL SEALING RING D.80-100X10 IN STOCK	-	1	Enquire
13	154525	THREADED UNION	154525 THREADED UNION	-	1	Enquire
14	157121	GASKET IN STOCK	157121 GASKET IN STOCK	-	1	Enquire
15	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	-	6	Enquire
16	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	-	6	Enquire
17	178601	COMPLETE FRONT COVER	178601 COMPLETE FRONT COVER	-	1	Enquire
18	13525470	THREADED INSERT IN STOCK	13525470 THREADED INSERT IN STOCK	-	1	Enquire
19	13541024	STUD BOLT	13541024 STUD BOLT	-	5	Enquire
20	13540824	STUD BOLT	13540824 STUD BOLT	-	1	Enquire
21	231620	SCREW IN STOCK	231620 SCREW IN STOCK	-	2	Enquire
22	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	-	4	Enquire
23	156828	SCREW	156828 SCREW	-	2	Enquire
24	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 IN STOCK	231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 IN STOCK	-	2	Enquire
25	11193874	WASHER IN STOCK	11193874 WASHER IN STOCK	-	2	Enquire
26	170787	ROLER BEARING IN STOCK	170787 ROLER BEARING IN STOCK	-	2	Enquire
27	11060576	SNAP RING	11060576 SNAP RING	-	4	Enquire
28	133377	Conic Washer 45-51.5 x 0.35 IN STOCK	133377 Conic Washer 45-51.5 x 0.35 IN STOCK	-	2	Enquire
29	136140	O-RING D.50.52 X 1 IN STOCK	136140 O-RING D.50.52 X 1 IN STOCK	-	2	Enquire
30	134714	Copper Gasket IN STOCK	134714 Copper Gasket IN STOCK	-	1	Enquire
31	13525570	THREADED INSERT	13525570 THREADED INSERT	-	2	Enquire
32	231620	SCREW IN STOCK	231620 SCREW IN STOCK	-	3	Enquire
33	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	-	3	Enquire
34	163528	THREADED PLUG	163528 THREADED PLUG	-	1	Enquire
35	10275550	THREADED PLUG	10275550 THREADED PLUG	-	1	Enquire
