ROOF TRIM AND TUB of Ferrari Ferrari 430 Spider

View All

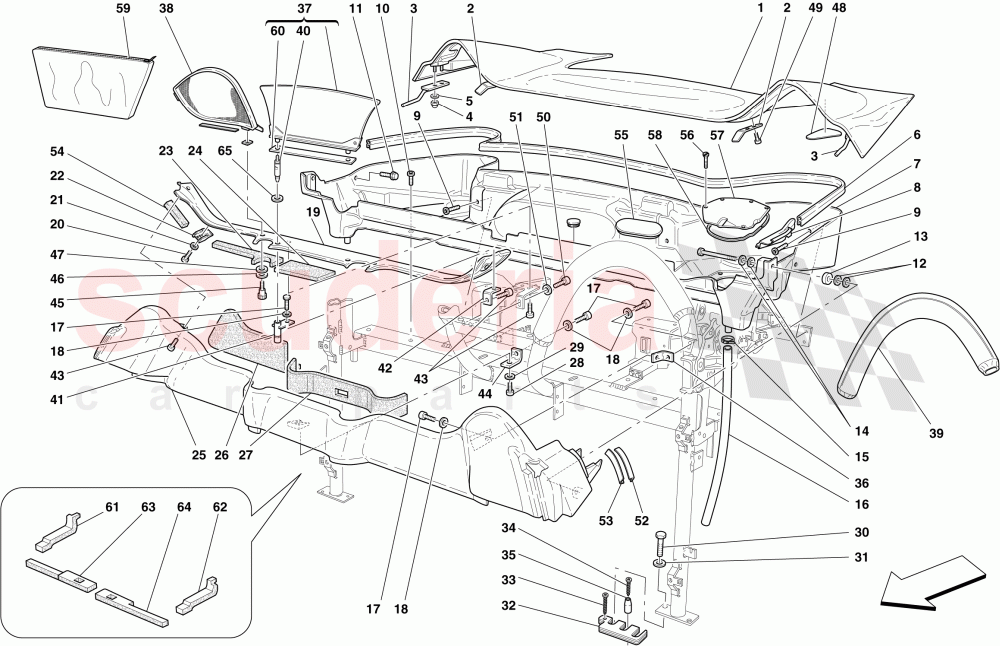

Ferrari 430 Spider - ROOF TRIM AND TUB

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	66461700	PASSENGER COMPARTMENT REAR PART COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66691600	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66691500	BRACKET	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	66691300	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66691400	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66460800	SOFT-TOP PROFILE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66394500	ROOF SUPPORT TUB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66461000	RH MOULDED EDGE FOR SOFT-TOP	Enquire	To Order
	66460900	LH SOFT-TOP MOULDED EDGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66691200	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66680600	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66685300	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66683500	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66691800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66684000	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66692000	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66692100	WATER DRAIN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66691700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66684000	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66461900	REAR ROLLBAR COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66689400	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66681000	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

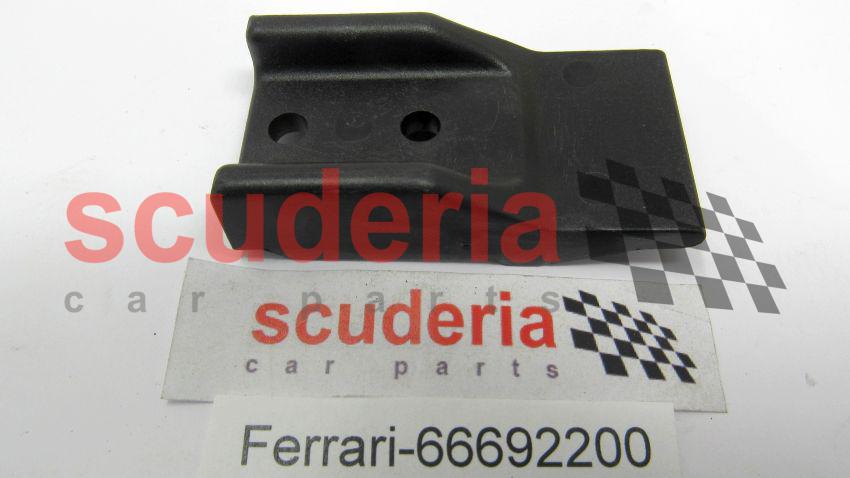

	66692200	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66692500	RH SHIM FOR REAR COVER	Enquire	To Order
	66692400	REAR COVER LH SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66692300	REAR COVER CENTRAL SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66461800	ROLLBAR FRONT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66692600	LH SHIM FOR FRONT COVER	Enquire	To Order
	66692700	RH SHIM FOR FRONT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66692800	CENTRAL SHIM FOR FRONT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66689400	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66687300	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11307021	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11190679	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182478	SHIM	Enquire	To Order
	183155	SHIM	Enquire	To Order
	183156	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15904070	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15687470	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184628	ALIGNMENT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66691900	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69236000	CENTRAL WINDSTOP BLACK	Enquire	To Order
	68986500	CENTRAL WINDSTOP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69103200	LH LATERAL WINDSTOP	Enquire	To Order

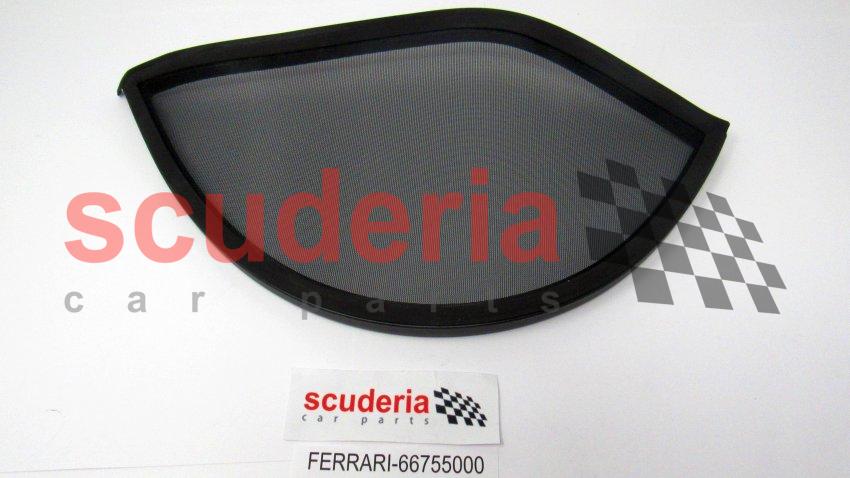

	66755000	LH Side Wind Stop Panel	Enquire	To Order
	69103100	RH LATERAL WINDSTOP	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	85679300	ROLLBAR COVER	Enquire	To Order
	85679400	ROLLBAR COVER	Enquire	To Order
	85679500	ROLLBAR COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69921200	PIN BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67047600	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67047700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67048400	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66457400	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14446670	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66713900	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67048200	GUARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67048100	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66691700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66684000	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67047900	LH MOULDING	Enquire	To Order
	67500500	RH MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67048000	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67056700	SHIM FOR REAR COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67386500	REAR FRAME FASTENING ACCESS TAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67580700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67580800	FUEL PUMP ACCESS LH COVER	Enquire	To Order
	67580900	RH COVER FOR FUEL PUMP ACCESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67584400	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69059400	CENTRAL WINDSTOP WALLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68938000	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66231300	RH LATERAL GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66231400	LH LATERAL GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69910500	RH GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69910600	LH GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	136936	GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	66461700	PASSENGER COMPARTMENT REAR PART COVER	66461700 PASSENGER COMPARTMENT REAR PART COVER	-	1	Enquire
2	66691600	BRACKET	66691600 BRACKET	-	2	Enquire
3	66691500	BRACKET ARRIVING SOON	66691500 BRACKET ARRIVING SOON	-	2	Enquire
4	66691300	NUT	66691300 NUT	-	4	Enquire
5	66691400	WASHER	66691400 WASHER	-	4	Enquire
6	66460800	SOFT-TOP PROFILE	66460800 SOFT-TOP PROFILE	-	1	Enquire
7	66394500	ROOF SUPPORT TUB	66394500 ROOF SUPPORT TUB	-	1	Enquire
8	66461000	RH MOULDED EDGE FOR SOFT-TOP	66461000 RH MOULDED EDGE FOR SOFT-TOP	-	1	Enquire
8	66460900	LH SOFT-TOP MOULDED EDGE	66460900 LH SOFT-TOP MOULDED EDGE	-	1	Enquire
9	66691200	SCREW	66691200 SCREW	-	6	Enquire
10	66680600	SCREW	66680600 SCREW	-	2	Enquire
11	66685300	SCREW	66685300 SCREW	-	2	Enquire
12	66683500	WASHER	66683500 WASHER	-	4	Enquire
13	66691800	WASHER	66691800 WASHER	-	2	Enquire
14	66684000	WASHER	66684000 WASHER	-	4	Enquire
15	66692000	CLAMP	66692000 CLAMP	-	2	Enquire
16	66692100	WATER DRAIN PIPE	66692100 WATER DRAIN PIPE	-	2	Enquire
17	66691700	SCREW	66691700 SCREW	-	7	Enquire
18	66684000	WASHER	66684000 WASHER	-	7	Enquire
19	66461900	REAR ROLLBAR COVER	66461900 REAR ROLLBAR COVER	-	1	Enquire
20	66689400	SCREW	66689400 SCREW	-	2	Enquire
21	66681000	WASHER	66681000 WASHER	-	2	Enquire
22	66692200	SHIM	66692200 SHIM	-	2	Enquire
23	66692500	RH SHIM FOR REAR COVER	66692500 RH SHIM FOR REAR COVER	-	1	Enquire
23	66692400	REAR COVER LH SHIM	66692400 REAR COVER LH SHIM	-	1	Enquire
24	66692300	REAR COVER CENTRAL SHIM	66692300 REAR COVER CENTRAL SHIM	-	1	Enquire
25	66461800	ROLLBAR FRONT COVER	66461800 ROLLBAR FRONT COVER	-	1	Enquire
26	66692600	LH SHIM FOR FRONT COVER	66692600 LH SHIM FOR FRONT COVER	-	1	Enquire
26	66692700	RH SHIM FOR FRONT COVER	66692700 RH SHIM FOR FRONT COVER	-	1	Enquire
27	66692800	CENTRAL SHIM FOR FRONT COVER	66692800 CENTRAL SHIM FOR FRONT COVER	-	1	Enquire
28	66689400	SCREW	66689400 SCREW	-	1	Enquire
29	66687300	WASHER	66687300 WASHER	-	1	Enquire
30	11307021	Screw	11307021 Screw	-	4	Enquire
31	11190679	WASHER	11190679 WASHER	-	4	Enquire
32	182478	SHIM	182478 SHIM Th. 3 mm	-	2	Enquire
32	183155	SHIM	183155 SHIM Th. 1 mm	-	2	Enquire
32	183156	SHIM	183156 SHIM Th. 1.5 mm	-	2	Enquire
33	15904070	SCREW	15904070 SCREW	-	2	Enquire
34	15687470	SCREW	15687470 SCREW	-	2	Enquire
35	184628	ALIGNMENT PIN	184628 ALIGNMENT PIN	-	2	Enquire
36	66691900	BRACKET	66691900 BRACKET	-	2	Enquire
37	69236000	CENTRAL WINDSTOP BLACK	69236000 CENTRAL WINDSTOP BLACK Black; Applicable for vehicles in titanium Grey and Silverstone Grey colours	-	1	Enquire
37	68986500	CENTRAL WINDSTOP	68986500 CENTRAL WINDSTOP Titanium Grey	-	1	Enquire
38	69103200	LH LATERAL WINDSTOP	69103200 LH LATERAL WINDSTOP Titanium Grey	-	1	Enquire
38	66755000	LH Side Wind Stop Panel	66755000 LH Side Wind Stop Panel Black; Applicable for vehicles in titanium Grey and Silverstone Grey colours	-	1	Enquire
38	69103100	RH LATERAL WINDSTOP	69103100 RH LATERAL WINDSTOP Titanium Grey	-	1	Enquire

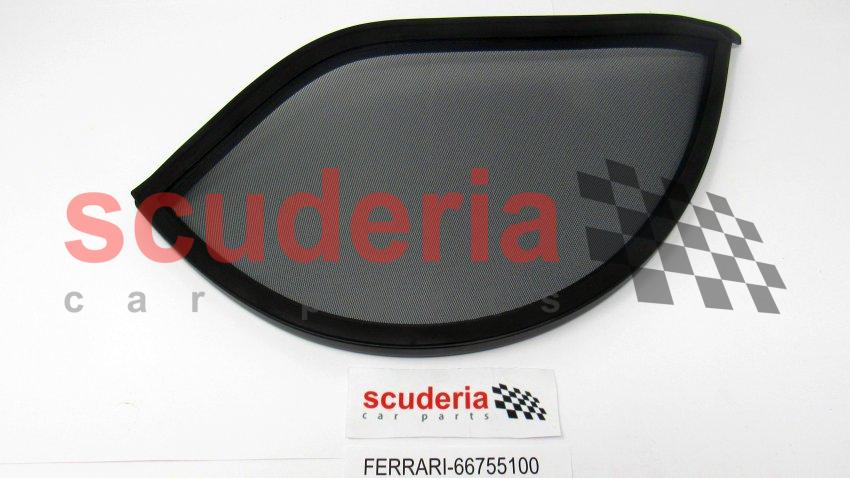

38	66755100	RH Side Wind Stop Panel	66755100 RH Side Wind Stop Panel Black; Applicable for vehicles in titanium Grey and Silverstone Grey colours	-	1	Enquire
39	85679300	ROLLBAR COVER	85679300 ROLLBAR COVER Carbon/Technical fabric; No longer supplied	-	2	Enquire
39	85679400	ROLLBAR COVER	85679400 ROLLBAR COVER Carbon/Alcantara	-	2	Enquire
39	85679500	ROLLBAR COVER	85679500 ROLLBAR COVER Carbon/Leather	-	2	Enquire
41	69921200	PIN BLOCK	69921200 PIN BLOCK	-	2	Enquire
42	67047600	BRACKET	67047600 BRACKET	-	2	Enquire
43	67047700	SCREW	67047700 SCREW	-	6	Enquire
44	67048400	BRACKET	67048400 BRACKET	-	1	Enquire
45	66457400	SCREW	66457400 SCREW	-	4	Enquire
46	14446670	WASHER	14446670 WASHER	-	4	Enquire
47	66713900	WASHER	66713900 WASHER	-	4	Enquire
48	67048200	GUARD	67048200 GUARD	-	2	Enquire
49	67048100	SCREW	67048100 SCREW	-	2	Enquire
50	66691700	SCREW	66691700 SCREW	-	2	Enquire
51	66684000	WASHER	66684000 WASHER	-	2	Enquire
52	67047900	LH MOULDING	67047900 LH MOULDING	-	1	Enquire
52	67500500	RH MOULDING	67500500 RH MOULDING	-	1	Enquire
53	67048000	GASKET	67048000 GASKET	-	2	Enquire
54	67056700	SHIM FOR REAR COVER	67056700 SHIM FOR REAR COVER	-	2	Enquire
55	67386500	REAR FRAME FASTENING ACCESS TAP	67386500 REAR FRAME FASTENING ACCESS TAP	-	1	Enquire
56	67580700	SCREW	67580700 SCREW	-	1	Enquire
57	67580800	FUEL PUMP ACCESS LH COVER	67580800 FUEL PUMP ACCESS LH COVER	-	1	Enquire
57	67580900	RH COVER FOR FUEL PUMP ACCESS	67580900 RH COVER FOR FUEL PUMP ACCESS	-	1	Enquire
58	67584400	GASKET	67584400 GASKET	-	1	Enquire
59	69059400	CENTRAL WINDSTOP WALLET	69059400 CENTRAL WINDSTOP WALLET	-	1	Enquire
60	68938000	GASKET	68938000 GASKET	-	1	Enquire
61	66231300	RH LATERAL GASKET	66231300 RH LATERAL GASKET	-	1	Enquire
62	66231400	LH LATERAL GASKET	66231400 LH LATERAL GASKET	-	1	Enquire
63	69910500	RH GASKET	69910500 RH GASKET	-	1	Enquire
64	69910600	LH GASKET	69910600 LH GASKET	-	1	Enquire
65	136936	GASKET	136936 GASKET	-	4	Enquire
