ROOF CANVAS - SEALS - MOULDINGS of Ferrari Ferrari 430 Spider

View All

Ferrari 430 Spider - ROOF CANVAS - SEALS - MOULDINGS

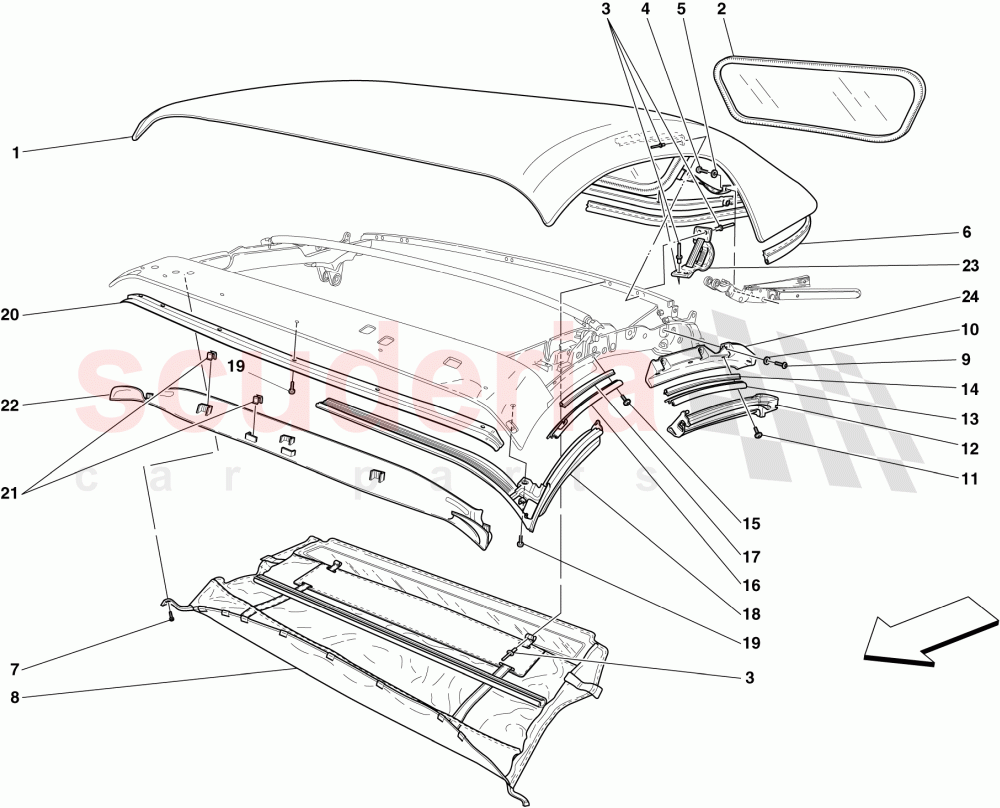

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	66374605	COMPLETE EXTERNAL TRIM	Enquire	To Order
	66374606	COMPLETE EXTERNAL TRIM	Enquire	To Order
	66374600	COMPLETE EXTERNAL TRIM	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	66374900	ROOF REAR SCREEN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66687000	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66683900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66687100	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66460400	BRACKET GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66684700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66374700	COMPLETE INTERNAL TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66687200	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66687300	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66687400	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66459800	RH REAR ROOF SEAL	Enquire	To Order
	66459700	LH REAR ROOF SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66460000	LH REAR STOP STRIP	Enquire	To Order
	66460100	RH REAR STOP STRIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66459900	ADDITIONAL GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66687500	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66459600	RH FRONT STOP STRIP	Enquire	To Order
	66459500	LH STOPPAGE FRONT STRIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66459300	ADDITIONAL GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66459200	Front Top Frame Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66687600	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66459400	FRONT STOPPAGE LOWER CROSS STRIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66687700	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66462200	CROSS ROOF FRAME PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67049700	LH REAR SCREEN TENSIONING HARNESS	Enquire	To Order
	83335600	LH REAR SCREEN TENSIONER STRAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83878700	LH DARA2 CARRIER	Enquire	To Order
	83878600	RH DARA2 CARRIER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	66374605	COMPLETE EXTERNAL TRIM	66374605 COMPLETE EXTERNAL TRIM Beige	-	1	Enquire
1	66374606	COMPLETE EXTERNAL TRIM	66374606 COMPLETE EXTERNAL TRIM Bordeaux	-	1	Enquire
1	66374600	COMPLETE EXTERNAL TRIM	66374600 COMPLETE EXTERNAL TRIM Black	-	1	Enquire
1	66374602	COMPLETE EXTERNAL TRIM	66374602 COMPLETE EXTERNAL TRIM Blue	-	1	Enquire
1	66374603	COMPLETE EXTERNAL TRIM	66374603 COMPLETE EXTERNAL TRIM Grey	-	1	Enquire
2	66374900	ROOF REAR SCREEN	66374900 ROOF REAR SCREEN	-	1	Enquire
3	66687000	RIVET	66687000 RIVET	-	12	Enquire
4	66683900	SCREW	66683900 SCREW	-	2	Enquire
5	66687100	WASHER	66687100 WASHER	-	2	Enquire
6	66460400	BRACKET GASKET	66460400 BRACKET GASKET	-	1	Enquire
7	66684700	SCREW	66684700 SCREW	-	2	Enquire
8	66374700	COMPLETE INTERNAL TRIM	66374700 COMPLETE INTERNAL TRIM	-	1	Enquire
9	66687200	SCREW	66687200 SCREW	-	6	Enquire
10	66687300	WASHER	66687300 WASHER	-	6	Enquire
11	66687400	SCREW	66687400 SCREW	-	4	Enquire
12	66459800	RH REAR ROOF SEAL	66459800 RH REAR ROOF SEAL	-	1	Enquire
12	66459700	LH REAR ROOF SEAL	66459700 LH REAR ROOF SEAL	-	1	Enquire
13	66460000	LH REAR STOP STRIP	66460000 LH REAR STOP STRIP	-	1	Enquire
13	66460100	RH REAR STOP STRIP	66460100 RH REAR STOP STRIP	-	1	Enquire
14	66459900	ADDITIONAL GASKET	66459900 ADDITIONAL GASKET	-	2	Enquire
15	66687500	SCREW	66687500 SCREW	-	2	Enquire
16	66459600	RH FRONT STOP STRIP	66459600 RH FRONT STOP STRIP	-	1	Enquire
16	66459500	LH STOPPAGE FRONT STRIP	66459500 LH STOPPAGE FRONT STRIP	-	1	Enquire
17	66459300	ADDITIONAL GASKET	66459300 ADDITIONAL GASKET	-	2	Enquire
18	66459200	Front Top Frame Gasket	66459200 Front Top Frame Gasket	-	1	Enquire
19	66687600	SCREW	66687600 SCREW	-	8	Enquire
20	66459400	FRONT STOPPAGE LOWER CROSS STRIP	66459400 FRONT STOPPAGE LOWER CROSS STRIP	-	1	Enquire
21	66687700	CLIP	66687700 CLIP	-	7	Enquire
22	66462200	CROSS ROOF FRAME PANEL	66462200 CROSS ROOF FRAME PANEL	-	1	Enquire
23	67049700	LH REAR SCREEN TENSIONING HARNESS	67049700 LH REAR SCREEN TENSIONING HARNESS	-	1	Enquire
23	83335600	LH REAR SCREEN TENSIONER STRAP	83335600 LH REAR SCREEN TENSIONER STRAP	-	1	Enquire
24	83878700	LH DARA2 CARRIER	83878700 LH DARA2 CARRIER	-	1	Enquire
24	83878600	RH DARA2 CARRIER	83878600 RH DARA2 CARRIER	-	1	Enquire
