REAR BUMPER of Ferrari Ferrari 430 Spider

View All

Ferrari 430 Spider - REAR BUMPER

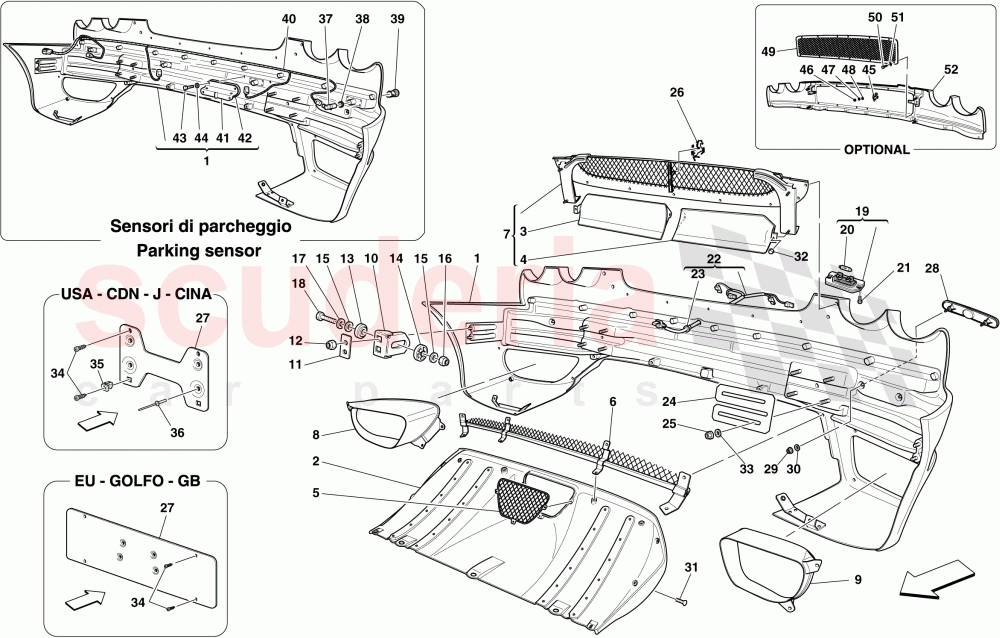

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	83112410	REAR BUMPER	Enquire	To Order
	83112510	REAR BUMPER	Enquire	To Order
	83112310	REAR BUMPER	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	67772100	REAR BUMPER LOWER TRIM	Enquire	To Order
	69140500	REAR BUMPER LOWER TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68854700	RH REAR GRILLE REFLECTION DEFLECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68854800	LH REAR GRILLE REFLECTION DEFLECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67772700	CENTRAL GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68099100	LOWER GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68099000	UPPER GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68164700	RH TAILPIPE SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68164800	LH TAILPIPE SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68148300	LATERAL LH BUMPER MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62126600	Plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83203600	EXTERNAL VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83203700	INTERNAL VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83220900	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12574521	Nyloc Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WAVY WASHER 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11307021	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186180	REAR LICENSE PLATE LIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10857790	12 V-5 W LAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15901575	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182985	PLATE LIGHT CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10399280	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69047700	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12574521	Nyloc Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60032109	PRANCING HORSE BADGE CHROME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65886300	LICENSE PLATE MOUNT	Enquire	To Order
	81041900	LICENSE PLATE MOUNT	Enquire	To Order
	69277100	REAR LICENSE PLATE MOUNT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	67091000	Reflector Lens	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12578011	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	860172	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14042177	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12644364	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16084370	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14201980	BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	900472	FASTENER BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	214561	PARKING SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	223516	GASKET FOR PARKING SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69318100	PIPE CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	221270	BUMPER CABLE WITH PARKING SENSORS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69329100	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69449400	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13272011	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13579004	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69572200	CAVALLINO RAMPANTE BADGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	808769	CAP NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12600477	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496178	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69569100	CONNECTOR NET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10444587	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601077	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69580000	REAR CONNECTOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	83112410	REAR BUMPER	83112410 REAR BUMPER Version with connector (ordered separately, see ref. 52); Optional; Applicable for USA, CDN	-	1	Enquire
1	83112510	REAR BUMPER	83112510 REAR BUMPER Version with connector (ordered separately, see ref. 52); Parking sensors; Optional; Does not contain sensors; Applicable for USA, CDN	-	1	Enquire
1	83112310	REAR BUMPER	83112310 REAR BUMPER Version with connector (ordered separately, see ref. 52); Parking sensors; Optional; Does not contain sensors; Not for USA, CDN	-	1	Enquire
1	83111710	REAR BUMPER	83111710 REAR BUMPER Plastic rear trim; Parking sensors; Optional; Does not contain sensors; Applicable for USA, CDN	-	1	Enquire
1	83112210	REAR BUMPER	83112210 REAR BUMPER Version with connector (ordered separately, see ref. 52); Optional; Not for USA, CDN	-	1	Enquire
1	83111410	REAR BUMPER	83111410 REAR BUMPER Plastic rear trim; Not for USA, CDN	-	1	Enquire
1	83111510	REAR BUMPER	83111510 REAR BUMPER Plastic rear trim; Parking sensors; Optional; Does not contain sensors; Not for USA, CDN	-	1	Enquire
1	83111610	REAR BUMPER	83111610 REAR BUMPER Plastic rear trim; Applicable for USA, CDN	-	1	Enquire
2	67772100	REAR BUMPER LOWER TRIM	67772100 REAR BUMPER LOWER TRIM Standard	-	1	Enquire
2	69140500	REAR BUMPER LOWER TRIM	69140500 REAR BUMPER LOWER TRIM Black; Black headlights and black grilles; Optional	-	1	Enquire
3	68854700	RH REAR GRILLE REFLECTION DEFLECTOR	68854700 RH REAR GRILLE REFLECTION DEFLECTOR	-	1	Enquire
4	68854800	LH REAR GRILLE REFLECTION DEFLECTOR	68854800 LH REAR GRILLE REFLECTION DEFLECTOR	-	1	Enquire
5	67772700	CENTRAL GRILLE	67772700 CENTRAL GRILLE	-	1	Enquire
6	68099100	LOWER GRILLE	68099100 LOWER GRILLE	-	1	Enquire
7	68099000	UPPER GRILLE	68099000 UPPER GRILLE	-	1	Enquire
8	68164700	RH TAILPIPE SURROUND	68164700 RH TAILPIPE SURROUND	-	1	Enquire
9	68164800	LH TAILPIPE SURROUND	68164800 LH TAILPIPE SURROUND	-	1	Enquire
10	68148300	LATERAL LH BUMPER MOUNTING BRACKET	68148300 LATERAL LH BUMPER MOUNTING BRACKET	-	2	Enquire
11	62126600	Plate	62126600 Plate	-	2	Enquire
12	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	4	Enquire
13	83203600	EXTERNAL VIBRATION DAMPER	83203600 EXTERNAL VIBRATION DAMPER	-	2	Enquire
14	83203700	INTERNAL VIBRATION DAMPER	83203700 INTERNAL VIBRATION DAMPER	-	2	Enquire
15	83220900	Washer	83220900 Washer	-	4	Enquire
16	12574521	Nyloc Nut	12574521 Nyloc Nut	-	2	Enquire
17	12601474	WAVY WASHER 10MM	12601474 WAVY WASHER 10MM	-	2	Enquire
18	11307021	Screw	11307021 Screw	-	2	Enquire
19	186180	REAR LICENSE PLATE LIGHT	186180 REAR LICENSE PLATE LIGHT	-	2	Enquire
20	10857790	12 V-5 W LAMP	10857790 12 V-5 W LAMP	-	1	Enquire
21	15901575	SCREW	15901575 SCREW	-	4	Enquire
22	182985	PLATE LIGHT CABLES	182985 PLATE LIGHT CABLES	-	1	Enquire
23	10399280	CABLE GROMMET	10399280 CABLE GROMMET	-	2	Enquire
24	69047700	SHIM	69047700 SHIM Th. 1 mm; Installed if necessary	-	8	Enquire
25	12574521	Nyloc Nut	12574521 Nyloc Nut	-	8	Enquire
26	60032109	PRANCING HORSE BADGE CHROME	60032109 PRANCING HORSE BADGE CHROME	-	1	Enquire
27	65886300	LICENSE PLATE MOUNT	65886300 LICENSE PLATE MOUNT Applicable for USA, CDN	-	1	Enquire
27	81041900	LICENSE PLATE MOUNT	81041900 LICENSE PLATE MOUNT Applicable for J	-	1	Enquire
27	69277100	REAR LICENSE PLATE MOUNT	69277100 REAR LICENSE PLATE MOUNT Applicable for CINA	-	1	Enquire
27	81041000	REAR LICENSE PLATE MOUNT	81041000 REAR LICENSE PLATE MOUNT Applicable for EU GS, GOLFO, UK	-	1	Enquire
28	67091000	Reflector Lens	67091000 Reflector Lens	-	2	Enquire
29	12578011	NUT	12578011 NUT	-	4	Enquire
30	860172	WASHER	860172 WASHER	-	4	Enquire
31	62797600	Allen Bolt Countersunk M6 x 20	62797600 Allen Bolt Countersunk M6 x 20 Black	-	6	Enquire
32	14042177	NUT	14042177 NUT	-	2	Enquire
33	12644364	WASHER	12644364 WASHER	-	8	Enquire
34	16084370	SCREW	16084370 SCREW Applicable for USA, CDN	-	4	Enquire
35	14201980	BLOCK	14201980 BLOCK Applicable for USA, CDN	-	2	Enquire
36	900472	FASTENER BUTTON	900472 FASTENER BUTTON Applicable for USA, CDN	-	4	Enquire
37	214561	PARKING SENSOR	214561 PARKING SENSOR Parking sensors; Optional	-	4	Enquire
38	223516	GASKET FOR PARKING SENSOR	223516 GASKET FOR PARKING SENSOR Parking sensors; Optional	-	4	Enquire
39	69318100	PIPE CONNECTOR	69318100 PIPE CONNECTOR Parking sensors; Optional	-	4	Enquire
40	221270	BUMPER CABLE WITH PARKING SENSORS	221270 BUMPER CABLE WITH PARKING SENSORS Parking sensors; Optional	-	1	Enquire
41	69329100	CAP	69329100 CAP Parking sensors; Optional	-	2	Enquire
42	69449400	GASKET	69449400 GASKET Parking sensors; Optional	-	2	Enquire
43	13272011	SCREW	13272011 SCREW Parking sensors; Optional	-	12	Enquire
44	13579004	WASHER	13579004 WASHER Parking sensors; Optional	-	12	Enquire
45	69572200	CAVALLINO RAMPANTE BADGE	69572200 CAVALLINO RAMPANTE BADGE	-	1	Enquire
46	808769	CAP NUT	808769 CAP NUT Version with connector (ordered separately, see ref. 52); Optional	-	2	Enquire
47	12600477	WASHER	12600477 WASHER Version with connector (ordered separately, see ref. 52); Optional	-	2	Enquire
48	14496178	WASHER	14496178 WASHER Version with connector (ordered separately, see ref. 52); Optional	-	2	Enquire
49	69569100	CONNECTOR NET	69569100 CONNECTOR NET Version with connector (ordered separately, see ref. 52); Optional	-	1	Enquire
50	10444587	SCREW	10444587 SCREW Version with connector (ordered separately, see ref. 52); Optional	-	12	Enquire
51	12601077	WASHER	12601077 WASHER Version with connector (ordered separately, see ref. 52); Optional	-	12	Enquire
52	69580000	REAR CONNECTOR	69580000 REAR CONNECTOR Version with connector; Optional	-	1	Enquire
