FRONT LID AND OPENING MECHANISM of Ferrari Ferrari 430 Spider

View All

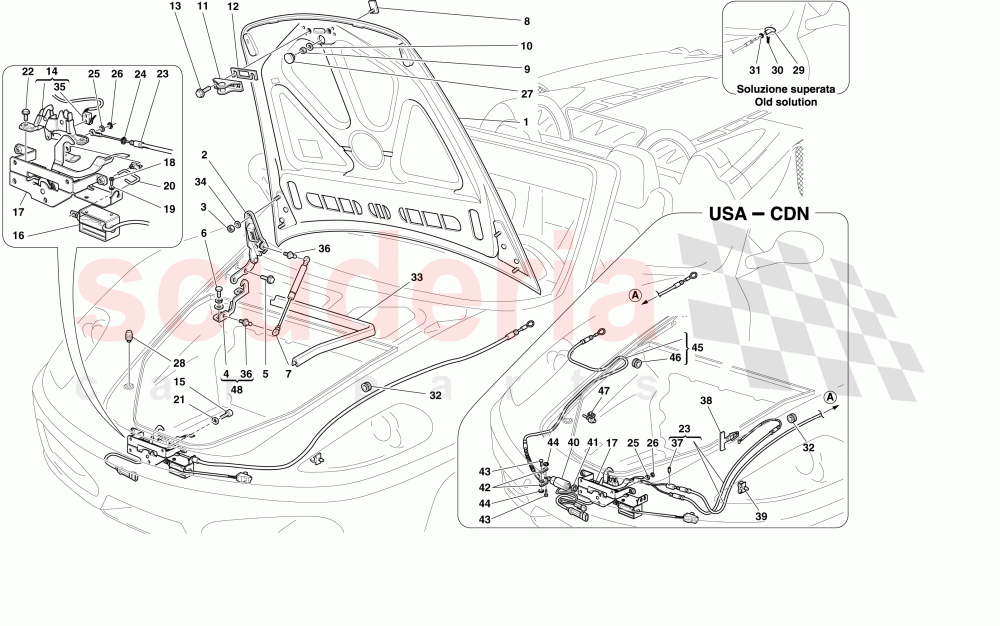

Ferrari 430 Spider - FRONT LID AND OPENING MECHANISM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	80945700	COMPLETE RH HINGE	Enquire	To Order
	65712300	COMPLETE LH HINGE	Enquire	To Order
	80945900	COMPLETE LH HINGE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	13832211	Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65710600	RH BRACKET	Enquire	To Order
	65710700	LH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13839224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16287127	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67508100	Hood Strut	Enquire	To Order
	80136300	GAS STRUT FOR LID SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	973053	FRONT BADGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65770100	STRIKER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65772100	Shim	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67046200	COMPLETE FRONT LID OPEN BUTTON DEVICE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65757300	Actuator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67364800	COMPLETE BRACKET	Enquire	To Order
	80807300	COMPLETE BRACKET	Enquire	To Order
	67011600	COMPLETE BRACKET	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	13271814	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127492	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65777800	STICK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11194674	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65801300	FRONT LID RELEASE CABLE	Enquire	To Order
	69328800	FRONT LID RELEASE CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11087675	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496101	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11087476	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	952336	BLANKING PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65546600	Vibration Damper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60710900	EMERGENCY HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60711000	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10396180	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65850000	LUGGAGE COMPARTMENT GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85216400	PIN WITH WASHER	Enquire	To Order
	85216400	PIN WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67053000	EMERGENCY HANDLE FOR CHILDREN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62854300	FASTENER CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60538800	RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67558300	BRAKE HANGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67555700	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11087476	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67405000	EMERGENCY CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177553	CLAMP	Enquire	To Order
	65897700	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69977000	RH BRACKET ASSEMBLY	Enquire	To Order
	69977100	LH BRACKET ASSEMBLY	Enquire	To Order
	66465900	LH BRACKET ASSEMBLY	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	80945700	COMPLETE RH HINGE	80945700 COMPLETE RH HINGE Applicable from Ass. No. 74454	-	1	Enquire
2	65712300	COMPLETE LH HINGE	65712300 COMPLETE LH HINGE Applicable up to Ass. No. 74453	-	1	Enquire
2	80945900	COMPLETE LH HINGE	80945900 COMPLETE LH HINGE Applicable from Ass. No. 74454	-	1	Enquire
2	65712200	COMPLETE RH HINGE	65712200 COMPLETE RH HINGE Applicable up to Ass. No. 74453	-	1	Enquire
3	13832211	Nut	13832211 Nut	-	4	Enquire
4	65710600	RH BRACKET	65710600 RH BRACKET	-	1	Enquire
4	65710700	LH BRACKET	65710700 LH BRACKET Applicable up to Ass. No. 74557	-	1	Enquire
5	13839224	SCREW	13839224 SCREW	-	4	Enquire
6	16287127	SCREW	16287127 SCREW	-	4	Enquire
7	67508100	Hood Strut	67508100 Hood Strut Applicable up to Ass. No. 74557	-	2	Enquire
7	80136300	GAS STRUT FOR LID SUPPORT	80136300 GAS STRUT FOR LID SUPPORT Applicable from Ass. No. 74558	-	1	Enquire
8	973053	FRONT BADGE	973053 FRONT BADGE	-	1	Enquire
9	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY	-	1	Enquire
10	62769800	WASHER	62769800 WASHER	-	1	Enquire
11	65770100	STRIKER PLATE	65770100 STRIKER PLATE	-	1	Enquire
12	65772100	Shim	65772100 Shim	-	1	Enquire
13	11568124	SCREW	11568124 SCREW	-	2	Enquire
14	67046200	COMPLETE FRONT LID OPEN BUTTON DEVICE	67046200 COMPLETE FRONT LID OPEN BUTTON DEVICE	-	1	Enquire
15	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER	-	4	Enquire
16	65757300	Actuator	65757300 Actuator	-	1	Enquire
17	67364800	COMPLETE BRACKET	67364800 COMPLETE BRACKET Applicable for USA, CDN; Applicable up to Ass. No. 74671	-	1	Enquire
17	80807300	COMPLETE BRACKET	80807300 COMPLETE BRACKET Applicable for USA, CDN; Applicable from Ass. No. 74672	-	1	Enquire
17	67011600	COMPLETE BRACKET	67011600 COMPLETE BRACKET Not for USA, CDN; Applicable up to Ass. No. 74671	-	1	Enquire
17	80804300	COMPLETE BRACKET	80804300 COMPLETE BRACKET Not for USA, CDN; Applicable from Ass. No. 74672	-	1	Enquire
18	13271814	SCREW	13271814 SCREW	-	2	Enquire
19	127492	WASHER	127492 WASHER	-	2	Enquire
20	65777800	STICK	65777800 STICK	-	1	Enquire
21	11194674	WASHER	11194674 WASHER	-	4	Enquire
22	16296927	SCREW	16296927 SCREW	-	2	Enquire
23	65801300	FRONT LID RELEASE CABLE	65801300 FRONT LID RELEASE CABLE Not for USA, CDN	-	1	Enquire
23	69328800	FRONT LID RELEASE CABLE	69328800 FRONT LID RELEASE CABLE Applicable for USA, CDN	-	1	Enquire
24	11087675	SNAP RING	11087675 SNAP RING	-	1	Enquire
25	14496101	WASHER	14496101 WASHER	-	1	Enquire
26	11087476	SNAP RING	11087476 SNAP RING	-	1	Enquire
27	952336	BLANKING PLUG	952336 BLANKING PLUG	-	1	Enquire
28	65546600	Vibration Damper	65546600 Vibration Damper	-	2	Enquire
29	60710900	EMERGENCY HANDLE	60710900 EMERGENCY HANDLE No longer supplied	-	1	Enquire
30	60711000	CLIP	60711000 CLIP No longer supplied	-	1	Enquire
31	11087674	SNAP RING	11087674 SNAP RING No longer supplied	-	1	Enquire
32	10396180	CABLE GROMMET	10396180 CABLE GROMMET	-	2	Enquire
33	65850000	LUGGAGE COMPARTMENT GASKET	65850000 LUGGAGE COMPARTMENT GASKET	-	1	Enquire
34	84653800	WASHER	84653800 WASHER	-	4	Enquire
35	67493300	MICROSWITCH	67493300 MICROSWITCH	-	1	Enquire
36	85216400	PIN WITH WASHER	85216400 PIN WITH WASHER Applicable up to Ass. No. 74557	-	4	Enquire
36	85216400	PIN WITH WASHER	85216400 PIN WITH WASHER Applicable from Ass. No. 74558	-	2	Enquire
37	60276805	DOWEL	60276805 DOWEL Applicable for USA, CDN	-	1	Enquire
38	67053000	EMERGENCY HANDLE FOR CHILDREN	67053000 EMERGENCY HANDLE FOR CHILDREN Applicable for USA, CDN	-	1	Enquire
39	62854300	FASTENER CLIP	62854300 FASTENER CLIP Applicable for USA, CDN	-	1	Enquire
40	67365100	Actuator	67365100 Actuator Applicable for USA, CDN	-	1	Enquire
41	60538800	RING NUT	60538800 RING NUT Applicable for USA, CDN	-	1	Enquire
42	67558300	BRAKE HANGER	67558300 BRAKE HANGER Applicable for USA, CDN	-	2	Enquire
43	67555700	PIN	67555700 PIN Applicable for USA, CDN	-	2	Enquire
44	11087476	SNAP RING	11087476 SNAP RING Applicable for USA, CDN	-	2	Enquire
45	67405000	EMERGENCY CABLE	67405000 EMERGENCY CABLE Applicable for USA, CDN	-	1	Enquire
46	10396180	CABLE GROMMET	10396180 CABLE GROMMET Applicable for USA, CDN	-	1	Enquire
47	177553	CLAMP	177553 CLAMP Applicable from Ass. No. 72260	-	1	Enquire
47	65897700	CLIP	65897700 CLIP Applicable for USA, CDN; Applicable up to Ass. No. 72259	-	1	Enquire
48	69977000	RH BRACKET ASSEMBLY	69977000 RH BRACKET ASSEMBLY	-	1	Enquire
48	69977100	LH BRACKET ASSEMBLY	69977100 LH BRACKET ASSEMBLY Applicable up to Ass. No. 74557	-	1	Enquire
48	66465900	LH BRACKET ASSEMBLY	66465900 LH BRACKET ASSEMBLY Applicable from Ass. No. 74558	-	1	Enquire
