INJECTION - IGNITION SYSTEM of Ferrari Ferrari 430 Scuderia Spider 16M

View All

Ferrari 430 Scuderia Spider 16M - INJECTION - IGNITION SYSTEM

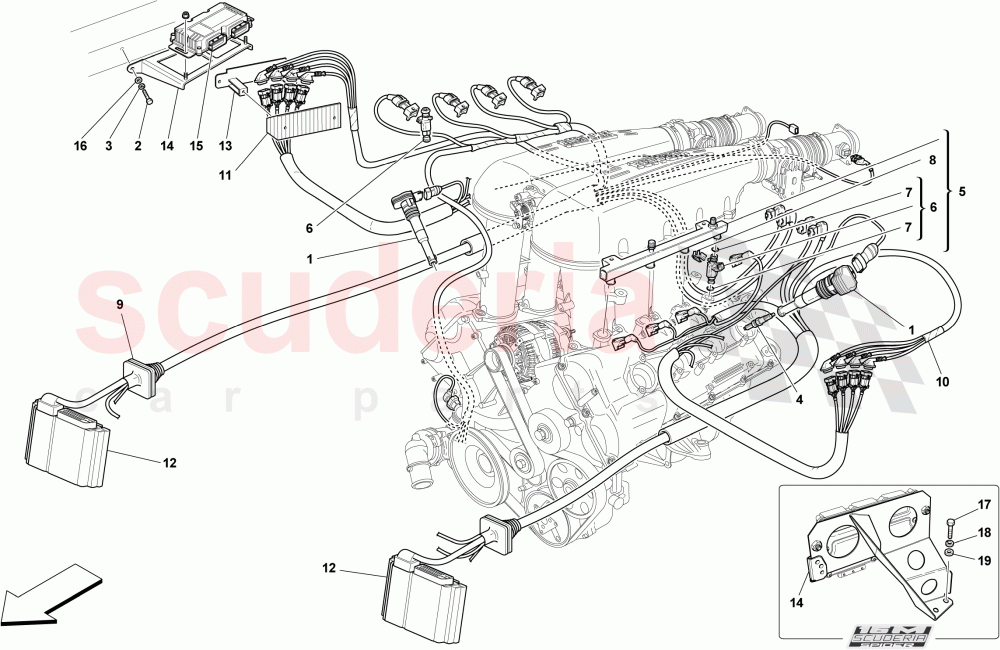

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	192637	Spark Plug NGK	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	216543	COMPLETE LH FUEL PIPE WITH ELECTROINJECTORS	Enquire	To Order
	216542	COMPLETE RH FUEL PIPE WITH ELECTROINJECTORS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	213635	ELECTRO-INJECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133902	O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144730	INJECTORS RETENTION CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	249571	RH. CYLINDER BANK INJECTOR CABLES	Enquire	To Order
	242611	RH. CYLINDER BANK INJECTOR CABLES	Enquire	To Order
	242613	RH. CYLINDER BANK INJECTOR CABLES	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	249568	LH. CYLINDER BANK INJECTOR CABLES	Enquire	To Order
	249570	LH. CYLINDER BANK INJECTOR CABLES	Enquire	To Order
	242610	LH. CYLINDER BANK INJECTOR CABLES	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	224384	LH REAR SHIELD	Enquire	To Order
	224383	RH REAR SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250923	IGNITION ECU	Enquire	To Order
	245205	IGNITION ECU	Enquire	To Order
	226587	IGNITION ECU	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	200163	LH BRACKET	Enquire	To Order
	192535	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	233311	BRACKET	Enquire	To Order
	81699800	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	244164	IONISING KNOCK SENSOR CONTROL UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	10902224	SCREW	10902224 SCREW Not for Spider 16M	-	3	Enquire
3	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 Not for Spider 16M	-	3	Enquire
4	192637	Spark Plug NGK ARRIVING SOON	192637 Spark Plug NGK ARRIVING SOON	-	8	Enquire
5	216543	COMPLETE LH FUEL PIPE WITH ELECTROINJECTORS	216543 COMPLETE LH FUEL PIPE WITH ELECTROINJECTORS	-	1	Enquire
5	216542	COMPLETE RH FUEL PIPE WITH ELECTROINJECTORS	216542 COMPLETE RH FUEL PIPE WITH ELECTROINJECTORS	-	1	Enquire
6	213635	ELECTRO-INJECTOR	213635 ELECTRO-INJECTOR	-	8	Enquire
7	133902	O-Ring	133902 O-Ring	-	4	Enquire
8	144730	INJECTORS RETENTION CLIP	144730 INJECTORS RETENTION CLIP	-	8	Enquire
9	249571	RH. CYLINDER BANK INJECTOR CABLES	249571 RH. CYLINDER BANK INJECTOR CABLES Applicable for Spider 16M; Applicable for USA, CDN	-	1	Enquire
9	242611	RH. CYLINDER BANK INJECTOR CABLES	242611 RH. CYLINDER BANK INJECTOR CABLES Not for Spider 16M; Not for USA, CDN; Applicable from Ass. No. 73779	-	1	Enquire
9	242613	RH. CYLINDER BANK INJECTOR CABLES	242613 RH. CYLINDER BANK INJECTOR CABLES Not for Spider 16M; Applicable for USA, CDN	-	1	Enquire
9	249569	RH. CYLINDER BANK INJECTOR CABLES	249569 RH. CYLINDER BANK INJECTOR CABLES Applicable for Spider 16M; Not for USA, CDN	-	1	Enquire
9	237980	RH. CYLINDER BANK INJECTOR CABLES	237980 RH. CYLINDER BANK INJECTOR CABLES Not for Spider 16M; Not for USA, CDN; Applicable up to Ass. No. 73778	-	1	Enquire
10	249568	LH. CYLINDER BANK INJECTOR CABLES	249568 LH. CYLINDER BANK INJECTOR CABLES Applicable for Spider 16M; Not for USA, CDN	-	1	Enquire
10	249570	LH. CYLINDER BANK INJECTOR CABLES	249570 LH. CYLINDER BANK INJECTOR CABLES Applicable for Spider 16M; Applicable for USA, CDN	-	1	Enquire
10	242610	LH. CYLINDER BANK INJECTOR CABLES	242610 LH. CYLINDER BANK INJECTOR CABLES Not for Spider 16M; Not for USA, CDN; Applicable from Ass. No. 73779	-	1	Enquire
10	242612	LH. CYLINDER BANK INJECTOR CABLES	242612 LH. CYLINDER BANK INJECTOR CABLES Not for Spider 16M; Applicable for USA, CDN	-	1	Enquire
10	237979	LH. CYLINDER BANK INJECTOR CABLES	237979 LH. CYLINDER BANK INJECTOR CABLES Not for Spider 16M; Not for USA, CDN; Applicable up to Ass. No. 73778	-	1	Enquire
11	224384	LH REAR SHIELD	224384 LH REAR SHIELD Not for Spider 16M	-	1	Enquire
11	224383	RH REAR SHIELD	224383 RH REAR SHIELD Not for Spider 16M	-	1	Enquire
12	250923	IGNITION ECU	250923 IGNITION ECU Applicable for USA, CDN; Applicable from Ass. No. 80495	-	2	Enquire
12	245205	IGNITION ECU	245205 IGNITION ECU Applicable for Taiwan; Applicable for J	-	2	Enquire
12	226587	IGNITION ECU	226587 IGNITION ECU Not for USA, CDN, J	-	2	Enquire
12	229081	IGNITION ECU	229081 IGNITION ECU Applicable for USA, CDN; Applicable up to Ass. No. 80494	-	2	Enquire
13	200163	LH BRACKET	200163 LH BRACKET Not for Spider 16M	-	1	Enquire
13	192535	RH BRACKET	192535 RH BRACKET Not for Spider 16M	-	1	Enquire
14	233311	BRACKET	233311 BRACKET Not for Spider 16M	-	1	Enquire
14	81699800	BRACKET	81699800 BRACKET Applicable for Spider 16M	-	1	Enquire
15	244164	IONISING KNOCK SENSOR CONTROL UNIT	244164 IONISING KNOCK SENSOR CONTROL UNIT	-	1	Enquire
16	13577724	WASHER	13577724 WASHER Not for Spider 16M	-	3	Enquire
17	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM Applicable for Spider 16M	-	2	Enquire
18	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 Applicable for Spider 16M	-	2	Enquire
19	10519424	WASHER	10519424 WASHER Applicable for Spider 16M	-	2	Enquire
