BATTERY of Ferrari Ferrari 430 Scuderia Spider 16M

View All

Ferrari 430 Scuderia Spider 16M - BATTERY

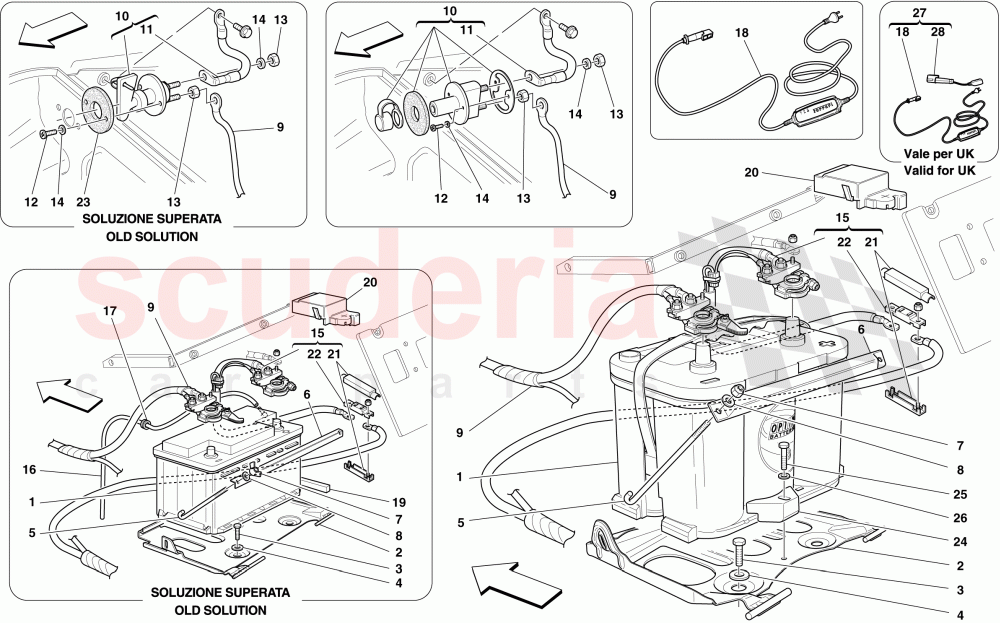

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	243320	VR760 12V BATTERY	Enquire	To Order
	312188	BATTERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81260300	BATTERY MOUNTING	Enquire	To Order
	67943100	BATTERY MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68138000	TIE-ROD	Enquire	To Order
	188272	TIE-ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69836200	BRACKET	Enquire	To Order
	81266300	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	253620	DASHBOARD CONNECTION CABLES	Enquire	To Order
	244780	DASHBOARD CONNECTION CABLES	Enquire	To Order
	233626	DASHBOARD CONNECTION CABLES	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	240470	BATTERY MASTER SWITCH ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196451	GROUND BRAID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304324	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10721911	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	233463	COMPLETE BATTERY POSITIVE CABLE	Enquire	To Order
	233462	COMPLETE BATTERY POSITIVE CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181056	BATTERY BREATHER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10396280	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	803883	BATTERY CHARGER KIT	Enquire	To Order
	803880	BATTERY CHARGER KIT	Enquire	To Order
	70002820	BATTERY CHARGER KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	217351	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185418	PROTECTIVE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198703	MEGA FUSE HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198704	MEGA FUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198207	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81284400	BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10903024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	95998029	WALL ADAPTER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	243320	VR760 12V BATTERY	243320 VR760 12V BATTERY Applicable from Ass. No. 78674	-	1	Enquire
1	312188	BATTERY	312188 BATTERY Applicable up to Ass. No. 78673	-	1	Enquire
2	81260300	BATTERY MOUNTING	81260300 BATTERY MOUNTING Applicable from Ass. No. 78674	-	1	Enquire
2	67943100	BATTERY MOUNTING	67943100 BATTERY MOUNTING Applicable up to Ass. No. 78673	-	1	Enquire
3	81591700	SCREW	81591700 SCREW	-	3	Enquire
4	12648925	WASHER	12648925 WASHER	-	3	Enquire
5	68138000	TIE-ROD	68138000 TIE-ROD Applicable for battery Part No. 168852 ref. 1	-	2	Enquire
5	188272	TIE-ROD	188272 TIE-ROD Applicable for battery Part No. 214466 ref. 1	-	2	Enquire
6	69836200	BRACKET	69836200 BRACKET Applicable up to Ass. No. 78673	-	1	Enquire
6	81266300	BRACKET	81266300 BRACKET Applicable from Ass. No. 78674	-	1	Enquire
7	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Applicable up to Ass. No. 78673	-	2	Enquire
8	12643724	WASHER	12643724 WASHER	-	2	Enquire
9	253620	DASHBOARD CONNECTION CABLES	253620 DASHBOARD CONNECTION CABLES Applicable for Spider 16M; Applicable for GD	-	1	Enquire
9	244780	DASHBOARD CONNECTION CABLES	244780 DASHBOARD CONNECTION CABLES Full house; Not for Spider 16M; Not for GD	-	1	Enquire
9	233626	DASHBOARD CONNECTION CABLES	233626 DASHBOARD CONNECTION CABLES Standard; Not for Spider 16M; Applicable for GD	-	1	Enquire
9	253619	DASHBOARD CONNECTION CABLES	253619 DASHBOARD CONNECTION CABLES Applicable for Spider 16M; Not for GD	-	1	Enquire
9	241499	DASHBOARD CONNECTION CABLES	241499 DASHBOARD CONNECTION CABLES Not for Spider 16M; Not for USA, CDN, GD	-	1	Enquire
10	240470	BATTERY MASTER SWITCH ASSEMBLY	240470 BATTERY MASTER SWITCH ASSEMBLY	-	1	Enquire
11	196451	GROUND BRAID	196451 GROUND BRAID	-	1	Enquire
12	14304324	SCREW	14304324 SCREW	-	2	Enquire
13	10721911	NUT	10721911 NUT	-	2	Enquire
14	12638124	WASHER	12638124 WASHER	-	4	Enquire
15	233463	COMPLETE BATTERY POSITIVE CABLE	233463 COMPLETE BATTERY POSITIVE CABLE Applicable for GD	-	1	Enquire
15	233462	COMPLETE BATTERY POSITIVE CABLE	233462 COMPLETE BATTERY POSITIVE CABLE Not for GD	-	1	Enquire
16	181056	BATTERY BREATHER PIPE	181056 BATTERY BREATHER PIPE	-	1	Enquire
17	10396280	CABLE GROMMET	10396280 CABLE GROMMET	-	1	Enquire
18	803883	BATTERY CHARGER KIT	803883 BATTERY CHARGER KIT Optional; Applicable for J	-	1	Enquire
18	803880	BATTERY CHARGER KIT	803880 BATTERY CHARGER KIT Optional; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
18	70002820	BATTERY CHARGER KIT	70002820 BATTERY CHARGER KIT Optional; Not for AUS, USA, CDN, J, USA LIGHT	-	1	Enquire
19	217351	GASKET	217351 GASKET	-	1	Enquire
20	185418	PROTECTIVE COVER	185418 PROTECTIVE COVER	-	1	Enquire
21	198703	MEGA FUSE HOLDER	198703 MEGA FUSE HOLDER	-	1	Enquire
22	198704	MEGA FUSE	198704 MEGA FUSE	-	1	Enquire
23	198207	GASKET	198207 GASKET	-	1	Enquire
24	81284400	BLOCK	81284400 BLOCK	-	1	Enquire
25	10903024	SCREW	10903024 SCREW	-	1	Enquire
26	127494	WASHER	127494 WASHER	-	1	Enquire
28	95998029	WALL ADAPTER	95998029 WALL ADAPTER Optional; Applicable for UK	-	1	Enquire
