ELECTRICAL SYSTEM of Ferrari Ferrari 430 Scuderia Spider 16M

View All

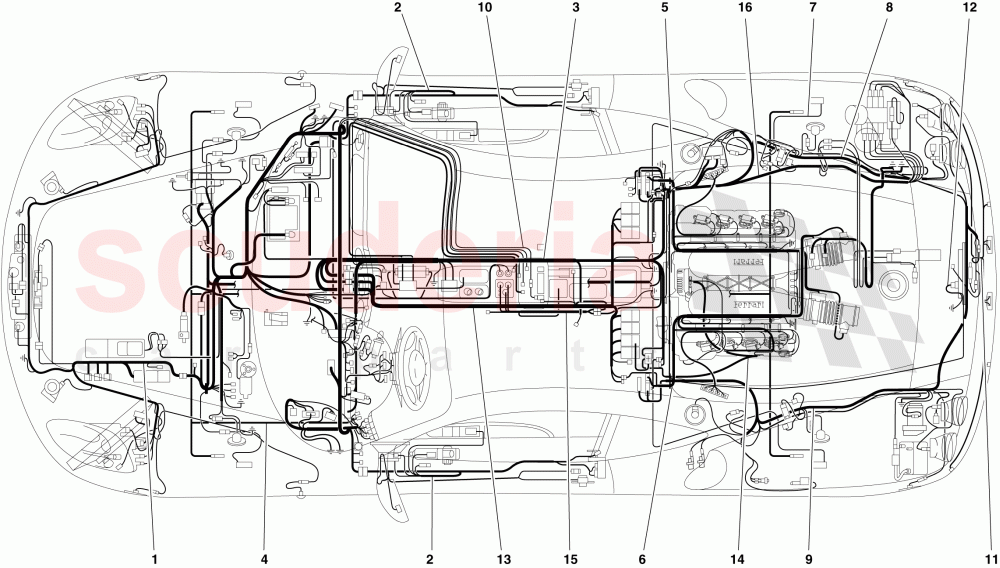

Ferrari 430 Scuderia Spider 16M - ELECTRICAL SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	233832	FRONT CABLES	Enquire	To Order
	233837	FRONT CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228251	DOOR CONNECTOR CABLES	Enquire	To Order
	247825	DOOR CONNECTION CABLES	Enquire	To Order
	253621	DOOR CONNECTION CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	253620	DASHBOARD CONNECTION CABLES	Enquire	To Order
	244780	DASHBOARD CONNECTION CABLES	Enquire	To Order
	233626	DASHBOARD CONNECTION CABLES	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	238983	TYRE PRESSURE MONITORING SYSTEM CABLES	Enquire	To Order
	238983	TYRE PRESSURE MONITORING SYSTEM CABLES	Enquire	To Order
	192787	TYRE PRESSURE MONITORING SYSTEM CABLES	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	249571	RH. CYLINDER BANK INJECTOR CABLES	Enquire	To Order
	242611	RH. CYLINDER BANK INJECTOR CABLES	Enquire	To Order
	242613	RH. CYLINDER BANK INJECTOR CABLES	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	249570	LH. CYLINDER BANK INJECTOR CABLES	Enquire	To Order
	242610	LH. CYLINDER BANK INJECTOR CABLES	Enquire	To Order
	242612	LH. CYLINDER BANK INJECTOR CABLES	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	242588	ABS/ASR SYSTEM CONNECTION CABLES	Enquire	To Order
	242589	ABS/ASR SYSTEM CONNECTION CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238968	RH. ENGINE COMPARTMENT CONNECTION CABLES	Enquire	To Order
	249567	RH. ENGINE COMPARTMENT CONNECTION CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199522	BECKER WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182985	PLATE LIGHT CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	241766	STOP-LAMP CONNECTION CABLES	Enquire	To Order
	243404	STOP-LAMP CONNECTION CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228156	REAR PART CONNECTION CABLES	Enquire	To Order
	249575	REAR PART CONNECTION CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	192534	COMPLETE ENGINE SERVICES CONNECTOR CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	249576	CENTRE CONSOLE CONNECTION CABLES	Enquire	To Order
	239265	CENTRE CONSOLE CONNECTION CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228154	COMPLETE GEARBOX CONTROL CABLES	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	233832	FRONT CABLES	233832 FRONT CABLES Not for USA, CDN	-	1	Enquire
1	233837	FRONT CABLES	233837 FRONT CABLES Applicable for USA, CDN	-	1	Enquire
2	228251	DOOR CONNECTOR CABLES	228251 DOOR CONNECTOR CABLES Not for Spider 16M; Applicable until depletion	-	2	Enquire
2	247825	DOOR CONNECTION CABLES	247825 DOOR CONNECTION CABLES Not for Spider 16M; Applicable after depletion of 228251	-	2	Enquire
2	253621	DOOR CONNECTION CABLES	253621 DOOR CONNECTION CABLES Applicable for Spider 16M	-	2	Enquire
3	253620	DASHBOARD CONNECTION CABLES	253620 DASHBOARD CONNECTION CABLES Applicable for Spider 16M; Applicable for GD	-	1	Enquire
3	244780	DASHBOARD CONNECTION CABLES	244780 DASHBOARD CONNECTION CABLES Full house; Not for Spider 16M; Not for GD	-	1	Enquire
3	233626	DASHBOARD CONNECTION CABLES	233626 DASHBOARD CONNECTION CABLES Standard; Not for Spider 16M; Applicable for GD	-	1	Enquire
3	253619	DASHBOARD CONNECTION CABLES	253619 DASHBOARD CONNECTION CABLES Applicable for Spider 16M; Not for GD	-	1	Enquire
3	241499	DASHBOARD CONNECTION CABLES	241499 DASHBOARD CONNECTION CABLES Not for Spider 16M; Not for USA, CDN, GD	-	1	Enquire
4	238983	TYRE PRESSURE MONITORING SYSTEM CABLES	238983 TYRE PRESSURE MONITORING SYSTEM CABLES Not for GD	-	1	Enquire
4	238983	TYRE PRESSURE MONITORING SYSTEM CABLES	238983 TYRE PRESSURE MONITORING SYSTEM CABLES Not for USA, CDN; Applicable up to Ass. No. 84423	-	1	Enquire
4	192787	TYRE PRESSURE MONITORING SYSTEM CABLES	192787 TYRE PRESSURE MONITORING SYSTEM CABLES Not for GD	-	1	Enquire
4	192787	TYRE PRESSURE MONITORING SYSTEM CABLES	192787 TYRE PRESSURE MONITORING SYSTEM CABLES Not for USA, CDN; Applicable up to Ass. No. 84422	-	1	Enquire
5	249571	RH. CYLINDER BANK INJECTOR CABLES	249571 RH. CYLINDER BANK INJECTOR CABLES Applicable for Spider 16M; Applicable for USA, CDN	-	1	Enquire
5	242611	RH. CYLINDER BANK INJECTOR CABLES	242611 RH. CYLINDER BANK INJECTOR CABLES Not for Spider 16M; Not for USA, CDN; Applicable from Ass. No. 73779	-	1	Enquire
5	242613	RH. CYLINDER BANK INJECTOR CABLES	242613 RH. CYLINDER BANK INJECTOR CABLES Not for Spider 16M; Applicable for USA, CDN	-	1	Enquire
5	249569	RH. CYLINDER BANK INJECTOR CABLES	249569 RH. CYLINDER BANK INJECTOR CABLES Applicable for Spider 16M; Not for USA, CDN	-	1	Enquire
5	237980	RH. CYLINDER BANK INJECTOR CABLES	237980 RH. CYLINDER BANK INJECTOR CABLES Not for Spider 16M; Not for USA, CDN; Applicable up to Ass. No. 73778	-	1	Enquire
6	249570	LH. CYLINDER BANK INJECTOR CABLES	249570 LH. CYLINDER BANK INJECTOR CABLES Applicable for Spider 16M; Applicable for USA, CDN	-	1	Enquire
6	242610	LH. CYLINDER BANK INJECTOR CABLES	242610 LH. CYLINDER BANK INJECTOR CABLES Not for Spider 16M; Not for USA, CDN; Applicable from Ass. No. 73779	-	1	Enquire
6	242612	LH. CYLINDER BANK INJECTOR CABLES	242612 LH. CYLINDER BANK INJECTOR CABLES Not for Spider 16M; Applicable for USA, CDN	-	1	Enquire
6	249568	LH. CYLINDER BANK INJECTOR CABLES	249568 LH. CYLINDER BANK INJECTOR CABLES Applicable for Spider 16M; Not for USA, CDN	-	1	Enquire
6	237979	LH. CYLINDER BANK INJECTOR CABLES	237979 LH. CYLINDER BANK INJECTOR CABLES Not for Spider 16M; Not for USA, CDN; Applicable up to Ass. No. 73778	-	1	Enquire
7	242588	ABS/ASR SYSTEM CONNECTION CABLES	242588 ABS/ASR SYSTEM CONNECTION CABLES Not for GD	-	1	Enquire
7	242589	ABS/ASR SYSTEM CONNECTION CABLES	242589 ABS/ASR SYSTEM CONNECTION CABLES Applicable for GD	-	1	Enquire
8	238968	RH. ENGINE COMPARTMENT CONNECTION CABLES	238968 RH. ENGINE COMPARTMENT CONNECTION CABLES Not for Spider 16M	-	1	Enquire
8	249567	RH. ENGINE COMPARTMENT CONNECTION CABLES	249567 RH. ENGINE COMPARTMENT CONNECTION CABLES Applicable for Spider 16M	-	1	Enquire
10	199522	BECKER WIRING HARNESS	199522 BECKER WIRING HARNESS Optional	-	1	Enquire
11	182985	PLATE LIGHT CABLES	182985 PLATE LIGHT CABLES	-	1	Enquire
12	241766	STOP-LAMP CONNECTION CABLES	241766 STOP-LAMP CONNECTION CABLES	-	1	Enquire
12	243404	STOP-LAMP CONNECTION CABLES	243404 STOP-LAMP CONNECTION CABLES For carbon lid; Not for Spider 16M	-	1	Enquire
13	228156	REAR PART CONNECTION CABLES	228156 REAR PART CONNECTION CABLES Not for Spider 16M	-	1	Enquire
13	249575	REAR PART CONNECTION CABLES	249575 REAR PART CONNECTION CABLES Applicable for Spider 16M	-	1	Enquire
14	192534	COMPLETE ENGINE SERVICES CONNECTOR CABLES	192534 COMPLETE ENGINE SERVICES CONNECTOR CABLES	-	1	Enquire
15	249576	CENTRE CONSOLE CONNECTION CABLES	249576 CENTRE CONSOLE CONNECTION CABLES Applicable for Spider 16M	-	1	Enquire
15	239265	CENTRE CONSOLE CONNECTION CABLES	239265 CENTRE CONSOLE CONNECTION CABLES Not for Spider 16M	-	1	Enquire
16	228154	COMPLETE GEARBOX CONTROL CABLES	228154 COMPLETE GEARBOX CONTROL CABLES	-	1	Enquire
