Quarterlight -Optional -Not For Spider 16M-

Ferrari 430 Scuderia Spider 16M

Find Your Part

Ferrari 430 Scuderia Spider 16M - QUARTERLIGHT -OPTIONAL -Not for Spider 16M-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
67539500 COMPLETE RH. DOOR FRAME Enquire To Order
67541100 LH. LEXAN Enquire To Order
Photo Part No Description Price (each) Stock
67540800 RH. QUARTERLIGHT GLASS Enquire To Order
67540900 LH. QUARTERLIGHT GLASS Enquire To Order
Photo Part No Description Price (each) Stock
67540600 RH. COSMETIC TRAY Enquire To Order
67540700 LH. COSMETIC TRAY Enquire To Order
Photo Part No Description Price (each) Stock
67890700 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
67890500 RH. DOOR FRAME Enquire To Order
67890600 LH. DOOR FRAME Enquire To Order
Photo Part No Description Price (each) Stock
67831800 RH UPPER BRACKET Enquire To Order
67831900 LH UPPER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
85833700 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12604178 Washer Enquire To Order
Photo Part No Description Price (each) Stock
14446624 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
67540200 RH. REAR BRACKET Enquire To Order
67540300 LH. REAR BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
66075200 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
67539800 RH. PILLAR BRACKET Enquire To Order
67539900 LH. PILLAR BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
67541500 RH. FRONT BRACKET Enquire To Order
67541600 LH. FRONT BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
67539500 COMPLETE RH. DOOR FRAME Enquire To Order
67539700 COMPLETE LH. DOOR FRAME Enquire To Order
Photo Part No Description Price (each) Stock
175876 CONNECTORS PROTECTION COVER Enquire To Order
Photo Part No Description Price (each) Stock
209439 DOOR LOCKING BRIDGE Enquire To Order
Photo Part No Description Price (each) Stock
199125 CONNECTORS PROTECTION COVER Enquire To Order
Photo Part No Description Price (each) Stock
67540000 RH. FRAME FRONT BRACKET Enquire To Order
67540100 LH. FRAME FRONT BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
13027024 SCREW M6 X 16MM Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
10519424 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
13836324 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12648925 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
231620 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
13836324 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
13836324 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
105864 SPACER WASHER D.6.5-24X1.5 Enquire To Order
Photo Part No Description Price (each) Stock
62797600 Allen Bolt Countersunk M6 x 20 Enquire To Order
Photo Part No Description Price (each) Stock
12604178 Washer Enquire To Order
Photo Part No Description Price (each) Stock
12638124 WASHER Enquire To Order
View All

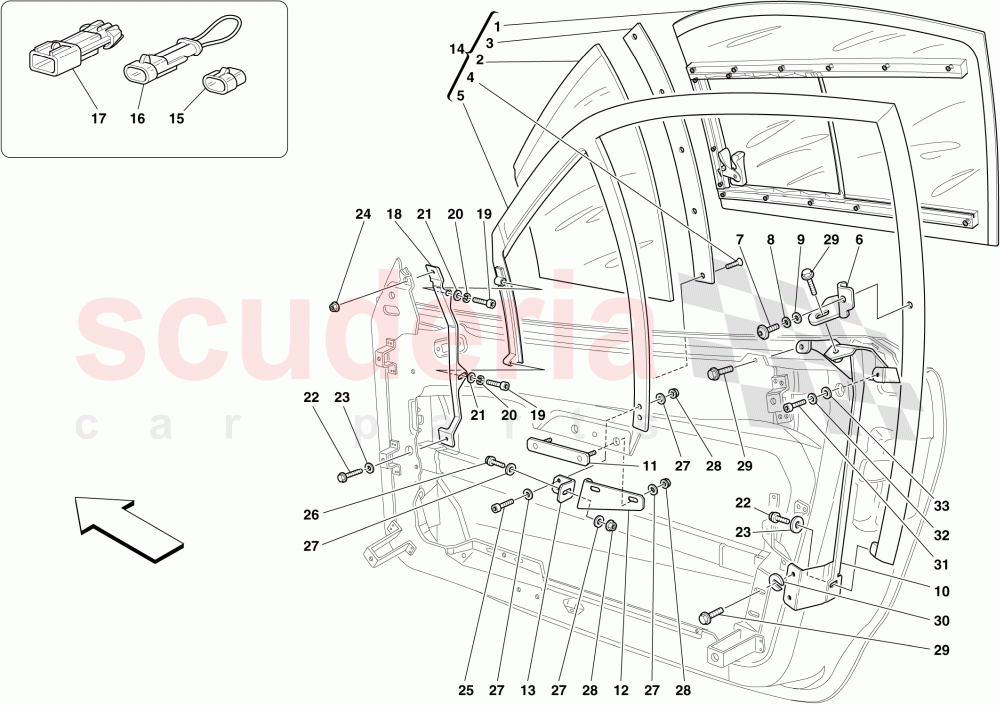

QUARTERLIGHT -OPTIONAL -Not for Spider 16M- of Ferrari Ferrari 430 Scuderia Spider 16M Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 67539500
COMPLETE RH. DOOR FRAME 		- 1 Enquire
1 67541100
LH. LEXAN 		- 1 Enquire
2 67540800
RH. QUARTERLIGHT GLASS 		- 1 Enquire
2 67540900
LH. QUARTERLIGHT GLASS 		- 1 Enquire
3 67540600
RH. COSMETIC TRAY 		- 1 Enquire
3 67540700
LH. COSMETIC TRAY 		- 1 Enquire
4 67890700
SCREW 		- 8 Enquire
5 67890500
RH. DOOR FRAME 		- 1 Enquire
5 67890600
LH. DOOR FRAME 		- 1 Enquire
6 67831800
RH UPPER BRACKET 		- 1 Enquire
6 67831900
LH UPPER BRACKET 		- 1 Enquire
7 85833700
SCREW 		- 2 Enquire
8 12604178
Washer 		- 2 Enquire
9 14446624
WASHER 		- 2 Enquire
10 67540200
RH. REAR BRACKET 		- 1 Enquire
10 67540300
LH. REAR BRACKET 		- 1 Enquire
11 66075200
BRACKET 		- 2 Enquire
12 67539800
RH. PILLAR BRACKET 		- 1 Enquire
12 67539900
LH. PILLAR BRACKET 		- 1 Enquire
13 67541500
RH. FRONT BRACKET 		- 1 Enquire
13 67541600
LH. FRONT BRACKET 		- 1 Enquire
14 67539500
COMPLETE RH. DOOR FRAME 		- 1 Enquire
14 67539700
COMPLETE LH. DOOR FRAME 		- 1 Enquire
15 175876
CONNECTORS PROTECTION COVER 		- 2 Enquire
16 209439
DOOR LOCKING BRIDGE 		- 2 Enquire
17 199125
CONNECTORS PROTECTION COVER 		- 2 Enquire
18 67540000
RH. FRAME FRONT BRACKET 		- 1 Enquire
18 67540100
LH. FRAME FRONT BRACKET 		- 1 Enquire
19 13027024
SCREW M6 X 16MM 		- 4 Enquire
20 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 4 Enquire
21 10519424
WASHER 		- 4 Enquire
22 13836324
SCREW 		- 4 Enquire
23 12648925
WASHER 		- 4 Enquire
24 14059290
FLANGED NUT M6 		- 2 Enquire
25 231620
SCREW
M6 X 25 		- 4 Enquire
26 13836324
SCREW 		- 2 Enquire
27 12643724
WASHER 		- 16 Enquire
28 14059290
FLANGED NUT M6 		- 10 Enquire
29 13836324
SCREW 		- 8 Enquire
30 105864
SPACER WASHER D.6.5-24X1.5 		- 8 Enquire
31 62797600
Allen Bolt Countersunk M6 x 20 		- 2 Enquire
32 12604178
Washer 		- 2 Enquire
33 12638124
WASHER 		- 2 Enquire
