DOORS - SUBSTRUCTURE AND TRIM of Ferrari Ferrari 430 Scuderia Spider 16M

View All

Ferrari 430 Scuderia Spider 16M - DOORS - SUBSTRUCTURE AND TRIM

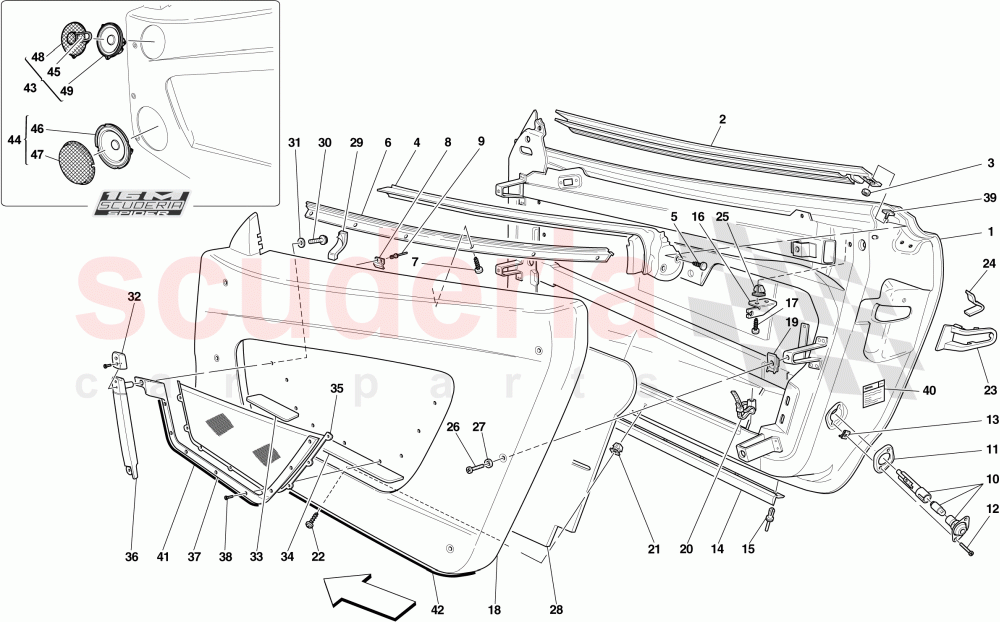

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	81726911	RH. DOOR BODYWORK	$7,813.71	To Order
	81727011	LH. DOOR BODYWORK	$7,813.71	To Order
	80827911	LH. DOOR BODYWORK	$8,307.96	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	65164500	LH EXTERNAL WINDOW SCRAPER SEAL	$510.59	To Order
	65164400	EXTERNAL RH WINDOW SCRAPER SEAL	$527.60	To Order

Photo	Part No	Description	Price (each)	Stock
	14042077	NUT	$0.79	To Order

Photo	Part No	Description	Price (each)	Stock
	65544600	RH INTERNAL WINDOW SCRAPER SEAL	$765.88	To Order
	65544700	LH INTERNAL WINDOW SCRAPER SEAL	$791.41	To Order

Photo	Part No	Description	Price (each)	Stock
	14591687	FASTENER BUTTON	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	65013000	RH MOULDING	$37.57	To Order
	65546200	LH MOULDING	$37.57	To Order

Photo	Part No	Description	Price (each)	Stock
	14302920	SCREW	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	64595200	FASTENER CLIP	$59.37	To Order

Photo	Part No	Description	Price (each)	Stock
	10425901	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184786	Open-Door Light	$115.48	To Order
	82139800	DOOR REFLECTOR LENS	$37.98	To Order

Photo	Part No	Description	Price (each)	Stock
	140576	GASKET	$17.20	To Order

Photo	Part No	Description	Price (each)	Stock
	15901575	SCREW	$0.19	To Order

Photo	Part No	Description	Price (each)	Stock
	61828500	FASTENER CLIP	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	64855600	GASKET	$64.17	To Order

Photo	Part No	Description	Price (each)	Stock
	62764000	RIVET	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	65546400	RH BRACKET	$3.03	To Order
	65547800	LH BRACKET	$3.03	To Order

Photo	Part No	Description	Price (each)	Stock
	15903975	Screw	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	81964900	RH. DOOR PANEL	$4,394.77	To Order
	81965000	LH. DOOR PANEL	$9,603.50	To Order
	80120900	RH. DOOR PANEL	$9,303.44	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	14190290	SPIRE CLIP NUT M5	$1.47	To Order

Photo	Part No	Description	Price (each)	Stock
	177553	CLAMP	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	14201980	FIXING BLOCK	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	15688170	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	68640600	RH SEAT BELT SLOT SURROUND	$7.68	To Order
	68640700	LH SEAT BELT SLOT SURROUND	$7.68	To Order

Photo	Part No	Description	Price (each)	Stock
	65705300	Clip	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	14201980	FIXING BLOCK	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	915271	SCREW	$1.31	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	81772600	RH. WATERPROOF MEMBRANE	$208.58	To Order
	81772700	LH. WATERPROOF MEMBRANE	$258.00	To Order
	80866100	RH. WATERPROOF MEMBRANE	$256.72	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	67953900	ANTI-VIBRATION GASKET	$0.62	To Order

Photo	Part No	Description	Price (each)	Stock
	14303087	SCREW	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	10519278	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	80364500	FIXING PLATE FOR RH. HANDLE	$260.38	To Order
	80364600	FIXING PLATE FOR LH. HANDLE	$265.57	To Order

Photo	Part No	Description	Price (each)	Stock
	80610800	LH. FRONT STOP CAP	$57.75	To Order
	82099800	RH. FRONT STOP CAP	$93.05	To Order
	82099900	LH. FRONT STOP CAP	$93.05	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	80610900	LH. REAR STOP CAP	$72.19	To Order
	80608200	RH. REAR STOP CAP	$72.19	To Order

Photo	Part No	Description	Price (each)	Stock
	80457600	RH. MOUNTING	$225.76	To Order
	80458000	LH. MOUNTING	$286.67	To Order

Photo	Part No	Description	Price (each)	Stock
	80120100	RH. HANDLE	$575.65	To Order
	80120700	LH. HANDLE	$745.38	To Order

Photo	Part No	Description	Price (each)	Stock
	80365400	LH. FRAME	$561.59	To Order
	80365300	RH. FRAME	$561.59	To Order

Photo	Part No	Description	Price (each)	Stock
	82007000	SCREW	$0.19	To Order

Photo	Part No	Description	Price (each)	Stock
	67194200	PLATE	$3.52	To Order

Photo	Part No	Description	Price (each)	Stock
	199130	MERCURY CONTENT LABEL	$10.73	To Order

Photo	Part No	Description	Price (each)	Stock
	80606200	GASKET	$129.16	To Order

Photo	Part No	Description	Price (each)	Stock
	80606300	GASKET	$57.51	To Order

Photo	Part No	Description	Price (each)	Stock
	82155000	LH TWEETER+MIDRANGE	$2,062.05	To Order
	82154900	RH TWEETER+MIDRANGE	$2,062.05	To Order

Photo	Part No	Description	Price (each)	Stock
	82086900	LH. LOWER WOOFER	$1,813.83	To Order
	82037800	RH. LOWER WOOFER	$1,829.29	To Order

Photo	Part No	Description	Price (each)	Stock
	82039200	LH. TWEETER LOGO	$148.47	To Order
	82039100	RH. TWEETER LOGO	$155.89	To Order

Photo	Part No	Description	Price (each)	Stock
	82037900	LOWER WOOFER	$1,421.40	To Order

Photo	Part No	Description	Price (each)	Stock
	70002317	RH. LOWER WOOFER MESH	$1,438.48	To Order

Photo	Part No	Description	Price (each)	Stock
	82038200	RH TWEETER	$1,907.96	To Order
	82038300	LH TWEETER	$1,907.96	To Order

Photo	Part No	Description	Price (each)	Stock
	82038100	MIDRANGE	$789.66	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	81726911	RH. DOOR BODYWORK	81726911 RH. DOOR BODYWORK Applicable for Spider 16M; Applicable for GD	$7,813.71	1
1	81727011	LH. DOOR BODYWORK	81727011 LH. DOOR BODYWORK Applicable for Spider 16M; Applicable for GD	$7,813.71	1
1	80827911	LH. DOOR BODYWORK	80827911 LH. DOOR BODYWORK Applicable for Spider 16M; Not for GD	$8,307.96	1
1	81038911	LH. DOOR BODYWORK	81038911 LH. DOOR BODYWORK Not for Spider 16M; Applicable for GD	$11,623.24	1
1	69902111	LH. DOOR BODYWORK	69902111 LH. DOOR BODYWORK Not for Spider 16M; Not for USA, CDN, GD	$8,307.96	1
1	80827911	LH. DOOR BODYWORK	80827911 LH. DOOR BODYWORK Not for Spider 16M; Applicable for USA, CDN	$8,307.96	1
1	81038811	RH. DOOR BODYWORK	81038811 RH. DOOR BODYWORK Not for Spider 16M; Not for USA, CDN, GD	$11,623.24	1
1	80828111	RH. DOOR BODYWORK	80828111 RH. DOOR BODYWORK Applicable for Spider 16M; Not for GD	$8,307.96	1
1	80828111	RH. DOOR BODYWORK	80828111 RH. DOOR BODYWORK Not for Spider 16M; Applicable for USA, CDN	$8,307.96	1
1	81038811	RH. DOOR BODYWORK	81038811 RH. DOOR BODYWORK Not for Spider 16M; Applicable for GD	$11,623.24	1
2	65164500	LH EXTERNAL WINDOW SCRAPER SEAL	65164500 LH EXTERNAL WINDOW SCRAPER SEAL	$510.59	1
2	65164400	EXTERNAL RH WINDOW SCRAPER SEAL	65164400 EXTERNAL RH WINDOW SCRAPER SEAL	$527.60	1
3	14042077	NUT	14042077 NUT	$0.79	2
4	65544600	RH INTERNAL WINDOW SCRAPER SEAL	65544600 RH INTERNAL WINDOW SCRAPER SEAL	$765.88	1
4	65544700	LH INTERNAL WINDOW SCRAPER SEAL	65544700 LH INTERNAL WINDOW SCRAPER SEAL	$791.41	1
5	14591687	FASTENER BUTTON	14591687 FASTENER BUTTON	$0.06 MSRP: ~~0.49~~ (87.8% off)	4
6	65013000	RH MOULDING	65013000 RH MOULDING	$37.57	1
6	65546200	LH MOULDING	65546200 LH MOULDING	$37.57	1
7	14302920	SCREW	14302920 SCREW	$0.06	12
8	64595200	FASTENER CLIP	64595200 FASTENER CLIP	$59.37	6
9	10425901	RIVET	10425901 RIVET	-	12	Enquire
10	184786	Open-Door Light	184786 Open-Door Light Not for Spider 16M	$115.48	2
10	82139800	DOOR REFLECTOR LENS	82139800 DOOR REFLECTOR LENS Applicable for Spider 16M	$37.98	2
11	140576	GASKET	140576 GASKET	$17.20 MSRP: ~~26.74~~ (35.7% off)	2
12	15901575	SCREW	15901575 SCREW	$0.19	4
13	61828500	FASTENER CLIP	61828500 FASTENER CLIP	$0.52	4
14	64855600	GASKET	64855600 GASKET	$64.17	2
15	62764000	RIVET	62764000 RIVET	$0.15 MSRP: ~~0.95~~ (84.2% off)	14
16	65546400	RH BRACKET	65546400 RH BRACKET	$3.03	1
16	65547800	LH BRACKET	65547800 LH BRACKET	$3.03	1
17	15903975	Screw	15903975 Screw	$0.58 MSRP: ~~1.75~~ (66.9% off)	4
18	81964900	RH. DOOR PANEL	81964900 RH. DOOR PANEL Applicable for Spider 16M	$4,394.77	1
18	81965000	LH. DOOR PANEL	81965000 LH. DOOR PANEL Applicable for Spider 16M	$9,603.50	1
18	80120900	RH. DOOR PANEL	80120900 RH. DOOR PANEL Not for Spider 16M	$9,303.44	1
18	80120800	LH. DOOR PANEL	80120800 LH. DOOR PANEL Not for Spider 16M	$9,303.44	1
19	14190290	SPIRE CLIP NUT M5	14190290 SPIRE CLIP NUT M5	$1.47 MSRP: ~~4.25~~ (65.4% off)	12
20	177553	CLAMP	177553 CLAMP	$0.45 MSRP: ~~1.25~~ (64% off)	8
21	14201980	FIXING BLOCK	14201980 FIXING BLOCK	$0.15 MSRP: ~~0.50~~ (70% off)	8
22	15688170	SCREW	15688170 SCREW	$0.31	8
23	68640600	RH SEAT BELT SLOT SURROUND	68640600 RH SEAT BELT SLOT SURROUND	$7.68 MSRP: ~~10.42~~ (26.3% off)	1
23	68640700	LH SEAT BELT SLOT SURROUND	68640700 LH SEAT BELT SLOT SURROUND	$7.68 MSRP: ~~10.42~~ (26.3% off)	1
24	65705300	Clip	65705300 Clip	$0.31 MSRP: ~~0.50~~ (38% off)	4
25	14201980	FIXING BLOCK	14201980 FIXING BLOCK	$0.15 MSRP: ~~0.50~~ (70% off)	2
26	915271	SCREW	915271 SCREW	$1.31	14
27	62769800	WASHER	62769800 WASHER	$0.23 MSRP: ~~0.30~~ (23.3% off)	14
28	81772600	RH. WATERPROOF MEMBRANE	81772600 RH. WATERPROOF MEMBRANE Applicable for Spider 16M	$208.58	1
28	81772700	LH. WATERPROOF MEMBRANE	81772700 LH. WATERPROOF MEMBRANE Applicable for Spider 16M	$258.00	1
28	80866100	RH. WATERPROOF MEMBRANE	80866100 RH. WATERPROOF MEMBRANE Not for Spider 16M	$256.72	1
28	80866200	LH. WATERPROOF MEMBRANE	80866200 LH. WATERPROOF MEMBRANE Not for Spider 16M	$256.72	1
29	67953900	ANTI-VIBRATION GASKET	67953900 ANTI-VIBRATION GASKET	$0.62	6
30	14303087	SCREW	14303087 SCREW	$0.58	2
31	10519278	WASHER	10519278 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	2
32	80364500	FIXING PLATE FOR RH. HANDLE	80364500 FIXING PLATE FOR RH. HANDLE	$260.38	1
32	80364600	FIXING PLATE FOR LH. HANDLE	80364600 FIXING PLATE FOR LH. HANDLE	$265.57	1
33	80610800	LH. FRONT STOP CAP	80610800 LH. FRONT STOP CAP Not for Spider 16M	$57.75	1
33	82099800	RH. FRONT STOP CAP	82099800 RH. FRONT STOP CAP Applicable for Spider 16M	$93.05	1
33	82099900	LH. FRONT STOP CAP	82099900 LH. FRONT STOP CAP Applicable for Spider 16M	$93.05	1
33	80607200	RH. FRONT STOP CAP	80607200 RH. FRONT STOP CAP Not for Spider 16M	$72.19	1
34	80610900	LH. REAR STOP CAP	80610900 LH. REAR STOP CAP	$72.19	1
34	80608200	RH. REAR STOP CAP	80608200 RH. REAR STOP CAP	$72.19	1
35	80457600	RH. MOUNTING	80457600 RH. MOUNTING	$225.76	1
35	80458000	LH. MOUNTING	80458000 LH. MOUNTING	$286.67	1
36	80120100	RH. HANDLE	80120100 RH. HANDLE	$575.65	1
36	80120700	LH. HANDLE	80120700 LH. HANDLE	$745.38	1
37	80365400	LH. FRAME	80365400 LH. FRAME	$561.59	1
37	80365300	RH. FRAME	80365300 RH. FRAME	$561.59	1
38	82007000	SCREW	82007000 SCREW	$0.19 MSRP: ~~0.90~~ (78.9% off)	16
39	67194200	PLATE	67194200 PLATE	$3.52 MSRP: ~~5.23~~ (32.7% off)	2
40	199130	MERCURY CONTENT LABEL	199130 MERCURY CONTENT LABEL Applicable for USA, CDN	$10.73	1
41	80606200	GASKET	80606200 GASKET	$129.16	2
42	80606300	GASKET	80606300 GASKET	$57.51	2
43	82155000	LH TWEETER+MIDRANGE	82155000 LH TWEETER+MIDRANGE Applicable for Spider 16M; Replaced by 82038300 ref. 48 and 82038100 ref. 49; No longer supplied	$2,062.05	1
43	82154900	RH TWEETER+MIDRANGE	82154900 RH TWEETER+MIDRANGE Applicable for Spider 16M; Replaced by 82038200 ref. 48 and 82038100 ref. 49; No longer supplied	$2,062.05	1
44	82086900	LH. LOWER WOOFER	82086900 LH. LOWER WOOFER 165 mm; Applicable for Spider 16M; Applicable until depletion	$1,813.83	1
44	82037800	RH. LOWER WOOFER	82037800 RH. LOWER WOOFER 165 mm; Applicable for Spider 16M; Applicable until depletion	$1,829.29	1
45	82039200	LH. TWEETER LOGO	82039200 LH. TWEETER LOGO Applicable for Spider 16M	$148.47	1
45	82039100	RH. TWEETER LOGO	82039100 RH. TWEETER LOGO Applicable for Spider 16M	$155.89	1
46	82037900	LOWER WOOFER	82037900 LOWER WOOFER 165 mm; Applicable for Spider 16M	$1,421.40	2
47	70002317	RH. LOWER WOOFER MESH	70002317 RH. LOWER WOOFER MESH 165 mm; Applicable for Spider 16M	$1,438.48	1
48	82038200	RH TWEETER	82038200 RH TWEETER	$1,907.96	1
48	82038300	LH TWEETER	82038300 LH TWEETER	$1,907.96	1
49	82038100	MIDRANGE	82038100 MIDRANGE	$789.66	2
