Ferrari 430 Scuderia Spider 16M - DOORS - POWER WINDOWS AND REAR-VIEW MIRROR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
65949200 RH DOOR WINDOW Enquire To Order
65949300 LH DOOR WINDOW Enquire To Order
65786100 RH DOOR WINDOW Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
63768100 RH SLIPPER Enquire To Order
63768200 LH SLIPPER Enquire To Order
Photo Part No Description Price (each) Stock
63486900 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
63767900 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
63890100 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
80727600 COMPLETE LH. POWER WINDOW UNIT Enquire To Order
80727500 COMPLETE RH. POWER WINDOW UNIT Enquire To Order
Photo Part No Description Price (each) Stock
65826900 HELICAL SPRING Enquire To Order
Photo Part No Description Price (each) Stock
65819600 RH POWER WINDOW MOTOR Enquire To Order
65819700 LH POWER WINDOW MOTOR Enquire To Order
Photo Part No Description Price (each) Stock
15916977 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
65827200 STOP BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
65816700 GUIDE Enquire To Order
Photo Part No Description Price (each) Stock
80818700 EXTERNAL LH. REARVIEW MIRROR Enquire To Order
80826900 EXTERNAL LH. REARVIEW MIRROR Enquire To Order
80431600 EXTERNAL RH. REARVIEW MIRROR Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
65226000 EXTERNAL RH MIRROR GASKET Enquire To Order
65226100 LH EXTERNAL MIRROR GASKET Enquire To Order
Photo Part No Description Price (each) Stock
66075200 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
10902224 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
127494 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
65713200 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
65757200 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
13831801 NUT Enquire To Order
Photo Part No Description Price (each) Stock
65062100 REAR RH WINDOW GUIDE Enquire To Order
65062200 REAR LH WINDOW GUIDE Enquire To Order
Photo Part No Description Price (each) Stock
65310700 RH VIBRATION DAMPER Enquire To Order
65310800 LH VIBRATION DAMPER Enquire To Order
Photo Part No Description Price (each) Stock
62797600 Allen Bolt Countersunk M6 x 20 Enquire To Order
14304124 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12638124 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
65997500 RH PLATE Enquire To Order
65997700 LH PLATE Enquire To Order
Photo Part No Description Price (each) Stock
63853600 RH MOVING GUIDE Enquire To Order
63853700 LH MOBILE GUIDE Enquire To Order
Photo Part No Description Price (each) Stock
10903024 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
13577724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
63168800 PRE-LOAD REGULATOR Enquire To Order
Photo Part No Description Price (each) Stock
64854600 PIN ADJUSTMENT Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
13836721 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
65062000 FRONT LH WINDOW GUIDE Enquire To Order
65061900 FRONT RH WINDOW GUIDE Enquire To Order
Photo Part No Description Price (each) Stock
14039714 NUT Enquire To Order
Photo Part No Description Price (each) Stock
65828200 RH SLIDING GUIDE Enquire To Order
65828300 LH SLIDING GUIDE Enquire To Order
Photo Part No Description Price (each) Stock
14303724 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
62790300 NUT Enquire To Order
Photo Part No Description Price (each) Stock
65807300 COLUMN GASKET Enquire To Order
Photo Part No Description Price (each) Stock
231620 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14498801 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
13297377 SCREW M4 X 10 Enquire To Order
Photo Part No Description Price (each) Stock
62798000 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
62932800 SHIM Enquire To Order
Photo Part No Description Price (each) Stock
62932900 BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
168617 MICROSWITCH Enquire To Order
Photo Part No Description Price (each) Stock
15687975 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
65907400 RH MOBILE BRACKET Enquire To Order
65907500 LH MOBILE BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
808769 CAP NUT Enquire To Order
Photo Part No Description Price (each) Stock
68981700 LH EXTERNAL REAR VIEW MIRROR GLASS Enquire To Order
68981600 RH EXTERNAL REAR VIEW MIRROR GLASS Enquire To Order
Photo Part No Description Price (each) Stock
10418601 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
13577724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
65889400 EXTERNAL TEMPERATURE SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
69742000 EXTERNAL TRIANGLE TRIM ELEMENT FOR LH REAR VIEW MIRROR Enquire To Order
69741900 RH REAR MIRROR EXTERNAL FIXING PLATE Enquire To Order
View All

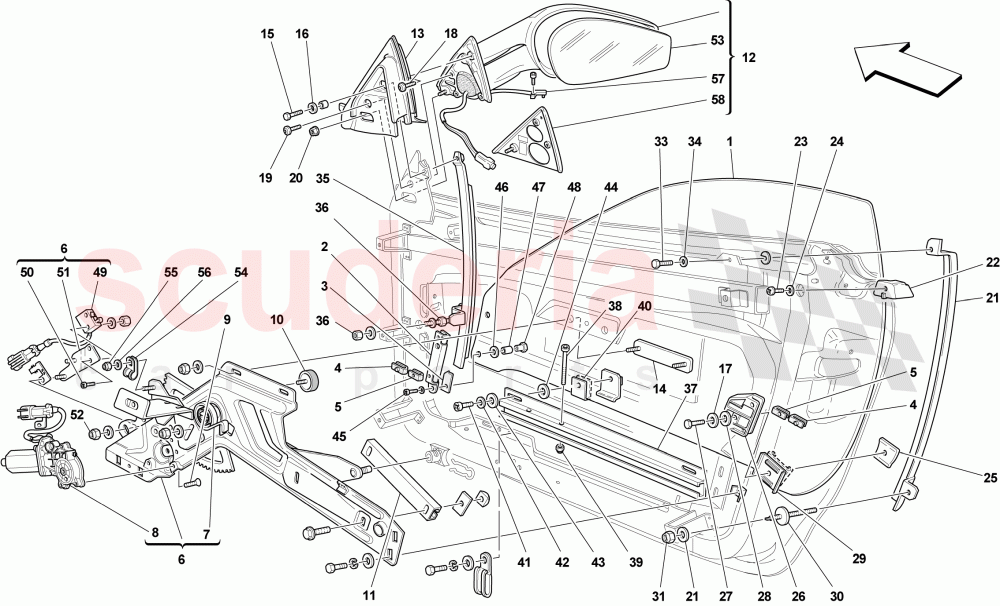

DOORS - POWER WINDOWS AND REAR-VIEW MIRROR of Ferrari Ferrari 430 Scuderia Spider 16M Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 65949200
RH DOOR WINDOW
Not for Spider 16M 		- 1 Enquire
1 65949300
LH DOOR WINDOW
Not for Spider 16M 		- 1 Enquire
1 65786100
RH DOOR WINDOW
Applicable for Spider 16M 		- 1 Enquire
1 65786400
LH DOOR WINDOW
Applicable for Spider 16M 		- 1 Enquire
2 63768100
RH SLIPPER 		- 1 Enquire
2 63768200
LH SLIPPER 		- 1 Enquire
3 63486900
GASKET 		- 2 Enquire
4 63767900
CLIP 		- 8 Enquire
5 63890100
GASKET 		- 8 Enquire
6 80727600
COMPLETE LH. POWER WINDOW UNIT 		- 1 Enquire
6 80727500
COMPLETE RH. POWER WINDOW UNIT 		- 1 Enquire
7 65826900
HELICAL SPRING 		- 2 Enquire
8 65819600
RH POWER WINDOW MOTOR 		- 1 Enquire
8 65819700
LH POWER WINDOW MOTOR 		- 1 Enquire
9 15916977
SCREW 		- 6 Enquire
10 65827200
STOP BUSHING 		- 2 Enquire
11 65816700
GUIDE 		- 2 Enquire
12 80818700
EXTERNAL LH. REARVIEW MIRROR
Applicable for GD 		- 1 Enquire
12 80826900
EXTERNAL LH. REARVIEW MIRROR
Applicable for USA, CDN 		- 1 Enquire
12 80431600
EXTERNAL RH. REARVIEW MIRROR
Not for USA, CDN, GD 		- 1 Enquire
12 80818800
EXTERNAL RH. REARVIEW MIRROR
Applicable for GD 		- 1 Enquire
12 80827000
EXTERNAL RH. REARVIEW MIRROR
Applicable for USA, CDN 		- 1 Enquire
12 80431500
EXTERNAL LH. REARVIEW MIRROR
Not for USA, CDN, GD 		- 1 Enquire
13 65226000
EXTERNAL RH MIRROR GASKET 		- 1 Enquire
13 65226100
LH EXTERNAL MIRROR GASKET 		- 1 Enquire
14 66075200
BRACKET 		- 2 Enquire
15 10902224
SCREW 		- 2 Enquire
16 12643724
WASHER
6.45 X 18 X 1.5 		- 2 Enquire
17 127494
WASHER 		- 2 Enquire
18 65713200
SCREW 		- 2 Enquire
19 65757200
SCREW 		- 2 Enquire
20 13831801
NUT 		- 4 Enquire
21 65062100
REAR RH WINDOW GUIDE 		- 1 Enquire
21 65062200
REAR LH WINDOW GUIDE 		- 1 Enquire
22 65310700
RH VIBRATION DAMPER 		- 1 Enquire
22 65310800
LH VIBRATION DAMPER 		- 1 Enquire
23 62797600
Allen Bolt Countersunk M6 x 20
No longer supplied; Replaced by 14304124 		- 2 Enquire
23 14304124
SCREW 		- 2 Enquire
24 12638124
WASHER 		- 2 Enquire
25 65997500
RH PLATE 		- 1 Enquire
25 65997700
LH PLATE 		- 1 Enquire
26 63853600
RH MOVING GUIDE 		- 1 Enquire
26 63853700
LH MOBILE GUIDE 		- 1 Enquire
27 10903024
SCREW 		- 2 Enquire
28 13577724
WASHER 		- 2 Enquire
29 63168800
PRE-LOAD REGULATOR 		- 2 Enquire
30 64854600
PIN ADJUSTMENT 		- 2 Enquire
31 14059290
FLANGED NUT M6 		- 2 Enquire
32 12643724
WASHER
6.45 X 18 X 1.5 		- 2 Enquire
33 13836721
SCREW 		- 2 Enquire
34 12643724
WASHER 		- 2 Enquire
35 65062000
FRONT LH WINDOW GUIDE 		- 1 Enquire
35 65061900
FRONT RH WINDOW GUIDE 		- 1 Enquire
36 14039714
NUT 		- 4 Enquire
37 65828200
RH SLIDING GUIDE 		- 1 Enquire
37 65828300
LH SLIDING GUIDE 		- 1 Enquire
38 14303724
SCREW 		- 4 Enquire
39 62790300
NUT 		- 4 Enquire
40 65807300
COLUMN GASKET 		- 4 Enquire
41 231620
SCREW
M6 X 25 		- 4 Enquire
42 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 4 Enquire
43 12643724
WASHER 		- 4 Enquire
44 14498801
WASHER 		- 4 Enquire
45 13297377
SCREW M4 X 10 		- 4 Enquire
46 62798000
WASHER 		- 4 Enquire
47 62932800
SHIM 		- 4 Enquire
48 62932900
BUSHING 		- 4 Enquire
49 168617
MICROSWITCH 		- 2 Enquire
50 15687975
SCREW 		- 4 Enquire
51 65907400
RH MOBILE BRACKET 		- 1 Enquire
51 65907500
LH MOBILE BRACKET 		- 1 Enquire
52 808769
CAP NUT 		- 4 Enquire
53 68981700
LH EXTERNAL REAR VIEW MIRROR GLASS 		- 1 Enquire
53 68981600
RH EXTERNAL REAR VIEW MIRROR GLASS 		- 1 Enquire
54 10418601
BRACKET WITH SHEATH 		- 2 Enquire
55 14059290
FLANGED NUT M6 		- 2 Enquire
56 13577724
WASHER 		- 2 Enquire
57 65889400
EXTERNAL TEMPERATURE SENSOR 		- 1 Enquire
58 69742000
EXTERNAL TRIANGLE TRIM ELEMENT FOR LH REAR VIEW MIRROR 		- 1 Enquire
58 69741900
RH REAR MIRROR EXTERNAL FIXING PLATE 		- 1 Enquire
