HEADLIGHTS AND TAILLIGHTS of Ferrari Ferrari 430 Scuderia Spider 16M

View All

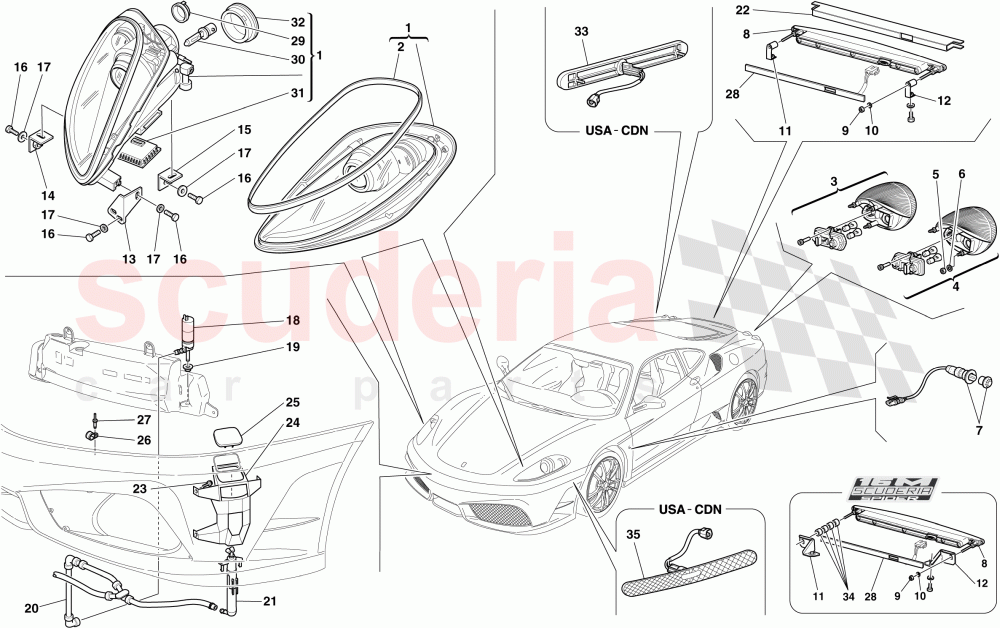

Ferrari 430 Scuderia Spider 16M - HEADLIGHTS AND TAILLIGHTS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	255028	RH. HIGH/LOW BEAM HEADLIGHT	Enquire	To Order
	255029	LH. HIGH/LOW BEAM HEADLIGHT	Enquire	To Order
	255025	LH. HIGH/LOW BEAM HEADLIGHT	Enquire	To Order

...and 15 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	215757	RH HEADLAMP GASKET	Enquire	To Order
	215756	LH HEADLAMP GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	226723	LH INNER REAR LIGHT	Enquire	To Order
	193182	RH REAR OUTER LIGHT	Enquire	To Order
	226722	RH REAR INTERNAL TAILLIGHT	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	185671	LH Rear Outer Light	Enquire	To Order
	193181	LH REAR EXTERNAL TAILLIGHT	Enquire	To Order
	185670	RH Rear Outer Light	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	165558	SIDE TURN INDICATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	241531	Third Stop Light	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	10794014	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10615274	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68634700	RH BRACKET	Enquire	To Order
	68074700	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68832500	LH BRACKET	Enquire	To Order
	68634900	LH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81038400	LH. FRONT BRACKET	Enquire	To Order
	81036400	RH. FRONT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65520000	Fastening Bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68285300	REAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68740000	HEADLIGHT WASHER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65511700	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68141200	HEADLIGHT WASHER TUBES ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68544200	Complete LH Headlight Washer Body	Enquire	To Order
	68544000	COMPLETE RH HEADLIGHT WASHER BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69640200	INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15783104	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68079100	RH MOUNTING	Enquire	To Order
	68079200	LH Mounting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68189700	RH CAP HEADLIGHT WASHERS	Enquire	To Order
	68189800	LH Cover Head Lamp Washers	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441590	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14296191	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	230666	RUNNING LIGHT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	229502	XENON LAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	229503	XENON SPOTLIGHTS CENTRAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	229504	REAR RUBBER COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191504	REAR SIDE MARKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64529600	Shim	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	217531	Front Side Marker	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	255028	RH. HIGH/LOW BEAM HEADLIGHT	255028 RH. HIGH/LOW BEAM HEADLIGHT Carbon version; Applicable for Spider 16M; Applicable for J, GD	-	1	Enquire
1	255029	LH. HIGH/LOW BEAM HEADLIGHT	255029 LH. HIGH/LOW BEAM HEADLIGHT Carbon version; Applicable for Spider 16M; Applicable for J, GD	-	1	Enquire
1	255025	LH. HIGH/LOW BEAM HEADLIGHT	255025 LH. HIGH/LOW BEAM HEADLIGHT Carbon version; Applicable for Spider 16M; Not for USA, CDN, J, GD	-	1	Enquire
1	255026	RH. HIGH/LOW BEAM HEADLIGHT	255026 RH. HIGH/LOW BEAM HEADLIGHT Carbon version; Applicable for Spider 16M; Applicable for USA, CDN	-	1	Enquire
1	255027	LH. HIGH/LOW BEAM HEADLIGHT	255027 LH. HIGH/LOW BEAM HEADLIGHT Carbon version; Applicable for Spider 16M; Applicable for USA, CDN	-	1	Enquire
1	244291	LH. HIGH/LOW BEAM HEADLIGHT	244291 LH. HIGH/LOW BEAM HEADLIGHT Carbon version; Optional; Not for Spider 16M; Applicable for J, GD	-	1	Enquire
1	255024	RH. HIGH/LOW BEAM HEADLIGHT	255024 RH. HIGH/LOW BEAM HEADLIGHT Carbon version; Applicable for Spider 16M; Not for USA, CDN, J, GD	-	1	Enquire
1	244289	LH. HIGH/LOW BEAM HEADLIGHT	244289 LH. HIGH/LOW BEAM HEADLIGHT Carbon version; Optional; Not for Spider 16M; Not for USA, CDN, J, GD	-	1	Enquire
1	244294	LH. HIGH/LOW BEAM HEADLIGHT	244294 LH. HIGH/LOW BEAM HEADLIGHT Carbon version; Optional; Not for Spider 16M; Applicable for USA, CDN	-	1	Enquire
1	237384	LH. HIGH/LOW BEAM HEADLIGHT	237384 LH. HIGH/LOW BEAM HEADLIGHT Grey; Not for Spider 16M; Not for USA, CDN, J, GD	-	1	Enquire
1	239578	LH. HIGH/LOW BEAM HEADLIGHT	239578 LH. HIGH/LOW BEAM HEADLIGHT Grey; Not for Spider 16M; Applicable for USA, CDN	-	1	Enquire
1	239997	LH. HIGH/LOW BEAM HEADLIGHT	239997 LH. HIGH/LOW BEAM HEADLIGHT Grey; Not for Spider 16M; Applicable for J, GD	-	1	Enquire
1	244288	RH. HIGH/LOW BEAM HEADLIGHT	244288 RH. HIGH/LOW BEAM HEADLIGHT Carbon version; Optional; Not for Spider 16M; Not for USA, CDN, J, GD	-	1	Enquire
1	244292	RH. HIGH/LOW BEAM HEADLIGHT	244292 RH. HIGH/LOW BEAM HEADLIGHT Carbon version; Optional; Not for Spider 16M; Applicable for USA, CDN	-	1	Enquire

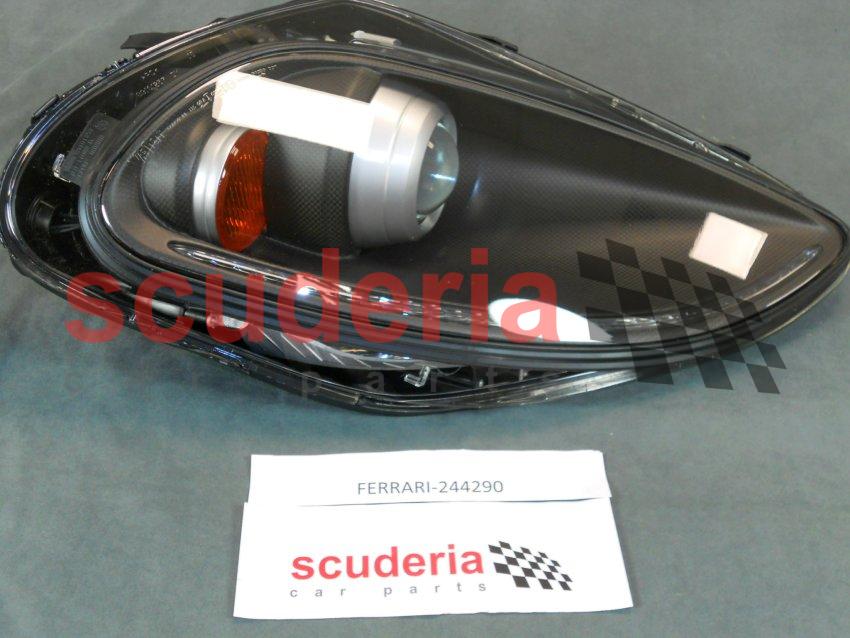

1	244290	RH. High/Low Beam Headlight	244290 RH. High/Low Beam Headlight Carbon version; Optional; Not for Spider 16M; Applicable for J, GD	-	1	Enquire
1	237383	RH. HIGH/LOW BEAM HEADLIGHT	237383 RH. HIGH/LOW BEAM HEADLIGHT Grey; Not for Spider 16M; Not for USA, CDN, J, GD	-	1	Enquire
1	239577	RH. HIGH/LOW BEAM HEADLIGHT	239577 RH. HIGH/LOW BEAM HEADLIGHT Grey; Not for Spider 16M; Applicable for USA, CDN	-	1	Enquire
1	239996	RH. HIGH/LOW BEAM HEADLIGHT	239996 RH. HIGH/LOW BEAM HEADLIGHT Grey; Not for Spider 16M; Applicable for J, GD	-	1	Enquire
2	215757	RH HEADLAMP GASKET	215757 RH HEADLAMP GASKET	-	1	Enquire
2	215756	LH HEADLAMP GASKET	215756 LH HEADLAMP GASKET	-	1	Enquire
3	226723	LH INNER REAR LIGHT	226723 LH INNER REAR LIGHT Applicable for Korea	-	1	Enquire
3	193182	RH REAR OUTER LIGHT	193182 RH REAR OUTER LIGHT Applicable for USA, CDN	-	1	Enquire
3	226722	RH REAR INTERNAL TAILLIGHT	226722 RH REAR INTERNAL TAILLIGHT Applicable for Korea	-	1	Enquire
3	226723	LH INNER REAR LIGHT	226723 LH INNER REAR LIGHT Not for USA, CDN	-	1	Enquire
3	193183	LH REAR INTERNAL TAILLIGHT	193183 LH REAR INTERNAL TAILLIGHT Applicable for USA, CDN	-	1	Enquire
4	185671	LH Rear Outer Light	185671 LH Rear Outer Light Not for USA, CDN	-	1	Enquire
4	193181	LH REAR EXTERNAL TAILLIGHT	193181 LH REAR EXTERNAL TAILLIGHT Applicable for USA, CDN	-	1	Enquire
4	185670	RH Rear Outer Light	185670 RH Rear Outer Light Not for USA, CDN	-	1	Enquire
4	193180	RH REAR EXTERNAL TAILLIGHT	193180 RH REAR EXTERNAL TAILLIGHT Applicable for USA, CDN	-	1	Enquire
5	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	8	Enquire
6	10519424	WASHER	10519424 WASHER	-	8	Enquire
7	165558	SIDE TURN INDICATOR	165558 SIDE TURN INDICATOR	-	2	Enquire
8	241531	Third Stop Light ARRIVING SOON	241531 Third Stop Light Applicable with wiring harness 241766, Tab. 130 Pos. 12 ARRIVING SOON	-	1	Enquire
9	10794014	NUT	10794014 NUT	-	2	Enquire
10	10615274	WASHER	10615274 WASHER	-	2	Enquire
11	68634700	RH BRACKET	68634700 RH BRACKET Applicable for Spider 16M	-	1	Enquire
11	68074700	RH BRACKET	68074700 RH BRACKET Not for Spider 16M	-	1	Enquire
12	68832500	LH BRACKET	68832500 LH BRACKET Not for Spider 16M	-	1	Enquire
12	68634900	LH BRACKET	68634900 LH BRACKET Applicable for Spider 16M	-	1	Enquire
13	81038400	LH. FRONT BRACKET	81038400 LH. FRONT BRACKET Aluminium; Replaces 68285200	-	1	Enquire
13	81036400	RH. FRONT BRACKET	81036400 RH. FRONT BRACKET Aluminium; Replaces 68285100	-	1	Enquire
14	65520000	Fastening Bracket	65520000 Fastening Bracket	-	2	Enquire
15	68285300	REAR BRACKET	68285300 REAR BRACKET Aluminium; Replaces 68285300	-	2	Enquire
16	10902424	SCREW	10902424 SCREW	-	14	Enquire
17	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	14	Enquire
18	68740000	HEADLIGHT WASHER PUMP	68740000 HEADLIGHT WASHER PUMP	-	1	Enquire
19	65511700	GASKET	65511700 GASKET	-	1	Enquire
20	68141200	HEADLIGHT WASHER TUBES ASSEMBLY	68141200 HEADLIGHT WASHER TUBES ASSEMBLY	-	1	Enquire

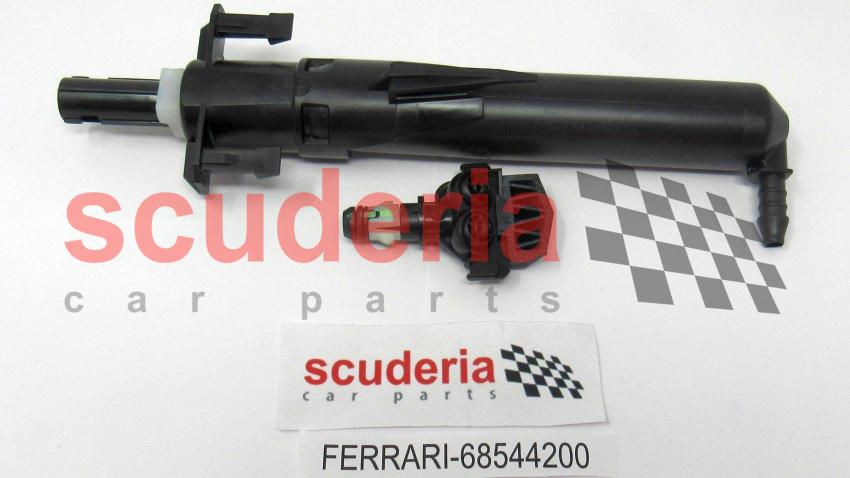

21	68544200	Complete LH Headlight Washer Body	68544200 Complete LH Headlight Washer Body	-	1	Enquire
21	68544000	COMPLETE RH HEADLIGHT WASHER BODY	68544000 COMPLETE RH HEADLIGHT WASHER BODY	-	1	Enquire
22	69640200	INSULATION	69640200 INSULATION Not for Spider 16M	-	2	Enquire
23	15783104	SCREW	15783104 SCREW	-	6	Enquire

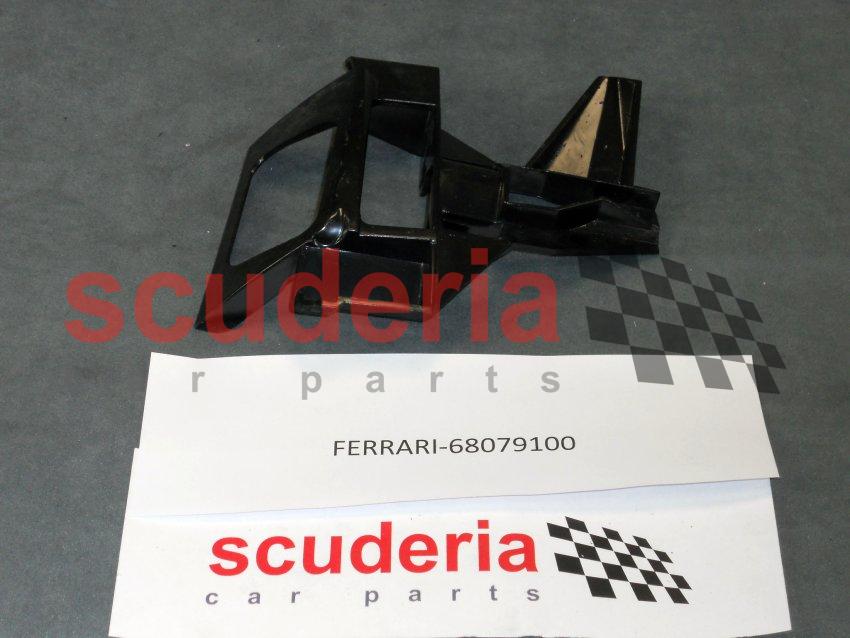

24	68079100	RH MOUNTING	68079100 RH MOUNTING	-	1	Enquire

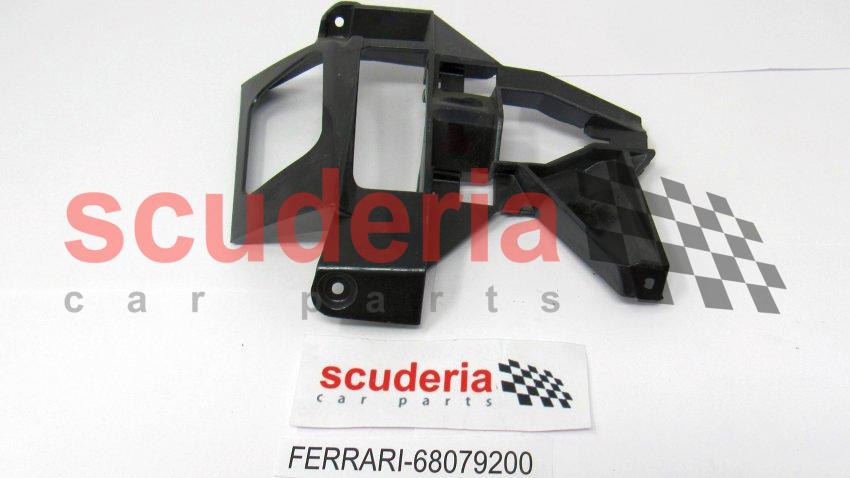

24	68079200	LH Mounting	68079200 LH Mounting	-	1	Enquire

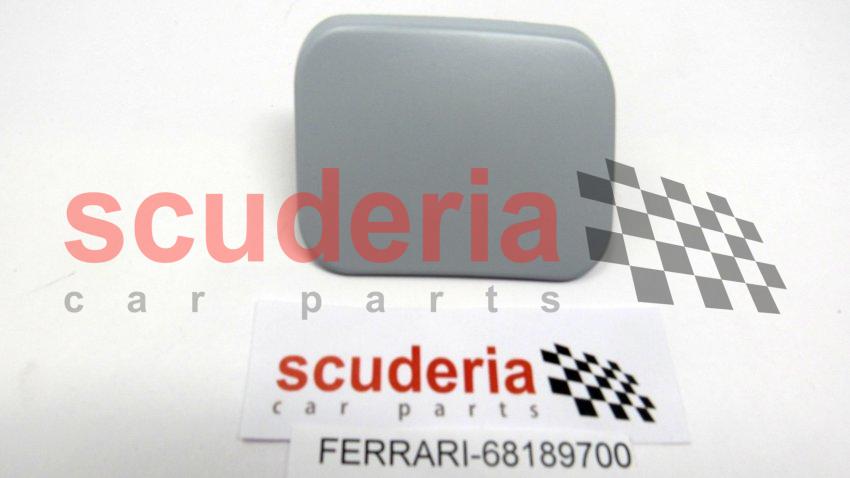

25	68189700	RH CAP HEADLIGHT WASHERS	68189700 RH CAP HEADLIGHT WASHERS	-	1	Enquire

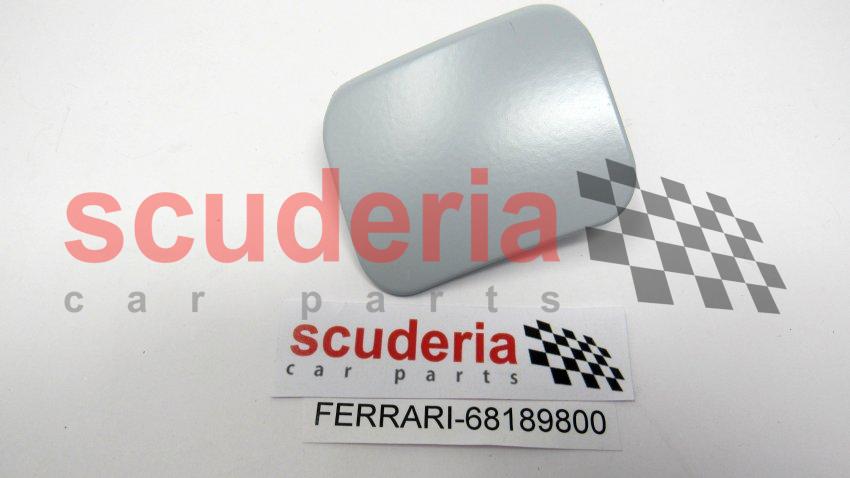

25	68189800	LH Cover Head Lamp Washers	68189800 LH Cover Head Lamp Washers	-	1	Enquire
26	10441590	BRACKET WITH SHEATH	10441590 BRACKET WITH SHEATH	-	4	Enquire
27	14296191	RIVET	14296191 RIVET	-	4	Enquire
29	230666	RUNNING LIGHT COVER	230666 RUNNING LIGHT COVER	-	2	Enquire
30	229502	XENON LAMP	229502 XENON LAMP	-	2	Enquire
31	229503	XENON SPOTLIGHTS CENTRAL	229503 XENON SPOTLIGHTS CENTRAL	-	2	Enquire
32	229504	REAR RUBBER COVER	229504 REAR RUBBER COVER	-	2	Enquire
33	191504	REAR SIDE MARKER	191504 REAR SIDE MARKER Applicable for USA, CDN, GOLFO	-	2	Enquire
34	64529600	Shim	64529600 Shim Applicable for Spider 16M	-	8	Enquire
35	217531	Front Side Marker	217531 Front Side Marker Applicable for USA, CDN, GOLFO	-	1	Enquire
